Specifications
Air Cooled Condenser-For large capacity condensing unit
-10-70HP Capacity
-V Type
-Fin and AL Marterial

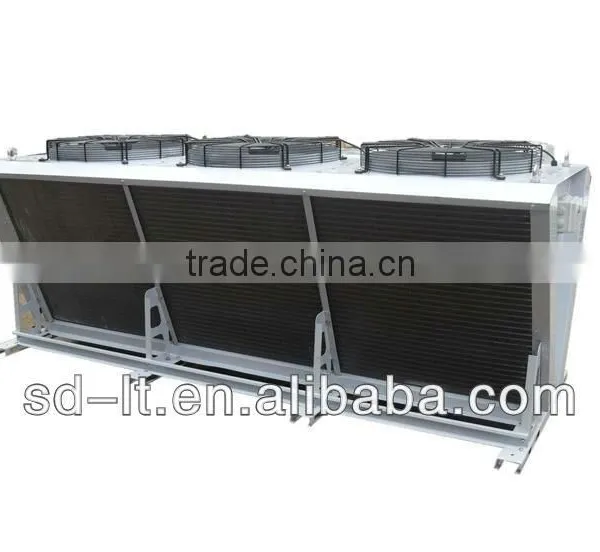

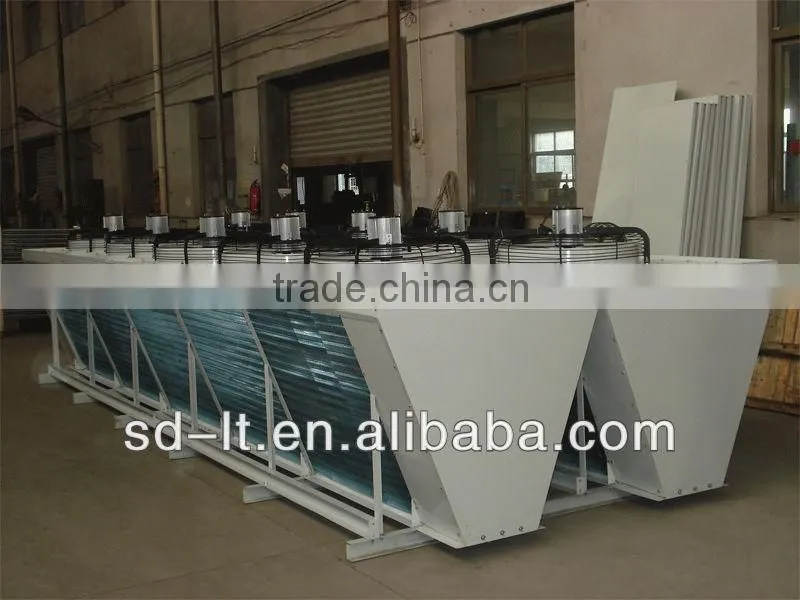

V Type Air Cooled Condenser for Refrigerant Condensing Unit
Features of V Type Air Cooled Condenser
Air cooled condenser is a kind of cooling devices by utilizing air which connected with Freon refrigeration equipments.
1. The outcovering is made of high-quality steel plate with sprayed surface to ensure corrosion resistance, beautiful appearance;
2. Coil adopted staggered permutation,and tighted to fit with Aluminum sheet to ensure high efficiency heat exchange;
3. Units adopted 2.8MPa air tightness test and system sewage discharge treatment;
4. Application for R22,R134a,R404a,R407C etc. Refrigerant;
5. FNV condenser have the features of large windward side, high quality heat exchange; external rotor motors used.
Model Specification of V Type Air Cooled Condenser
Models Specifications
FN V ----- 80 A
FN: Condenser Products Code
V: Type: S(Low Noise Type); V(Air Top Outlet Type); P(Water Spray Type); None(Standard Type)
80:Heat Exchange Area(m2)
A: Model Change Design Code
FNV Series: Air Top Outlet Type Models: FNV-70A to FNV-505A
-Designed for Large Capacity Refrigerant Units;
-With external fans;
-Good heat transfer effect;
FNV Type Models Technical Data Sheet:

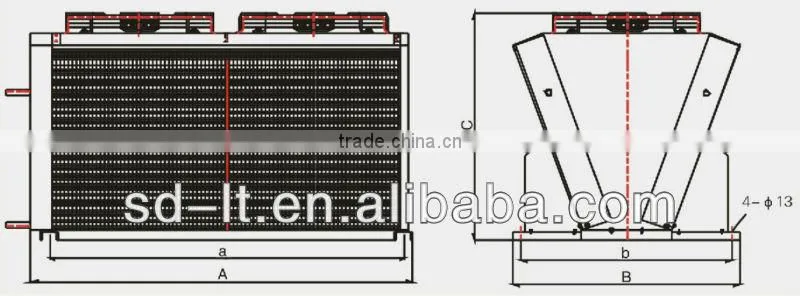

FNV Type Models Overall Size and Installation Size:
