FNS Series Low Noise Air Cooled Condenser

Specifications

Air Cooled Condenser
-CE Certificate
-Copper Tube and AL Fin
-Low Noise Type
-High Efficiency

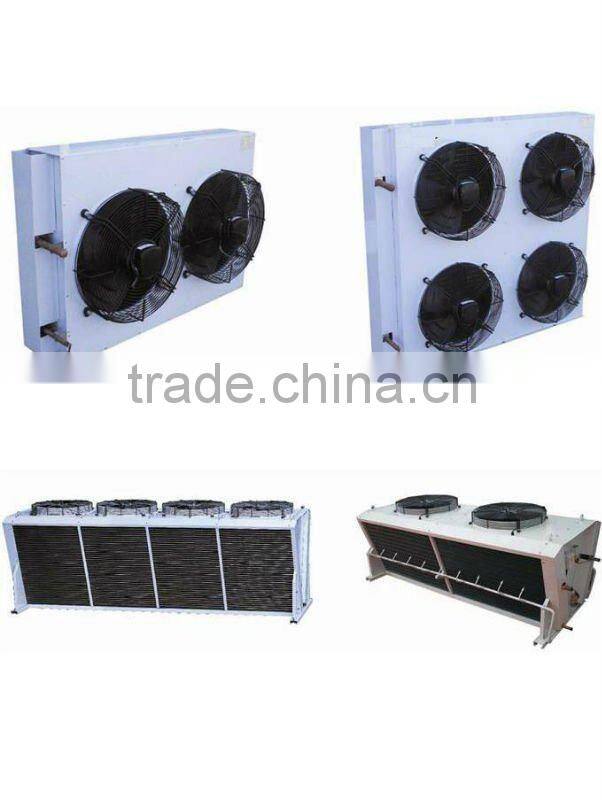

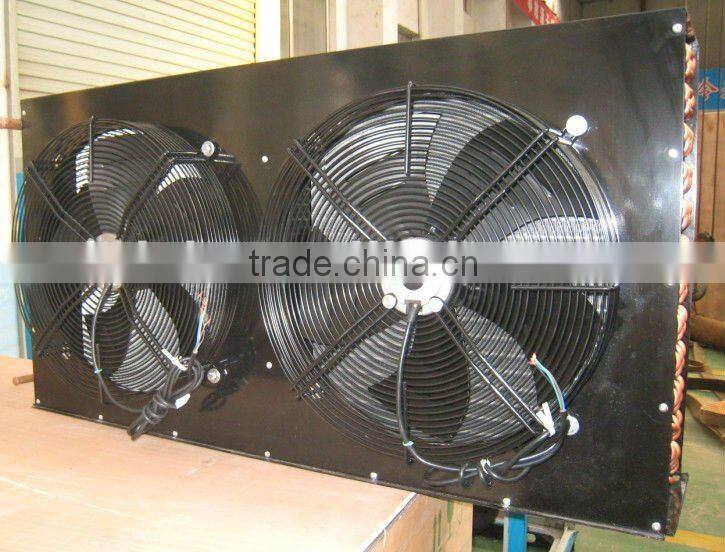

FNS Series Low Noise Air Cooled Condenser

Introduction

Air cooled condenser is a kind of cooling devices by utilizing air which connected with Freon refrigeration equipments. Now we produce FN, FNS type and FNV type air cooled condenser, Air side outlet for FN&FNS type and Air top outlet for FNV type.

Features

1. The outcovering is made of high-quality steel plate with sprayed surface to ensure corrosion resistance, beautiful appearance;

2. Coil adopted staggered permutation,and tighted to fit with Aluminum sheet to ensure high efficiency heat exchange;

3. Units adopted 2.8MPa air tightness test and system sewage discharge treatment;

4. Application for R22,R134a,R404a,R407C etc. refrigerant;

5. FNS condenser utilized  large air volume and low speed internal motors with low noise,beautiful appearance; Application for  refrigerant equipments which denmand high requirements of noise;

6. FNV condenser have the features of large windward side, high quality heat exchange; external rotor motors used.



Models Specifications

FN      S -----  80     A

FN: Condenser Products Code

S: Type: S(Low Noise Type); V(Air Top Outlet Type); P(Water Spray Type); None(Standard Type)

80:Heat Exchange Area(M2)

A: Model Change Design Code

FNS Series Air Cooled Condenser:

Models No.	Nominal heat exchange(KW)	Area	Fan				Diameter of Interface
		M2	Power(W)	Diameter(mm)	Air Flow(m³/h)	Voltage(V)	Inlets	Outlets
FNS-25	7.5	25	180	450	4600	380	φ16	φ12
FNS-35	10.5	35	180	450	4600	380	φ16	φ12
FNS-40	12	40	320	500	6150	380	φ16	φ12
FNS-45	13.5	45	600	560	6800	380	φ22	φ12
FNS-55	16.5	55	600	560	6800	380	φ22	φ16
FNS-65	19.5	65	600	560	6800	380	φ22	φ16
FNS-80	24	80	2×320	500	12300	380	φ28	φ16
FNS-90	27	90	2×600	560	13600	380	φ28	φ22
FNS-110	33	110	2×600	560	13600	380	φ28	φ22
FNS-130	39	130	2×680	610	16400	380	φ28	φ22
FNS-150	45	150	2×680	610	16400	380	φ28	φ22

Size and Installation Size:

Models No.	Overall Size:mm		Installation Size:mm
	A×B×C		D	E1	E2	E3
FNS-25	855×430×630		845	25	160	160
FNS-35	855×430×630		845	25	160	160
FNS-40	855×470×730		845	25	175	175
FNS-45	855×470×830		845	25	175	175
FNS-55	855×470×830		845	25	175	175
FNS-65	855×470×930		845	25	175	175
FNS-80	1440×470×830		1430	25	175	175
FNS-90	1440×470×930		1430	25	175	175
FNS-110	1440×470×930		1430	25	175	175
FNS-130	1540×510×930		1530	25	195	195
FNS-150	1540×510×1030		1530	25	195	195
