FNP Water Spray Type Air Cooled Condenser

FNP Water Spray Type Air Cooled Condenser thumbnail-1
FNP Water Spray Type Air Cooled Condenser photo-1
US$ 1 - 3,889 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
LYTTE or OEM
Model Number:
FNP
Contact Supplier Request Quote Chat Now
Shandong Lvte Air Conditioning System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name LYTTE or OEM
Model Number FNP
Type Condenser
Application Refrigeration Parts
Certification CE

Specifications

Air Cooled Condenser
1.Fin Type Heat Exchanger
2.Water Spray Auxiliary Cooling
3.Large Capacity Range
4.Air Cooled Condenser

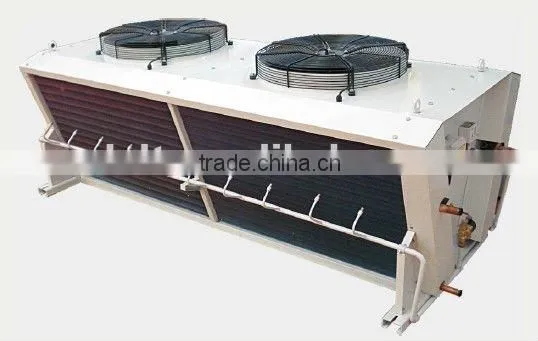

FNP Water Spray Type Air Cooled Condenser



Introduction

Air cooled condenser is a kind of cooling devices by utilizing air which connected with Freon refrigeration equipments. Now we produce FN, FNS type and FNV type air cooled condenser, Air side outlet for FN&FNS type and Air top outlet for FNV type.



Features

1. The outcovering is made of high-quality steel plate with sprayed surface to ensure corrosion resistance, beautiful appearance;

2. Coil adopted staggered permutation,and tighted to fit with Aluminum sheet to ensure high efficiency heat exchange;

3. Units adopted 2.8MPa air tightness test and system sewage discharge treatment;

4. Application for R22,R134a,R404a,R407C etc. refrigerant;

5. FNS condenser utilized  large air volume and low speed internal motors with low noise,beautiful appearance; Application for  refrigerant equipments which denmand high requirements of noise;

6. FNV condenser have the features of large windward side, high quality heat exchange; external rotor motors used.



Models Specifications

FN      S -----  80     A

FN: Condenser Products Code

S: Type: S(Low Noise Type); V(Air Top Outlet Type); P(Water Spray Type); None(Standard Type)

80:Heat Exchange Area(m2)

A: Model Change Design Code

FNP Water Spray Type Air Cooled Condenser

Models No. Capacity Area Fan Diameter of Interface(mm) Water Flow
KW m2 Power
(W)		 Voltage
(V)		 Air Flow
(m³/h)		 Refrigerant Water (m3/h)
Gas Liquid
FNP-70 22.4 70 2×450 380 13000 2×φ22 2×φ16 3/4" 0.6
FNP-105 33.7 105 2×600 380 17400 2×φ22 2×φ16 3/4" 0.6
FNP-140 44.9 140 2×600 380 17400 2×φ22 2×φ16 3/4" 0.6
FNP-175 55.4 175 2×800 380 26000 2×φ28 2×φ22 3/4" 0.8
FNP-195 62.1 195 2×800 380 26000 2×φ28 2×φ22 3/4" 0.8
FNP-260 83.2 260 3×800 380 39000 2×φ28 2×φ22 1" 1.1
FNP-295 93.4 295 3×800 380 39000 2×φ28 2×φ22 1" 1.1
FNP-365 116.5 365 3×800 380 39000 2×φ28 2×φ22 1" 1.1
FNP-405 130 405 4×800 380 52000 2×φ35 2×φ28 1" 1.4
FNP-505 162 505 4×800 380 52000 2×φ35 2×φ28 1" 1.4

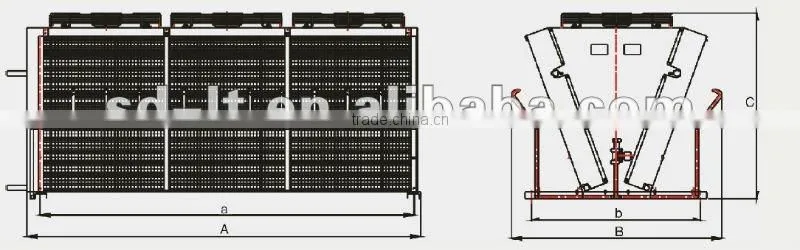

Models No. Overall Size:mm Installation Size:mm
A×B×C a b
FNP-70 1455×1162×952 1330 896
FNP-105 1455×1162×952 1330 896
FNP-140 1455×1162×952 1330 896
FNP-175 1755×1237×1050 1630 970
FNP-195 1755×1237×1050 1630 970
FNP-260 2555×1237×1050 2430 970
FNP-295 2555×1237×1050 2430 970
FNP-365 2555×1237×1050 2430 970
FNP-405 3155×1300×1144 3030 1032
FNP-505 3155×1300×1144 3030 1032
