Specifications
D Series Air Cooler/Evaporator1. Outcovering adopts high-quality steel
2. Coil adopted staggered permutation
3. Use longtime

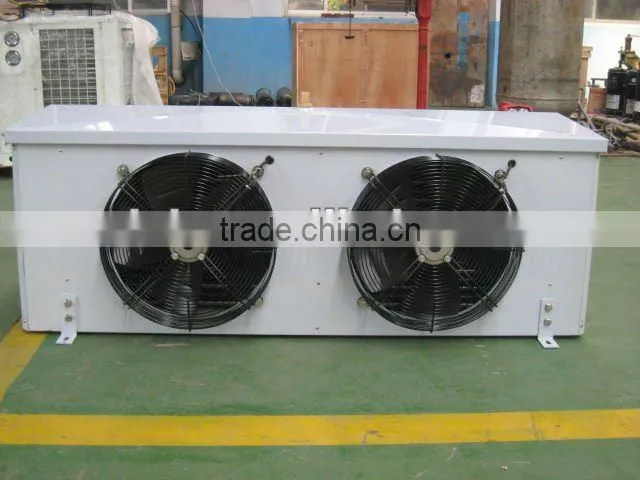

D Series Air Cooler/Evaporator
Introduction
D series Air Cooler/Evaporator is a kind of cooling equipments which used with refrigerant units application for different
cold rooms. It is clasified three category including DL, DD, DJ by different cold room temperature. DL series applied for 0°C
preservation cold room; DD series applied for about -18°C cold storage; DJ series applied for -25°C frozen storage.
Features
1. Unit Outcovering adopts high-quality steel, spraied the surface and corrosion resistance;Good appearance;
2. Coil adopted staggered permutation,and tighted to fit with Aluminum sheet to ensure high efficiency heat exchange;
3. Stainless steel electric heating tubes are uniformly distributed in the coil pipes, good defrosting effeciency;
4. Double water disk structure, which can effectively prevent the water tray freeze;
Models Specification
D D 19/45 3 A
D---Products Series Code
D---Temperature(L:-5°C~5°C;D:-15°C~-20°C;J:Below -25°C)
19---Nominal heat exchange
45---Fan Diameter 3---Fan Quantity
A---A:380V/3P/50HZ;B:220V/1P/50HZ;C:220V/3P/60HZ;D:220V/1P/60HZ;E:110V/1P/60HZ(D,E Fan Diameter≤500mm)
TECHNICAL DATA
