CE Certificate LTLF Series Screw Compressor Air Cooled Chiller for Industrial

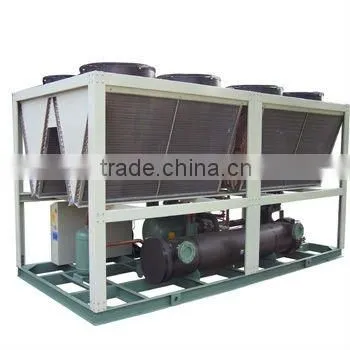

CE Certificate LTLF Series Screw Compressor Air Cooled Chiller for Industrial thumbnail-1
CE Certificate LTLF Series Screw Compressor Air Cooled Chiller for Industrial photo-1
US$ 1,288 - 98,968 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Air Cooled Water Chiller
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Shandong Lvte Air Conditioning System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Air Cooled Water Chiller
Place of Origin Shandong, China
Brand Name LYTTE
Model Number LTLF Series
Cooling Capability(kw) According to Models
Voltage 380V/220V AC-3P/1P-50HZ/60HZ
Dimension(L*W*H) According to Models
Weight According to Models
Certification CE, Other, CE, ISO
Warranty 2 Years
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Air Cooled Water Chiller
-Screw Compressor
-Low Noise High Efficiency
-CE Certificater
-R134a,R407c,R22

CE Certificate R407C,R134A,R22,High Quality Screw Compressor Air Cooled Water Chiller,Industrial Chiller for Cooling Only in Residential or Commerical Building,Shopping Center,etc

FEATURES:

1.Twin screw compressors of world famous brand is adopted, with high efficiency, low noise level, less wearing and long operation time.

2.The unit is of high performance as they are made of the condensers and evaporators of grooved copper pipes, and high quality components, by specialized process.

3.The unit is easy to operate, and friendly interfaced, as they adopt leading brand PLC, 64K color touch screen and other control elements.

4.The energy saving for Multi-capacity regulation resulted in cost cut down for operation and maintenance.

Kinds of models of Air Cooled Water Chillers:

a.Single Compressor Models

MODEL LTLF- 30AS 40AS 50AS 60AS 70AS 80AS 90AS 100AS 110AS 120AS 130AS 140AS
Cooling Capacity KW 87 117 155 200 224 278 305 330 363 430 456 500
103kcal/hr 75 101 133 172 193 239 262 284 312 370 392 430
Compressor Power(kW)  28.4 37.4 46.9 62.7 68.3 80.8 89 97.1 108 125.4 132.4 143.4
Current(A) 47.8 62.9 78.9 105.3 114.7 135.9 149.6 163.2 181.5 210.8 222.5 241.1
Capaty Regul 0-33-66-100%(33%  for start) 0-50-75-100%(25% for start)
Power(kW) 31.5 40.7 51.6 69.3 74.9 90.2 98.4 106.5 119.2 137.9 145 157
Current(A) 57.4 74.3 93.3 128.1 137.5 164.7 178.4 192 213.5 249.2 260.9 281.1
Refrigerant Type R22
Control Thermal expension valve
Cooling fan Quantity 2 3 3 6 6 6 6 6 8 8 8 10
Single motor power 1.56 1.1 1.56 1.1 1.1 1.56 1.56 1.56 1.4 1.56 1.56 1.4
Current(A) 4.8 3.8 4.8 3.8 3.8 4.8 4.8 4.8 4 4.8 4.8 4
Evaporator water pipe connection DN65Flg DN80Flg DN100Flg DN125Flg
Water flow(m³/h) 15 20 27 34 39 48 52 57 62 74 78 86
P drop(KPa) 37 37 39 42 42 45 45 46 48 48 49 49

b.Double Compressors Models

MODEL LTLF- 60AD 80AD 100AD 120AD 140AD 160AD 180AD 200AD 220AD 240AD 260AD 280AD
Cooling Capacity KW 174 234 310 400 448 556 610 660 726 860 912 1000
103kcal/hr 150 201.2 266.6 344 385.3 478.2 524.6 567.6 624.4 740 784.3 860
Compressor Power(kW)  56.8 74.8 93.8 125.4 136.6 161.6 178 194.2 216 250.8 264.8 286.8
Current(A) 95.6 125.8 157.8 210.6 229.4 271.8 299.2 326.4 363 421.6 445 482.2
Capaty Regul 0-16.5…100%(16.5%  for start) 0-12.5…...100%(12.5% for start)
Power(kW) 61 84.2 103.2 137.9 150.6 180.3 196.7 212.9 238.4 275.8 290 315
Current(A) 109.4 154.6 186.6 249 277.4 329.4 356.8 384 427 498.4 521.8 562.2
Refrigerant Type R22
Control Thermal expension valve
Cooling fan Quantity 6 6 6 8 10 12 12 12 16 16 16 20
Single motor power 0.7 1.56 1.56 1.56 1.4 1.56 1.56 1.56 1.4 1.56 1.56 1.4
Current(A) 2.3 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4 4.8 4.8 4
Evaporator water pipe connection DN80Flg DN100Flg DN125Flg DN150Flg
Water flow(m³/h) 30 40 53 69 77 96 105 114 125 148 157 172
P drop(KPa) 50 50 51 52 53 53 58 58 65 66 70 70

Remark:1.Colling Condition:Cold water in/out 12/7°C; Environmental 35°C;

2.Power supply: 3P-380V-50HZ;with voltage allowance ±10%,voltage dif between the phase lines±2%;

3.The data above is for R22, contact us if that for R134a,R407c and other refrigerant need;

4.There may be Changes for improvement without notice, confirm always before your order.

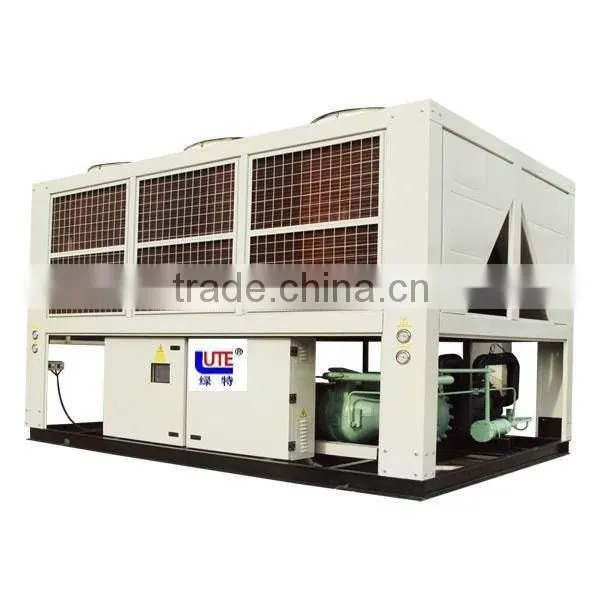

CE Certificate LTLF Series Screw Compressor Air Cooled Chiller for IndustrialCE Certificate LTLF Series Screw Compressor Air Cooled Chiller for Industrial



Certificate

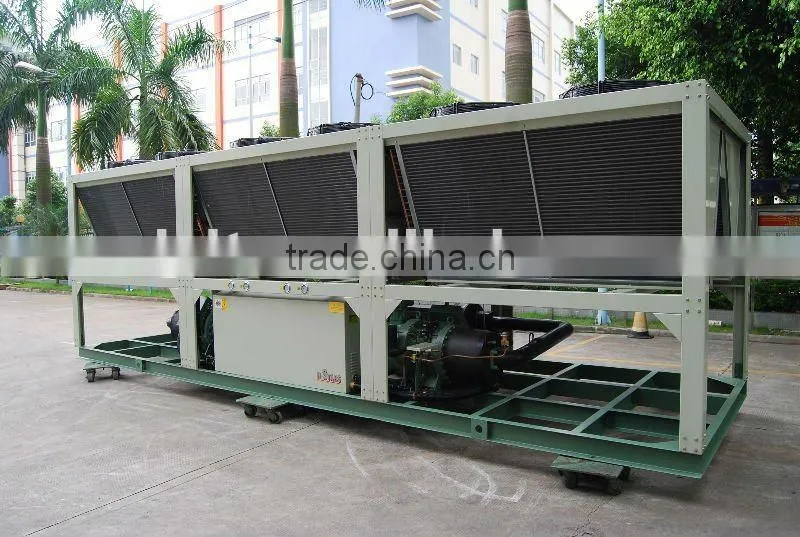

CE Certificate LTLF Series Screw Compressor Air Cooled Chiller for IndustrialCE Certificate LTLF Series Screw Compressor Air Cooled Chiller for Industrial
