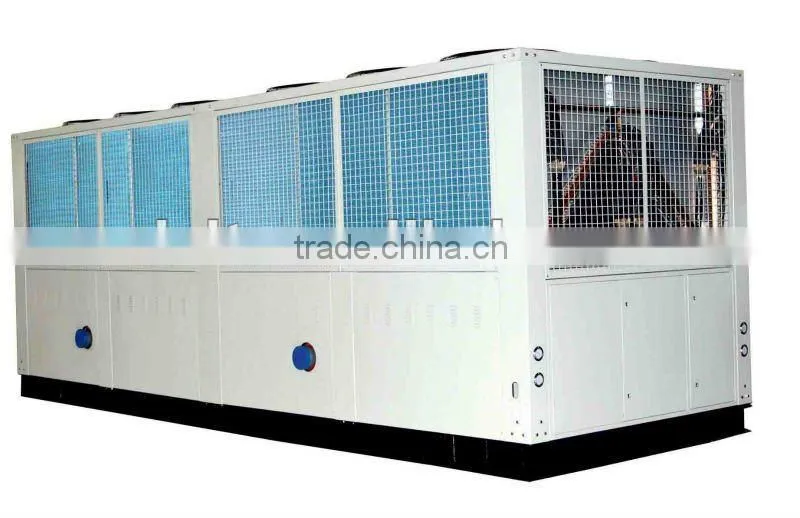

Central Air Conditioner Screw Compressor Air Cooled Water Chiller With High Quatity and Competitive Price
US$ 1,358 - 98,996
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Chiller
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
87-1000kw, Srew Compressor High Quality High Efficiency And Energy Saving Air Cooled Water ChillersNegotiableMOQ: 1 Set -
Water Cooled Water Chiller, Central Air Conditioner ChillerUS$ 399 - 42,258MOQ: 1 Unit
-
8.3-120KW, Box Type High Quality and Most Energy-saving Air Cooled Water ChillerUS$ 399 - 42,258MOQ: 1 Unit
-
CE Certificate LTLF Series Screw Compressor Air Cooled Chiller for IndustrialUS$ 1,288 - 98,968MOQ: 1 Unit
-
LTLF Series Screw Compressor Air Cooled Chiller(CE Certificate)US$ 1,039 - 99,999MOQ: 1 Unit
Condition
New
Type
Chiller
Place of Origin
Shandong, China
Brand Name
LYTTE
Model Number
LTLF Series
Operating Voltage
Other, 380V/220V AC-3P/1P-50HZ/60HZ
Mounting
Floor Standing
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Air Cooled Water Chiller-Energy Saving
-High Efficiency & Good Quatity
-CE,CRAA
-Screw Compressor
Air Cooled Screw Compressor Water Chiller, Air Cooled Chiller, Air Conditioning Chiller, Industrial Chiller,Air Cooled Water Chiller for Cooling,No Cooling Tower Needed
SYSTEM FEATURES:
1.Twin screw compressors of world famous brand is adopted, with high efficiency, low noise level, less wearing and long operation time.
2.The unit is of high performance as they are made of the condensers and evaporators of grooved copper pipes, and high quality components, by specialized process.
3.The unit is easy to operate, and friendly interfaced, as they adopt leading brand PLC, 64K color touch screen and other control elements.
4.The energy saving for Multi-capacity regulation resulted in cost cut down for operation and maintenance.
Kinds of models of Air Cooled Water Chillers:
a.Single Compressor Models
| MODEL LTLF- | 30AS | 40AS | 50AS | 60AS | 70AS | 80AS | 90AS | 100AS | 110AS | 120AS | 130AS | 140AS | |
| Cooling Capacity | KW | 87 | 117 | 155 | 200 | 224 | 278 | 305 | 330 | 363 | 430 | 456 | 500 |
| 103kcal/hr | 75 | 101 | 133 | 172 | 193 | 239 | 262 | 284 | 312 | 370 | 392 | 430 | |
| Compressor | Power(kW) | 28.4 | 37.4 | 46.9 | 62.7 | 68.3 | 80.8 | 89 | 97.1 | 108 | 125.4 | 132.4 | 143.4 |
| Current(A) | 47.8 | 62.9 | 78.9 | 105.3 | 114.7 | 135.9 | 149.6 | 163.2 | 181.5 | 210.8 | 222.5 | 241.1 | |
| Capaty Regul | 0-33-66-100%(33% for start) | 0-50-75-100%(25% for start) | |||||||||||
| Power(kW) | 31.5 | 40.7 | 51.6 | 69.3 | 74.9 | 90.2 | 98.4 | 106.5 | 119.2 | 137.9 | 145 | 157 | |
| Current(A) | 57.4 | 74.3 | 93.3 | 128.1 | 137.5 | 164.7 | 178.4 | 192 | 213.5 | 249.2 | 260.9 | 281.1 | |
| Refrigerant | Type | R22 | |||||||||||
| Control | Thermal expension valve | ||||||||||||
| Cooling fan | Quantity | 2 | 3 | 3 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 10 |
| Single motor power | 1.56 | 1.1 | 1.56 | 1.1 | 1.1 | 1.56 | 1.56 | 1.56 | 1.4 | 1.56 | 1.56 | 1.4 | |
| Current(A) | 4.8 | 3.8 | 4.8 | 3.8 | 3.8 | 4.8 | 4.8 | 4.8 | 4 | 4.8 | 4.8 | 4 | |
| Evaporator | water pipe connection | DN65Flg | DN80Flg | DN100Flg | DN125Flg | ||||||||
| Water flow(m³/h) | 15 | 20 | 27 | 34 | 39 | 48 | 52 | 57 | 62 | 74 | 78 | 86 | |
| P drop(KPa) | 37 | 37 | 39 | 42 | 42 | 45 | 45 | 46 | 48 | 48 | 49 | 49 | |
b.Double Compressors Models
| MODEL LTLF- | 60AD | 80AD | 100AD | 120AD | 140AD | 160AD | 180AD | 200AD | 220AD | 240AD | 260AD | 280AD | |
| Cooling Capacity | KW | 174 | 234 | 310 | 400 | 448 | 556 | 610 | 660 | 726 | 860 | 912 | 1000 |
| 103kcal/hr | 150 | 201.2 | 266.6 | 344 | 385.3 | 478.2 | 524.6 | 567.6 | 624.4 | 740 | 784.3 | 860 | |
| Compressor | Power(kW) | 56.8 | 74.8 | 93.8 | 125.4 | 136.6 | 161.6 | 178 | 194.2 | 216 | 250.8 | 264.8 | 286.8 |
| Current(A) | 95.6 | 125.8 | 157.8 | 210.6 | 229.4 | 271.8 | 299.2 | 326.4 | 363 | 421.6 | 445 | 482.2 | |
| Capaty Regul | 0-16.5…100%(16.5% for start) | 0-12.5…...100%(12.5% for start) | |||||||||||
| Power(kW) | 61 | 84.2 | 103.2 | 137.9 | 150.6 | 180.3 | 196.7 | 212.9 | 238.4 | 275.8 | 290 | 315 | |
| Current(A) | 109.4 | 154.6 | 186.6 | 249 | 277.4 | 329.4 | 356.8 | 384 | 427 | 498.4 | 521.8 | 562.2 | |
| Refrigerant | Type | R22 | |||||||||||
| Control | Thermal expension valve | ||||||||||||
| Cooling fan | Quantity | 6 | 6 | 6 | 8 | 10 | 12 | 12 | 12 | 16 | 16 | 16 | 20 |
| Single motor power | 0.7 | 1.56 | 1.56 | 1.56 | 1.4 | 1.56 | 1.56 | 1.56 | 1.4 | 1.56 | 1.56 | 1.4 | |
| Current(A) | 2.3 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4 | 4.8 | 4.8 | 4 | |
| Evaporator | water pipe connection | DN80Flg | DN100Flg | DN125Flg | DN150Flg | ||||||||
| Water flow(m³/h) | 30 | 40 | 53 | 69 | 77 | 96 | 105 | 114 | 125 | 148 | 157 | 172 | |
| P drop(KPa) | 50 | 50 | 51 | 52 | 53 | 53 | 58 | 58 | 65 | 66 | 70 | 70 | |
