Specifications
Air Cooled Water Chiller-Air to Water Chiller
-Air Cooled Condenser,V-type
-Industrial Chiller
-Cooling only,CE
Detailed Product Description
Air Cooled Water Chiller
-Air to Water Chiller
-Air Cooled Condenser,V-type
-Industrial Chiller
-Cooling only,CE Certificate
Box Type High Quality Air Cooled Water Chiller,Air to Water Chiller

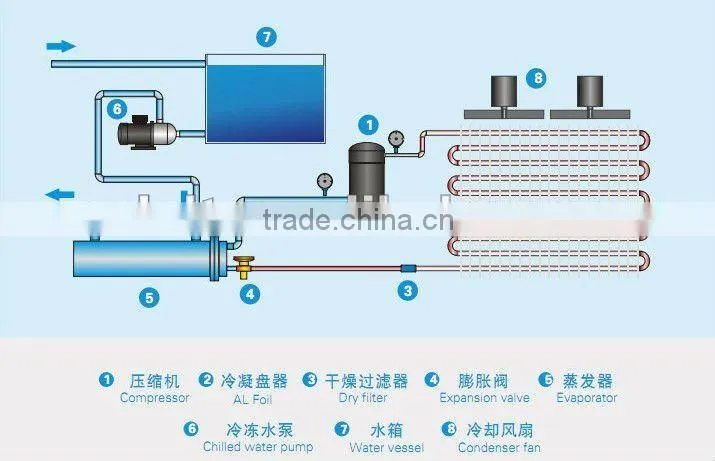

Diagram of Structure:
INTRODUCTION:
1.With scroll, or recipocating compressor of high quality, high efficient heat exchangers, excellent system design, by excellent process, the chillers is of suffient capacity and efficiency;
2.The chillers will work stably for long time period as they are produced by excllent process, composed of reliable control components and professional control procedure;
3.Complete safety protection:High&low pressure protection, pressure safety value protection;Overload protection to the compressor;Power supply protect for phase lack, counter phase, voltage too high and voltage deficient;Water system protection for freezing breaking, water lack etc.
To be used in Industry, there will be wheels at the bottom of the chiller!
Models Design:
1.Colling Condition:Chilled water in/out 12/7°C;Ambient Temperature 35°C;
2.Suitable chilled water temperature:9-25°C;
3.Power supply: 3P-380V-50HZ;with voltage allowance ±10%,voltage dif between the phase lines±2%;
4.The data above is for R22, contact us if that for R134a,R407c and other refrigerant need;
5.There may be Changes for improvement without notice, confirm always before your order.
| MODEL LT- | 03AS | 05AS | 08AS | 10AS | 12AS | 15AS | 20AD | 25AD | 30AD | 40AD | |
| Cooling Capacity |
KW | 4.7 | 7.5 | 13.7 | 16 | 18 | 22.7 | 32 | 36 | 45.4 | 61.6 |
| 103kcal/hr | 4 | 6.5 | 11.8 | 13.8 | 15.5 | 19.5 | 27.5 | 31 | 39 | 53 | |
| Power(kW) | 3.1 | 4.9 | 8.1 | 9.1 | 10.5 | 14.6 | 18.5 | 20.5 | 28.8 | 37.3 | |
| Current(A) | 5.7 | 9.4 | 14.1 | 16.6 | 19.1 | 27.4 | 33.5 | 37.7 | 57 | 70.2 | |
| Compressor | Quty(PCS) | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Power(kW) | 2.5 | 4.1 | 6.8 | 7.8 | 8.8 | 12.2 | 15.6 | 17.6 | 24.4 | 32 | |
| Current(A) | 4.3 | 7.6 | 11.2 | 13.7 | 15.8 | 22.4 | 27.4 | 31.6 | 44.8 | 56 | |
| Refrigerant | Type | R22 | |||||||||
| Control | Thermal expension valve | ||||||||||
| Fan | Power(KW) | 0.2 | 0.25 | 0.5 | 0.5 | 0.9 | 0.9 | 1.4 | 1.4 | 2.2 | 3.12 |
| Current(A) | 0.6 | 0.7 | 1.4 | 1.4 | 1.8 | 1.8 | 2.9 | 2.9 | 7.6 | 9.6 | |
| Water Pump | Type | Centrifugal pump | |||||||||
| Power(KW) | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | |
| Current(A) | 0.75 | 1.1 | 1.5 | 1.5 | 1.5 | 3.2 | 3.2 | 3.2 | 4.6 | 4.6 | |
| Pressure Head(mHo2) | 15 | 20 | 22 | 20 | 17 | 25 | 24 | 18 | 22 | 22 | |
| Condenser | Type | Copper tupe and al fin | |||||||||
| Evaporator | water pipe connection(mm) | DN25 | DN40 | DN50 | DN65 | ||||||
| Water flow(L/min) | 18.3 | 29.2 | 53.3 | 62.2 | 70 | 88.2 | 124.4 | 139.9 | 176.5 | 239.4 | |
| Water Tank | Volume(L) | 65 | 75 | 140 | 140 | 150 | 250 | 325 | 325 | 370 | 400 |
| Fill,discharge, overflow port |
DN20 | ||||||||||
| Overall Size | Length mm | 1060 | 1060 | 1520 | 1620 | 1720 | 1810 | 2020 | 2270 | 2470 | 2670 |
| Width mm | 740 | 740 | 850 | 850 | 850 | 930 | 1010 | 1150 | 1150 | 1240 | |
| Hight mm | 1340 | 1450 | 1550 | 1600 | 1600 | 1730 | 1930 | 1930 | 2080 | 2220 | |
| Weight | KG | 220 | 236 | 320 | 372 | 435 | 610 | 750 | 850 | 950 | 1050 |
