Detailed Product DescriptionAir Cooled Water Chiller
-Cooling Only or Heat Pump Type
-Air to Water Chiller
-Air Source
Detailed Product Description
Air Cooled Water Chiller
-Cooling Only or Heat Pump Type
-Air to Water Chiller
-Air Source Heat Pump
-Air Cooled Heat Pump

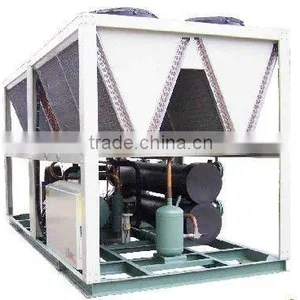

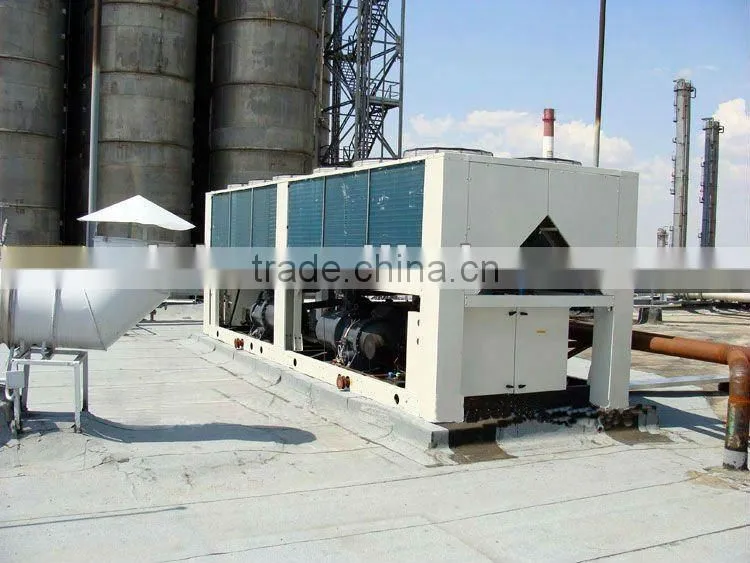

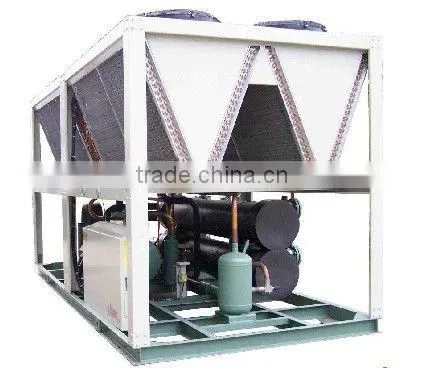

LTLF Series Air Cooled Water Chiller and Heat Pump with Screw Compressor
Main Parts of Screw Air Cooled Water Chiller
1.Fin type air-cooled condenser:Fin type air-cooled condenser adopts imported high purely, seamless screw thread copper and special aluminum fin after mechanical expanding joint closely. It ensures fin type condenser work in best efficiency Fin type air-cooled condenser adopts imported high purely, seamless screw thread copper and special aluminum fin after mechanical expanding joint closely. It ensures fin type condenser work in best efficiency;
2.Tube in tube(Shell and Tube) type evaporator:
1) It is tube in tube structure with new developed fire-proof and water-proof material as heat preservation. The
water-side working pressure may reach to 2.0 MPa.
2) There is PVC engineering plastic breakwater inside of evaporator with strong anti-corrosion ability. Chilling
water circuitous goes up and down to increase tumble effect, and heat exchange ability.
3) Adopt new technology DAC weave interior screw threat, high efficient heat exchange tube to ensure good
cooling characters.
3.Semi-hermetic screw compressor:
The unit uses imported semi-hermetic screw type compressor. Comparing piston type compressor, the
semi-hermetic screw type compressor has following advantages:
1) Less accessories (Approximately 1/3 of piston compressor). The unit structure is simply and long service life).
2) The unit EER ≥3.1W/W;
3) Screw type compressor may adjust energy in range 25% - 100%.
4.Four-way valve:
Bright heat pump type air-cooled water chiller adopts PE four-way valve from Unit State, so that solves reversing and system consume great problem exist in other same kind of products.
Bright heat pump type air-cooled water chiller adopts PE four-way valve from Unit State, so that solves reversing and system consume great problem exist in other same kind of products.
5.Expension valve: Thermal expension valve
Models Design:
Nominal cooling working condition:
1) Condenser inlet temperature DB 35 °C, WD 24 °C.
2) Evaporator inlet temperature 12°C, outlet temperature 7 °C
The data below is based on R22 Refrigerant, others requests please contact with LVTE Company.
A. Single Compressor Models:
| MODEL LTLF- | 30AS | 40AS | 50AS | 60AS | 70AS | 80AS | 90AS | 100AS | 110AS | 120AS | 130AS | 140AS | |
| Cooling Capacity | KW | 87 | 117 | 155 | 200 | 224 | 278 | 305 | 330 | 363 | 430 | 456 | 500 |
| 103kcal/hr | 75 | 101 | 133 | 172 | 193 | 239 | 262 | 284 | 312 | 370 | 392 | 430 | |
B. Double Compressor Models:
| MODEL LTLF- | 60AD | 80AD | 100AD | 120AD | 140AD | 160AD | 180AD | 200AD | 220AD | 240AD | 260AD | 280AD | |
| Cooling Capacity | KW | 174 | 234 | 310 | 400 | 448 | 556 | 610 | 660 | 726 | 860 | 912 | 1000 |
| 103kcal/hr | 150 | 201.2 | 266.6 | 344 | 385.3 | 478.2 | 524.6 | 567.6 | 624.4 | 740 | 784.3 | 860 | |
