Air Cooled Water Chiller With High Efficiency and Quality
US$ 1,598 - 58,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Air Cooled Chiller
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Series Air Cooled Chillers With Efficiency and High QualityUS$ 1,000 - 12,000MOQ: 1 Set -
Central Air Conditioner CE Approval R407C Air Cooled Industrial Water Chiller With High Efficiency and Top QualityUS$ 1,096 - 10,978MOQ: 1 Unit
-
Screw Compressor Air Cooled Water Chiller With High Efficiency and Top QualityUS$ 1,299 - 98,698MOQ: 1 Unit
-
High Quality High Efficiency and Environmental Box Type Protection Air Cooled Water ChillerNegotiableMOQ: 1 Unit
-
Most Energy Saving Air Cooled Water Chiller, 87-1000kw; CE CertificateNegotiableMOQ: 1 Set
Condition
New
Type
Other, Air Cooled Chiller
Place of Origin
Shandong, China
Brand Name
LYTTE, LYTTE or OEM Series
Model Number
LTWF
Operating Voltage
380/400 VAC
Mounting
Floor Standing
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Air Cooled Water Chiller-Low noise water pump
-Energy saving fan
-CE certificate
-Strict test before delivery
Detailed Product Description
Air Cooled Water Chiller
-Low noise water pump
-Energy saving fan
-CE certificate
-Strict test before delivery
Quality Modular LTWF Air Cooled Scroll Compressor Water Chiller

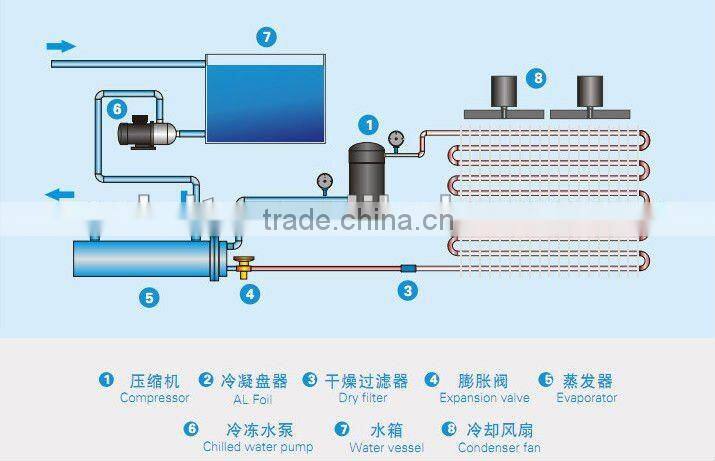

1.System Features:
1)Ready to work only after connected to chilled water system
2)stainless steel water vessel, a low noise pump have been fixed inside the chiller
3)With energy saving fan of large air flow and low noise
4)The chillers of capacity over 50KW are double refrigeration system design that is good to reduce the frequent start and stop for load change. The chillers can run even 1 system is in trouble
5) Strict test and inspection has been made before the chillers are delivered
Colling Condition: Chilled water in/out 12/7C; cooling water in/out 30/35C;Suitable chilled water temperature:9-25C;
Technical Data Sheet:
| MODEL LTWF- | 03AS | 05AS | 08AS | 10AS | 12AS | 15AS | 20AD | 25AD | 30AD | 40AD | |
| Cooling Capacity |
KW | 8.3 | 13.7 | 22.1 | 29.5 | 34 | 44.1 | 59 | 68 | 88.2 | 120 |
| 103kcal/hr | 7.1 | 11.8 | 19 | 25.4 | 29.2 | 37.9 | 50.7 | 58.5 | 75.9 | 103.2 | |
| Power(kW) | 3.1 | 5 | 7.4 | 9.7 | 11.9 | 15.3 | 19.4 | 23.7 | 30.6 | 40.5 | |
| Current(A) | 5.7 | 9.7 | 14.3 | 18.2 | 22.1 | 28.8 | 36.3 | 44.1 | 57.6 | 64.2 | |
| Compressor | Quty(PCS) | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Power(kW) | 2.55 | 3.96 | 6.11 | 8.06 | 9.9 | 12.39 | 16.1 | 19.8 | 24.8 | 34.1 | |
| Current(A) | 4.39 | 7.69 | 11.41 | 14.86 | 18.25 | 22.7 | 29.7 | 36.5 | 45.4 | 49.6 | |
| Refrigerant | Type | R22 | |||||||||
| Control | Thermal expension valve | ||||||||||
| Fan | Power(KW) | 0.2 | 0.45 | 0.5 | 0.9 | 1.2 | 1.4 | 1.7 | 2.2 | 3.12 | 4.2 |
| Current(A) | 0.6 | 0.9 | 1.4 | 1.8 | 2.3 | 2.9 | 5.4 | 7.6 | 9.6 | 10 | |
| Type | Centrifugal pump | ||||||||||
| Power(KW) | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | |
| Current(A) | 0.75 | 1.1 | 1.5 | 1.5 | 1.5 | 3.2 | 3.2 | 3.2 | 4.6 | 4.6 | |
| Pressure Head | 15 | 20 | 22 | 20 | 17 | 25 | 24 | 18 | 22 | 22 | |
| Condenser | Type | Copper tupe and al fin | |||||||||
| Evaporator | water pipe connection | DN25 | DN40 | DN50 | DN65 | ||||||
| Water flow(L/min) | 23.7 | 39.3 | 63.4 | 84.6 | 97.5 | 126.4 | 169.1 | 194.9 | 252.8 | 344 | |
