Product Details
Place of Origin: | Guangdong, China | Brand Name: | Oolite | Model Number: | Ceiling AP 1.0 |
Product Description
long-range celling mount ap
1.Introduction
Ceiling AP-V1.0 is based on Qualcomm Atheros QCA9531 chip. It’s up to 650mhz processor and support expand 5G WiFi orusb 3G/4G modem. Embedding 128MB RAM and 16MB ROM makes it quick launch wireless scenarios . Integrated high power PA and LNA , transmission distance is upgrade to farther.Ceiling AP-V1.0 can bepowered by PoE (802.3at/802.3af/Passive POE) or DC (9-48V).
Ceiling AP-V1.0 not only has a good reception sensitivity and high transmission power, greatly expand the scope of wireless coverage ,but also beautiful appearance, convenient installation, suitable for ceiling, wall and desktop set. With special ceiling mount design ,Ceiling AP-V1.0 is not only space-saving, but also gives you full WiFi experience free from all obstacles. Besides, it'sperfect match between the shell and the ceiling. Ceiling AP-V1.0is an ideal network solution for companies, hotels and other public places to extend WiFi range.
2.Functions
- Compatible with 2.4G IEEE 802.11b/g/n
- Compatible MiniPci-e 5G IEEE 802.11a/b/g/n/ac card
- Wireless speed up to 300 Mbps
- Supports POE(802.3at/802.3af/Passive POE) power supply
- Compatible DC 9-48V/2A~0.5A power supply
- Support SSID based access user number restriction
- Compatible with usb interface GSM/3G/4G modem.
- Support MAC address filtering, IP address filtering, URL filtering, NAT forwarding rules.
- Support for automatic adjustment of wireless transmission rate.
- Practical and elegant ceiling mount design.
3.Environment
Operating Temperature | -10°C~55°C |
Storage Temperature | -40°C ~70°C |
Operating Humidity | 10%~90% non-condensin |
Storage Humidity | Storage Humidity: 5%~90% non-condensing |
4.Specifications
Items | Contents | ||
Interface | 1 * 10/100Mbps WAN/POE | ||
1 * 10/100Mbps LAN | |||
1 * Button | |||
1 * DC-12V | |||
2 leds for network&wifi or custom defined | |||
3 * LED(RED BLUE YELLOW) for custom defined | |||
1 * internal miniPCIe slot | |||
Wireless Standards | IEEE 802.11b/g/n, IEEE802.11a/b/g/n/ac(with card) | ||
Local power supply | POE 48V/0.5A or DC 12V2A | ||
Frequency | 802.11b/g/n:2.4GHz-2.484GHz | ||
802.11a/n/ac : FCC or CE standard channel | |||
Wireless Security | 64/128/152-bitWEP,WPA/WPA2,WPA-PSK/WPA2-PSK | ||
WAN Type | Dynamic IP, Static IP, PPPOE, PPTP, L2TP | ||
DHCP | Server, Client,DHCP Client List, Address Reservation | ||
Quality of Service | WMM, Band width Control | ||
Port Forwarding | Virtual Server, Port Triggering,UPnP,DMZ | ||
Dynamic DNS | DynDns, Comexe,NO-IP | ||
Access Control | Local Management Control, Host List, Access Schedule, Rule Management | ||
Coverage of black hole detection and compensation | support | ||
Intelligent load balancing based on user, traffic, frequency band | support | ||
Link integrity detection | support | ||
Bandwidth limitation | Support the speed limit based on STA/SSID/AP | ||
Management | Access Control Local Management Remote Management | ||
Package Contents | Power Adapter Quick Installation Guide | ||
System Requirements | Microsoft® Windows® 98SE, NT,2000, XP, Vista™orWindows7, MAC® OS, Net Ware®, UNIX® or Linux | ||
Repeater bridge | Relay mode | support point to point, point to multipoint | |
Relay band | support 2.4G/5.8G | ||
Wireless back haul | support | ||
MTBF | >250000H | ||
Item | type | target | |
Antenna 0 | Frequency error | -5.0ppm | |
power | CCK 11M 27± 2dBm OFDM 54M 23.0± 2dBm MCS7(HT20) 22.0± 2dBm MCS7(HT40) 22.0± 2dBm | ||
EVM | CCK 11M -15.0db OFDM 54M -25.0db MCS7(HT20) -27.0db MCS7(HT40)-28.0db | ||
Reception Sensitivity | CCK 11M -85dbm OFDM 54M -70dbm MCS7(HT20) -68dbm MCS7(HT40) -65dbm | ||
Antenna 1 | Frequency error | -5.0ppm | |
power | CCK 11M 27± 2dBm OFDM 54M 23.0± 2dBm MCS7(HT20) 22.0± 2dBm MCS7(HT40) 22.0± 2dBm | ||
EVM | CCK 11M -15.0db OFDM 54M -25.0db MCS7(HT20) -27.0db MCS7(HT40)-28.0db | ||
Reception Sensitivity | CCK 11M -85dbm OFDM 54M -70dbm MCS7(HT20) -68dbm MCS7(HT40) -65dbm |
5.Mechanical
Dimensions (mm) | Diameter | Height |
206mm (Tolerance:±0.2mm) | 34.5mm (Tolerance:±0.2mm) |

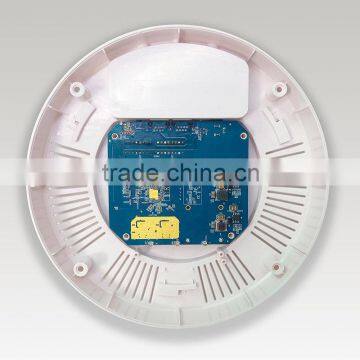

6.Photos
We can flash customer firmware, ODM customer baseboard or redesign whole board, we can make sure device fit FCC,CE and so on. we can supply software design service.
We have ourself SMD lines(YG200,JUKI KE 2070 and so on). tester instrument(Litepoint IQFLEX,IQview,IQ201X,IQxel, Agilen spectrum analyzer). assembly lines and so on.
This module sourcecode is open for everyone. our tech supporter should try our best to help all customers.
