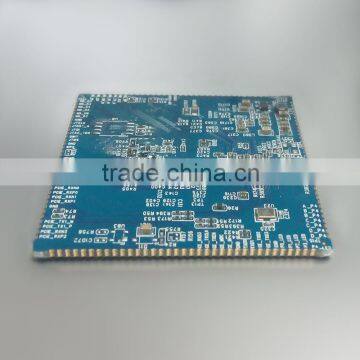

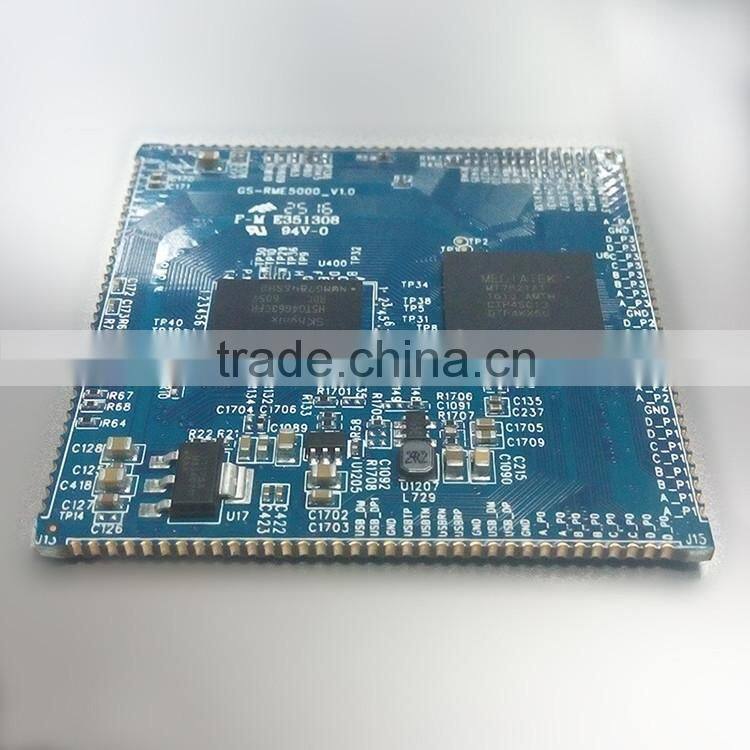

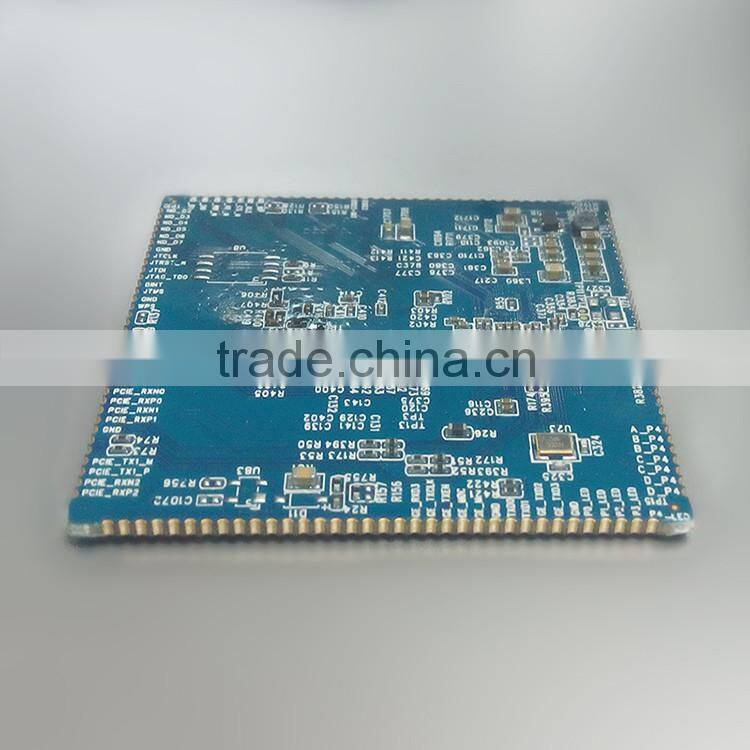

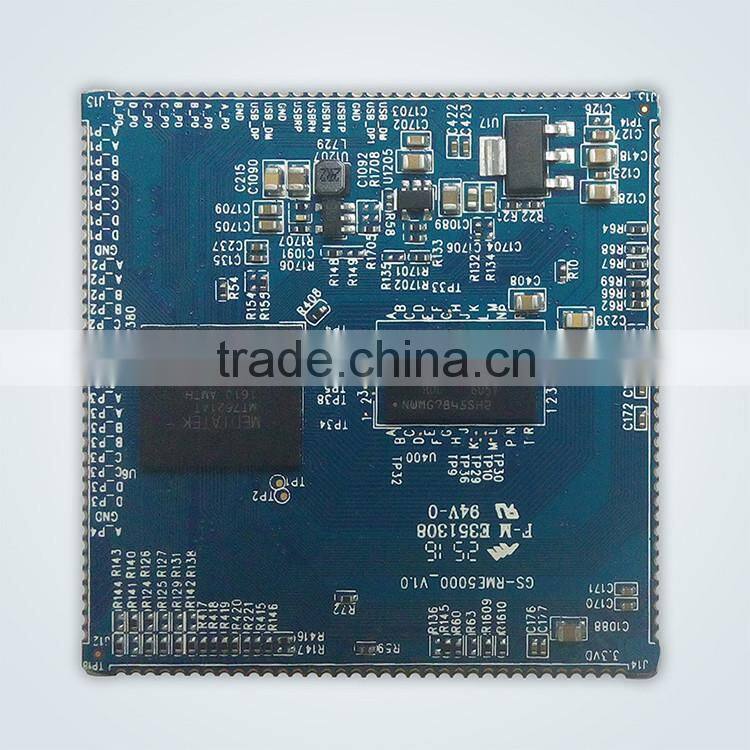

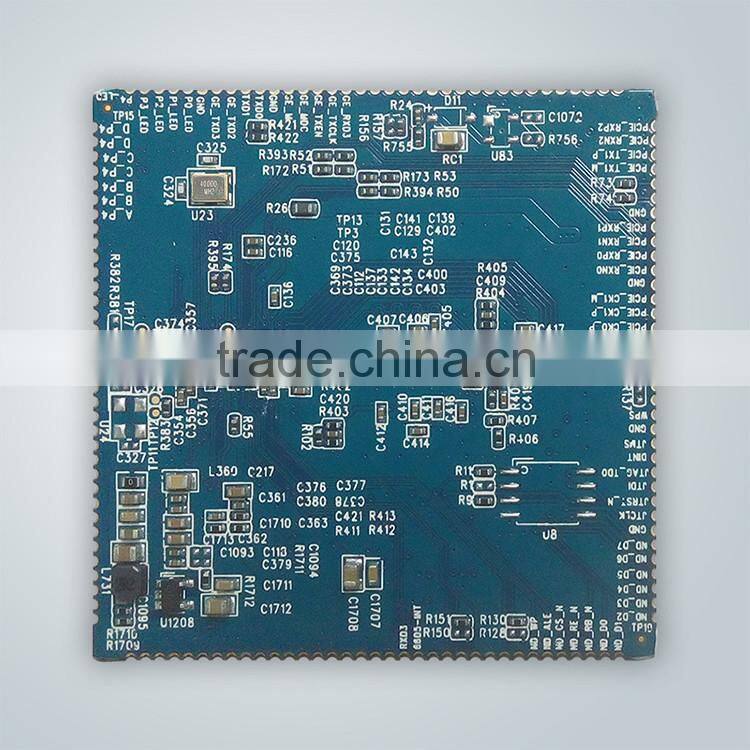

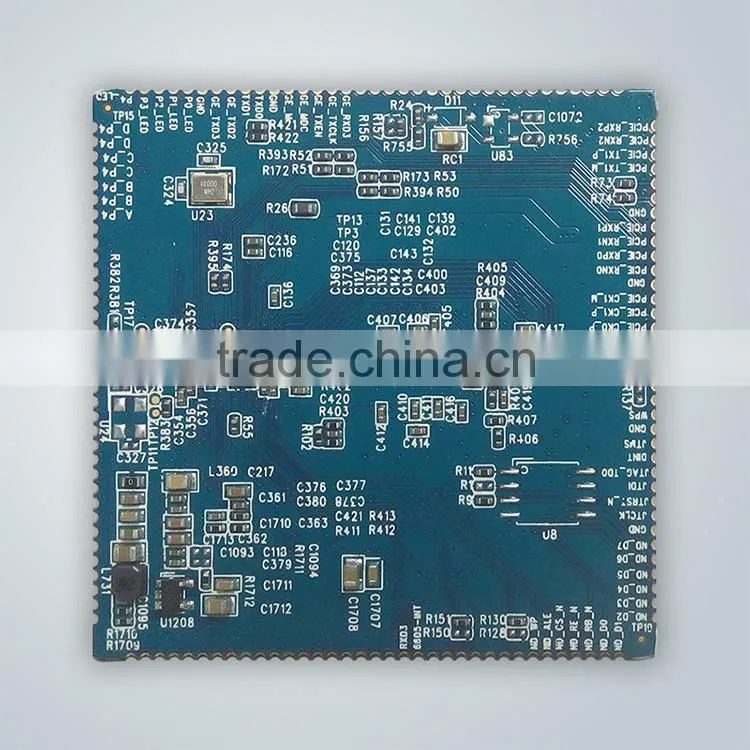

MT7621A wifi module OpenWRT 300mbps router
1.General
The GS-RME5000-V1.0 module use the MT7621A chipset.The MT721A integrates a dual-core MIPS- 1004Kc (880MHz),HNAT/HQoS/ Samba/VPN accelerators,5-port GbE switch, RGMII, USB3.0, USB2.0, 3xPCIe, SD-XC. The powerful CPU with rich portfolio is suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN,AC (Access Control). It can also connect to touch-panel, ZigBee/Z-Wave for Internet Service Router and Home Security Gateway.
For the next generation router, MT7621A provides several dedicated hardware engines to accelerate the NAT, QoS, Samba and VPN traffic.These accelerators relief the CPU for other upper layer applications.
2.Features
>> Embedded MIPS1004Kc (880 MHz, Dual-Core)
- 32 KB I-Cache and 32 KB D-Cache per core
- 256 KB L2 Cache (shared by Dual-Core
- SMP capable
- Single processor operation configurable
>> Gigabit Switch
- 5 ports with full-line rate
- 5-port 10/100/1000Mbps MDI transceivers
>> One RGMII/MII interface
>> 16-bit DDR2/3 up to 256/512 Mbytes
>> SPI(2 chip select), NAND Flash(SLC), SDXC,eMMC(4 bits)
>> USB3 x 1+ USB2 x 1 or USB2 x 2 (all host)
>> PCIe host x 3
>> I2C, UART Lite x 3, JTAG, MDC, MDIO, GPIO
>> VoIP support (I2S, PCM)
>> Audio interface (SPDIF-Tx, I2S, PCM)
>> Deliver the superb Samba performance via USB2.0/USB 3.0/SD-XC
>> HW storage accelerator
>> HW NAT
- 2Gbps wired speed
- L2 bridge
- IPv4 routing, NAT, NAPT
- IPv6 routing, DS-Lite, 6RD, 6to4
>> HW QoS
- 16 hardware queues to guarantee the min/max bandwidth of each flow.
- Seamlessly co-work with HW NAT engine.
- 2Gbps wired speed.
>> HW Crypto
Deliver 400~500 Mbps IPSec throughput
>> Green
- Intelligent Clock Scaling (exclusive)
- DDR2/3: ODT off, Self-refresh mode
>> Firmware: Linux 2.6 SDK, OpenWRT
>> RGMII iNIC Driver: Linux 2.4/2.6
3.Temperature Limit Ratings
Parameter |
Minimum |
Maximum |
Units |
Storage Temperature |
0 |
+40 |
℃ |
Ambient Operating Temperature |
0 |
60 |
℃ |
Junction Temperature |
0 |
125 |
℃ |

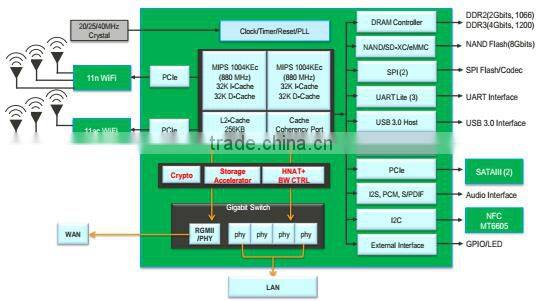

4. Functional Block Diagram
5. Electrical Specifications
DC Characteristics
Module |
Voltage |
Design requirements |
GS-RME5000V1.0 |
3.3V |
500mA |
|
|
|
|
|

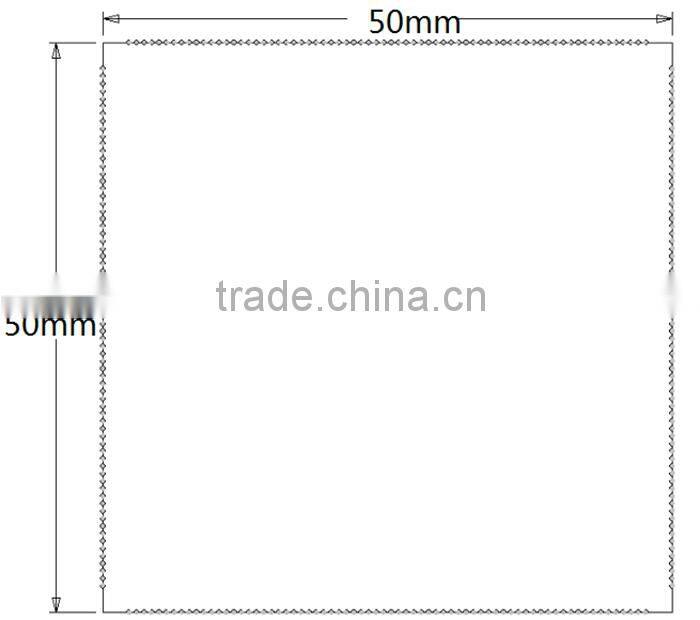

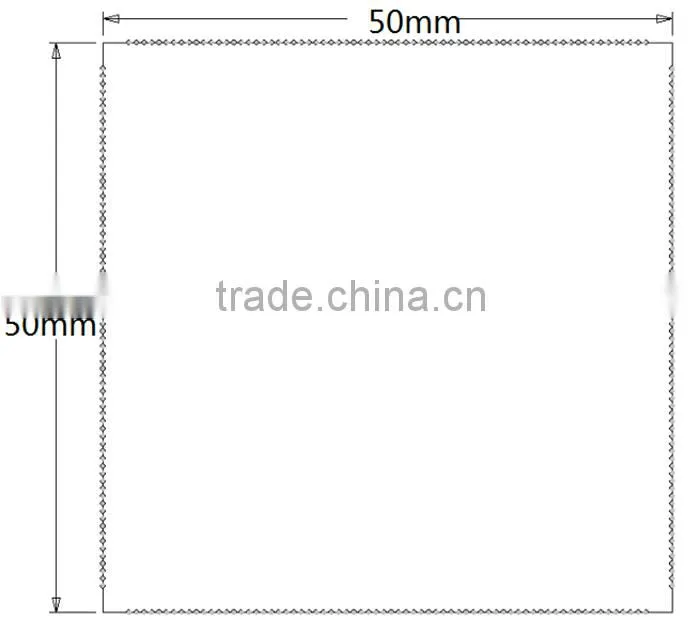

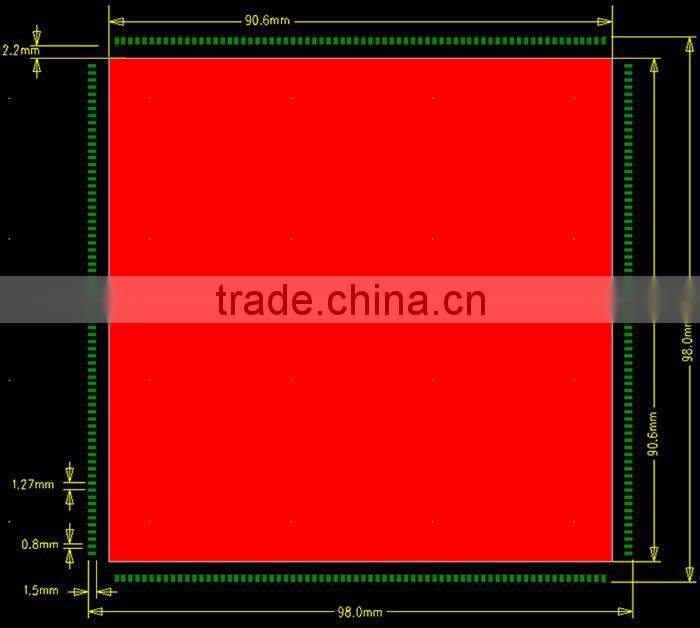

6.Mechanical
Dimensions (mm) |
Length |
Width |
Height |
|
50 (Tolerance:±0.2mm) |
50 (Tolerance:±0.2mm) |
(Tolerance:±0.2mm) |

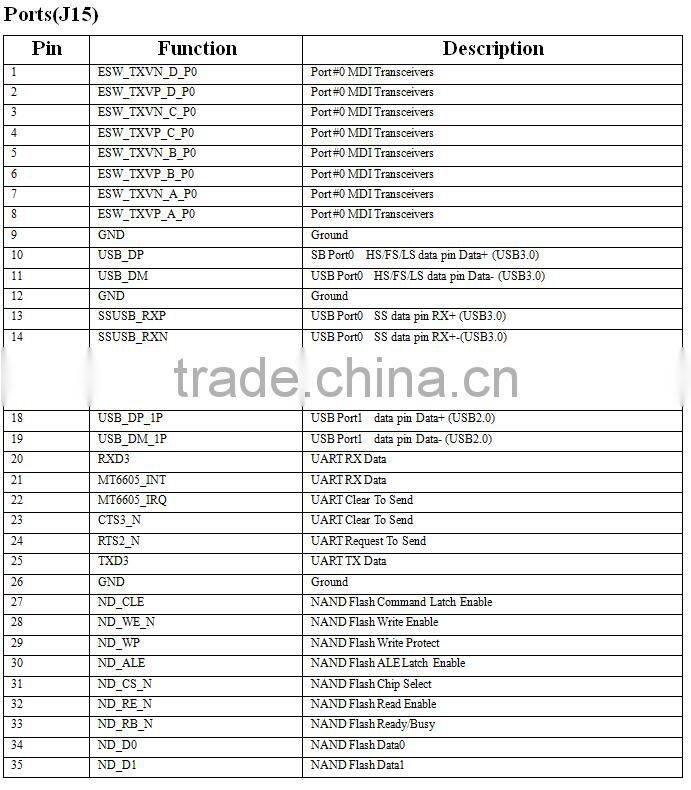

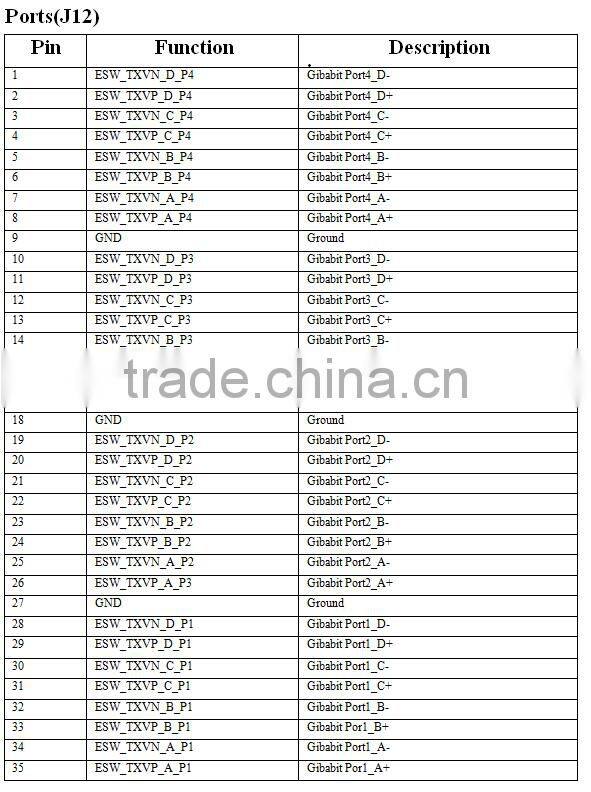

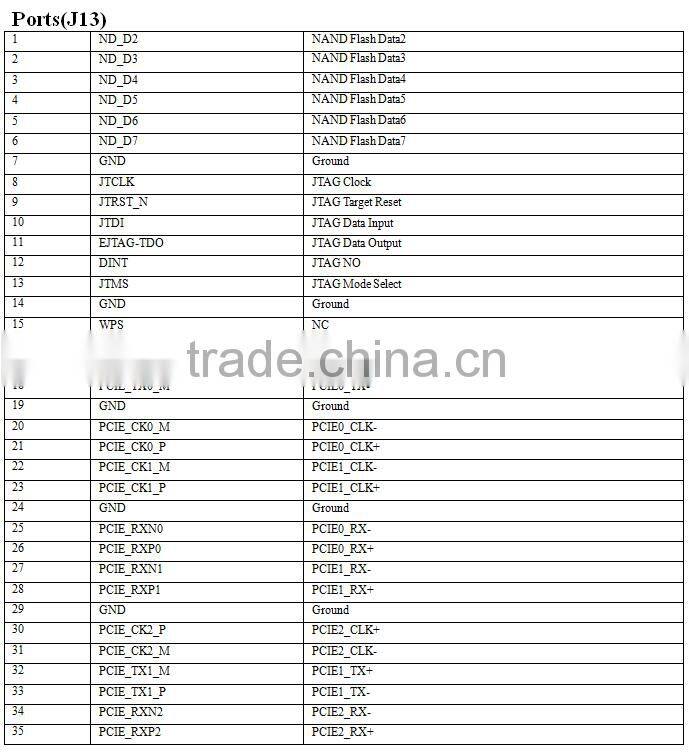

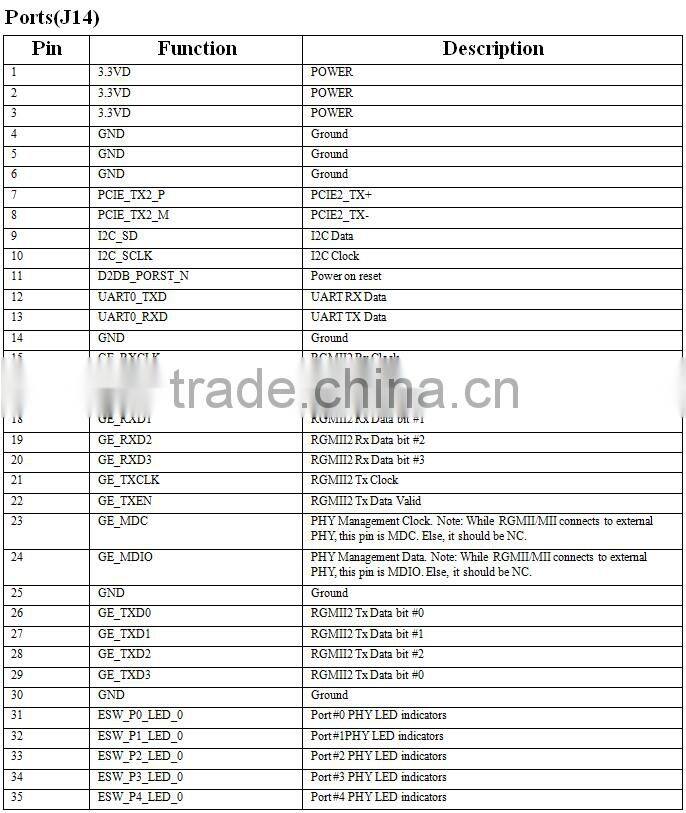

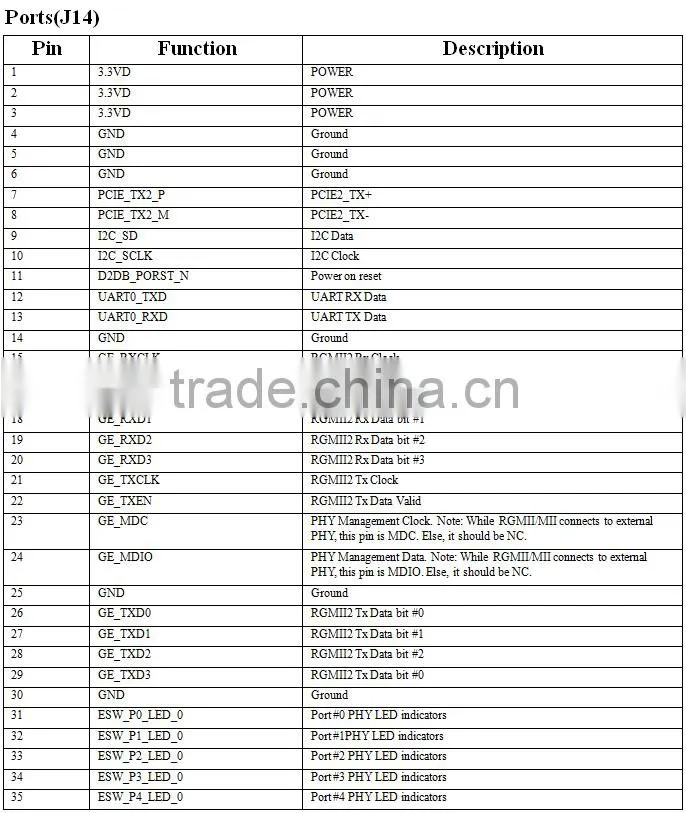

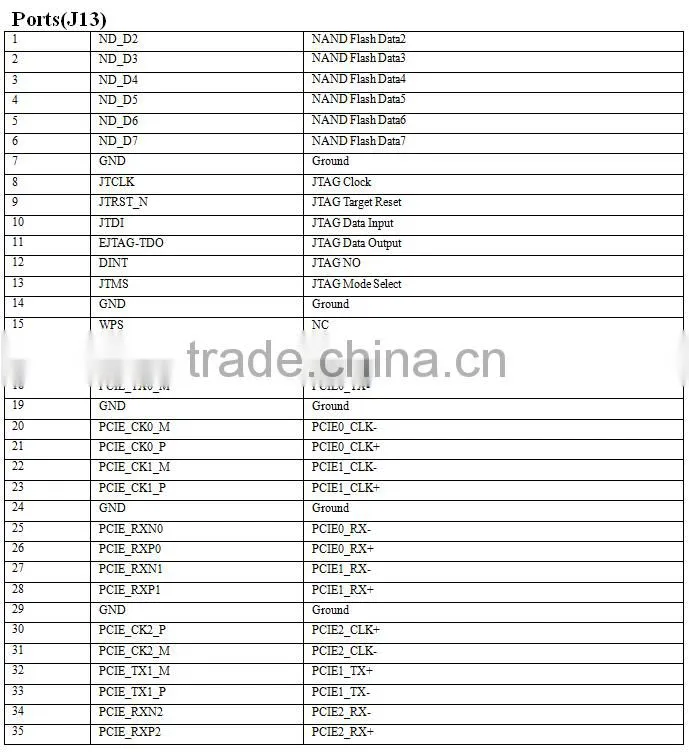

7.Pins Description

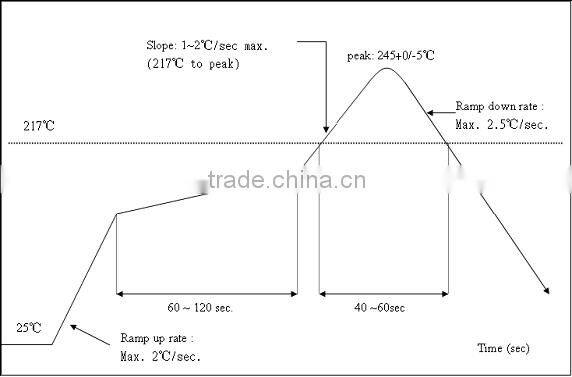

8.Recommended Reflow Profile
Referred to IPC/JEDEC standard.
Peak Temperature : <250°C
Number of Times : ≤2 times
ENVIRONMENTAL
Operating
Operating Temperature: 0°C to +60 °C
Relative Humidity: 5-90% (non-condensing)
Storage
Temperature: -10°C to +80°C (non-operating)
Relevant Humidity: 5-95% (non-condensing)
MTBF caculation
Over 150,000hours
9. Precautions before surface mounting:
1> When customers Open stencil ,they must be sure the hole enough bigger to the module plate, please press 1 to 0.7 mm is widened to open outward and the thickness of 0.12 mm .
2> when we need get the wifi module ,we can't Direct hand and must wear the gloves and static ring.
3> According to the size of the customer ‘s the mainboard ,the furnace temperature can stick on a tablet standard temperature of 250 or so up and down no more than 5 degrees and sometimes it even can achieve 260 or so up and down no more than 5 degrees .
4> Storage and use module control should pay attention to the following matters:
a. The calculated shelf life in a sealed bag is 12 months ,stored between 0 °C and 40 °C at less than90% relative humidity (RH).
b. After the bag is opened, devices that are subjected to solder reflow orother high temperature processes must be handled in the following manner:
> Mounted within 168 hours of factory conditions, i.e. < 30 °C at 60% RH.
> Storage humidity needs to maintained at < 10% RH.
> Baking is necessary if the customer exposes the component to air for over 168 hrs, baking conditions: 125°C for 8 hours.
Plastic electrostatic prevention tray : 30pcs / tray. 900pcs / carton
We can flash customer firmware, ODM customer baseboard or redesign whole board, we can make sure device fit FCC,CE and so on. we can supply software design service.
We have ourself SMD lines(YG200,JUKI KE 2070 and so on). tester instrument(Litepoint IQFLEX,IQview,IQ201X,IQxel, Agilen spectrum analyzer). assembly lines and so on.
This module sourcecode is open for everyone. our tech supporter should try our best to help all customers.
