Oolite V4 Wireless Module MT7628AN

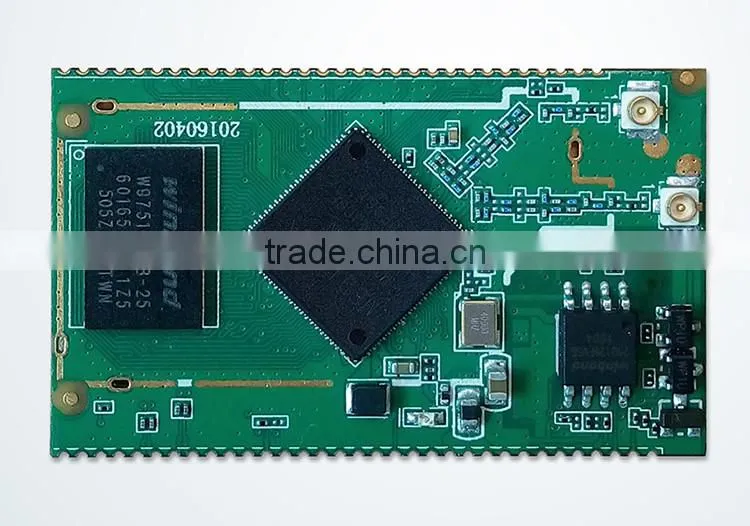

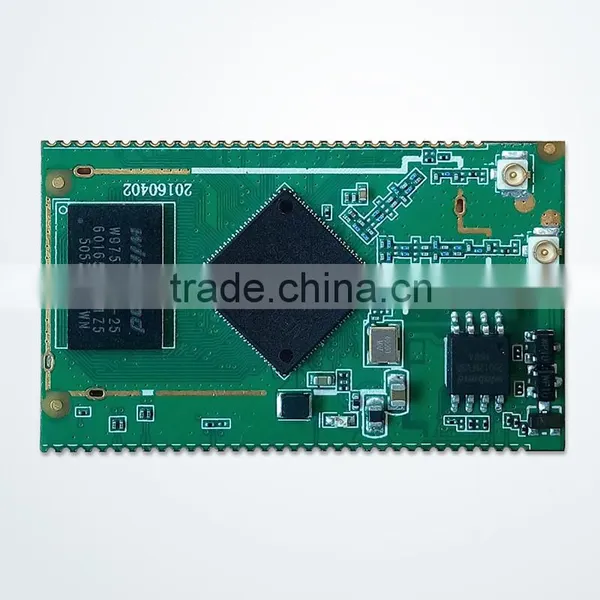

General Description
This Module use MT7628AN as Soc, has a IPX ANTA seat for alternative.What’s more,we lead out all function and I/O ports for expand.
The MT7628AN integrated a 2T2R 802.11n WiFi radio,a 580 MHZ MIPS 24KEc CPU,1port fast Ethernet PHY,USB2.0 host,PCIe,SD-XC,I2S/PCM and multi slow IOs.MT7628AN provide two operrtion modes-IoT gateway mode and IoT device mode.In IoT gateway mode,the PCI Express interface can connect to 802.11ac chipset for 11ac dule-band concurrent gateway.The high performance USB2.0 allows MT7628an to add 3G/LTE modem support or add a H.264 ISP for wireless IP camera.For the IoT device mode,MT7628AN supports eMMC,SD-XC and USB2.0. MT7628AN can support the WiFi high quality audio via 192Kbps/24bits I2S interface and
VoIP application through PCM. In IoT device mode,it further supports PWM,SPI slave,3rd UART and more GPIOs.For IoT gateway,it can connect to touch panel and BLE,Zigbee/Z-Wave and sub-1G RF for smart home control.
1.Characteristics:
| CPU | MT7628AN with 580 MHZ MIPS 24KEc |
| RAM | 1Gbit DDR2 RAM |
| Flash | 128Mbit SPI NOR Flash ROM |
| Wireless speed | 150Mbps |
| GPIO | 37 |
High-speed UART for console support |
|
| USB | Usb 2.0 master interface, support USB hub extension |
| Power supply voltage | 3.3V |
| Port | WAN +PCIE interface |
| Antenna | IPeX external antenna |
| Debug | serial debugging interface has lead out |
| Product size | 45.3mm * 27.2mm(±0.1mm) |

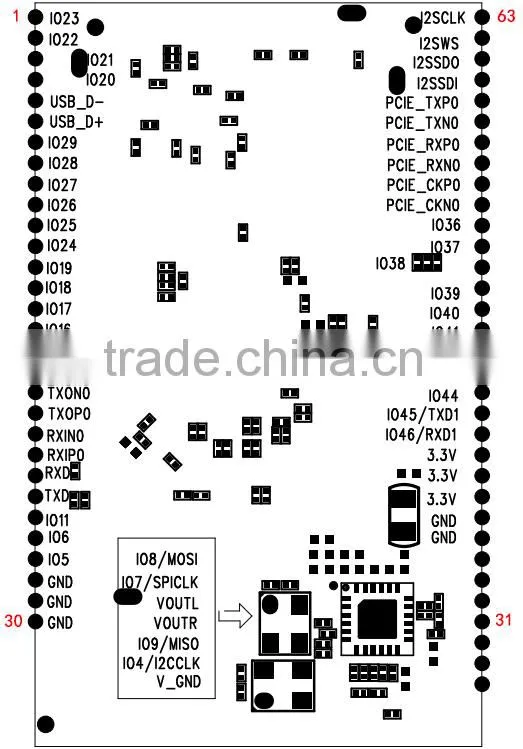

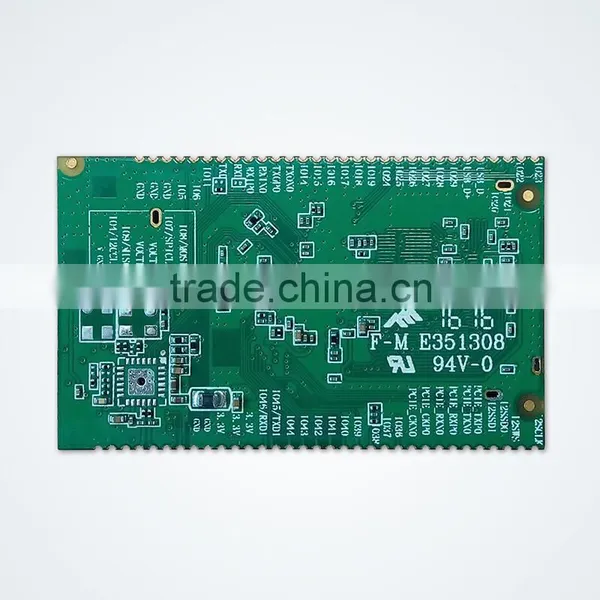

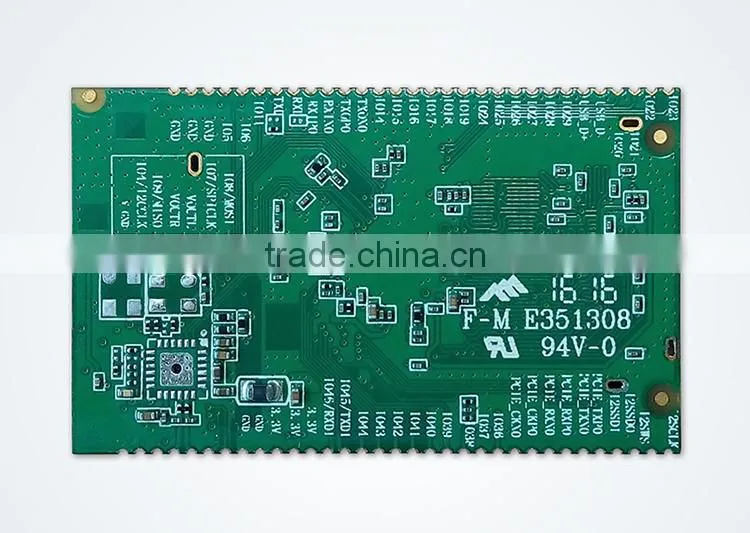

2.Pins distribute:

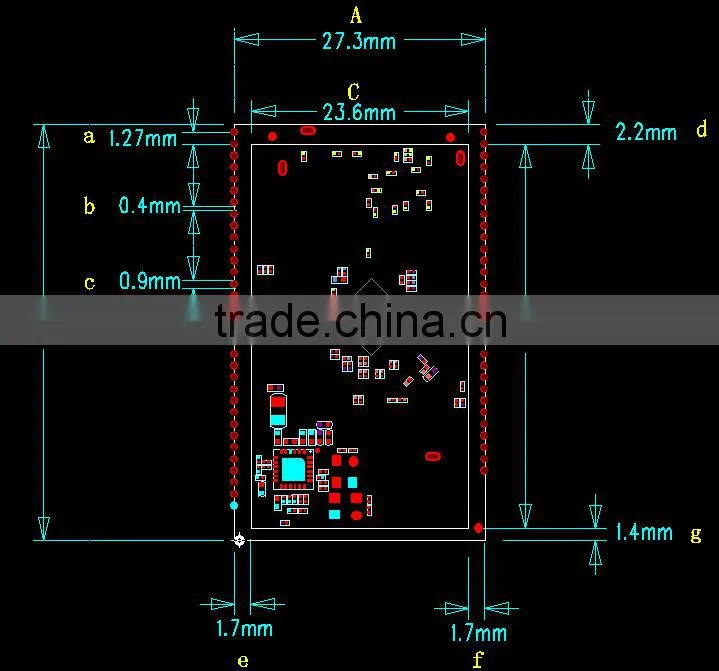

3Physical Demensions(reference for mainboard design):
A:The width of the module
B:the length of the module
C:the width of outline shoule hollow out on mainboard
D:the length of outline shoudle hollow out on mainboard
a: The distance between the pad on the module
b: the space between two pads
c: the width of the pad on the module
d,e,f,g:The distance between the outline of hollow out and outline of module
Plastic electrostatic prevention tray : 30pcs / tray. 900pcs / carton
We can flash customer firmware, ODM customer baseboard or redesign whole board, we can make sure device fit FCC,CE and so on. we can supply software design service.
We have ourself SMD lines(YG200,JUKI KE 2070 and so on). tester instrument(Litepoint IQFLEX,IQview,IQ201X,IQxel, Agilen spectrum analyzer). assembly lines and so on.
This module sourcecode is open for everyone. our tech supporter should try our best to help all customers.
