CCTV CABLE RG59 BU & TYPE

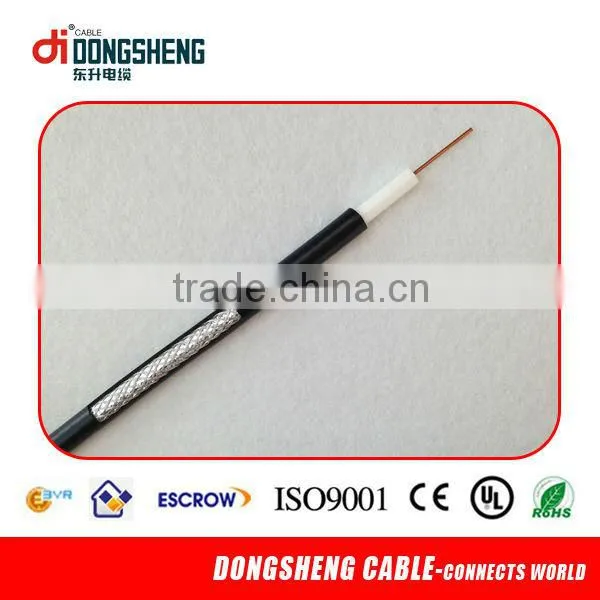

CCTV CABLE RG59 BU & TYPE thumbnail-1
CCTV CABLE RG59 BU & TYPE photo-1
US$ 0.03 - 0.1 MOQ: 50 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
dongsheng
Model Number:
RG59
Contact Supplier Request Quote Chat Now
Hangzhou Lin'an Dongsheng Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name dongsheng
Model Number RG59
Conductor Material Copper
Insulation Material PE
Jacket Other, PVC, PVC 6.1mm
Number of Conductors 1
Application CCTV, CATV, security system

Specifications

1.ISO/IEC 11801,ANSI/TIA/EIA-568B
UL &ISO9001
2.lan cable,telephone cable,coaxial cable
3.OEM service

CCTV CABLE RG59 BU & TYPE

RG59 BU & TYPE

specfication:

1) 0.81mmBC(or CCS)+ 3.66mmFoamed PE + A/P(bonded)+60% AL Braiding +6.1mm PVC



2) 0.58mmBC(or CCS)+ 3.66mmSolid PE + A/P(bonded)+60% AL Braiding +6.1mm PVC



3)OEM order is welcome



Description:

1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
 2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil are available;
 3) Braiding wire: AL, Bare Copper and Tinned Copper available;
 4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
 5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
 6) Braiding coverage: Between 30-- 97% available;
 7) PVC jacket of Flame retardant, UV, or UL available.

Suitable for television, CATV, cable moderns and radio communication. Customized specifications are available.

Reference standard:MIL-C-17G Black

Type of coaxial cable: RG 59, RoHS compliance



Application:
Drop cable for CATV and MATV distribution

Features:
1) High physical foaming
2) Low loss in attenuation
3) Options:
   a) Dual
   b) Quad shield
   c) Messenger
   d) Quad shield and messenger





 CCTV CABLE RG59 BU & TYPE



We are Located at the foot of the Tianmu Mountain from the city of Lin`an Hangzhou,Hangzhou Lin`an Dongsheng Cable Co.,Ltd.is 28km away from Hangzhou City,covering an area of 1,6000 square meters,with beautiful landscape and convenient communication facilities.

Founded in 1991,the company's rapid development helps us to be the industry leader.Ithas passed the ISO9001 quality system certification&UL certification,conferred with foreign trade license.It comes at the top of an enterprise's comprehensive strength.

Major products in the company cover Telephone wire,Lan cable&Coaxial cable.CAT3,CAT5,CAT5E,CAT6,CAT5EM,RG6,RG11 etc.are our popular items.

Our motto is“Keeping pace with the time,and going up like the sun”,just as our company`s name suggests:“Dongsheng”.We are looking forward to establishing long term&mutual benifit business relationship with you
