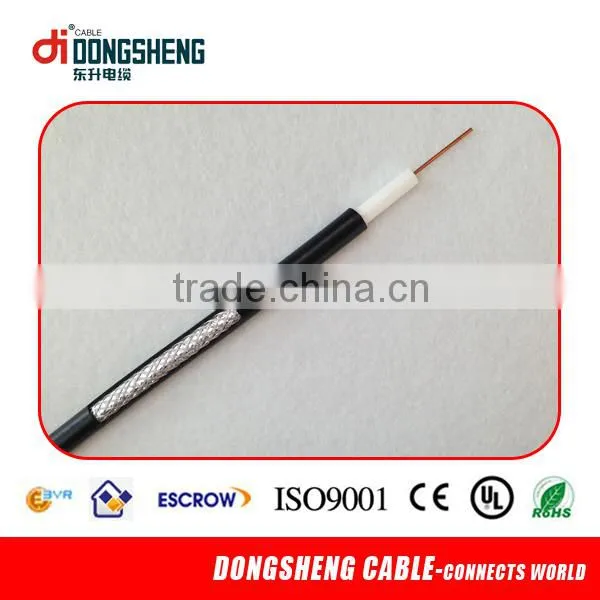

RG59 Camera Cable for CCTV System

RG59 Camera Cable for CCTV System thumbnail-1
RG59 Camera Cable for CCTV System thumbnail-2
RG59 Camera Cable for CCTV System thumbnail-3
RG59 Camera Cable for CCTV System thumbnail-4
RG59 Camera Cable for CCTV System thumbnail-5
RG59 Camera Cable for CCTV System thumbnail-6
RG59 Camera Cable for CCTV System photo-1
RG59 Camera Cable for CCTV System photo-2
RG59 Camera Cable for CCTV System photo-3

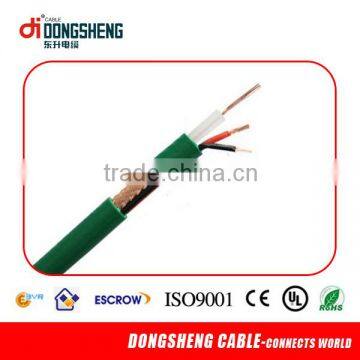

RG59 Camera Cable for CCTV System photo-4

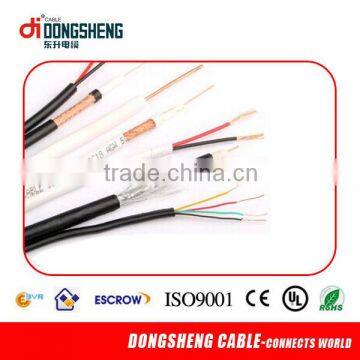

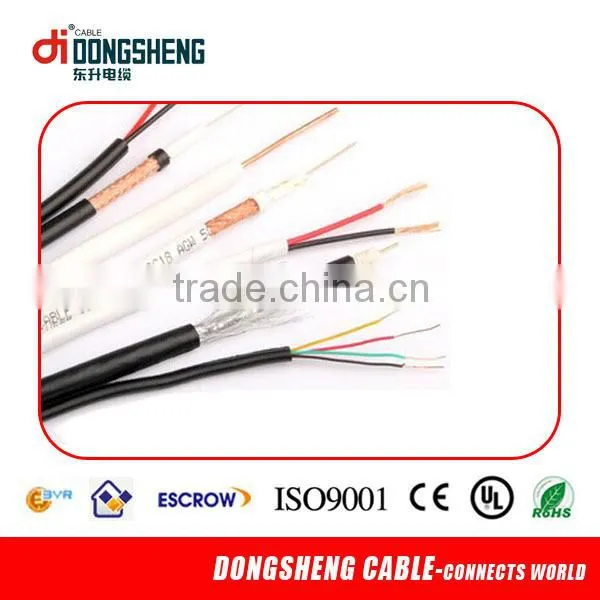

RG59 Camera Cable for CCTV System photo-5
RG59 Camera Cable for CCTV System photo-6
US$ 0.01 - 10 MOQ: 30 Rolls
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dong Sheng
Model Number:
RG59 Camera Cable for CCTV System
Contact Supplier Request Quote Chat Now
Hangzhou Lin'an Dongsheng Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dong Sheng
Model Number RG59 Camera Cable for CCTV System
Type Coaxial
Number of Conductors 1

RG59  Camera Cable for CCTV System



RG59  Camera Cable



Specifications:





CONDUCTOR

MATERIAL

CCS/Cu

Nom. Dia.

0.65mm

DIELECTRIC

MATERIAL

Foamed PE

Nom. Dia.

3.7mm

SHIELD

MATERIAL

Al foil+128*0.12mm Al-mg braiding

Coverage

95%

JACKET

MATERIAL

PVC

Nom. Thick

0.8mm

Nom. Dia.

6.3mm

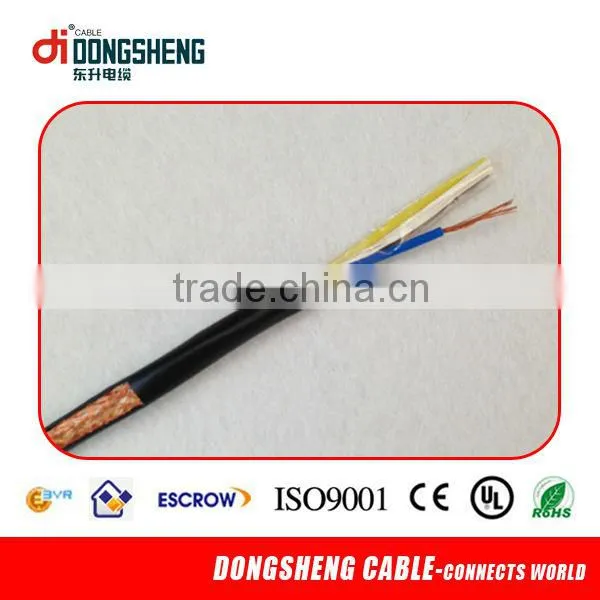

POWER CABLE SPECS [ 2*(20*0.18CCA + 1.5PVC) + 3.6PVC ] BLACK



Nominal Impedance(Ohm)

75±3

Nominal Velocity of Propagation(%)

85

Nominal Capacitance(pF/m)

50

Sparker Test(VAC)

4000

SRL(dB)

20





Attenuation (68ºF/20ºC)

Frequency(MHz)

Maximum(db/100ft)

Maximum(db/100m)

5

0.58

 1.9

55

1.6

5.25

187

2.85

9.35

300

3.55

11.64

450

4.4

14.43

600

5.1

16.73

750

5.65

18.54

865

6.1

20.01

1000

6.55

21.49



1 ) Inner conductor Tinned Copper , Bare Copper , and Copper Clad Steel available
2 ) Al-foil  unbonded AP , Bonded AP , APA , Bonded APA available
3 ) Braiding material  Al-mg , CCA , Bare Copper and Tinned Copper wire available
4 ) Braiding wire diameter 0.12 , 0.13 , 0.14 , 0.15 , 0.16mm available
5 )Braiding net 80 , 96 , 120 , 128 , 144 and more available
6 ) Braiding coverage Between 30- 97% available
  7 ) Jacket material PVC , PE Flame retardant , UV , Rohs , available

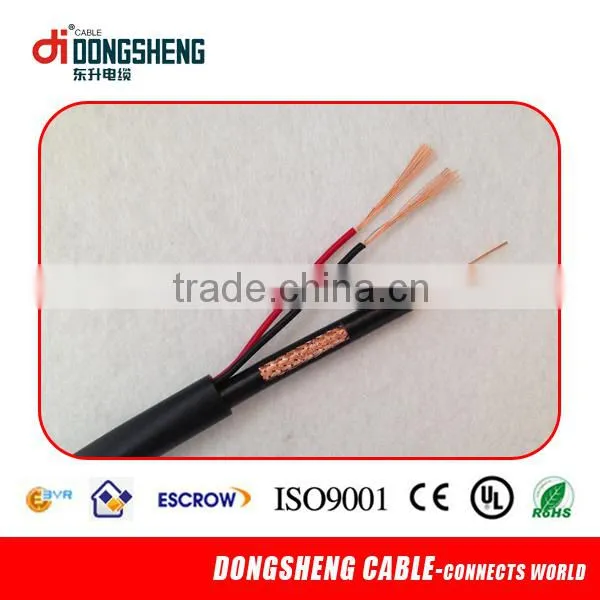

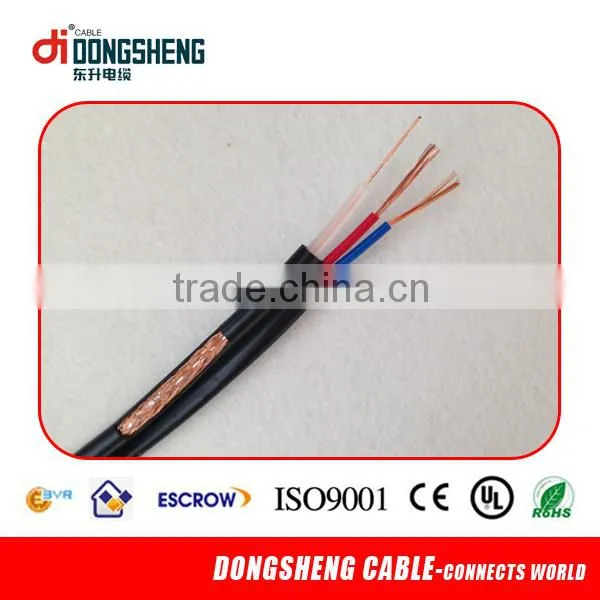

Products Photos

RG59 Camera Cable for CCTV SystemRG59 Camera Cable for CCTV SystemRG59 Camera Cable for CCTV System



 RG59 Camera Cable for CCTV System

Coaxial Cable RG6  Package

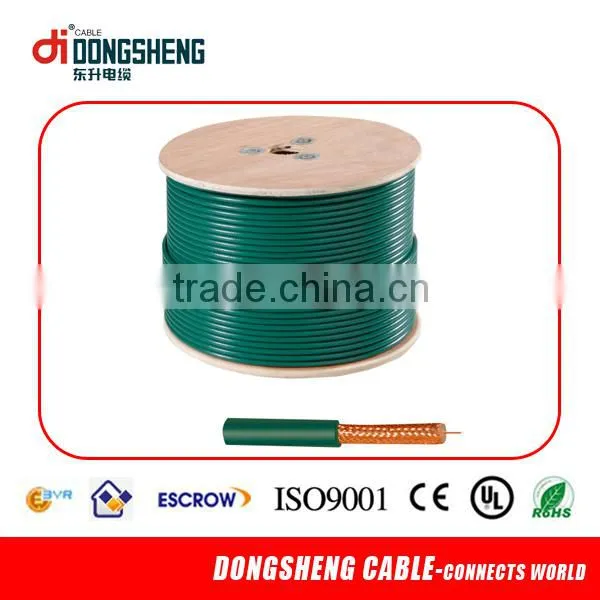

Packaging & Shipping

1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel

2) Inner Packing:Wooden reel,plastic reel,and paper reel

3) Outer Packing:Carton box,pull out box,pallet available

4) Other packing available according to clients’ request

 RG59 Camera Cable for CCTV System

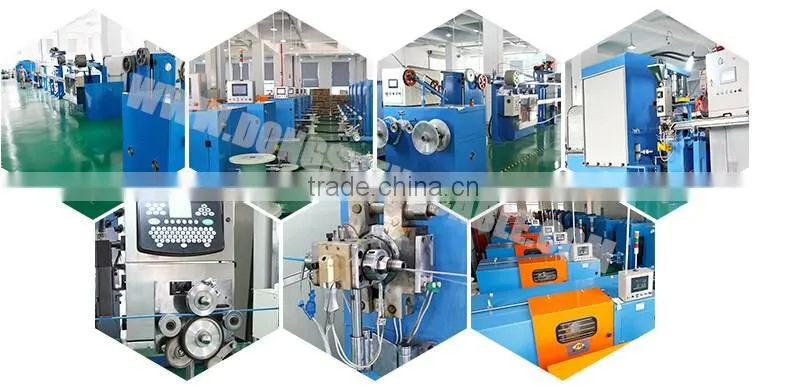

Factory Show

RG59 Camera Cable for CCTV System

 RG59 Camera Cable for CCTV System



KINDS OF Certification



Such as: CE,ISO,UL Certificate

RG59 Camera Cable for CCTV System

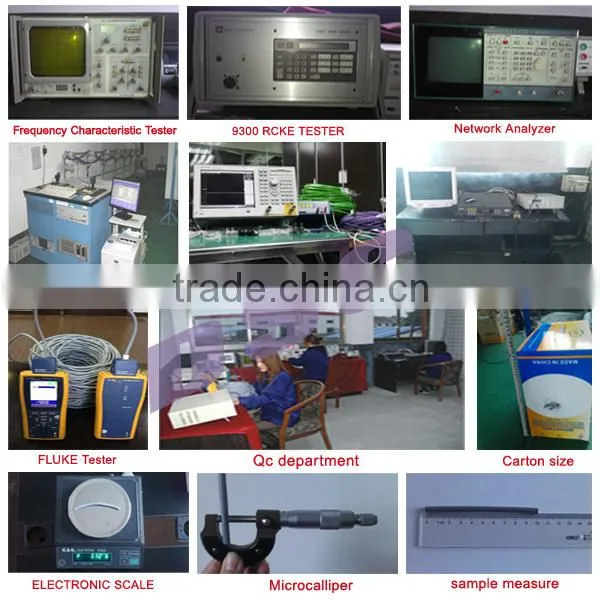

Testing Equipment

RG59 Camera Cable for CCTV System



Exhibition Trade Show

We attend to 3-5 Fairs in Beijing CCBN, Hongkong, Guangzhou, and aboard, to meet with  the old customer, also show our company to the future new customers.



SUPPLY KINDS OF CABLES:



1) Lan  Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3



2)  75 ohm Coaxial Cable RG6 RG59 RG7 RG11



3)  Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable



4)  Security Alarm Cable / Fire Alarm Cable



5) Optical Fiber Cable



6) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable



7) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C



8) Trunk Cable QR750 QR540 QR500 QR412



9) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602



10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223



11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600



12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB



13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB,Feeder Cable 1/2, 3/8,5/87/8



14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect



15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm



16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable



17) Coaxial Cable Connector(BNC,RCA,Female, Male)



18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna



19) CATV Transimitter, CATV Amplifier,CATV Receiver



20)  Optical Fiber Cable (GYXTY, GYXTW, ADSS, FTTH ,GYXTC8S,GYXTC8Y etc.)
