Coaxial Cable rf 4mm

Coaxial Cable rf 4mm thumbnail-1
Coaxial Cable rf 4mm thumbnail-2
Coaxial Cable rf 4mm thumbnail-3
Coaxial Cable rf 4mm thumbnail-4
Coaxial Cable rf 4mm photo-1
Coaxial Cable rf 4mm photo-2
Coaxial Cable rf 4mm photo-3
Coaxial Cable rf 4mm photo-4
US$ 0.01 - 0.19 MOQ: 30 Meters
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dong Sheng
Model Number:
Coaxial Cable rf 4mm
Contact Supplier Request Quote Chat Now
Hangzhou Lin'an Dongsheng Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dong Sheng
Model Number Coaxial Cable rf 4mm
Type Coaxial
Number of Conductors 1

Coaxial Cable rf 4mm



Coaxial Cable rf 4mm





Cabo Coaxial 0.4 X 2.5 75OHMS



Specification



mpedancia Nominal
 75


 Velocidade de Propagacao  65%
ATENUAÇAO MAXIMA
Frequencia (MHz)
Atenuacao (db/100m)
1
1,93
4
3,87
7
5,13
70
16,39
100
19,65
200
27,99
300
34,47
400
39,98
500
44,88
600
49,35
700
53,48
800
57,35
900
61,00
1000
64,48


CARACTERÍSTICAS DIMENSIONAIS
 Diametro Nominal do Condutor Central
7 x 0,142 mm
 Diametro Nominal do Dieletrico
2,50 mm
 Diametro Nominal da Capa
4,00 mm

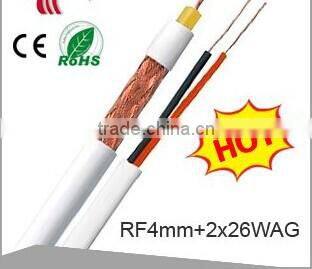

2*26AWG
7*0.14mm
Outer Jacket
70 Degere PVC
DADOS DE APLICAÇÕES E DICAS PARA USO
Cabo Coaxial Flexivel
Cobertura Material
RFF-4 mm
85%
Aplicacoes
Dicas de Uso
Projetos de CFTV (cameras).
Cabo mais fino e flexivel, projetados para CFTV. Ideal para locais onde o espaço físico e estreito (limitado). Distancia segura de utilizacao de ate 200 metros.
 Estas aplicacoes sao as mais comuns, porem, o uso dos cabos se estende a outros projetos.







France market Siamese Cable KX6+2C*0.75mm CCTV Camera Cable



Siamese Cable KX6+2C*0.75mm  or CCTV RG59+2C Power or RG59+Cat5e,RG6+4C Telphone



Physical specification



Center   Conductor:

   7*0.2+0.01mm/0.64mm/0.81mm Bare Copper
Dielectric:   3.7+0.05mm Solid PE
Bradi Coverage:   35%-90% BC/CCA
Jacket:   6.15+0.05mm PVC
2C Power wire 0.3X7 CCA+1.8 Black/red PVC
or UTP Cat5e 4*2*0.51mmCCA/BC
or 4C Telephone 2*2*0.51mmCCA/BC
Overall jacket  4.5mm PVC







2.  KX6 coaxial cable electrical properties



Impedance:   75+3 Ohm
Capacitance:   50+3pF/km
Velocity of Propagation:   85%
Conductor resistance Max:

  Inner:16.8 ohms/km

  Outer:26 ohms/km
Return Loss:   20dB min (5-2150MHz)gbgfbbgfb



 Attenuation

  [@68o F. (20o C.)]
 Frequency (MHz)  Maximum (dB/100 ft.)  Maximum (dB/100 m)
 5  0.46  1.5
 50  1.31  4.3
 100  1.80  5.9
 200  2.56  8.4
 400  3.66  12.0
 800  5.34  17.5
 862  5.58  18.3
 950  5.86  19.2
 1350  7.11  23.3
 1750  8.24  27.0
 2150  9.33  30.6
 3000  11.22  36.8



 Application

Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable for satellite systems where lower attenuation required.



Packing 1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request; 2) Inner packing: Wooden reel, plastic reel, and paper reel available. 3) Outer packing: Carton box, pull out box, pallet available. (Other packing available according to client's request. )

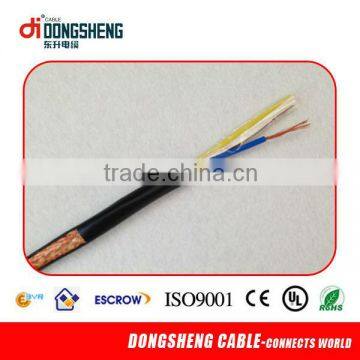

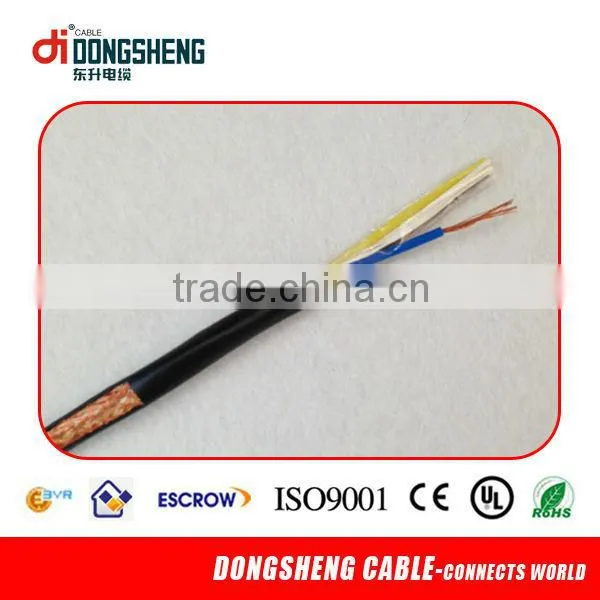

 Cable Picture and Package



 Coaxial Cable rf 4mmCoaxial Cable rf 4mm



Coaxial Cable rf 4mmCoaxial Cable rf 4mm

Coaxial Cable rf 4mmCoaxial Cable rf 4mm

Coaxial Cable rf 4mmCoaxial Cable rf 4mm

Coaxial Cable rf 4mm



Factory Show

Coaxial Cable rf 4mm



 Coaxial Cable rf 4mm



Certification

Coaxial Cable rf 4mm



Testing Equipment



Exhibition

Coaxial Cable rf 4mm



Other Cables:



1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3

2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable

3) Security Alarm Cable, Fire Alarm Cable

4) Optical Fiber Cable(GYXTC8S, GYXTC8S, ADSS, FTHH ect.)

5) Speaker Cable,Power Cable, Electrical Cable, Multi-Core Cable

6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C

7) Trunk Cable QR750 QR540 QR500 QR412

8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602

9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11

10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223

11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600

12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB

13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB

14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect

15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm RG174 RG58 RG214 LMR400

16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable

17) Coaxial Cable Connector(BNC,RCA,Female, Male)

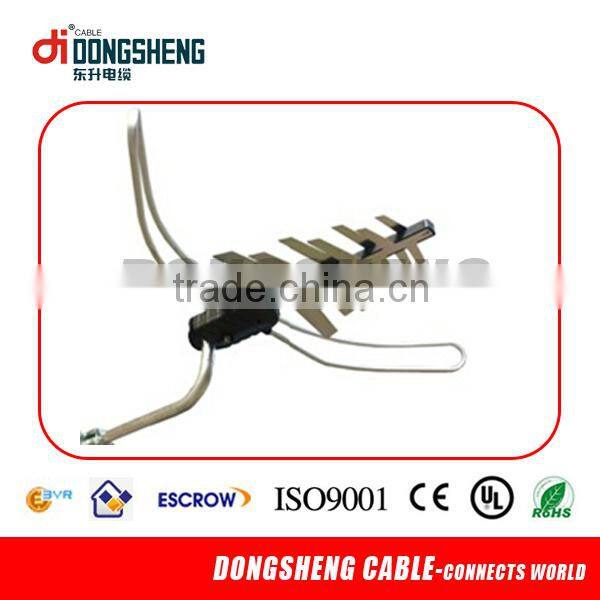

18) Indoor TV Antenna, Outdoor TV Antenna
