Brazil Market 75 Ohm Cabos Coaxial RF 4mm

Brazil Market 75 Ohm Cabos Coaxial RF 4mm thumbnail-1
Brazil Market 75 Ohm Cabos Coaxial RF 4mm photo-1
US$ 1 - 400 MOQ: 100 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DongSheng Cable
Model Number:
Semi Finished Cabo Coaxial RF 4mm
Contact Supplier Request Quote Chat Now
Hangzhou Lin'an Dongsheng Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fob Shanghai or Ningbo Seaport
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name DongSheng Cable
Model Number Semi Finished Cabo Coaxial RF 4mm
Type Coaxial
Number of Conductors 1

Specifications

1) 75 ohm Cabos Coaxial RF 4mm, RG6,RG59, RG11
2) Since 1991
3)Application for CCTV System
4) CE , ISO, ROHS

Brazil  Market 75 ohm Cabos Coaxial RF 4mm,RG6,RG59,RG11



75 ohm Cabos Coaxial RF 4mm



Semi Finished Cabo Coaxial RG6, RG11, RG59, RF 4mm  Prodcut Specification



1) Semi Finished Cabo Coaxial RG59 95%
0.81mmCCS/Cu+3.7mmFPE+Al Foil+95% Al Braid
Package:5000m/wooden drum



2) Semi Finished Cabo Coaxial RG6 67%
1.02mm BC+4.57mmFPE+Al Foil+67% Al Braid
Package:4000m/wooden drum



3) Semi Finished Cabo Coaxial RG6 95%
1.02mmCCS/Cu +4.57mm PE Foam+ Al Foil+95% Al Braiding
Package:4000m/wooden drum



4) Semi Finished Cabo Coaxial RG11 90%
1.63mm CCS/Cu +7.11mmFPE+ Al Foil+90% Al Braiding
Package:1810m/wooden drum



5) Semi Finished Cabo Coaxial RF 4mm
7*0.18 mm CCA/Cu+2.4mm SPE +16*4*0.12mm80% CCA
Package:6000m/wooden drum


Finished Cabo Coaxial RG59,RG6, RG11, RF 4mm
Specification
1) Cabo Coaxial RG59 67%
0.81mmCCS/Cu+3.7mmFPE+Al Foil+67% Al +6.0PVC



2) Cabo Coaxial RG6 67%
1.02mm BC+4.57mmFPE+Al Foil+67% Al +6.90PVC



3) Cabo Coaxial RG6 95%
1.02mmCCS/Cu +4.57mm PE Foam+ Al Foil+90% Braiding+6.8mm PVC Jacket



4)Cabo Coaxial RG6 95% with messenger cable
1.02mmCCS/Cu +4.57mm PE Foam+ Al Foil+90% Braiding+6.8mm PVC Jacket+1.3Steel Messenger



5) Cabo Coaxial RG11
1.63mm CCS/Cu +7.11mmFPE+ Al Foil+90% Al Braiding+10.0mm PVC Jacket



6) Cabo Coaxial RG11 With Steel Messenger
1.63mm CCS/Cu +7.11mmFPE+ Al Foil+90% Al Braiding+10.0mm PVC Jacket+1.83mm Steel Messenger



4) Customers' specifications are welcomed.



Packing:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 500m/drum, 100yard/roll, 200yard/roll, 300yard/roll.
2) Inner packing: Wooden reel, plastic reel, and paper reel.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

5) With wooden drum: 4830m/wooden drum, 4000m/wooden drum,5000m/wooden drum,1810m/wooden drum

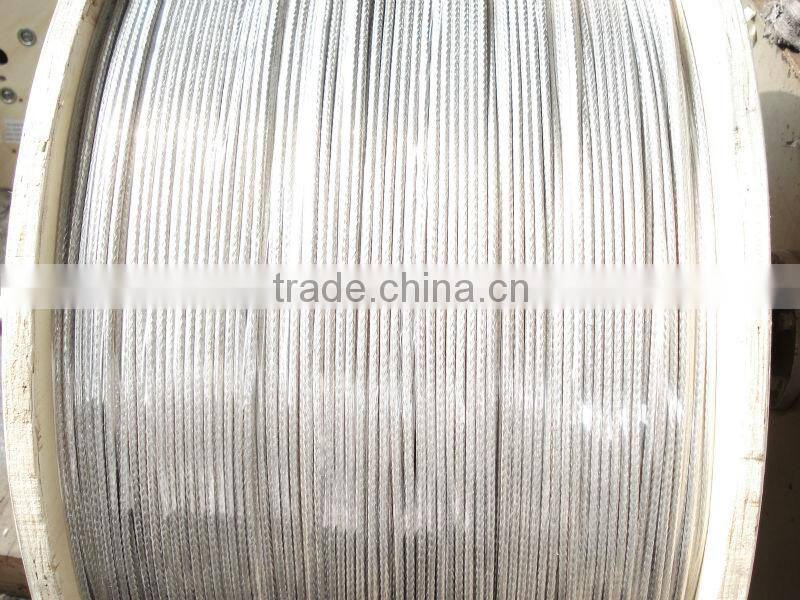

Products Photos:

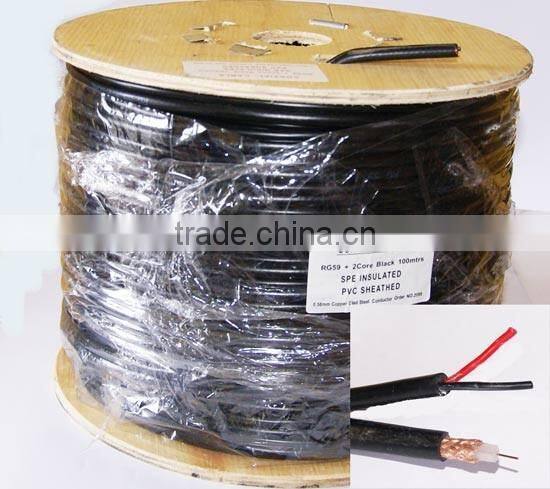

          Brazil Market 75 ohm Cabos Coaxial RF 4mm



Brazil Market 75 ohm Cabos Coaxial RF 4mmBrazil Market 75 ohm Cabos Coaxial RF 4mm



Brazil Market 75 ohm Cabos Coaxial RF 4mm



Electrical Characteristics :

1) Characteristics Impedance:                          75+/- 3 Ohms

2) Capacitance Conductor to Shield:               53.1 pF/m

3) Velocity of Propagation :                                 82%

4) Delay:                                                                 4.065 ns/m

5) Min.Structural Return Loss (5-3000MHz) :  20 dB

6) Max. Attenuation :

@ Frequency (MHz)

dB/100 ft (MAX.)

dB/100 meters(MAX)

5 MHz

0.58 dB

1.90 dB

55 MHz

1.60 dB

5.25 dB

211 MHz

1.95 dB

10.00 dB

250 MHz

2.85 dB

10.82 dB

270 MHz

3.05 dB

11.04 dB

300 MHz

3.30 dB

11.64 dB

330 MHz

3.55 dB

12.26 dB

350 MHz

3.85 dB

12.63 dB

400 MHz

4.15 dB

13.61 dB

450 MHz

4.40 dB

14.43 dB

500 MHz

4.66 dB

15.29 dB

550 MHz

4.90 dB

16.08 dB

600 MHz

5.10 dB

16.73 dB

750 MHz

5.65 dB

18.54 dB

870 MHz

6.10 dB

20.04 dB

1000 MHz

6.55 dB

21.46 dB

1300 MHz

7.46 dB

24.49 dB

1450 MHz

7.89 dB

25.89 dB

1750 MHz

8.74 dB

28.67 dB

2150 MHz

9.69 dB

31.79 dB

2600 MHz

10.76 dB

35.30 dB

2832 MHz

11.55 dB

37.74 dB

3000 MHz

11.84 dB

38.84 dB

Application :

1. Coaxial cable for  CATV,CCTV systems

2. Plus  F  as connection cable

3. For satellite systems

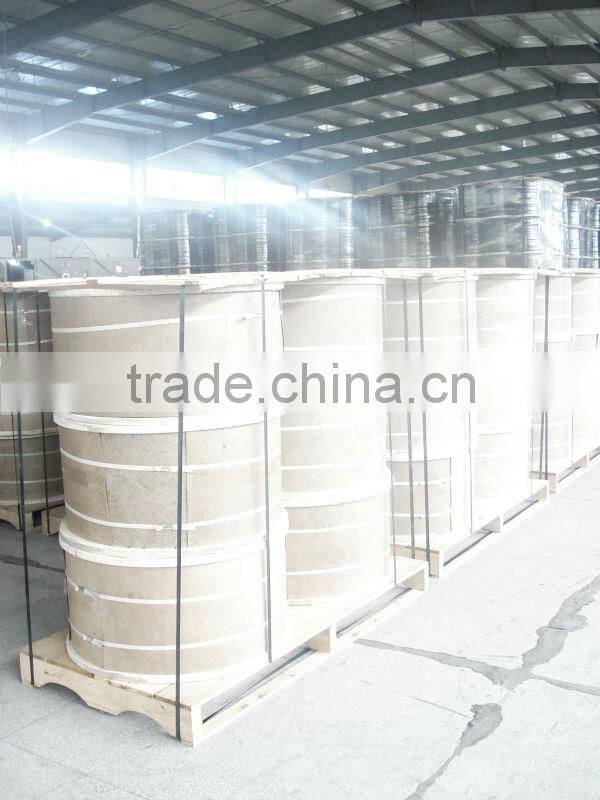

 Factory Show

Located at the foot of the Tianmu Mountain from the city of Lin`an Hangzhou,Hongzhou Lin`an Dongsheng Cable

Co.,Ltd.is 28km away from Hangzhou City,covering an area of 1,6000 square meters,with beautiful landscape

and convenient communication facilities.









Products Certifications

Founded in 1991,the company's rapid development helps us to be the industry leader.Ithas passed the ISO9001

quality system certification&UL certification,conferred with foreign trade license.It comes at the top of an

enterprise's comprehensive strength.

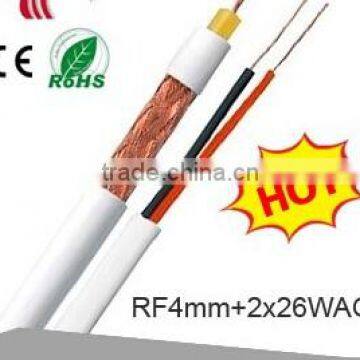

Brazil Market 75 ohm Cabos Coaxial RF 4mm





Testing Equipment







Exhibition

Brazil Market 75 ohm Cabos Coaxial RF 4mm
