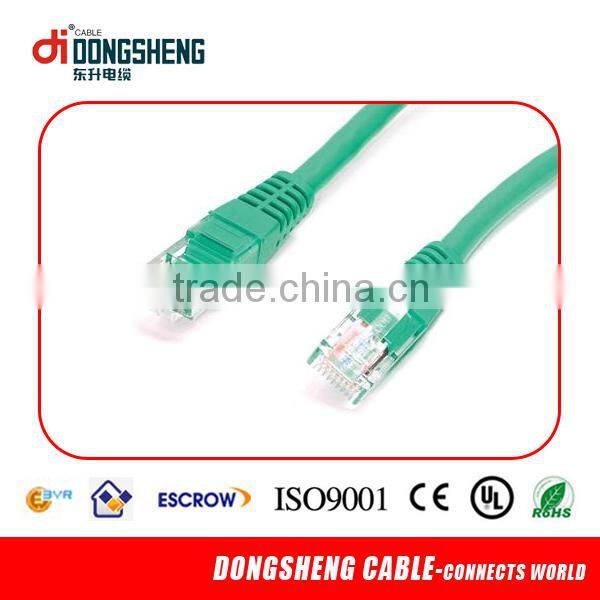

Patch cord 3m cat5e utp

Specifications

1.ISO/IEC 11801,ANSI/TIA/EIA-568B/C
UL,ISO9001,PASS FLUKE TEST DTX-1800
2. OEM, 21 years factory
3.Network cabling solution

Patch cord 3m cat5e utp



BC: Bare Copper CCS: Copper Clad Steel

CCA: Copper Clad Aluminium P: Pairs



Tips: We can ensure to pass the FLUKE TEST DTX-1800,  with a high performance in your cabling system/solution



2. Product Structure

Item	Patch Cord
Conductor Material	Bare Copper/CCA/CCS
Conductor	Stranded 7*0.2mm/7*0.18mm/ 7*0.12mm(or others)
Insulation	HDPE /PE
Jacket	PVC/LSZH/ROHS(5.5mm)
Plug	UTP/FTP, RJ45( 8P8C,8P6C,8P4C.)RJ11(6P4C,6P2C)
Connector	(Transparent)Platic or Metal, Gold-Plated or Nickle-Plated
Plug gold plating	3-50u
Length	As client's request
Certification	CE, RoHS,UL,ISO9001
Standards	ETL 444/CSA-C22.2  No.214, Type CM/TIA/EIA-568A
Application	•100   Base-T4   •100 Base-TX    •100VG-AnyLAN •1000 Base-T(Gigabit Ethernet)  •155 Mbps ATM  •622 Mbps ATM



3. Electrical Characteristic

Frequency (MHz)	Resistance     (ohm)	Return Loss     (db)	Attenuation (db/100m)	Near-end Crosstalk     (db/100m)	Crosstalk (db/100m)
0.772	100±15	19.4	1.8	67	66.2
1		20	2	65.3	64
4		23	4.1	56.3	52
8		24.5	5.8	51.8	45.9
10		25	6.5	50.3	44
16		25	8.2	47.2	39.9
20		25	9.3	45.8	38
25		24.3	10.4	44.3	36
31.25		23.6	11.7	42.9	34.1
62.5		21.5	17	38.4	28.1
100		20.1	22	35.3	24

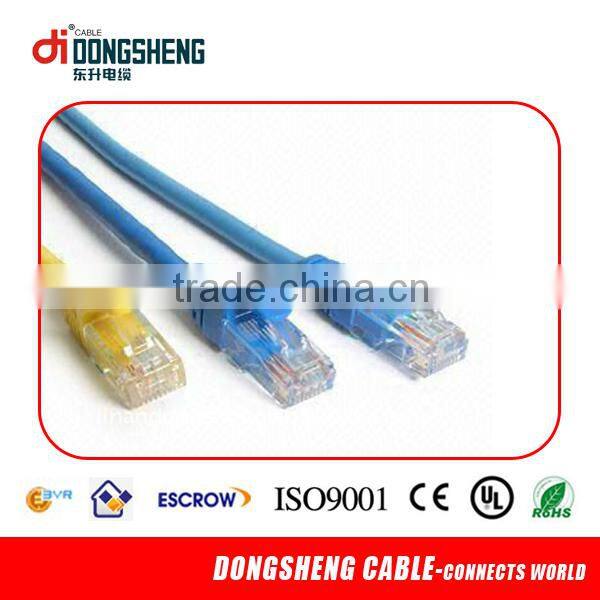

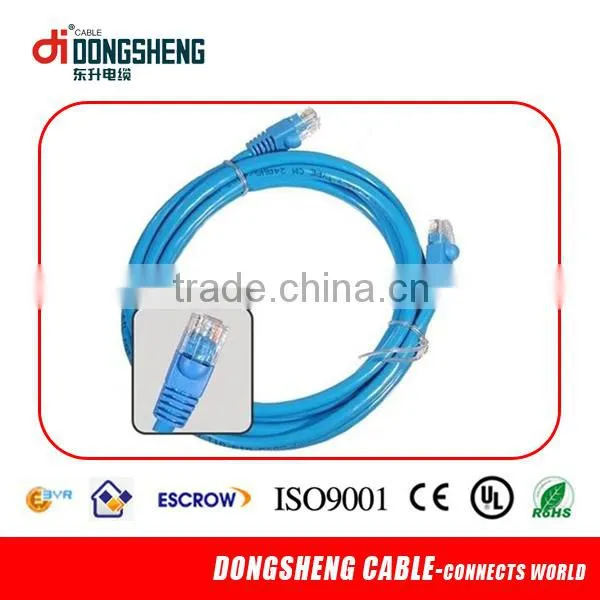

5. Product photos

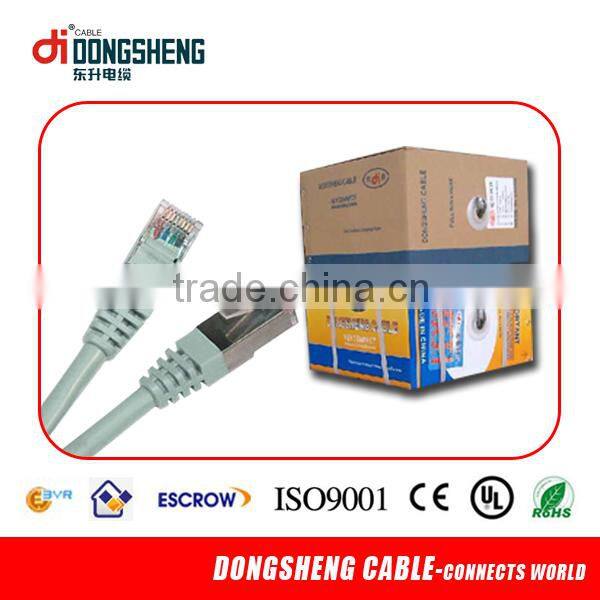

6.Packing:





Certificate:

We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.



 Test Equipment



Factory and Production line

We use the bue advance production equipment for LAN CABLE,TELEPHONE CABLE, and COAXIAL CABLE, ensure the high performance in your project and system.





Exhibition Trade Show

We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with  the old customer, also show our company to the future new customers.



More types of Cables we do

We also produce these cables for more than 21 years, RG6,RG11,RG59 COAXIAL CABLE, TELEPHONE CABLE, ALARM CABLE.MICROPHONE CABLE etc.







Hangzhou Lin`an Dongsheng Cable Co.,Ltd, was established in 1991,located at the foot of the Tianmu Mountain in  Lin`an city, is 28km away from Hangzhou City, which is close to Shanghai port and Ningbo port with facilitated  transportation



As a professional cable manufacturer in china,We specialized in producing of Coaxial Cable RG59,RG6,RG11 CATV    and CCTV, Lan Cable Cat3,Cat5e,CAT6 UTP/FTP /SFTP for Indoor and Outdoor,Telephone Cable,Combined Cable,and cable  accessories etc. We are covering 1,6000 square meters,including standard workshops and warehouse,to ensure  your goods in goods production condition.



Meanwhile,Our company has obtained ISO9001,also our products has passed CE,RoHS ,UL certificate,which is   Promise high quality cable .
