2013 Top selling systimax cat5e patch cord

Specifications

1.ISO/IEC 11801,ANSI/TIA/EIA-568B/C
UL,ISO9001,PASS FLUKE TEST DTX-1800
2. OEM, 21 years factory
3.Network cabling solution

systimax cat5e patch cord



1. Overview

• Multi-stranded construction, soft, easily flexible, not break off easily.
• Many colors optional, specious and easily mark
• Different length can be available.

Item	Patch cord
Conductor Material	utp patch cord cable 1meter
Conductor	Stranded 7*0.2mm/7*0.18mm/ 7*0.12mm(or others)
Insulation	HDPE /PE
Jacket	PVC/LSZH/ROHS(5.5mm)
Plug	UTP/FTP, RJ45( 8P8C,8P6C,8P4C.)RJ11(6P4C,6P2C)
Connector	(Transparent)Platic or Metal, Gold-Plated or Nickle-Plated
Plug gold plating	3-50u
Length	As client's request
Certification	CE, RoHS,UL,ISO9001
Standards	ETL 444/CSA-C22.2  No.214, Type CM/TIA/EIA-568A
Application	•100   Base-T4   •100 Base-TX    •100VG-AnyLAN •1000 Base-T(Gigabit Ethernet)  •155 Mbps ATM  •622 Mbps ATM

3.Data Sheet

Frequency   MHz	Return loss   dB	Attenuation    dB/100m	NEXT  dB	ACR  dB	PSNEXT  dB	ELEFXT  dB/100m	PSELEXT dB/100m	Delay ns/100m
0.772	19.4	1.8	67	65	64	66	63	575
1.0	20.0	2.0	65.3	63.0	62.3	63.8	60.8	570
4.0	21.0	4.1	56.3	52.0	53.3	51.7	48.7	562
6.0	24.5	5.8	51.8	46.0	48.8	45.7	42.7	546.7
10.0	25.0	6.5	50.3	44.0	47.3	43.8	40.8	546.4
16.0	25.0	8.2	47.3	39.0	44.3	39.7	36.7	543
20.0	25.0	9.3	45.8	37.0	42.8	37.7	34.7	542
25.0	24.3	10.4	44.3	34.0	41.3	35.8	32.8	541.2
31.25	23.6	11.7	42.9	31.0	39.9	33.9	30.9	540.4
62.5	21.5	17	38.4	21.0	35.4	27.8	24.8	438.6
100.0	20.1	22	36.3	13.0	32.3	23.8	20.8	537.6

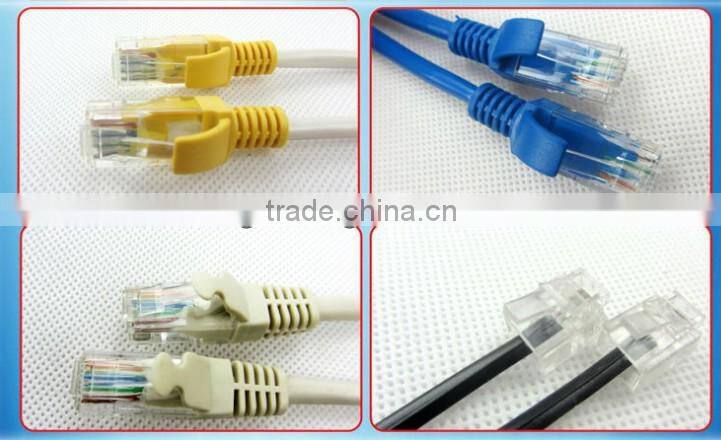

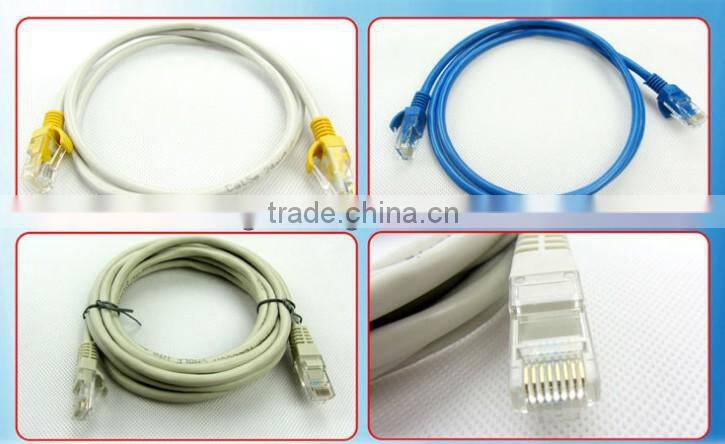

4. Product photos

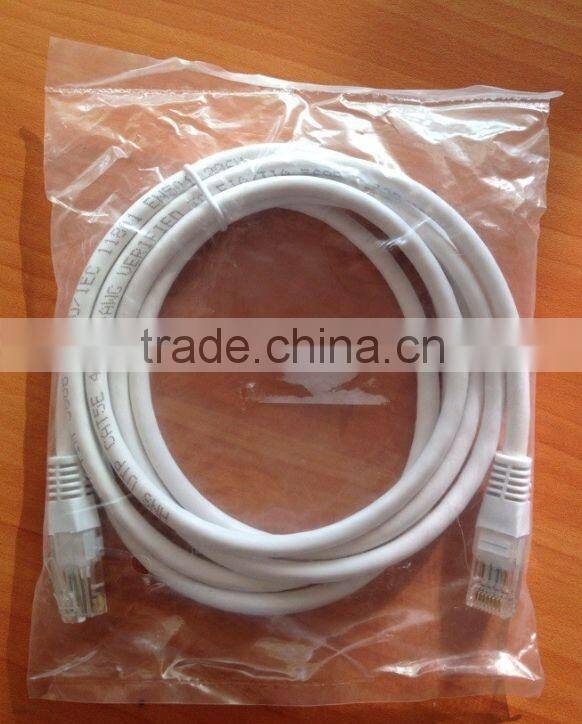

5.Packing:



5.Certificate:

We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.



 7.Test Equipment



8.Factory and Production line

We use the bue advance production equipment for LAN CABLE,TELEPHONE CABLE, and COAXIAL CABLE, ensure the high performance in your project and system.





9.Exhibition Trade Show

We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with  the old customer, also show our company to the future new customers.



10.More types of Cables we do

We also produce these cables for more than 21 years, RG6,RG11,RG59 COAXIAL CABLE, TELEPHONE CABLE, ALARM CABLE.MICROPHONE CABLE etc.







Hangzhou Lin`an Dongsheng Cable Co.,Ltd, was established in 1991,located at the foot of the Tianmu Mountain in  Lin`an city, is 28km away from Hangzhou City, which is close to Shanghai port and Ningbo port with facilitated  transportation



As a professional cable manufacturer in china,We specialized in producing of Coaxial Cable RG59,RG6,RG11 CATV    and CCTV, Lan Cable Cat3,Cat5e,CAT6 UTP/FTP /SFTP for Indoor and Outdoor,Telephone Cable,Combined Cable,and cable  accessories etc. We are covering 1,6000 square meters,including standard workshops and warehouse,to ensure  your goods in goods production condition.



Meanwhile,Our company has obtained ISO9001,also our products has passed CE,RoHS ,UL certificate,which is   Promise high quality cable .
