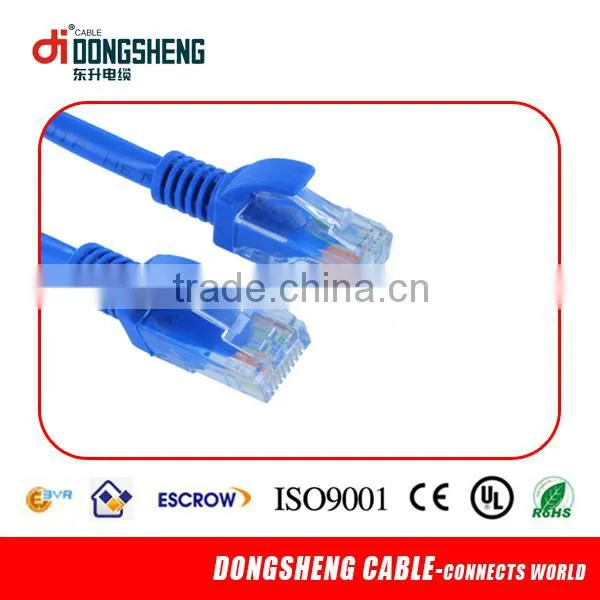

2014 blue color jacket utp cat5e strand 26awg patch cord cable

Specifications

utp cat5e strand 26awg patch cord cable
1.Factory price
2.UL,CE,ROHS ceritificate
3.pass fluke dtx-1800

Specification

1.Specification: 4P

2.Rated Temperature: -45 °C - 75°C

3.Unshielded twisted pairs:

4.Conductor: 26AWG or 24AWG Stranding or Solid Bare copper

5.Insulation: HD-PE

6.Jacket: PVC or LSNH

7.Impedance:100±15%Ω at 1~100MHz

8.Reference standard: YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA-568B,

9.Print Legend: CM or CMR



Features

1.Fast and Reliable Connection

2.Twisted Pairs with Bright Color for Easy Recognition

3.Ripcord and Footmark for Convenient Use

4.Smooth Jacket for Easy Pulling in Tight Space

5.Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement

Cable Assembly Specification:

Shape	Conductor		Insulation		Core Number	Jacket
	AWG	Specification (mm)	Material	Thickness (NOM.mm)		Material	Thickness (NOM.mm)	OD (NOM.mm)
Circular Cable	26	1/0.404	HD-PE	0.18	4P	PVC or LSNH	0.55	4.8
		7/0.16	HD-PE	0.18	4P	PVC or LSNH	0.55	5.0
	24	1/0.511	HD-PE	0.18	4P	PVC or LSNH	0.55	5.4
		7/0.203	HD-PE	0.18	4P	PVC or LSNH	0.55	5.5
Flat Cable (Non-sign)	30	7/0.10	HD-PE	0.13	4P	PVC	0.30	1.75*6.2
	28	7/0.127	HD-PE	0.13	4P	PVC	0.30	1.90*7.0
	24	7/0.203	HD-PE	0.18	4P	PVC	0.50	3.0*9.0
