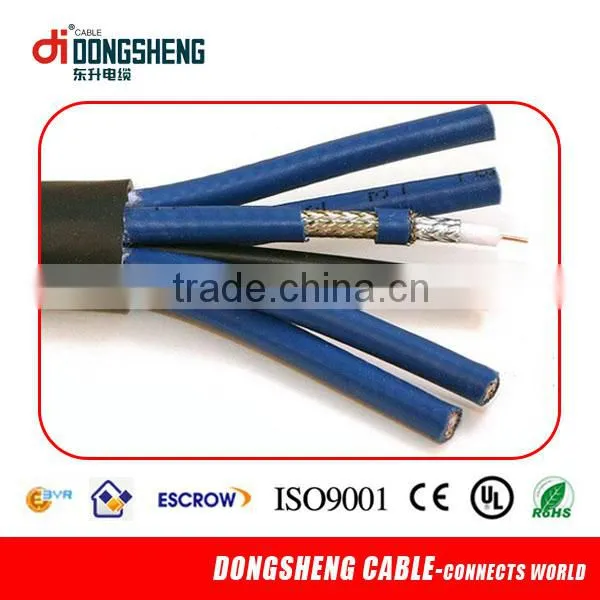

European Quality Multi-core Coaxial Cable 8 Core BT3002

European Quality Multi-core Coaxial Cable 8 Core BT3002 thumbnail-1
European Quality Multi-core Coaxial Cable 8 Core BT3002 photo-1
US$ 0.01 - 10,000 MOQ: 20 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dong Sheng
Model Number:
European quality multi-core Coaxial Cable 8 Core BT3002
Contact Supplier Request Quote Chat Now
Hangzhou Lin'an Dongsheng Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dong Sheng
Model Number European quality multi-core Coaxial Cable 8 Core BT3002
Type Coaxial
Number of Conductors 1

Specifications

1) European quality multi-core Coaxial Cable 8 Core BT3002
2) Since 1991 years
3) For telecom cable
4) ISO9001/CE/ROHS

European quality multi-core Coaxial Cable 8 Core BT3002



multi-core Coaxial Cable 8 Core BT3002



Product Specification:



Telecom Coax Cable  BT Series

European quality multi-core Coaxial Cable 8 Core BT3002
The British Telecom types BT3002 suitable for the interconnection of telecommunication transmission equipment. They are mainly used for indoor installation in the transmission equipments for the digital telephone exchange system.They also available in both single and multi-core versions, in standard PVC and LSOH versions

Type

Imp.Ohms

Inner
Conductor(mm)

Dielectric
(mm)

Shield

Outer Sheath

O/D mm

BT2001

   75

7/0.2 BC

FPE

TC

PVC

4.40

BT2002

   75

7/0.2 BC

FPE

2×TC

PVC/LSZH

5.10

BT2003

   75

1/0.61 BC

PE

2×TC

PVC/LSZH

6.70

BT3002

   75

1/0.31 BC

PE

2×TC

PVC/LSZH

3.55

BT3002*8 Core

   75

1/0.31 BC

PE

2×TC

PVC/LSZH

16.0

BT3002*16 Core

   75

1/0.31 BC

PE

2×TC

PVC/LSZH

21.0



RG174 mini coaxial cable ,Mini Coaxial Cable RG59 1885A , Sub-Miniature 59/U(1865A)

Miniature Coax Cable
Mini RG59(1855A)
Sub-Miniature 59/U(1865A)
RG174 mini-coax
RG178 mini-coax
RG179 mini-coax
RG188 A/U
0.81 mm Mini-Coax
1.13 mm Miniature Coax
1.32 mm Miniature Coax
1.37 mm Miniature Coax
1.48 mm Miniature Coax



Miniature Coax Cable » Mini RG59(1855A)
European quality multi-core Coaxial Cable 8 Core BT3002
Mini RG59(1855A) is the HDMI(High Definition Multimedia Interface) cable. HDMI cable to transmit through a high-definition, all-digital audio and video content. HDMI is the future direction of HDTV (high definition television).
• Mini RG59 have 23 AWG solid bare copper conductors, Foamed HDPE insulation, 100% bonded foil shield and 95% tinned copper braid shield, PVC jacket. • Return Loss: 5MHz to 1600MHz>23 dB ; 1601MHz to 4500MHz >21 dB.  • Out jacket following colors: brown, red, orange, yellow, blue, violet, gray, white, black, aqua, rose and green

Type

Imp.Ohms

Inner              Conductor(mm)

Dielectric             (mm)

Shield

Outer Sheath

O/D mm

MiniRG59

75

1/0.58  BC

2.60   FPE

Boneded AL/P+95%TC

PVC

4.10

MiniRG59×3

75

1/0.58  BC

2.60   FPE

Boneded AL/P+95%TC

PVC

11.20

MiniRG59×4

75

1/0.58  BC

2.60   FPE

Boneded AL/P+95%TC

PVC

12.22

MiniRG59×5

75

   1/0.5   BC

2.60   FPE

Boneded AL/P+95%TC

PVC

13.80

MiniRG59×8

75

1/0.58   BC

2.60   FPE

Boneded AL/P+95%TC

PVC

16.20

MiniRG59×10

75

1/0.58   BC

2.60   FPE

Boneded AL/P+95%TC

PVC

20.22

MiniRG59×12

75

1/0.58  BC

2.60   FPE

Boneded AL/P+95%TC

PVC

20.96

MiniRG59×16

75

1/0.58  BC

2.60   FPE

Boneded AL/P+95%TC

PVC

23.27

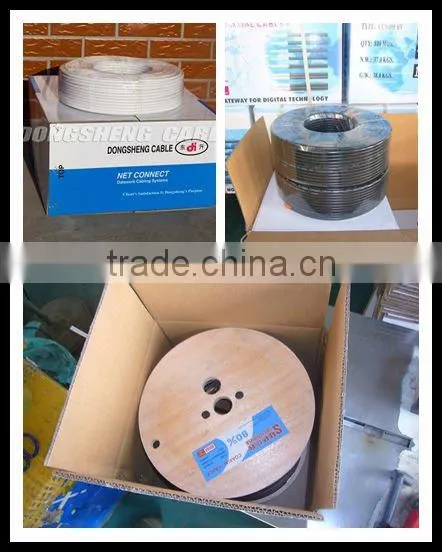

Packing:

1) Packing Lengths:100/roll,200m/roll,250m/roll,300m/roll

2) Inner Packing:Wooden reel,plastic reel,and paper reel

3) Outer Packing:Carton box,pull out box,pallet available

4) Other packing available according to clients’request

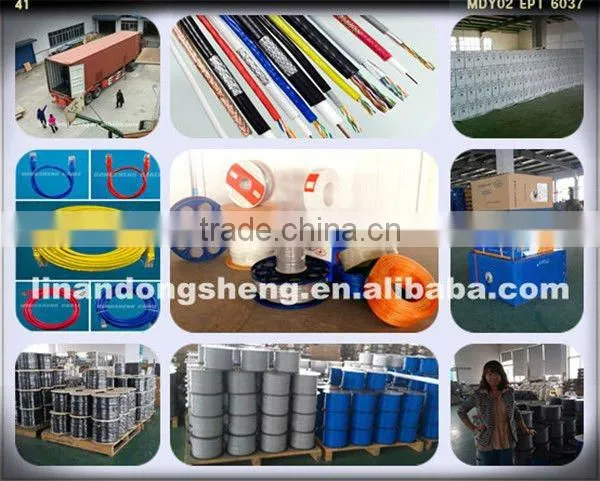

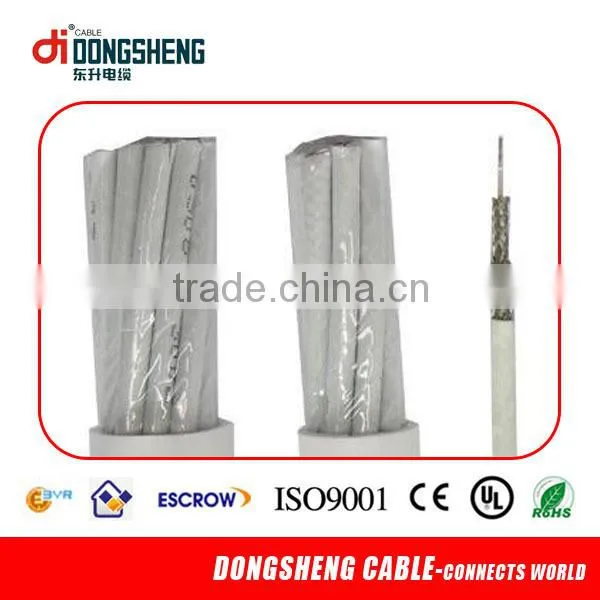

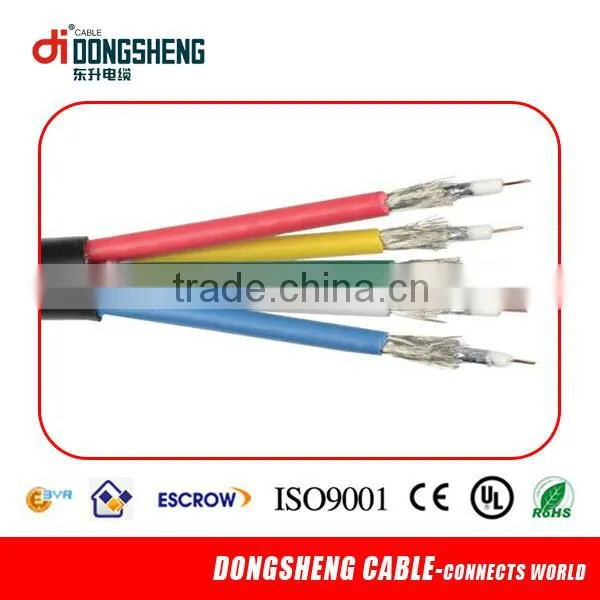

 Cable Picture and Package

European quality multi-core Coaxial Cable 8 Core BT3002European quality multi-core Coaxial Cable 8 Core BT3002

 European quality multi-core Coaxial Cable 8 Core BT3002European quality multi-core Coaxial Cable 8 Core BT3002



European quality multi-core Coaxial Cable 8 Core BT3002



Certificate:



We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.



 European quality multi-core Coaxial Cable 8 Core BT3002

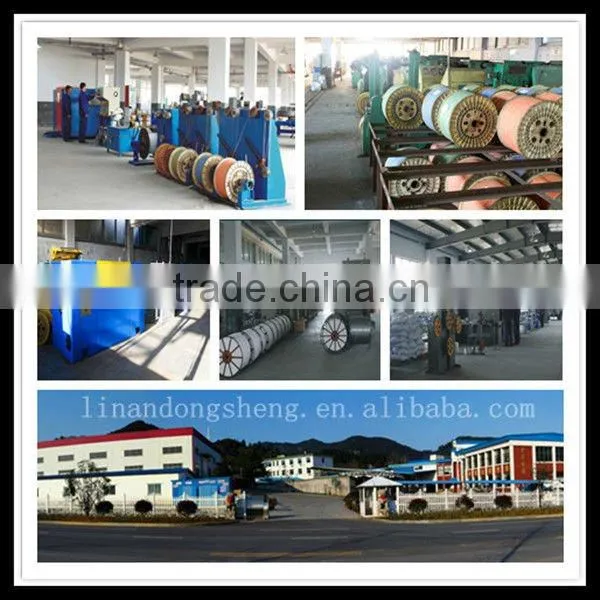

Factory and Production line

European quality multi-core Coaxial Cable 8 Core BT3002



Exhibition Trade Show

We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our

company and products to the future new customers.

European quality multi-core Coaxial Cable 8 Core BT3002

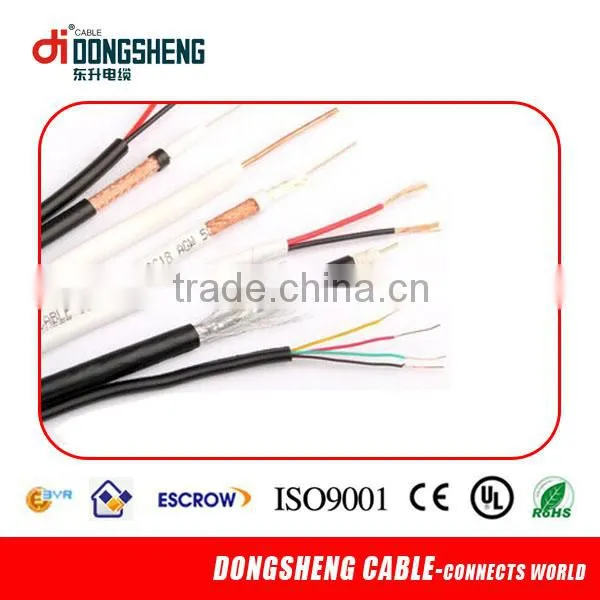

Other Cables:

Coaxial Cable,Lan Cable,Telephone Cable,Alarm Cable,Optical Fiber Cable,Power Cable
