Specifications
1.High quality Coaxial Cable CT1002.The best cost-effective
3. 21 years coaxial cable experience
4. ISO9001/CE/ROHS/U

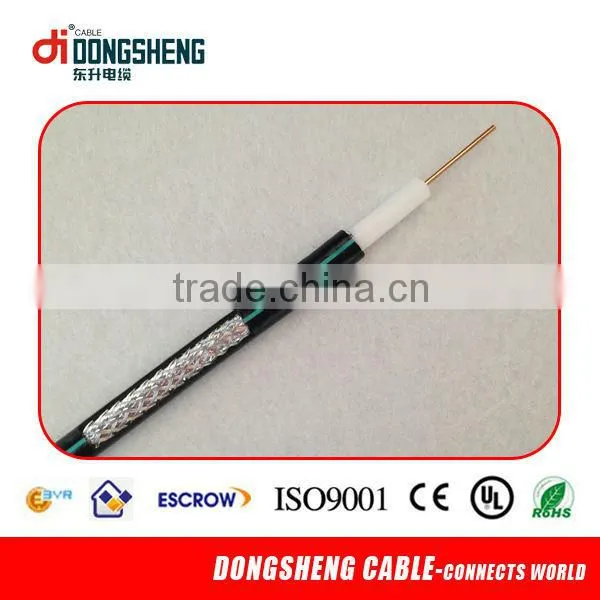

High quality Coaxial Cable CT100
Coaxial Cable CT100
CT100 Coaxial Cable ,TV Cable CT125,CT165 Satellite Cable
Europe Standard - CT100--75 Ohm Coaxial Cable CE,UL,ISO9001,ROHS
Description:

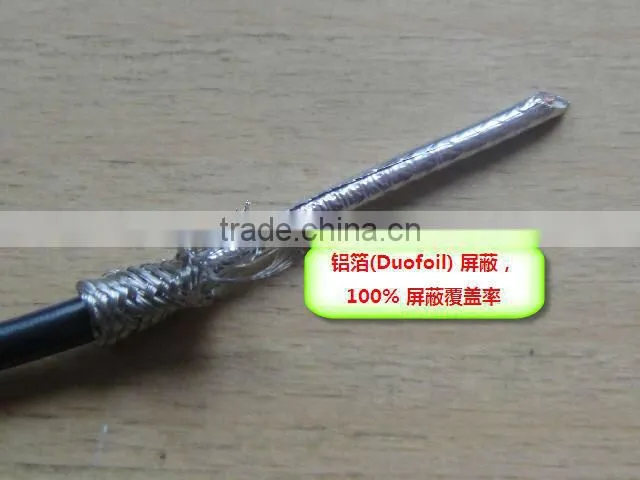

1) Construction: Center Conductor: 1.0mm Bare Copper Dielectric: 4.60mm Foamed PE Shield:Al/Cu Foil Braid Coverage: 50%-90% Al/BC/TC Jacket: 6.65mm PVC/PE
2) Characteristics Impedance: 75+/-3 Ohm Velocity of Propagation: 85% Return Loss: >=20dB 3) Attenunation[@ 68F. (20C.)] 10MHz 1.2dB/100 m 50MHz 4.5dB/100 m 100MHz 5.3dB/100 m 200MHz 8.6dB/100 m 400MHz 12.3dB/100 m 700MHz 17.1dB/100 m 900MHz 19.0dB/100 m 1000MHz 20.1dB/100 m
Application:
Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable
for satellite systems where lower attenuation required
Packing:
1) Packing Lengths:100/roll,200m/roll,300m/roll
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients’request
Certificate:
We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.

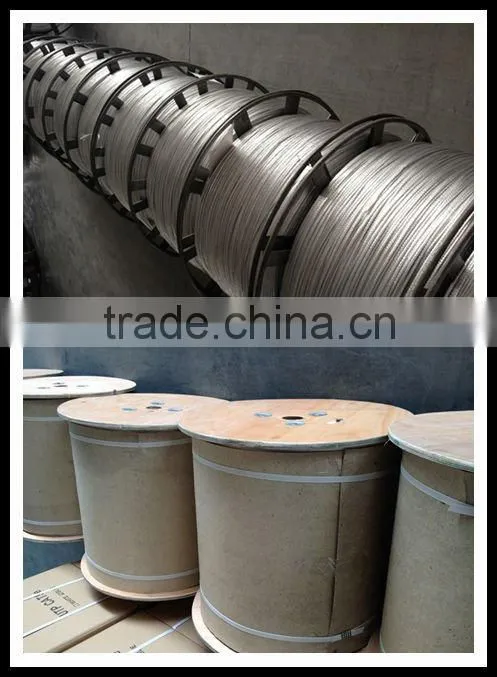

Factory and Production line
We use the bue advance production equipment for LAN CABLE,TELEPHONE CABLE, and COAXIAL CABLE, ensure the high performance in your project and system.
Exhibition Trade Show
We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company and products to the future new customers.
More types of Cables we do
We also produce these cables for more than 20 years, RG6,RG11,RG59 COAXIAL CABLE, TELEPHONE CABLE, ALARM CABLE.MICROPHONE CABLE etc.
Hangzhou Lin`an Dongsheng Cable Co.,Ltd, was established in 1991,located at the foot of the Tianmu Mountain in Lin`an city, is 28km away from Hangzhou City, which is close to Shanghai port and Ningbo port with facilitated transportation
As a professional cable manufacturer in china,We specialized in producing of Coaxial Cable RG59, RG6,RG11 CATV and CCTV, Lan Cable Cat3,Cat5e,CAT6 UTP/FTP /SFTP for Indoor and Outdoor, Telephone Cable,Combined Cable,and cable accessories etc. We are covering 1,6000 square meters, including standard workshops and warehouse,to ensure your goods in goods production condition.
Meanwhile,Our company has obtained ISO9001,also our products has passed CE,RoHS ,UL certificate,which is Promise high quality cable .
Dongsheng Cable products have been exported to Southeast Asia ,Middle East, European,South America,USA and gain good reputation.We will meet client requirements
