Specifications
1)Belden Mini RG59 UL Coaxial Cable2) Since 1991 year
3) For cctv video system
4) ISO CE UL ROHS ETL
5) RG59, RG6,RG1

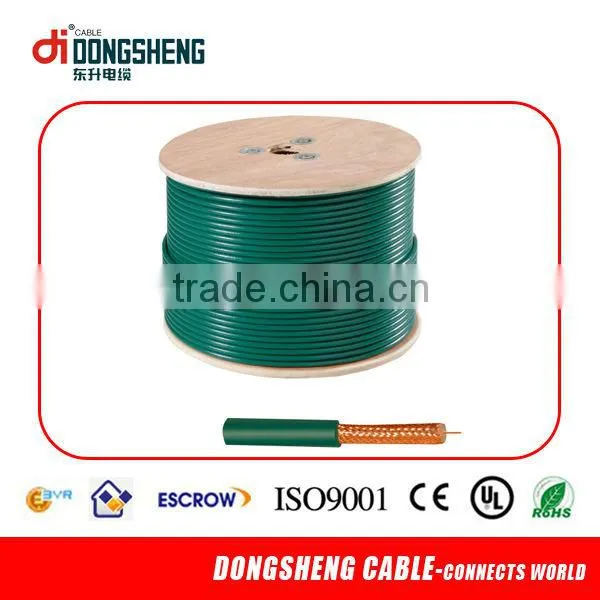

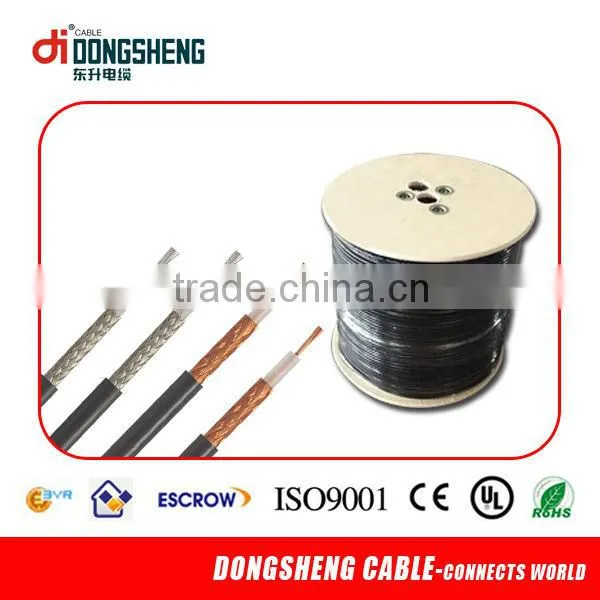

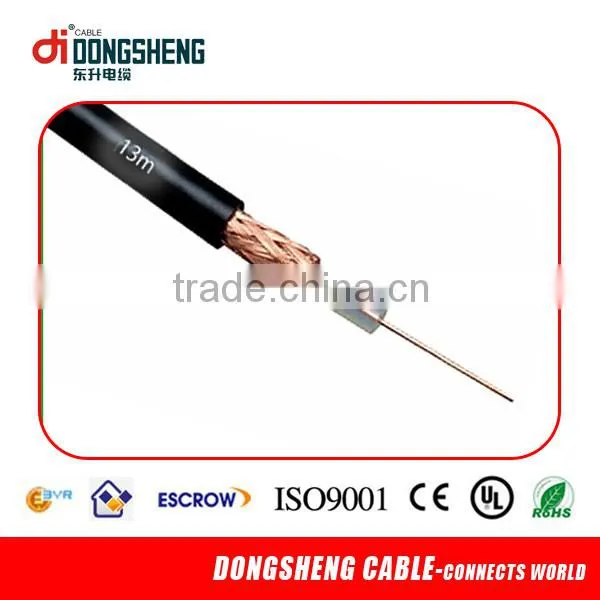

Belden Mini RG59 UL Coaxial Cable
Mini RG59 UL Coaxial Cable
Product Specification:
Coaxial Cable CATV/VIDEO |
TYPE: |
RG59B/U-95% |
|||
Construction | |||||
Item |
Material |
Diameter(mm) |
|||
Center Conductor |
Copper Coverd Steel |
0.58 |
|||
Dielectric |
SolidPE |
3.0 |
|||
Outer Shield |
Bare Copper Wire Braiding 95% |
7×16×0.16 |
|||
Jacket |
PVC |
4.05 |
|||
Electrical Charateristics |
|||||
Impedance(Ω) |
75±3 |
||||
Capacitance(pF/m) |
67 ±2 |
||||
Velocity of Propagation(%) |
66.0 |
||||
Inner Conductor DCR(Ω/KM) |
160.8 |
||||
Outer Conductor DCR(Ω/KM) |
8.5 |
||||
Max Operating Frenquency(MHZ) |
1000 |
||||
Max Operating Voltage(RMS) |
1700 |
||||
Installation Temp Range ℃ |
-40 to +85 |
||||
Operating Temp Range℃ |
-40 to +85 |
||||
Attenuation @68°F.(20 ℃ ) | |||||
@Frequency(Mhz) |
Max Attenuation(dB/100ft) |
Max Attenuation(dB/100m) |
|||
10 |
1.1 |
3.6 |
|||
50 |
2.6 |
8.5 |
|||
100 |
3.4 |
11.1 |
|||
200 |
5.2 |
16.9 |
|||
400 |
7.2 |
23.5 |
|||
600 |
9.2 |
30.2 |
|||
860 |
10.9 |
35.6 |
|||
1000 |
12.0 |
39.5 |
|||
Coaxial Cable RG6 RG59 RG11
1) 75 ohm cable coaxial rg59 67% or 95%
0.81mm CCS /CU+3.66mm FPE+Bonded Al Foil+67% 0r 95% mm Al +6.0mmPVC
Packing: 100m/Roll, 200m/Roll, 305m/Wooden drum, 500m/wooden drum

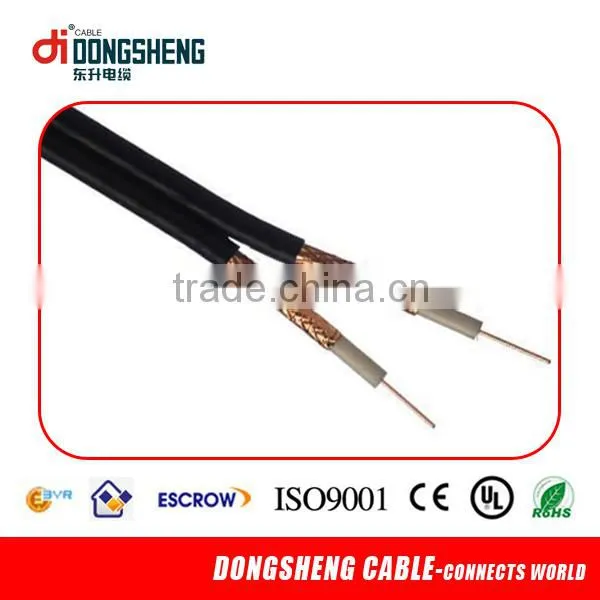

2) 75 ohm Cabo Siamese Cable RF 4mm+2*26AWG
7*0.18 mm CCA+2.4±0.10 mm SPE+16*4*0.12mm80% CCA+4.10mmPVC+2*26AWG
Packing: 100m/Roll, 300m/Plastic reel
3) 75 ohm cable coaxial rg6 67%
1.02mmCCS /CU+4.57mmFPE+Bonded Al Foil+ 67% 0r 95% mm Al +6.9mmPVC+1.3 Messenger steel
Packing: 100m/Roll, 200m/Roll, 305m/Wooden drum, 500m/wooden drum
4) 75 ohm cable coaxial rg11
1.63mmCCS/ CU+7.11mmFPE+Bonded Al Foil+128*0.15mmAl+10.03mmPVC+1.83mm Messenger Steel
Packing: 100m/Roll, 200m/Roll, 305m/Wooden drum, 500m/wooden drum
Products Photos and Package
Factory Show
Certification
Testing Equipment
Exhibition
Other Cables:
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) Koaxial Kable CT100 , KX6, KX8 ,17VATC,19VATC, SAT703, BT3002
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
