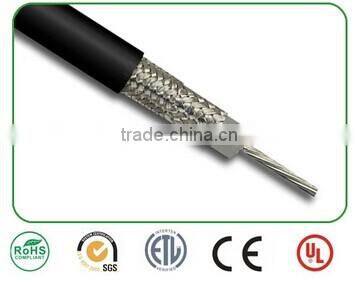

USA Market Belden 1885A Mini RG59 Coaxial Cable

USA Market Belden 1885A Mini RG59 Coaxial Cable thumbnail-1
USA Market Belden 1885A Mini RG59 Coaxial Cable photo-1
US$ 0.1 - 100 MOQ: 30 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dong Sheng
Model Number:
Belden 1885A Mini RG59 Coaxial Cable
Contact Supplier Request Quote Chat Now
Hangzhou Lin'an Dongsheng Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dong Sheng
Model Number Belden 1885A Mini RG59 Coaxial Cable
Type Coaxial
Number of Conductors 1

Specifications

1) USA Market Belden 1885A Mini RG59 Coaxial Cable
2) Since 1991 year
3) Application cctv sysmten
4) ISO9001/CE/ROHS

USA Market Belden 1885A Mini RG59 Coaxial Cable



Belden 1885A Mini RG59 Coaxial Cable



Product specification:

Belden 8218 Mini Coaxial Cable

Stranding: 7x35 Conductor Diameter

Conductor Material: Bare Copper Covered Steel

Insulation Material: Polyethylene

Outer Shield Type: Braid

Outer Shield Material: Tinned Copper

Outer Shield Coverage: 93 %

Outer Jacket Material: PVC



Electrical Charateristics

@Frequency(Mhz)

Max Attenuation(dB/100ft)

50

4.2

100

                        5.7

200

8.3

400

12.1

700

16.5

900

19.0

1000

20.0







Type

Imp.Ohms

Inner
Conductor(mm)

Dielectric
(mm)

Shield

Outer Sheath

O/D mm

RG174

50

7/0.16/BC

1.52 PE

TC

PVC/LSZH

2.80



RG174 mini coaxial cable ,Mini Coaxial Cable RG59 1885A , Sub-Miniature 59/U(1865A)

Miniature Coax Cable
Mini RG59(1855A)
Sub-Miniature 59/U(1865A)
RG174 mini-coax
RG178 mini-coax
RG179 mini-coax
RG188 A/U
0.81 mm Mini-Coax
1.13 mm Miniature Coax
1.32 mm Miniature Coax
1.37 mm Miniature Coax
1.48 mm Miniature Coax



Miniature Coax Cable » Mini RG59(1855A)
USA Market Belden 1885A Mini RG59 Coaxial Cable
Mini RG59(1855A) is the HDMI(High Definition Multimedia Interface) cable. HDMI cable to transmit through a high-definition, all-digital audio and video content. HDMI is the future direction of HDTV (high definition television).
• Mini RG59 have 23 AWG solid bare copper conductors, Foamed HDPE insulation, 100% bonded foil shield and 95% tinned copper braid shield, PVC jacket. • Return Loss: 5MHz to 1600MHz>23 dB ; 1601MHz to 4500MHz >21 dB.  • Out jacket following colors: brown, red, orange, yellow, blue, violet, gray, white, black, aqua, rose and green.
CCS:Copper clad-steelBC:Bare Copper
CCA:Copper clad-AluminiumSPCCS:Silver-plated Copper-covered Steel
TC:Tinned CopperSPC:Silver plate-copper
AL/P:Aluminium polypropyleneFPE:Foamed Polyethylene
PE:PolyethylenePTFE:Poly Tetra Fluoro Ethylene
FEP:Fluorinated Ethylene PropyleneLSF:Low Smoke and Fume
LSZH:Low Smoke Zero HalogenPVC:Polyvinyl Chloride

Type

Imp.Ohms

Inner              Conductor(mm)

Dielectric             (mm)

Shield

Outer Sheath

O/D mm

MiniRG59

75

1/0.58  BC

2.60   FPE

Boneded AL/P+95%TC

PVC

4.10

MiniRG59×3

75

1/0.58  BC

2.60   FPE

Boneded AL/P+95%TC

PVC

11.20

MiniRG59×4

75

1/0.58  BC

2.60   FPE

Boneded AL/P+95%TC

PVC

12.22

MiniRG59×5

75

   1/0.5   BC

2.60   FPE

Boneded AL/P+95%TC

PVC

13.80

MiniRG59×8

75

1/0.58   BC

2.60   FPE

Boneded AL/P+95%TC

PVC

16.20

MiniRG59×10

75

1/0.58   BC

2.60   FPE

Boneded AL/P+95%TC

PVC

20.22

MiniRG59×12

75

1/0.58  BC

2.60   FPE

Boneded AL/P+95%TC

PVC

20.96

MiniRG59×16

75

1/0.58  BC

2.60   FPE

Boneded AL/P+95%TC

PVC

23.27



Cable Picture and Package

USA Market Belden 1885A Mini RG59 Coaxial CableUSA Market Belden 1885A Mini RG59 Coaxial Cable

USA Market Belden 1885A Mini RG59 Coaxial CableUSA Market Belden 1885A Mini RG59 Coaxial Cable

 USA Market Belden 1885A Mini RG59 Coaxial CableUSA Market Belden 1885A Mini RG59 Coaxial Cable

 USA Market Belden 1885A Mini RG59 Coaxial Cable

USA Market Belden 1885A Mini RG59 Coaxial Cable

Certificate:

 USA Market Belden 1885A Mini RG59 Coaxial Cable



Factory and Production line

USA Market Belden 1885A Mini RG59 Coaxial Cable



Exhibition Trade Show

USA Market Belden 1885A Mini RG59 Coaxial Cable



Other Cables:

Coaxial Cable,Lan Cable,Telephone Cable,Alarm Cable,Optical Fiber Cable,Power Cable,Speaker Cable,Power Cable,Multi-core Cable,Cabo Coaxial,Koaxial Kabel,Siamese Cable,CCTV/CATV Cable,Connector
