Product Details
| Place of Origin | Zhejiang, China | Brand Name | DSC | |
| Model Number | MHYV | Type | Cat 5e | |
| Number of Conductors | 8 |
Product Description
Fast Ethernet Speeds 305M 4 Pair UTP Cat5e Network Cable Stranded Cat5 Cable
Descriptions Of Lan Cable Category utp cat 5e
Product Description: | |
Rated temperature: | 60℃,75℃,90℃ |
Installation temperature: | -30℃~+50℃ |
Minimum bending radius: | >4P 4D |
Reference Standard: | UL444,UL1581 |
Bare solid copper conductor | |
RoHS/REACH Complied PVC,PE or LSZH jacket | |
Complies to TIA/EIA-568-C.2&ISO/IEC 11801 | |
Application: | 100Base-TX 100Base-T4 100VG-AnyLAN 1000Base-T(Gigabit Ethernet) ATM |
Cable Construction (CAT5e)
Item No.
| Construction
| Nominal Conductor Dimension (mm) | Nominal Insulation Diameter (mm) | No.of Paris
| Nominal Cable OD. (mm) | Type of Jacket
| Remark
|
214102-1/214102/214702-1 | UTP | 0.50 | 0.88 | 4 | 5.1/5.4 | PVC/PE/LSZH | 100MHz |
214302 | UTP | 0.51 | 0.95 | 4 | 6.5 | PE | Water blocked Tape 100MHz |
214502 | UTP | 0.50 | 0.90 | 4 | 6.3 | PVC+/PE | 100MHz |
214102-2/214702-2 | UTP | 0.51 | 0.91 | 4 | 6.3 | PVC/LSZH | 350MHz |

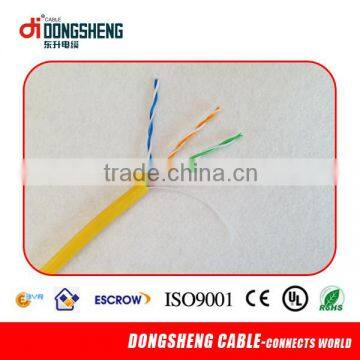

Pictures of utp cat 5e
Electrical characteristics
Frequency MHz | Impedance ohm | RL ≥dB | Attenuation ≤dB/100m
| NEXT ≥ dB/100m | ELFEXT ≥ dB/100m | PS NEXT ≥ dB/100m | PS ELFEXT ≥ dB/100m | NVP
|
1 | 100±15 | 20.0 | 2.0 | 65.3 | 63.8 | 62.3 | 60.8 | 68% |
4 | 23.0 | 4.1 | 51.7 | 51.7 | 53.3 | 48.7 | ||
10 | 25.0 | 6.5 | 43.8 | 43.8 | 47.3 | 40.8 | ||
16 | 25.0 | 8.2 | 39.7 | 39.7 | 44.2 | 36.7 | ||
20 | 25.0 | 9.3 | 37.8 | 37.8 | 42.8 | 34.7 | ||
31.25 | 23.6 | 11.6 | 33.9 | 33.9 | 39.9 | 30.9 | ||
62.5 | 21.5 | 17.0 | 27.8 | 27.8 | 35.4 | 24.8 | ||
100 | 20.1 | 22.0 | 23.8 | 23.8 | 32.3 | 20.8 | ||
*155 | 100±18 | 18.8 | 28.1 | 20.0 | 20 | 29.4 | 17.0 | |
*200 | 18.0 | 32.4 | 18 | 18.0 | 27.8 | 15.0 | ||
*310 | 100±22 | 16.7 | 41.8 | 14 | 14.0 | 24.9 | 11.0 | |
*350 | 16.3 | 44.9 | 13 | 13.0 | 24.1 | 10.0 |
Remarks:*it's the reference values
