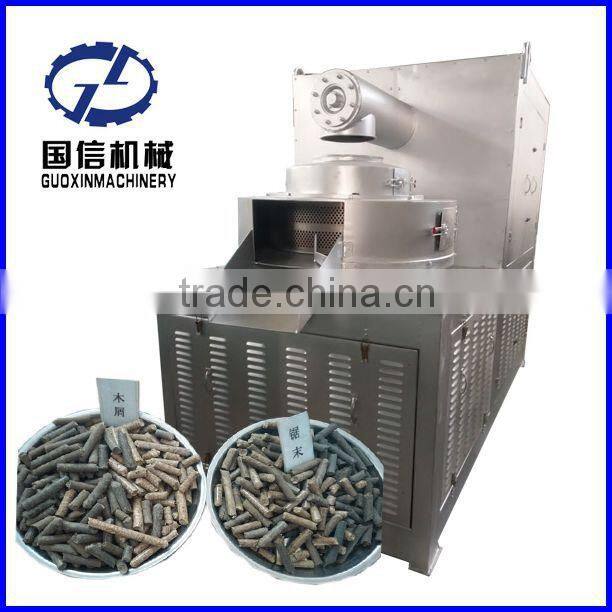

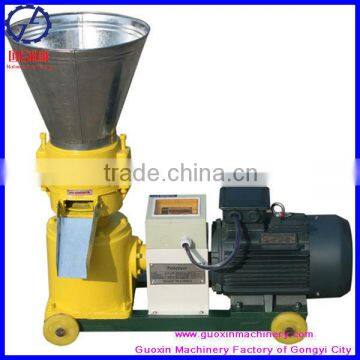

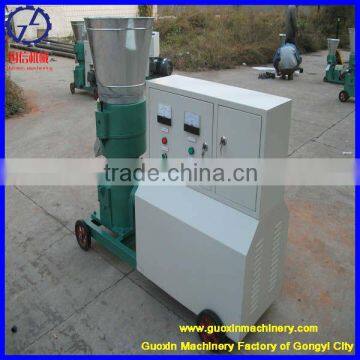

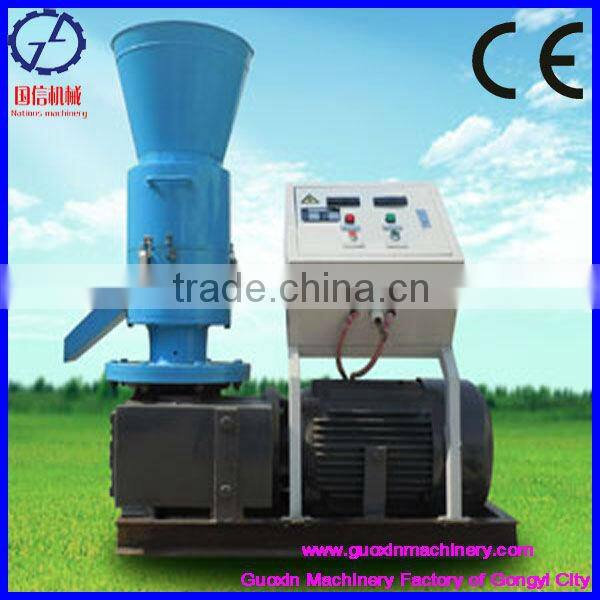

High Efficiency Machine For To Make The Pellet In Home
Wood pellet machine description:
Pellet machine is suitable for making straw pellet, sawdust pellet and feed pellet. It is multifunction. The materials can be grain stalk, grass, sawdust, corn straw, wheat straw, corn, grain, wheat and so on.
For wood pellet machine use:
This series flat die pellet presses can be used for producing wood pellet and biomass pellet, too. Wood pellet are made of all kinds of wood waste. Biomass pellet are made of peanut sheller, corn stalk and other biomass materials.
For feed pellet use:
The compressed straw piece is suitable to be used as fuels and feed stuff of animals, such as horse, sheep, deer, pig, chicken, etc. Such machines are suitable for large farms, and organic herbal medicine and chemical industry etc.

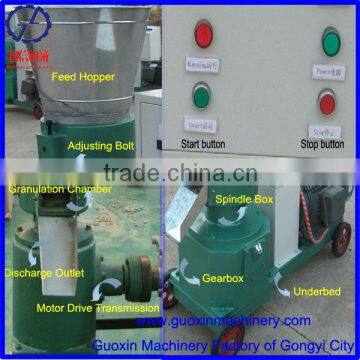

Wood pellet machine main parts:
1.Gearbox:
Driving with high-precision gears, Automatic lubricant pump keeps the gearbox working stability.
2.Veryical motor:
Mounting hole with output shaft as the center, Equidistant distribution around, more powerful
3.Blower system:
Located in one side of work bin,free control the working time, dedusting and discharging steam.

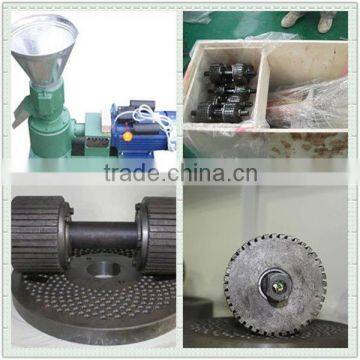

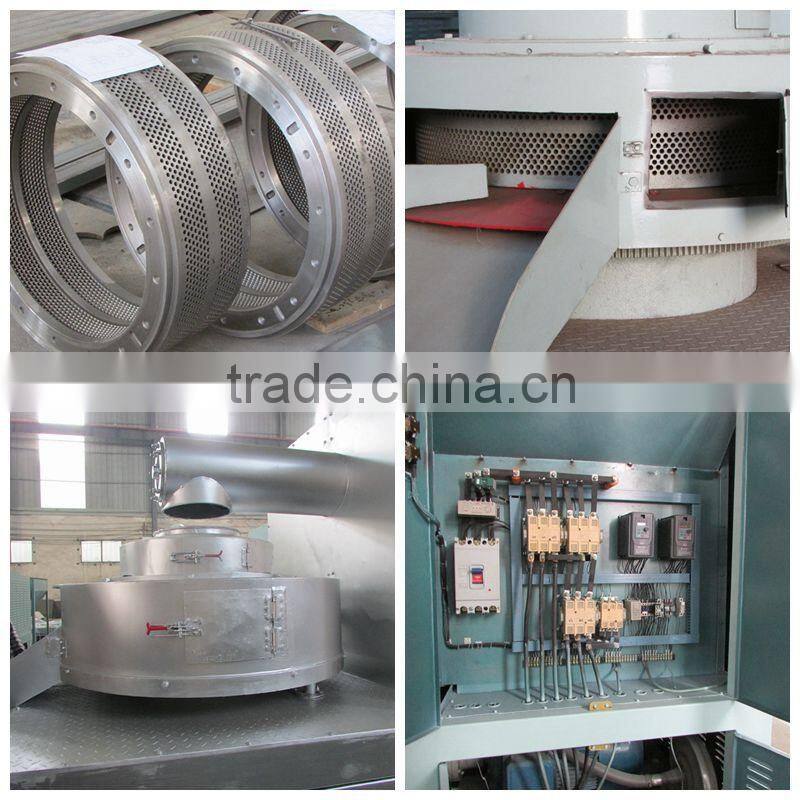

4.Working parts:
Ring-die and rollers of pellet machine are made of alloy steel, hardness is more than 52, it can assure the pellet quality and warranty time. Working manner is from inside to outside press, Centrifugal force and extrusion pressure together, improved capacity, and assure pellet hardness and density.

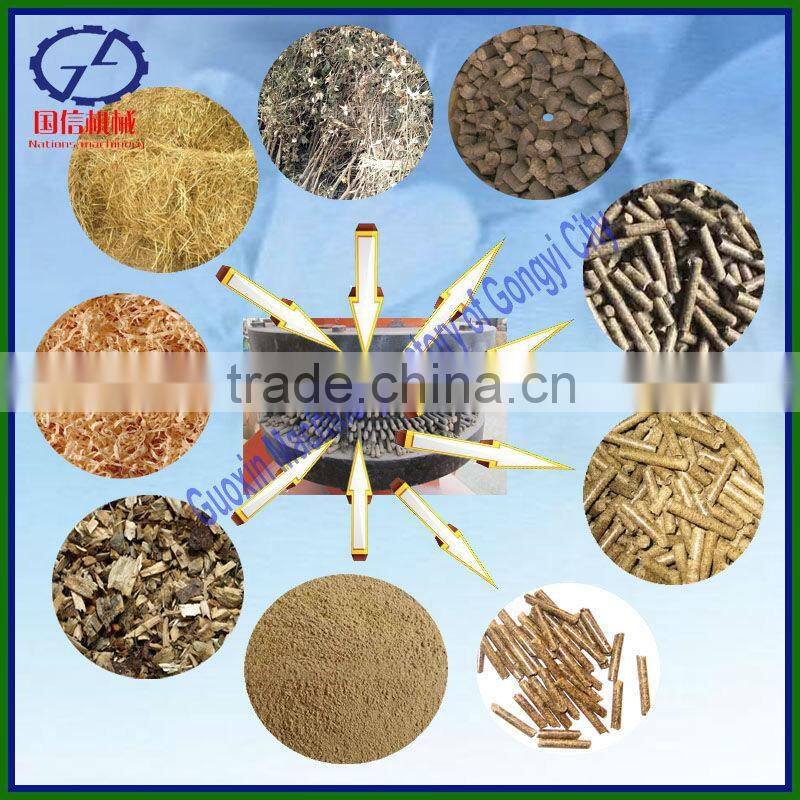

What kind of materials can i use to make fuel pellets?
Raw material:
Sawdust, wood shavings, rice husk, wheat straw, cotton stalk, sunflower stalk, crop stalk, cottonseed skins, biomass wastes, forestry wastes, and many other wastes or solid powder materials.
especially low-bonding and unformed materials.
Moisture content: is LESS than the national standard of 15%. If not, the raw material must be dried.
Material size: is LESS than 5x5mm, if not; the raw material must be crushed.

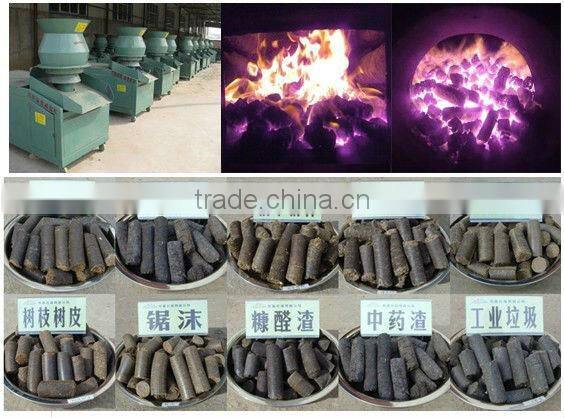

Application of pellet:
Pellet can be widely used in fireplace, boiler, tne used of bionass plant.
Working principle of Pellet machine:
Pellet machine is one of the biomass molding equipment.
It can make powdered biomass materials into pellets.
The starting materials for the production of pellets are pressed by the pressing roller in the matrix.
Due to the pressure and friction in the matrix, the starting materials are heated to a high temperature (nearly 60~80 °C). As a result of pressure and temperature increasing, the materials were compressed into pellets. The output pells will have very high strength after cooling.
Pellet machine technical data:
|
Model
|
Capacity (t/h) |
power (kw) |
trimmed size (mm) |
Overall dimensions (mm) |
weight (kg) |
compact density (t/m³) |
| GX-30 | 0.5-0.8 | 30 | 30 | 2000*1000*1750 | 1800 | 0.8-1.4 |
| GX-37 | 0.8-1.3 | 37 | 30 | 2100*1000*1750 | 2000 | |
| GX-45-1 | 1.0-1.5 | 45 | 30 | 2200*1000*1800 | 2200 | |
| GX-45-2 | 1.3-1.8 | 45 | 33 | 2200*1000*1800 | 2500 | |
| GX-55 | 0.8-1.0 | 55 | 6-40 | 2520*950*2200 | 3700 | |
| GX-75 | 1.2-1.5 | 75 | 6-40 | 2630*1000*2300 | 4500 | |
| GX-90 | 1.5-1.8 | 90 | 6-40 | 2750*1300*2400 | 4900 | |
| GX-132 | 2.0-2.5 | 132 | 6-40 | 2900*1400*2600 | 5600 | |
| GX-160 | 2.5-3.0 | 160 | 6-40 | 3100*1500*2750 | 6500 | |
| GX-220 | 3.0-4.0 | 220 | 6-40 | 3250*1700*2900 | 7600 |
Note: Different materials and moisture content will influence the capacity. If you have any questions about our wood pellet machine and wood pellet mill, don't hesitate to contact me. We will give you some good suggestions. And the above technical data is just for your reference. If they can’t meet your needs, we also have other types for you.
Advantage of pellet machine:
1. The vertical feed, directly in place.
2. Mold static, roller rotation, material centrifugal, uniformly distributed around.
3. The abrasive layer, up and down dual-use, authors efficiency;Can use double again, high yield and energy saving.
4. A grinding tool, aperture two kinds, different specifications of the products
5. Macroporous mould, pipe thread, increased stroke, increase compactness.
6. Circular mould, made to the structure, granulating chamber radiator cooling.
7. Independent frequency conversion discharge device, to ensure that the particles forming rate.
8, host, unchanged, only change the mould, can produce round or square 6-50 mm in diameter.
9, using German technology and equipment, imported raw materials, level 3 variable speed and variable speed machine more stable performance, torsion bigger, longer service life and less noise.

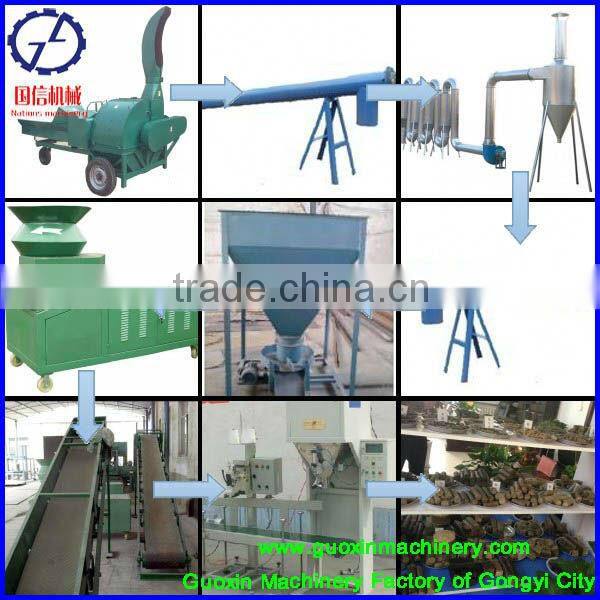

Pellet product line:
Service commitment:
Pre-sale service:
To provide you with project design, process design, suitable for your machine equipment scheme, the choose and buy according to your special requirements, design and manufacture of products, technical operation personnel training for you.
Sale service:
Accompany you to complete the acceptance of the equipment, assist to draft the construction scheme and detailed process.
After-sales service:
Company sent technical personnel to the scene of the on-the-spot guidance equipment installation, debugging and training operators.
Shipment picture:
If you are interested in our pellet machine, you can contact me at any time, welcome you visit our factory, we will test machine running for you. Hope we can cooperation happily!
