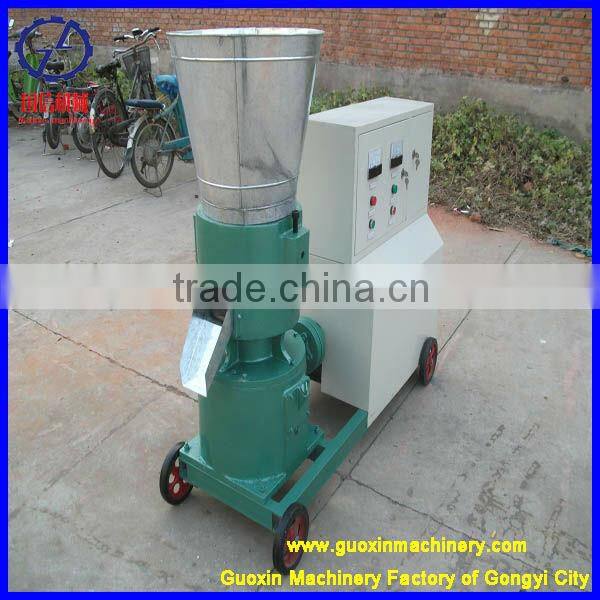

High Capacity Ring Die Machine For Wood Pellet
Description of Machine For Wood Pellet

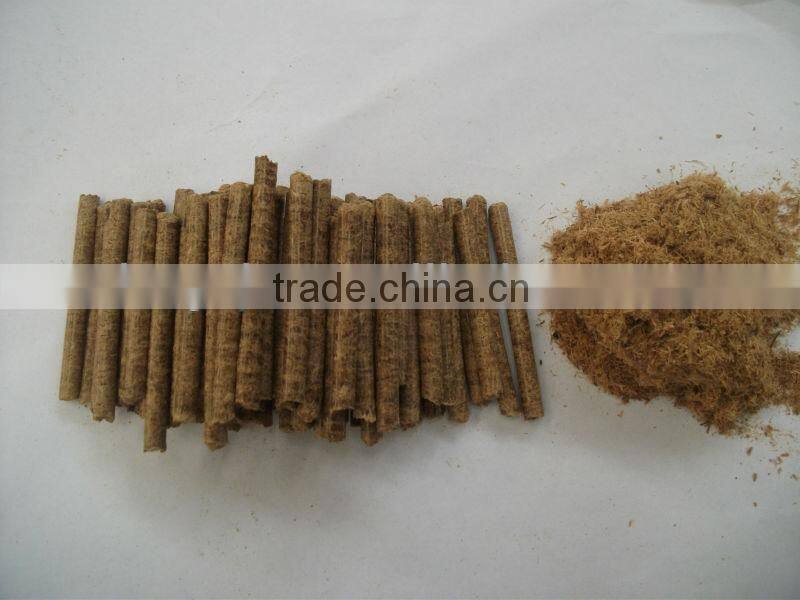

Machine for wood pellet is a kind of biomass pellet mill, which makes raw materials like powder into pellets, the diameter of pellet can be 2.5-10mm.
Pellet fuel has a large calorific value, high purity,small volume and it is renewable energy whic is easy to store and transport.
First, the raw materials should be crushed into flour or powder.
Second, after crushing,pressing,densify,molding,the machine makes raw materials small solid pellet virgulate fuel pellet.
Raw materials of Machine For Wood Pellet
Raw materials of machine for wood pellet are wood sawdust, wood chips, branches, rice husk, peanut shell,corn stalks,corn cob,cotton stalks and other solid scrap material.
Attractive advantages of Machine For Wood Pellet

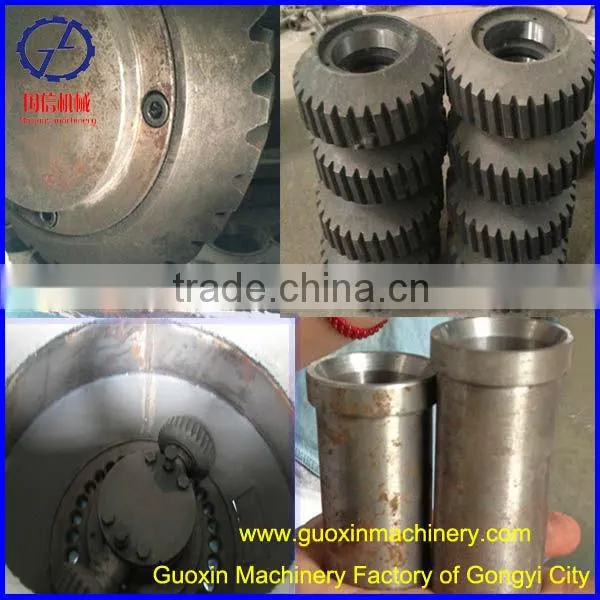

1. Adopt gear transmission, speed reducer, with two direction rotation, low noise, so extend the working life of gear.
2. Molding pressing density can be adjusted,from 0.8-1.4 g/cm3
3. Bearing is adopted for the high quality type bearing.

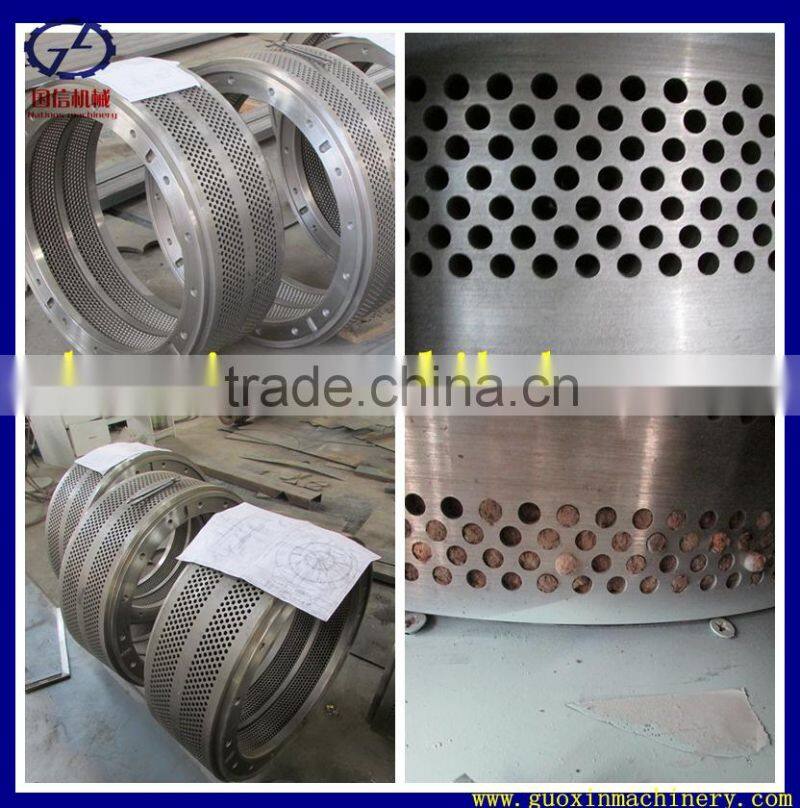

4. The roller and die are made of high grad complex alloy steel 40 Cr, which extends the usage life 5-7 times longer. Through the special heat treatment, the abrasive resistance is much better.
5. The pellet mill adopts special high-quality materials and advanced coupling shaft drive device.
6. Vacuum heat treatment is adopted for the roller, die, roll axle, main spindle. This method is better than the general Carburizing and quenching process.
7. The feeding hopper use a whole metal plate, the hemming and hopper edge pressing is stronger than the welding structure.Besides, the material use the galvanized sheet, can protected well against the rust.
8. Through the trials on more than 200 materials (such as the sawdust, rice bran, peanut husk), we got the the best compression ratio of the dies.
9.Good quality of the electric controller, adopt the Electrical components of CHINT and Siemens etc. More safer, more durable.
10.The circuit of the electrical controller is lay outed according to the CE standard.
Technology parameter of Machine For Wood Pellet
Model |
GX-300B |
Power:380V,50Hz,3 phase |
22kw |
Machine for wood pellet Capacity |
300-400kg/h |
Weight |
350/380kg |
Packing size |
1300*560*1100mm |
Pellet size |
Φ2.5-10mm
|
This is only reference, we have different model, if you have special requirement, our technical personnel can design small wood pellet mill for you.

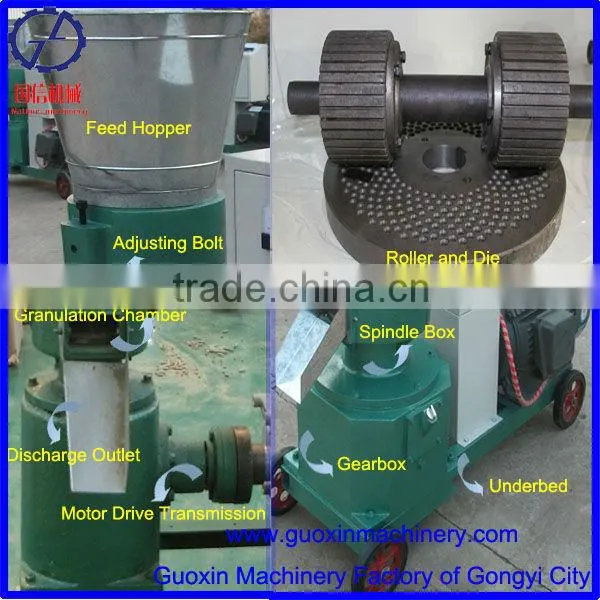

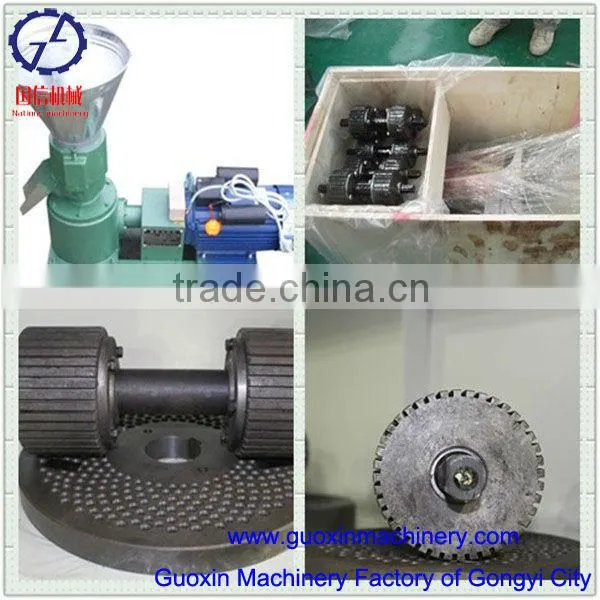

Structure of Machine For Wood Pellet
Main structure:
Underbed, Gearbox, Spindle box, Feed hopper, Granulation chamber, Adjusting bolt, Discharge outlet, Roller, Die, Motor drive transmission, Start and Emergency Stop Button etc.

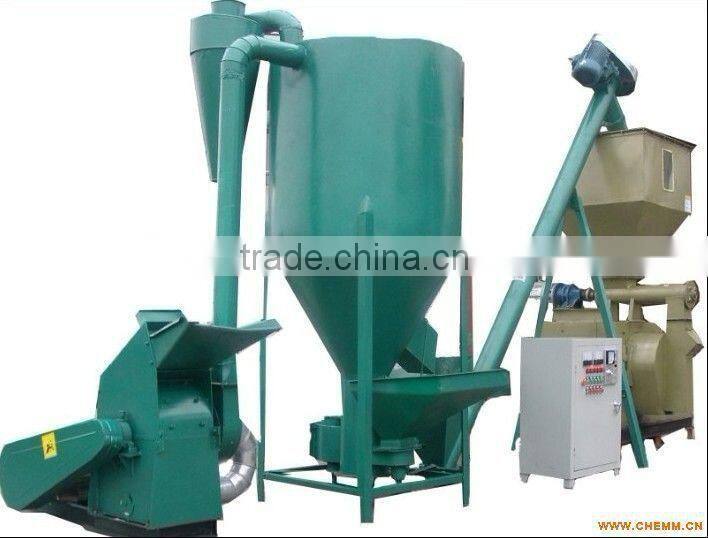

According to the requirements about machine for wood pellet, our factory also provide supporting equipments of a production line of pelleting process, includes crushing, mixing, drying, pelleting, cooling, packaging.The biomass wood pellet machine for sale is essential one.
Application of pellets made by Wood Pellet Machine For Sale
Wood pellet made by our Machine For Wood Pellet For Sale is widely used in heating, life stoves, hot water boilers, industrial boilers, biomass power plants etc.

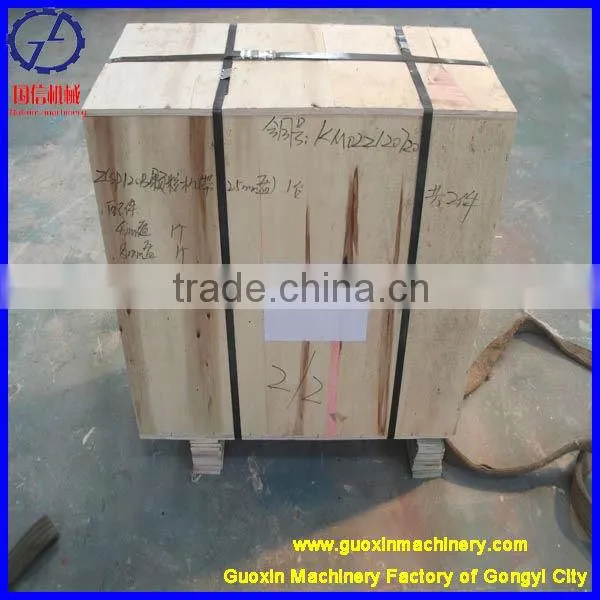

Package of Machine For Wood Pellet
Kindly note:
Raw materials moisture content:15-18%
Material length less than 1-3mm
If you are interested in our Machine For Wood Pellet For Sale, please feel free to contact me! Jessica is waiting for offering business consultation!
