wholesale coaxial cable
- 10000 Box / Boxes per Month
- Shanghai/Ningbo
- T/T
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Dong Sheng | Model Number: | Cavo Coassiale RG6 Diametro |
| Type: | Coaxial | Number of Conductors: | 1 |
Product Description
wholesale coaxial cable
coaxial cable
Cavo Coassiale RG6 Diametro

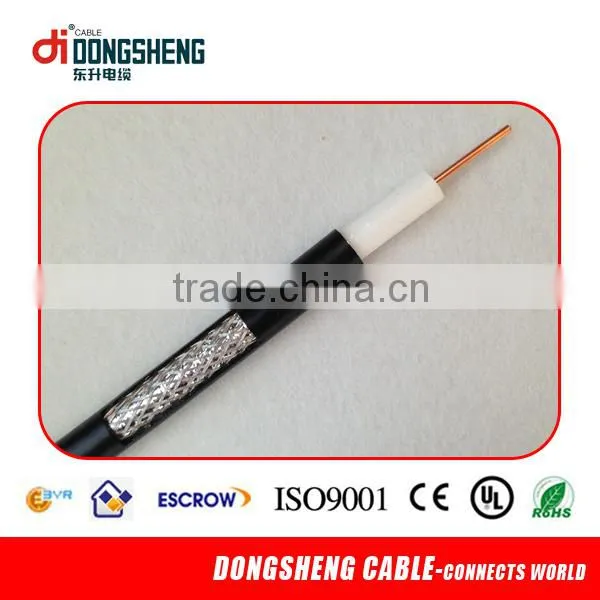

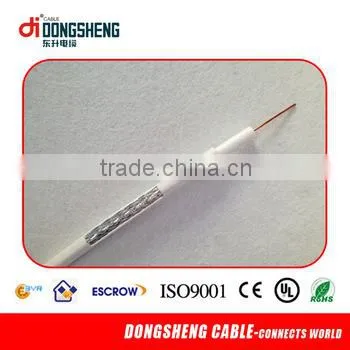

Coaxial Cable RG6
Coaxial Cable RG6 Product Spec

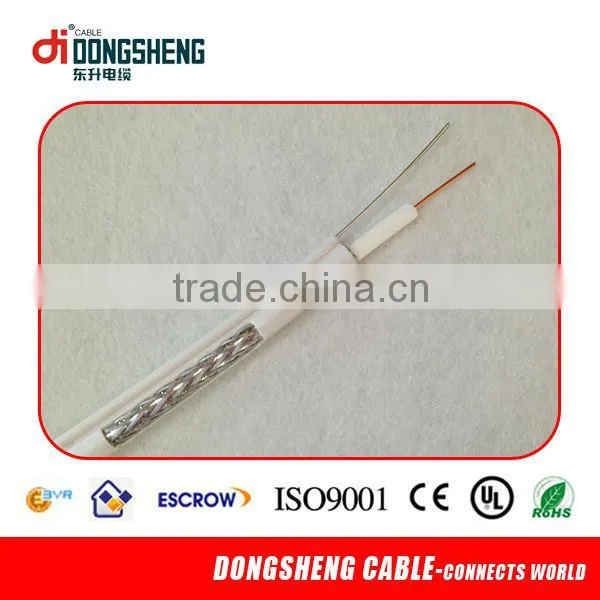

RG6 Coaxial Cable,RG6, RG6 Triple, Cabo Coaxial 06,RG6 Quad, RG6 Messenger Cable
Belden RG6 Cable Coaxial | TYPE: | RG6 Cable Coaxial | ||
Construction | ||||
Item | Material | Diameter(mm) | ||
Center Conductor | CCS/BC | 1.02 | ||
Dielectric | Foam PE | 4.57 | ||
1st Shield | Bonded Aluminum Foil
| 4.75 | ||
2nd Shield | Aluminum Wire Braid CCA Wire Braid BC Wire Braid
| 3×16 4×16 5×16 0.12mm, 0.16mm 6×16 7×16 8×16 9×16 | ||
3rd Shield | Aluminum Foil or
| / | ||
Jacket
| PVC | 6.9 | ||
Messenger | Galvanized Steel | 1.30 | ||
Electrical Charateristics |
|
| ||
Impedance(Ω) | 75±3 | |||
Capacitance(pF/m) | 52±2 | |||
Velocity of Propagation(%) | 85.0 | |||
Shielding Effectiveness |
| |||
5-1000MHZ(dB) | ≥90% | |||
Return Loss |
| |||
5-1000MHZ(dB) | ≥22 | |||
1000-2000MHZ(dB) | ≥20 | |||
|
| |||
Attenuation @68°F.(20 ℃ ) | ||||
@Frequency(Mhz) | Max Attenuation(dB/100ft) | Max Attenuation(dB/100m) | ||
5 | 0.58 | 1.90 | ||
55 | 1.60 | 5.25 | ||
187 | 2.85 | 9.35 | ||
211 | 3.05 | 10.00 | ||
400 | 4.15 | 13.61 | ||
500 | 4.66 | 15.29 | ||
750 | 5.65 | 18.54 | ||
865 | 6.10 | 20.01 | ||
1000 | 6.55 | 21.49 | ||
1500 | 8.20 | 26.80 | ||
1800 | 8.80 | 28.90 | ||
2200 | 9.80 | 32.20 | ||
3000 | 11.50 | 37.60 | ||

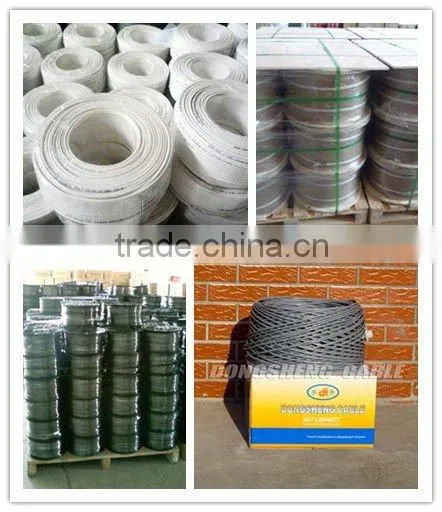

Coaxial Cable RG6 Products Photos and Package
1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients’ request
Factory Show
Certification
Testing Equipment
8.Exhibition Trade Show
We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company to the future new customers.
Other Cables:
1) Lan Cable / Network Cable Cat5e Cat6 Cat3
2) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11 QR540 QR500
3) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 LMR400
4) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
5) 50 ohm RF Feeder Cable 1/4”S, 3/8”S, 1/2”S, 1/2”, 7/8”, 1-1/4”, 1-5/8”.
6) Mini Coax Cable: RG59,BT3002
7) Telephone Cable 1Pair,2 Pair,4 Pair
8) Security Alarm Cable, Fire Alarm Cable,Speaker Cable
9) Optical Fiber Cable (GYXTY, GYXTW, ADSS, FTTH etc.)
Coaxial Cable Connector,TV Antenna,CATV Transimitter, Amplifier, Receiver
Contact: Andy Guo
Cell Phone: 0086-15867183819
