New Condition LPG Forklift,tcm Forklift, Forklift Truck 3.5ton
US$ 8,200 - 21,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
HYDER
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3.0 Ton Gasoline LPG Gas Forklift Forklift Skip BinsUS$ 9,800 - 14,000MOQ: 1 Unit -
New Brand 2000kg Gasoline/lpg Forklift for SaleUS$ 8,200 - 16,000MOQ: 1 Unit
-
Paper Roll Lifter 2t Gasoline Chinese ForkliftUS$ 8,200 - 16,000MOQ: 1 Unit
-
Low Price Gasoline/lpg Forklift 3.5t Trucks for Sale With Nissan K21US$ 13230.00 - 13230.00MOQ: 1 Unit
-
Hyder Forklift Parts Manual 2ton Gasoline Side Loader ForkliftUS$ 8,200 - 16,000MOQ: 1 Unit
Condition
New
Place of Origin
Shanghai, China
Brand Name
HYDER
Model Number
FG35
Type
Powered Pallet Truck
Power Souce
Gasoline Engine
Rated Loading Capacity
3.5 TON
Max. Lifting Height
6000mm
Min. Lifting Height
3000mm
Fork Length
1070mm
Fork Width
125mm
Overall Dimensions
L2760*W1285*H2140
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
New condition LPG forklift,tcm forklift, forklift truck 3.5ton
Advantage
Using TCM technology, Diesel/Gasoline/LPG engine are optional
- Capacity up to 1.5-25tons
- Spacious room and wide view for the operator
- Strong steel mast for large lifting capacity
- Maximum lifting height up to 6 meters
- High power and efficiency brand-name engine
- Adjustable steering wheel and F/R lever
- Optional closed compartment design for special customer needs
- Optional A/C and heating for operator comfort in any working environment

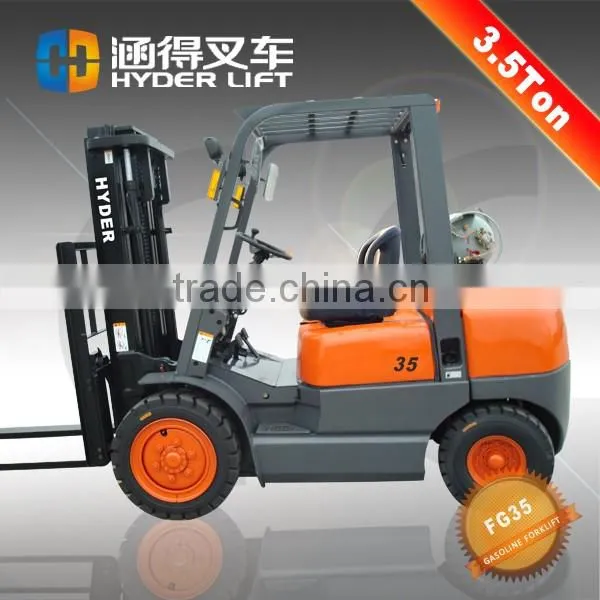

Actual Photo of LPG forklift,tcm forklift, forklift truck 3.5ton
Technical Parameters of LPG forklift,tcm forklift, forklift truck 3.5ton
| 1 | Manufacturer | HYDER FORKLIFT | |||
| 2 | Model | Power shift T/M | FG35T | ||
| 3 | Load capacity | kg | 3500 | ||
| 4 | Load center | mm | 500 | ||
| 5 | Power unit | LPG/Gasoline | |||
| 6 | Operator type | Driver/seat | |||
| 7 | Tire type | Front/rear | Pnenumatic | ||
| 8 | Wheel | Front/rear | 2/2 | ||
| 9 | Max. lifting height | mm | 3000 | ||
| 10 | Free lift | mm | 150 | ||
| 11 | Fork size | L*W*T | mm | 1070*125*50 | |
| 12 | Tilt range | Mast forward/backward | deg | 6/12 | |
| 13 | Overall length(without fork) | mm | 2760 | ||
| 14 | Total width | mm | 1285 | ||
| 15 | Mast height (fork lowering) | mm | 2075 | ||
| 16 | Overall height fork raised | With backrest | mm | 4250 | |
| 17 | Height to head guard | mm | 2140 | ||
| 18 | Turning raduis(outside) | mm | 2495 | ||
| 19 | Front face of fork to front axle | mm | 485 | ||
| 20 | Min. right angle stacking aisle | without load length&clearence | mm | 2975 | |
| 21 | Speed | Max Travelling full/no load | km/h | 18/19.5 | |
| 22 | Lifting full/no load | mm/s | 450/500 | ||
| 23 | Lowering full/no load | mm/s | 450/420 | ||
| 24 | Max.drawbar pull | Power shift T/M full/no load | kg | 1800/1000 | |
| Manual shift T/M full/no load | kg | 1900/1000 | |||
| 25 | Gradeability at 1.6km/h | Power shift T/M full/no load | % | 17/20 | |
| Manual shift T/M full/no load | % | 17/20 | |||
| 26 | Truck weight | kg | 4700 | ||
| 27 | Weight distribution | Full load front/rear | kg | 7340/860 | |
| 28 | No load front/rear | kg | 1790/2910 | ||
| 29 | Tires | Number | front/rear | 2/2 | |
| 30 | Model | front axle | 28*9-15-12PR | ||
| 31 | rear axle | 6.50-10-10PR | |||
| 32 | Wheelbase | mm | 1700 | ||
| 33 | Tread | Front/rear | mm | 1060/970 | |
| 34 | Ground clearence | At lowest point(mast) | mm | 120 | |
| Frame | mm | 135 | |||
| 35 | Brake | Service brake | Hydraulic-foot pedal | ||
| Parking brake | Mechanical-hand lever | ||||
| 36 | Battery | Voltage/capacity | V/AH | 12/60 | |
| 37 | Engine | Model | NISSAN K25 | ||
| Rated power | PS(kw/rpm) | 37.4/2300 | |||
| Rated torque | kg-m max.(N.m) | 177/1600 | |||
| Number of cylinders | 4 | ||||
| Placement | L | 2.488 | |||
| Fuel tank capacity | L | 70 | |||
| 38 | Transmission | Speed forward/backward | Power shift T/M | 1-1 power shift T/M | |
| 39 | Operating pressure | Hydraulic system pressure | kg/cm² | 180 | |
| Note: LPG Conversion device:IMPCO(USA) | |||||
The factory of LPG forklift,tcm forklift, forklift truck 3.5ton
