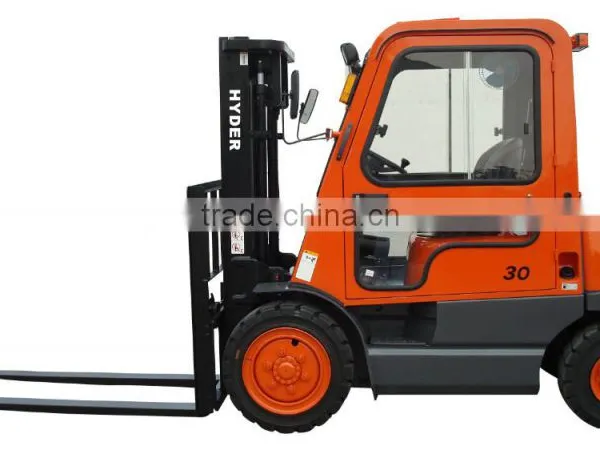

Low price gasoline/lpg forklift 3.5t trucks for sale with Nissan k21
- 450 Unit / Units per Month
- Shanghai Port
- T/T L/C D/P D/A Credit Card
- hyder forklift parts manual 2ton gasoline side loader forklift
- pneumatic water pump gasoline forklift 1.8t trucks for sale with Japanese Engine
- CHINA TOP10 MANUFACTURER forklift 2.5 tons gasoline forklift trucks for sale with imported accessories
- forklift hydraulic oil hot sale 2 ton gasoline lifter machine
- high quality parts gasoline china price of 2t forklift
- pallet truck ce parts 2t gasoline mini tractor
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | HYDER |
Model Number: | FG35 | Type: | Powered Pallet Truck | Power Souce: | Gasoline Engine |
Rated Loading Capacity: | 3500kg | Max. Lifting Height: | 6000mm | Min. Lifting Height: | 3000mm |
Fork Length: | 1070mm | Fork Width: | 125mm | Overall Dimensions: | 2760*1285*2075mm |
Certification: | CE/ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |

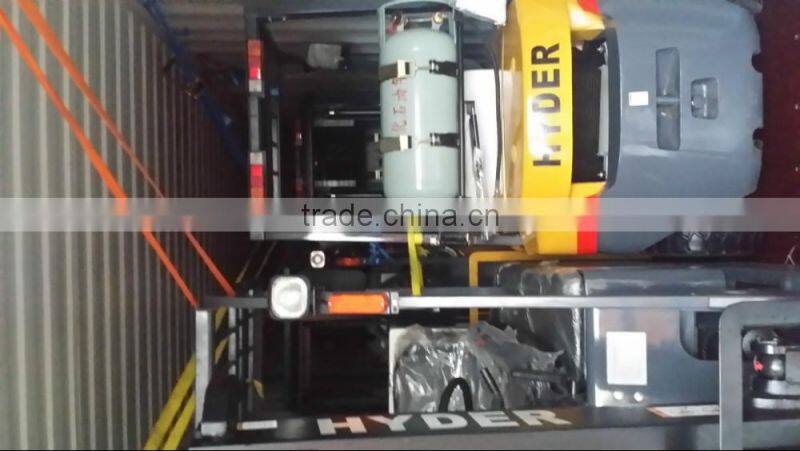

Packaging Details
seaworthy packing for export
Low price gasoline/lpg forklift 3.5t trucks for sale with Nissan k21
Product Description

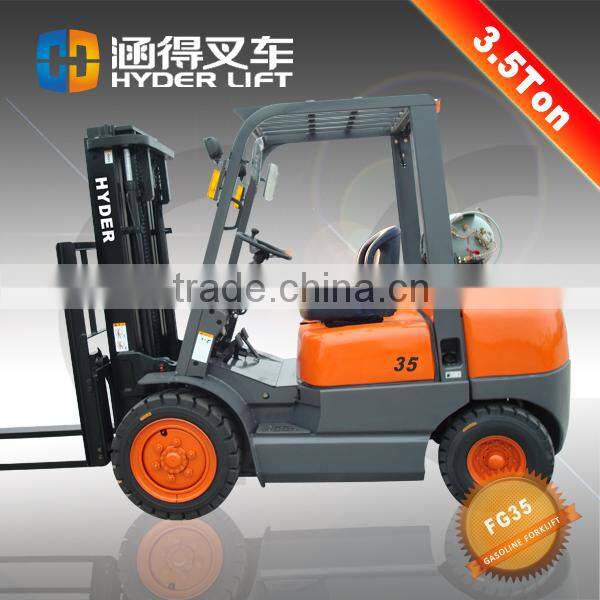

Low price gasoline/lpg forklift 3.5t trucks for sale with Nissan k21
SPECIFICATION:
| |||||||||||
1 | Manufacturer | HYDER FORKLIFT | |||||||||
2 | Model | Power shift T/M | FG35T | ||||||||
3 | Load capacity | kg | 3500 | ||||||||
4 | Load center | mm | 500 | ||||||||
5 | Power unit | Gasoline | |||||||||
6 | Operator type | Driver/seat | |||||||||
7 | Tire type | Front/rear | Pnenumatic | ||||||||
8 | Wheel | Front/rear | 2/2 | ||||||||
9 | Max. lifting height | mm | 3000 | ||||||||
10 | Free lift | mm | 150 | ||||||||
11 | Fork size | L*W*T | mm | 1070*125*50 | |||||||
12 | Tilt range | Mast forward/backward | deg | 6/12 | |||||||
13 | Overall length(without fork) | mm | 2760 | ||||||||
14 | Total width | mm | 1285 | ||||||||
15 | Mast height (fork lowering) | mm | 2075 | ||||||||
16 | Overall height fork raised | With backrest | mm | 4250 | |||||||
17 | Height to head guard | mm | 2140 | ||||||||
18 | Turning raduis(outside) | mm | 2460 | ||||||||
19 | Front face of fork to front axle | mm | 485 | ||||||||
20 | Min. right angle stacking aisle | without load length&clearence | mm | 2940 | |||||||
21 | Speed | Max Travelling full/no load | km/h | 18/19.5 | |||||||
22 | Lifting full/no load | mm/s | 450/500 | ||||||||
23 | Lowering full/no load | mm/s | 450/420 | ||||||||
24 | Max.drawbar pull | Power shift T/M full/no load | kg | 1800/1000 | |||||||
Manual shift T/M full/no load | kg | 1900/1000 | |||||||||
25 | Gradeability at 1.6km/h | Power shift T/M full/no load | % | 17/20 | |||||||
26 | Truck weight | kg | 4610 | ||||||||
27 | Weight distribution | Full load front/rear | kg | 7260/850 | |||||||
28 | No load front/rear | kg | 1840/2770 | ||||||||
29 | Tires | Number | front/rear | 2/2 | |||||||
30 | Model | front axle | 28x9-15-12PR | ||||||||
31 | rear axle | 6.50-10-10PR | |||||||||
32 | Wheelbase | mm | 1700 | ||||||||
33 | Tread | Front/rear | mm | 1060/970 | |||||||
34 | Ground clearence | At lowest point(mast) | mm | 120 | |||||||
Frame | mm | 135 | |||||||||
35 | Brake | Service brake | Hydraulic-foot pedal | ||||||||
Parking brake | Mechanical-hand lever | ||||||||||
36 | Battery | Voltage/capacity | V/AH | 12/60 | |||||||
37 | Engine | Model | NISSAN K25 | ||||||||
Rated power | PS(kw/rpm) | 51/2300(37.4/2300) | |||||||||
Rated torque | kg-m max.(N.m) | 18/1600(177/1600) | |||||||||
Number of cylinders | 4 | ||||||||||
Placement | L | 2.488 | |||||||||
Fuel tank capacity | L | 70 | |||||||||
38 | Transmission | Speed forward/backward | Power shift T/M | 1-1 power shift T/M | |||||||
39 | Operating pressure | Hydraulic system pressure | kg/cm² | 180 |

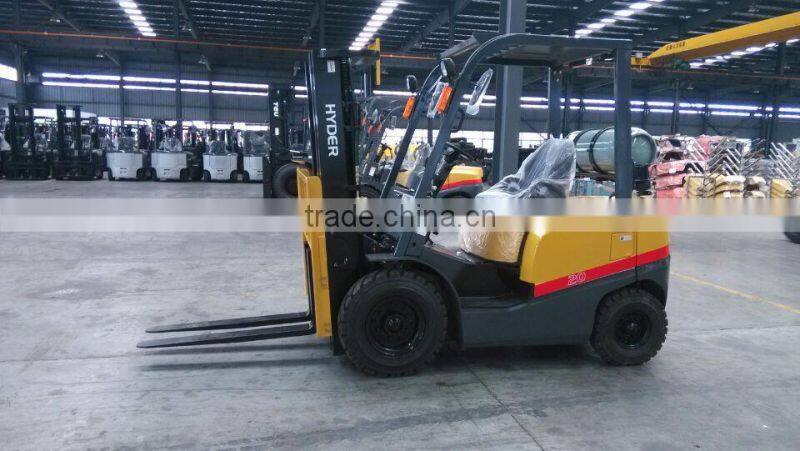

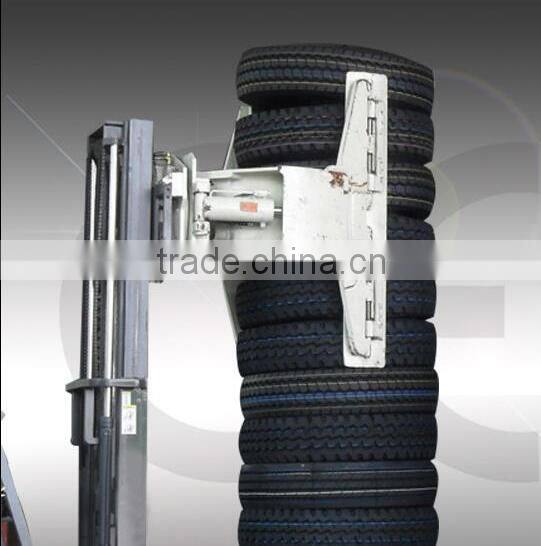

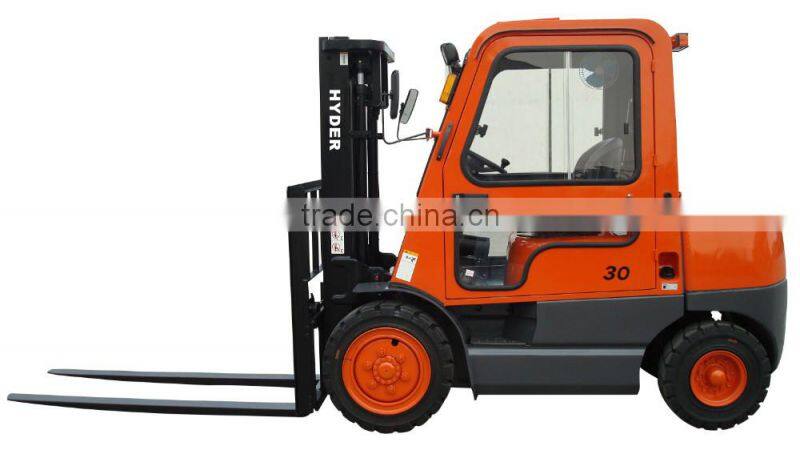

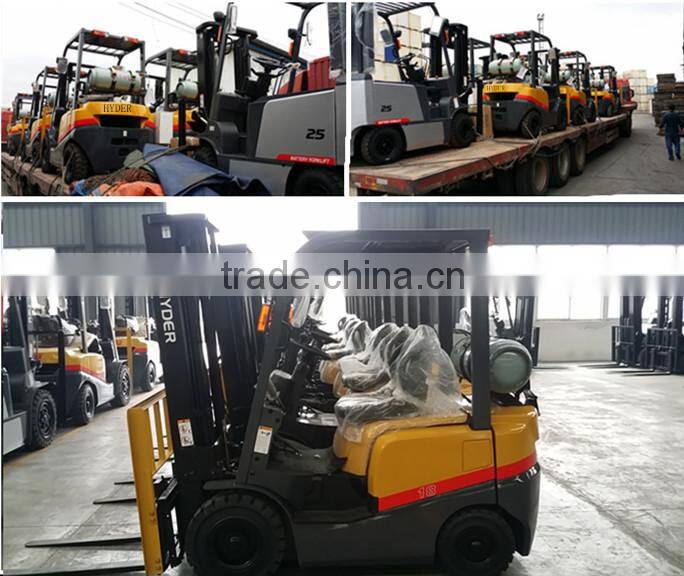

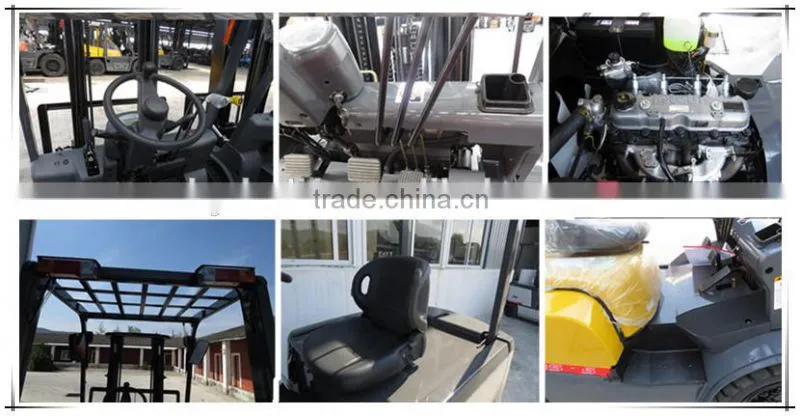

Detailed Pictures:
Company Profile
Company Introduction
HYDER HISTORY
Shanghai Hyder Industry Co., Ltd, whose predecessor is the Shanghai Challenge Import & Export Co., Ltd, built in 2003. Along with the expanding of the business and increasing of science and technology capacity, Shanghai Hyder Industry Co., Ltd was founded in 2010 and specialized in the business of logistics handling equipment which covers the t Trucks, Battery Forklift Trucks, Electric Stacker, Electric Pallet Trucks, and Manual Pallet Trucks and so on. The headquarters locates in Shanghai of China and has already built several joint production bases in Anhui and Shandong.
VISION
To be the optimized provider for logistic handling equipments and accessories and terminator for the quality issues
MISSION
Build a professional after sales services network covering the areas where our customers live;
Invest more in scientific research strength and service quality promotion to our distributors, customers and potential partners.
VALUES
Science and Technology Guarantee the Quality,
Service and Management Meliorate the Future
Hyder, Your Delivery Efficient Resource!
Contact Us
- Shanghai Hyder Industry Co., Ltd.
- Contact nameKevin Kung
- Phone86-21-51135726
- Address2/F, Building 2, No. 88, Lane 159, Chuansha Road
