3.0 Ton Gasoline LPG Gas Forklift Forklift Skip Bins

3.0 Ton Gasoline LPG Gas Forklift Forklift Skip Bins thumbnail-1
3.0 Ton Gasoline LPG Gas Forklift Forklift Skip Bins photo-1
US$ 9,800 - 14,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
HYDER
Contact Supplier Request Quote Chat Now
Shanghai Hyder Industry Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name HYDER
Model Number FG30
Type Powered Pallet Truck
Power Souce LP Gas Engine
Rated Loading Capacity 3000KG
Max. Lifting Height 6000MM
Min. Lifting Height 3000MM
Fork Length 1070MM
Fork Width 125MM
Overall Dimensions 2705*1225*2140MM
Certification CE,ISO9001
After-sales Service Provided Engineers available to service machinery overseas

3.0 ton Gasoline  LPG Gas Forklift FG 30 High Quality  Good Price with  CE



Product Advantages:

1.Green energy, environmental protection, low emission, low noise, comply with CE and ISO standard

2.Dual-fuel shift function, LPG and gasoline,high efficient Nissan K21/K25 engine

3.Rotatable LPG tank installation,180°in horizontal and 78°in vertical, easy to replace
4.Electronic gear-shifting device, convenient, comfortable and reliable

5.LPG converting system uses world famous brand - US IMPCO
6.Double safety system by lower speed-limit valve & lower safety valve
7.Scientific ergonomic designs ensure the comfort of driving,advanced technique with good after-sale service



Using TCM technology, Diesel/Gasoline/LPG engine are optional
- Capacity up to 1.5ton-20ton
- Spacious room and wide view for the operator
- Strong steel mast for large lifting capacity
- Maximum lifting height up to 6 meters
- Adjustable steering wheel and F/R lever
- Optional closed compartment design for special customer needs

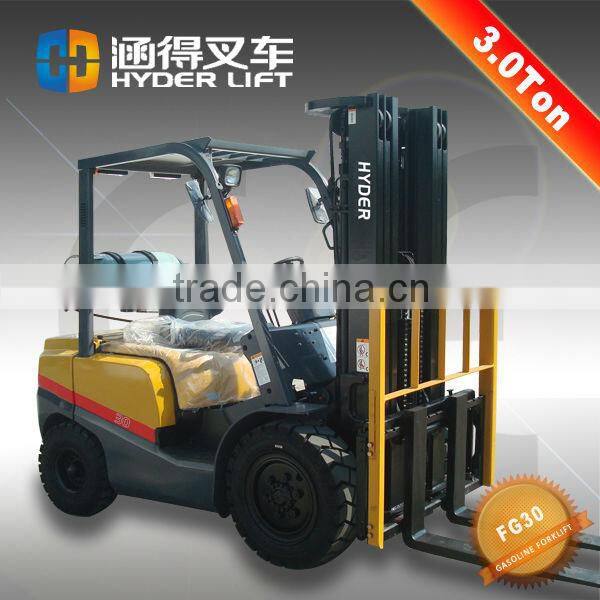

Product Picture:



3.0 ton Gasoline LPG Gas Forklift forklift skip bins

Product Parameter:

Manufacturer     HYDER
Model   Power shift T/M FG30T
Manual shift T/M FG30C
Load capacity   kg 3000
Load center   mm 500
Power unit Gasoline/LPG/Diesel/Electric   Gasoline
Operator type     Driver/seat
Tire type Front/rear   Pneumatic
Wheel Front/rear   2/2
Max. lifting height   mm 3000
Free lift   mm 150
Fork size L*W*T mm 1070*125*45
Tilt range Mast forward/backward deg 6/12
Overall length(without fork)   mm 2705
Total width   mm 1225
Mast height (fork lowering)   mm 2075
Overall height fork raised With backrest mm 4250
Height to head guard   mm 2140
Turning raduis(outside)   mm 2400
Min. right angle stacking aisle width without load length&clearence mm 2880
Speed Max Travelling     full/no load km/h 18/19.5
Lifting             full/no load mm/s 450/500
Lowering         full/no load mm/s 450/450
Max.drawbar pull Power shift T/M   full/no load kg 1300/1000
Manual shift T/M   full/no load kg 1350/1000
Gradeability at 1.6km/h Power shift T/M   full/no load % 17/20
Manual shift T/M   full/no load % 17/20
Truck weight   kg 4300
Tires Number front/rear 2/2
Model front axle 28x9-15-12PR
rear axle 6.50-10-10PR
Wheelbase   mm 1700
Ground clearence At lowest point(mast) mm 120
Frame mm 135
Brake Service brake   Hydraulic-foot pedal
Parking brake   Mechanical-hand lever
Battery Voltage/capacity V/AH 12/60
Engine Model   Nissan K21
Rated power PS(kw/rpm) 47/2250(34.6/2250)
Rated torque kg-m   max.(N.m) 15.7/1600(153/1600)
Number of cylinders   4
Emission L 2.065
Fuel tank capacity   L 70
Transmission Speed forward/backward Power shift T/M 1-1 power shift T/M
Manual shift T/M 2-2 power shift T/M
Operating pressure Hydraulic system pressure kg/cm² 180



Options:

As a professional manufacturer of forklift, we also can offer you customized service,the following items are optional:

Tires: Pneumatic and Solid tire

Color: Yellow,red,orange and white for your options

Engine: Chinese/Mitsubishi/Nissan engine are optional

Mast: 2 stage mast,2-stage full free mast,3-stage full free mast

Transmission: Mechanical and automatic transmission for options

Attachment: Side shifter,rotator,ejector,fork positioner,paper roll clamp,soft clamp and so on

Types:1.5ton-20ton diesel forklift,2ton-4ton gasoline/LPG forklift and 1.5ton-4ton electric forklift are available

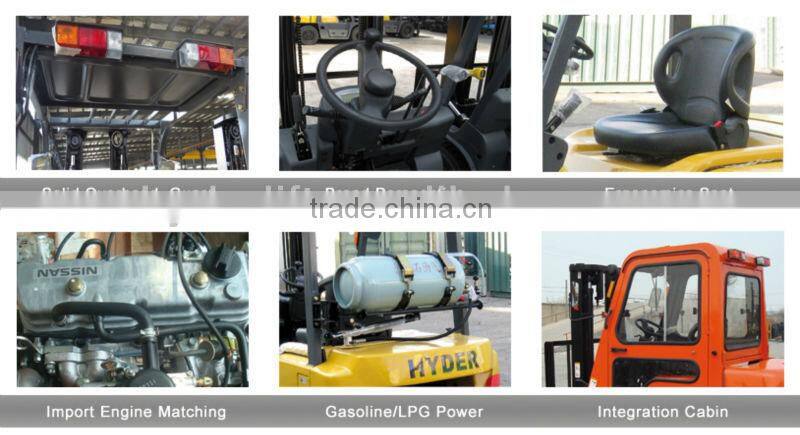

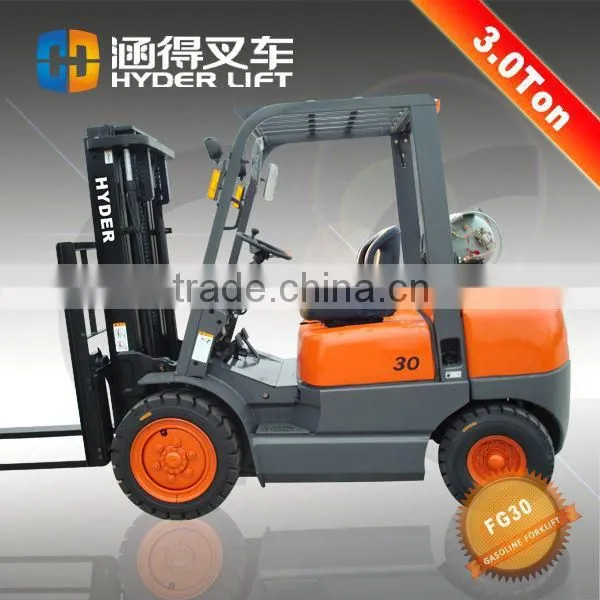

Detail View:



 3.0 ton Gasoline LPG Gas Forklift forklift skip bins



 3.0 ton Gasoline LPG Gas Forklift forklift skip bins



Attachment:

3.0 ton Gasoline LPG Gas Forklift forklift skip bins



Our Factory:

 3.0 ton Gasoline LPG Gas Forklift forklift skip bins



For the details of customized configurations and options, please contact with us.
