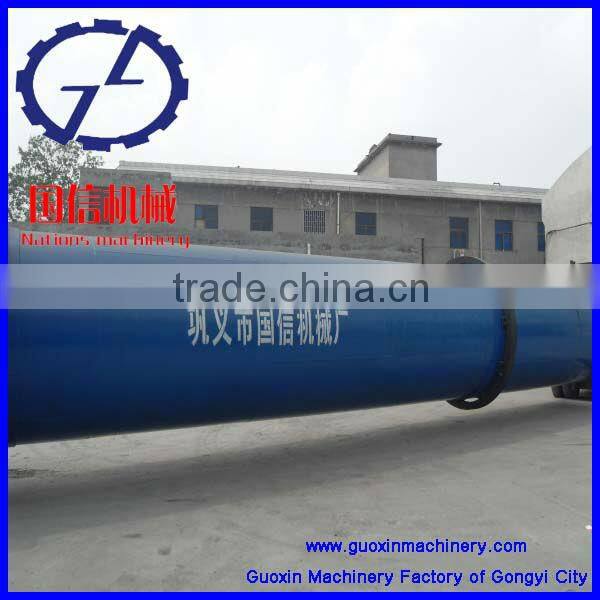

Guoxin brand sawdust/wood shavings drum dryer

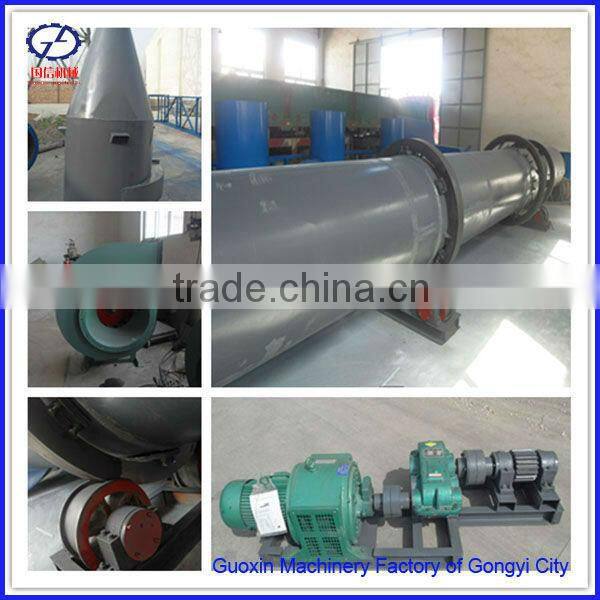

The Main Structure of Sawdust/Wood Shavings Drum Dryer:
cylinder |
Feed port |
hopper |
Roller ring |
big gear |
small gear |
reducer |
adjustable motor |
steering plate |
heating stove |
induced draft fan |
carrier roller |
roller base |
discharge port |
cyclone |
other parts |
Working Principle of Sawdust/wood shavings Drum Dryer:
1.The wet materials enters into hopper by the belt conveyor through feed pipe into the
sawdust/wood shavings drum dryer cylinder.
2.The wet materials flows smoothly into the
sawdust/wood shavings drum dryer cylinder because of the gradient.
3.Under the high temperature from the heating stove and the effect of the steering plate and the rotation of the cylinder,the materials can be dried well in the cylinder of the
sawdust/wood shavings drum dryer.
4.After the drying process,the dried materials come out from discharge port of the
sawdust/wood shavings drum dryer.
5.The cyclone catchs a slight of oddments,and the induced draft fan makes the materials cool and discharges the hot air.

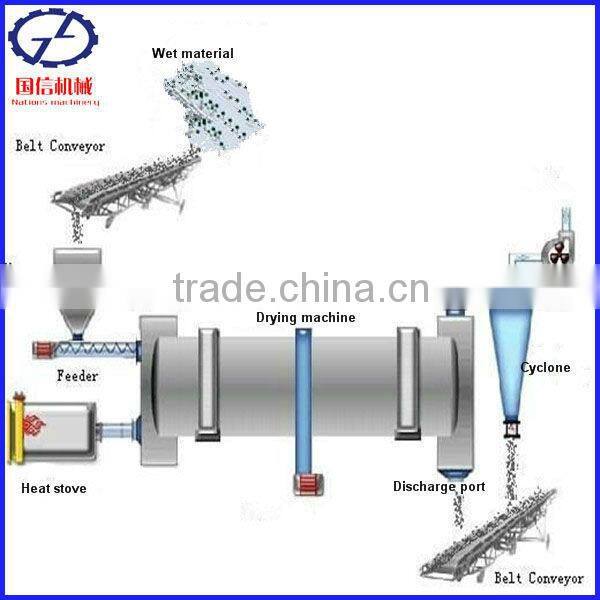

The working principle is just as the following flow chart showssawdust/
Outstanding Advantage of sawdust/wood shavings drum dryer:
1.High degree of mechanization,continuous option, stable working
2.Simple and excellent structure,operating convenience,easy to operate
3.Less mechanical failure, low maintain charge, and low power consumption
4.New material feeding and discharge devices,decrease the load of cyclone.
5.With new innovative and unique sealing device,sophisticated keep-warm system,the materials could be dried sufficiently,reaching the desired effect.
6.Particle size and moisture content of the materials is adjustable according to the operator’s request
7.With complete dust removal equipment
8.Long working life and good after-service
9.CE and ISO certificate
Technical Data of Sawdust/wood Shavings Drum Dryer:
Service of Sawdust/wood Shavings Drum Dryer:
The pre-sales service:
To provide you with the project and process design, make suitable plan for you, or design and manufacture the products according to your special needs.
The sales of service:
To accompany you to complete the equipment inspection and acceptance, assists to draft the construction scheme and detailed process.
The after-sales service:
Guoxin Machinery Factory of Gongyi City will send the engineer to guide the installation of equipment and the commissioning of the machine.
Sawdust/wood Shavings Drum Dryer Choosing Way :
The dryer have a large scope of models, the key of choosing a dryer is depends the original moisture, request moisture and capacity . According different demands we offer the best solution to clients.
Note:
If you want more information ,pls feel free to contact me at any time or visit our website
Welcome china,welcome to visit our factory.
