GX CE approved large capacity roller rotary wood sawdust dryer
The description of roller rotary wood sawdust dryer
Roller rotary wood sawdust dryer is applicable for drying big particles,heavy particles in chemical,mining and metallurgy,such as mining area,blast furnace,coal,powder of metal,phosphate fertilizer.
Roller rotary wood sawdust dryer is widely used in the processing of drying wood shavings,sawdust,pasture, alcohol draff,vinasse,marigold,cassava dregs,ginkgo leaves,Chinese herbal medicine raw materials,straw powder and other materials.
Technical Parameter of the roller rotary wood sawdust dryer
.
The main structure of the roller rotary wood sawdust dryer

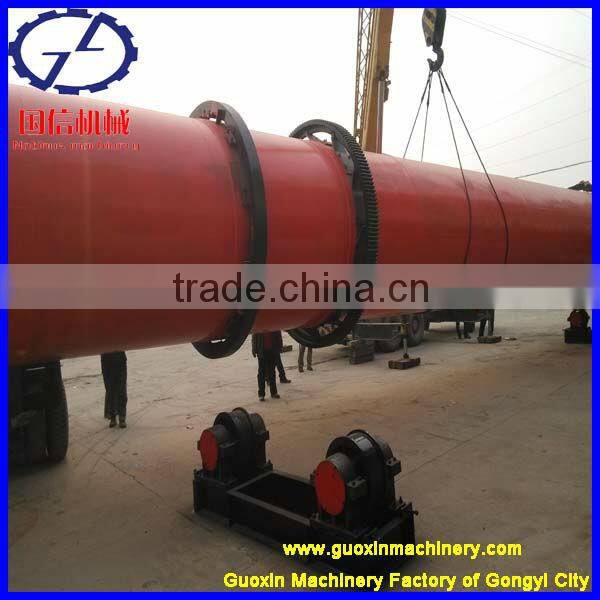

Roller rotary wood sawdust dryer consists of cyclinder,feed port,hopper,roller ring,big gear,small gear,reducer,adjustable motor,steering plate,heating stove,induced draft fan,carrier roller,cyclone,roller base,discharge port and other conponents.
Advantages of the roller rotary wood sawdust dryer
1.Less mechanical failure, low maintain charge, and low power consumption
2.Simple and excellent structure,operating convenience,easy to operate
3.Particle size and moisture content of the materials is adjustable according to the operator’s request
4.With complete dust removal equipment
5.Long working life and good after-sales service
6.CE and ISO certificates
Working principle of the roller rotary wood sawdust dryer
1.The wet materials enters into hopper by the belt conveyor through feed pipe into the roller rotary wood sawdust dryer cyclinder.
2.The wet materials flows smoothly into the roller rotary wood sawdust dryer cylinder because of the gradient.
3.Under the high temperature from the heating stove and the effect of the steering plate and the rotation of the cylinder,the materials can be dried well in the cyclinder of the roller rotary wood sawdust dryer.
4.After the drying process,the dried materials come out from discharge port of the roller rotary wood sawdust dryer .
5.The cyclone catchs a slight of oddments,and the induced draft fan makes the materials cool and discharges the hot air.
The working principle is just as the following flow chart shows
Service of roller rotary wood sawdust dryer
The pre-sales service:
To provide you with the project and process design, make suitable plan for you, or design and manufacture the products according to your special needs.
The sales of service:
To accompany you to complete the equipment inspection and acceptance, assists to draft the construction scheme and detailed process.
The after-sales service:
Guoxin Machinery Factory of Gongyi City could send the engineer to guide the installation of equipment and the commissioning of the machine.
Rotller Rotary Wood Sawdust Dryer Choosing Way :
The dryer have a large scope of models, the key of choosing a dryer is depends the original moisture, request moisture and capacity . According different demands we offer the best solution to clients .
Note:
If you want more information ,pls feel free to contact me at any time or visit our website www.
