High Efficiency 2.2m*18m Wood Dryer Machine Popular in Vietnam With CE

High Efficiency 2.2m*18m Wood Dryer Machine Popular in Vietnam With CE thumbnail-1
High Efficiency 2.2m*18m Wood Dryer Machine Popular in Vietnam With CE thumbnail-2
High Efficiency 2.2m*18m Wood Dryer Machine Popular in Vietnam With CE thumbnail-3
High Efficiency 2.2m*18m Wood Dryer Machine Popular in Vietnam With CE photo-1
High Efficiency 2.2m*18m Wood Dryer Machine Popular in Vietnam With CE photo-2

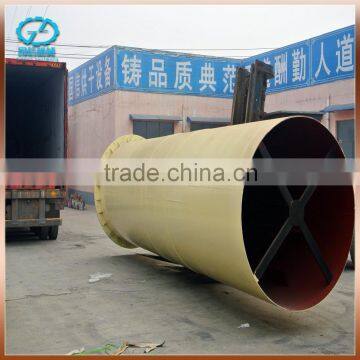

High Efficiency 2.2m*18m Wood Dryer Machine Popular in Vietnam With CE photo-3
US$ 5,000 - 90,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drying Equipment
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Gongyi Guoxin Machinery Factory (General Partnership)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Tianjin/Qingdao/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drying Equipment
Place of Origin Henan, China
Brand Name Guoxin
Model Number 2.2*18m
Voltage 380v
Power(W) 20kw
Dimension(L*W*H) 18*2.2m
Weight 30t
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Hotsale China CE approved 2.2m*18m Q345 steel wood dryer machine with 15-year experience:



 High efficiency 2.2m*18m wood dryer machine popular in Vietnam with CE



1. Structure of the wood dryer machine:

  • Wood dryer machine consists of rotary body, material plate, conveying device, supportive device, sealing ring ,big gear,smial gear,feed port ,discharge port and other components.
  • Since the machine has a gradient, the materials enter the cylinder from its higher side. There is full of hot gas in the cylinder, materials will be rolled by the metal plate inside up and down to accelerate the drying rate, then they will pushed to the lower side by the rolling device. The dried materials will be collected at the bottom.

.......................................................................................................





High efficiency 2.2m*18m wood dryer machine popular in Vietnam with CE

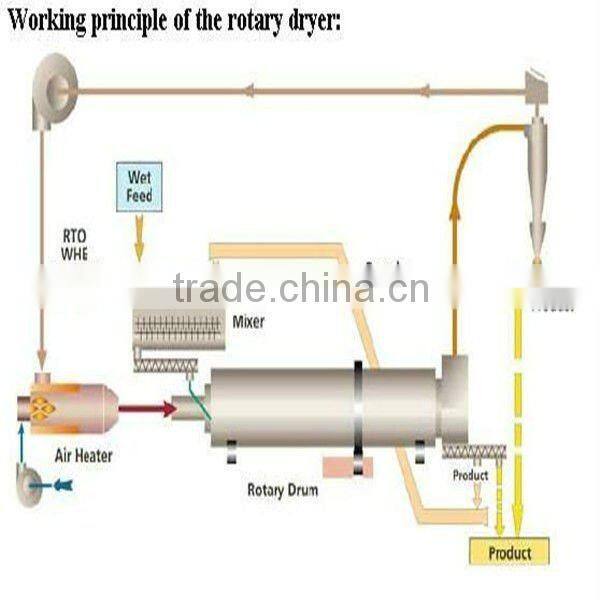

2. Working Principle of the wood dryer machine:

  • The auto-combustion device provides heat resource for our wood dryer machine, which adopts down-flow heating method. When the mineral materials are fed into the cylinder, it flows down as a result of gravity.
  •  Meanwhile, they are repetitively scattered in the air so that they are in full contact with the hot air. The material is thus dried gradually.

..............................................................................................................



High efficiency 2.2m*18m wood dryer machine popular in Vietnam with CE



3. Technical Specification of the wood dryer machine:







Model

diameter

(mm)

Drum length

(m)

Main reducer



Speed

(r/min)

Production capacity

(t/h)

Power

(kw)

Weigh(t)

Volume(m3)

 Model

Ratio









Φ1.0X10

Φ1000

10

JZQ450-16-11



6.73

1-3.8

5.5

7.5

7.85

Φ1.2X12

Φ1200

12

ZL50-16-1



5.8

1.8-5.5

11

13.8

13.31

Φ1.5X12

Φ1500

12

JZQ500-111-2F

16.46

4.8

4-9

15

22.3

21.2

Φ1.5X 15

Φ1500

15

ZQ50-1611-2

16.46

4.8

4-10

18.5

28.8

26.5

Φ1.8X14

Φ1800

14

JZQ650-111

18.84

3.2

6-12

30

39.8

48.22

Φ2.2X16

Φ2200

16

ZJQ750-111

31.5

3

10-23

37

51

60.1

Φ2.2X18

Φ2200

18

JZQ750-111

31.5

3

10-25

37

53.3

70.43

Φ2.4X20

Φ2400

20

ZL85-13-1

27.16

2.83

20-40

45

 78.4

90.43

Φ2.8X24

Φ2800

24

ZL100-16-1

31.5

2.59

20-45

55

 97

147.8

Φ3.0X20

Φ3000

20

ZL100-16-1

41.54

2.6

25-48

55

 102

141.3

Φ3.2X25

Φ3200

25

ZLH115

41.54

2.1

30-55

110

 148

201



..............................................................................................................



High efficiency 2.2m*18m wood dryer machine popular in Vietnam with CE









4. Some question about the wood dryer machine that you may ask:





a) What's the rotary dryer used for?


   This dryer can dry many kinds of materials which contain moisture, such as coal, coal slurry, slag, industrial waste, and clay stone. They are widely used in building materials, metallurgy, and chemical industry.

b) What does the rotary dryer consist of?


   The dryer is formed by rotary body, lifting blade, driving device, supporting device and bigger gear, smaller gear, motor and reducer.



c) Can I use the coal or gas as the heating source?


   Yes, you can use coal, gas, electricity, oil and wind power to heat the dryer machine.



d) How does the rotary dryer work?


   The raw material plate is arranged conveniently to allow adjustable angle positions. The material to be dried is inserted to the rotary cylinder through the raw material plate. Hot air flows within the cylinder causing the separation of water from the material by converting it into vapor which is discharged into the atmosphere. At this point, the material becomes dry.







.......................................................................................





5. Our rotary dry has passed the CE certification:



High efficiency 2.2m*18m wood dryer machine popular in Vietnam with CE

.......................................................................................



6. Our rotary drys have been exported to many countries, such as Canada, France, Italy, Vietnam and so on.





High efficiency 2.2m*18m wood dryer machine popular in Vietnam with CE











  High efficiency 2.2m*18m wood dryer machine popular in Vietnam with CE

Welcome  to contact us!!!
