Sawdust Dryer Machine
Brief description of sawdust dryer machine:
Sawdust dryer machine is a low fuel consumption and high efficiency working dryer machine, it can dry the material with 85% to the final moisture content below 13%, it can used to dry sand, coal, chicken manure, palm fiber etc.
Main characteristics of sawdust dryer machine:
| 1. | newly designed and high technoligy |
| 2. | automatic control and stable working |
| 3. | easy operation and reasonable price |
| 4. | lower energy consumption |
| 5. | good after-sale service |
Technical specification of sawdust dryer machine:
Model |
Rotor diameter (mm) |
Drum length (m) |
Main reducer
|
Speed (r/min) |
Production capacity (t/h) |
Power (kw) |
Volume(m3) |
Weight (t) |
|
Model |
Ratio
|
||||||||
Φ0.6X0.8 |
Φ600 |
8 |
JZQ350-16-1 |
|
8 |
0.5-1.5 |
3 |
2.26 |
5.1 |
Φ0.8X1.0 |
Φ800 |
10 |
JZQ450-16-11 |
|
7.2 |
0.8-2.2 |
4 |
5.02 |
6.9 |
Φ1.0X10 |
Φ1000 |
10 |
JZQ450-16-11 |
|
6.73 |
1-3.8 |
5.5 |
7.85 |
7.5 |
Φ1.2X12 |
Φ1200 |
12 |
ZL50-16-1 |
|
5.8 |
1.8-5.5 |
11 |
13.31 |
13.8 |
Φ1.5X12 |
Φ1500 |
12 |
JZQ500-111-2F |
16.46 |
4.8 |
4-9 |
15 |
21.2 |
22.3 |
Φ1.5X 15 |
Φ1500 |
15 |
ZQ50-1611-2 |
16.46 |
4.8 |
4-10 |
18.5 |
26.5 |
28.8 |
Φ1.8X14 |
Φ1800 |
14 |
JZQ650-111 |
18.84 |
3.2 |
6-12 |
30 |
48.22 |
39.8 |
Φ2.2X12 |
Φ2200 |
12 |
JZQ650-111 |
31.5 |
3 |
10-20 |
30 |
45.6 |
40.5 |
Φ2.2X14 |
Φ2200 |
14 |
JZQ750-111 |
31.5 |
3 |
10-22 |
37 |
53.2 |
48.3 |
Φ2.2X16 |
Φ2200 |
16 |
ZJQ750-111 |
31.5 |
3 |
10-23 |
37 |
60.1 |
51 |
Φ2.2X18 |
Φ2200 |
18 |
JZQ750-111 |
31.5 |
3 |
10-25 |
37 |
70.43 |
53.3 |
Φ2.4X14 |
Φ2400 |
14 |
ZL850-13-1 |
27.6 |
2.83 |
20-43 |
45 |
63.3 |
61.5 |
Φ2.4X18 |
Φ2400 |
18 |
ZL85-13-1 |
27.16 |
2.83 |
20-40 |
45 |
81.4 |
68.6 |
Φ2.4X20 |
Φ2400 |
20 |
ZL85-13-1 |
27.16 |
2.83 |
20-40 |
45 |
90.43 |
78.4 |
Φ2.8X24 |
Φ2800 |
24 |
ZL100-16-1 |
31.5 |
2.59 |
20-45 |
55 |
147.8 |
97 |
Φ3.0X20 |
Φ3000 |
20 |
ZL100-16-1 |
41.54 |
2.6 |
25-48 |
55 |
141.3 |
102 |
Φ3.0X25 |
Φ3000 |
25 |
ZL100-16-1 |
41.54 |
2.6 |
25-48 |
75 |
176.7 |
110 |
Φ3.2X25 |
Φ3200 |
25 |
ZLH115 |
41.54 |
2.1 |
30-55 |
110 |
201 |
148 |
Application of sawdust dryer machine:
The dryer machine can be used in building materials, metallurgy, chemical industry,
cement plant for drying of limestone, coal powder, slag, clay stone,food vegetables,cassava and other. This dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing.
sawdust dryer machine is a low-fuel-consumption and high efficiency of drying equipment. It can be used to dry the material with a moisture content below 85% to a final moisture content below 13%,. It is applicable in animal farming, food brewing, sugar and pharmaceutical industries dealing with high humidity waste, as well as a variety of chemical raw materials.

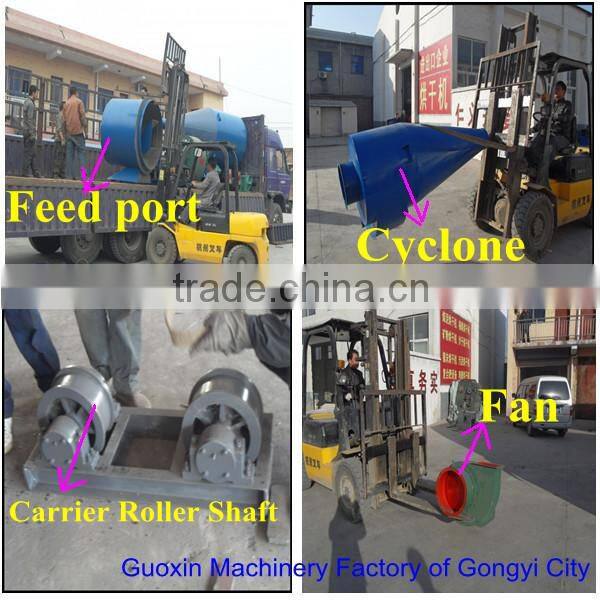

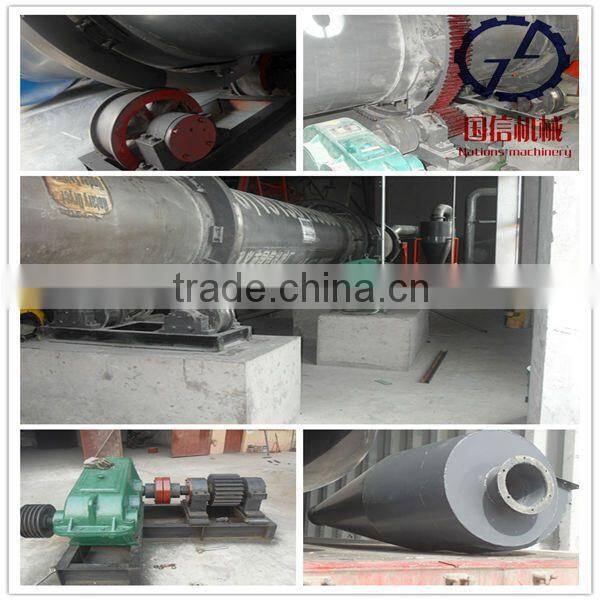

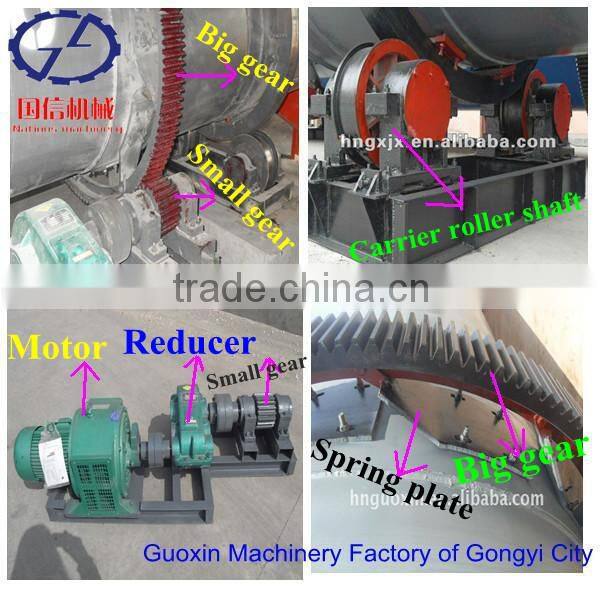

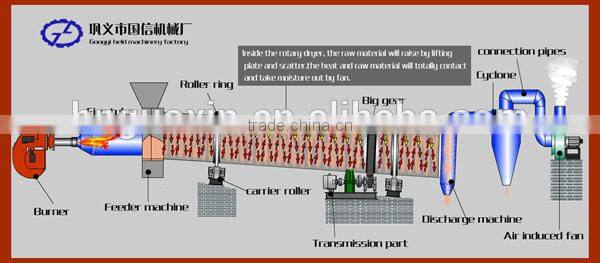

Structure of sawdust dryer machine:
1.Adjustable motor 2.Reducer 3.Transmission base 4.Big gear 5.Small gear 6.Tug based 7.Feed port 8.discharge port
9.Air induced fan 10.drying cylinder 11.Roller ring 12.Cyclone

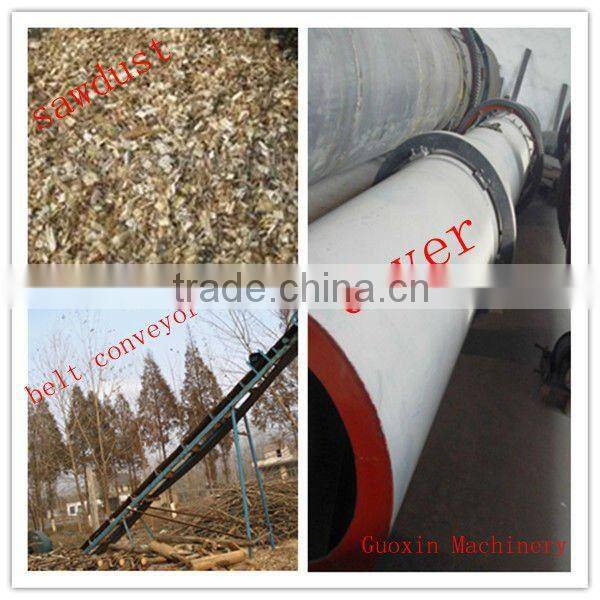

In addition, we can also according to customer's specific requirements and actual situation to design coal gasifier, combustor, belt conveyor, dosing machine and so an.

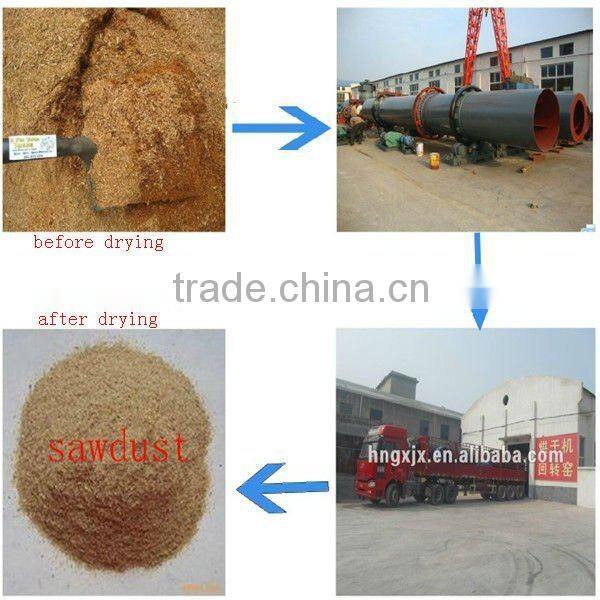

Working priciple of sawdust drye machine:
Sawdust dryer machine is suitable for drying various types of sawdust which the moisture content is less than 55%.
1.Frist, sawdust after transfer system enter into the sawdust dryer cylinder, flied by raising pale device which are uniform distribution in the drum cylinder.
2.The sawdust are evenly distributed in sawdust dryer cylinder which can bear high temperature, then fully contact with the hot air, speed up the drying heat and mass transfer.
3.During the drying process, under the effect of plate and hot treatment in the sawdust dryer machine, the material are dried well.
4.At last, the dried sawdust come come out from the end of the sawdust dryer.
Outstanding advantages of sawdust dryer machine:
(1)High degree of mechanization with large capacity.
(2)Simple and excellent structure, material running smoothly through the cylinder.
(3)Less mechanical failure,low fuel consu7mption and easily operate.
(4)With complete dust removel equipment.
(5)No dust spilling
1.Guoxin Machinery Factory has been specialized in dryer machine for more than 20 years with a lot of experience exported to US,UK,Africa,Vietnam,Nigeria,Malaysia etc up to 60 countries.
2.We are a manufacture factory,so the price we offer you is the bottom price.

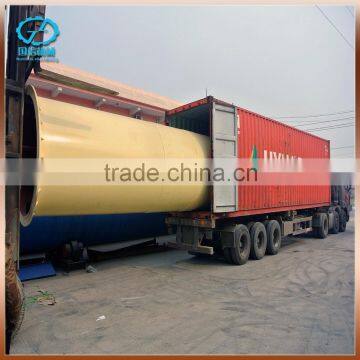

3.Quick and safe delivery:don't worry about the delivery,we have a professional team to delivery the machines for DHL,air transportation,sea transportation.
4.Full varieties of models for choice.
5.Best price,best service,attracting design,high quality.
6.Everyone including the boss ,workers,trading members in our company is very friendly.We will be very happy if you can come to China to visit our factory and plant.
1) How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery.
2) What guarantee do you provide?
If the quality is not consistent with the description as we said or promised before you place order, we promise you 100% refund.
3) How about price?
We have our own factory and can give you the lowest price, besides, we have a policy that " for saving time and absolutely honest business attitude, we quote as low as possible, discount can be given according to quantity"
We are professional manufacturer rotary drum dryer, mesh belt dryer and microwave dryer. If you are interested in our production you can contact me any time.Because we have factory byt ourself, so welcome to visit our factory if you have free time.We will offer best suitable machine for you with best price.
looking forward your inquiry!

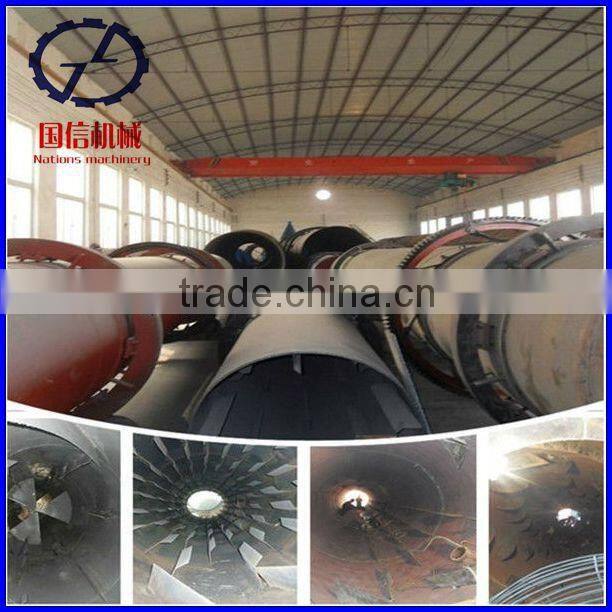

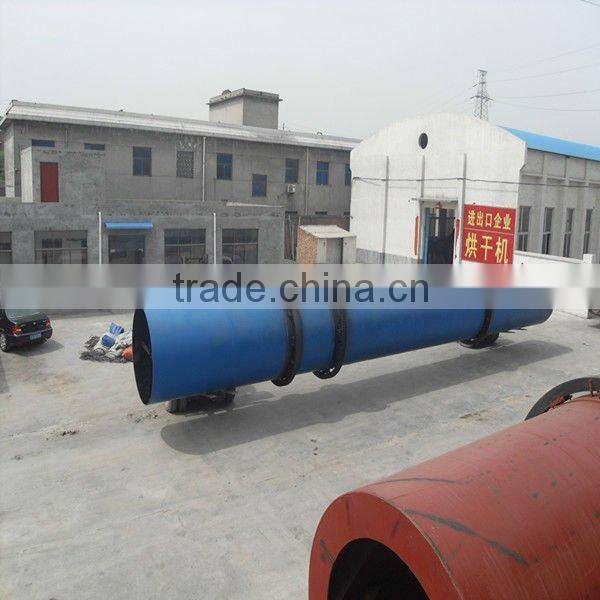

Photos of Guoxin:
Guoxin has CE certificate approved:
