Full Automatic Best Offer Rotary Sawdust Dryer With CE

Full Automatic Best Offer Rotary Sawdust Dryer With CE photo-1
Full Automatic Best Offer Rotary Sawdust Dryer With CE photo-2
Full Automatic Best Offer Rotary Sawdust Dryer With CE photo-3
Full Automatic Best Offer Rotary Sawdust Dryer With CE photo-4
Full Automatic Best Offer Rotary Sawdust Dryer With CE photo-5
Full Automatic Best Offer Rotary Sawdust Dryer With CE photo-6
US$ 6,666 - 19,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drying Equipment
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai or appoint port in China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rotary Drying Equipment
Place of Origin Henan, China
Brand Name Guoxin
Model Number GX-1.0*10m
Voltage 380V
Power(W) 5.5kw
Dimension(L*W*H) 10m*1.0m*1.0m
Weight 7.5t
Certification CE certificate
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Fully Automatic Best Offer Rotary Sawdust Dryer

Full automatic best offer rotary sawdust dryer with CE

Rotary sawdust dryer brief introduction:



Rotary sawdust dryer is widely used in the field of building materials, metallurgies, chemical industry, cement and so on. Sawdust drum dryer can dry slag, coal powder, mining powder, clay, sand, limestone and so on.



It consists of rotary body, lifting blade, driving device, supporting device etc.



The rotary sawdust dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation.

Full automatic best offer rotary sawdust dryer with CE

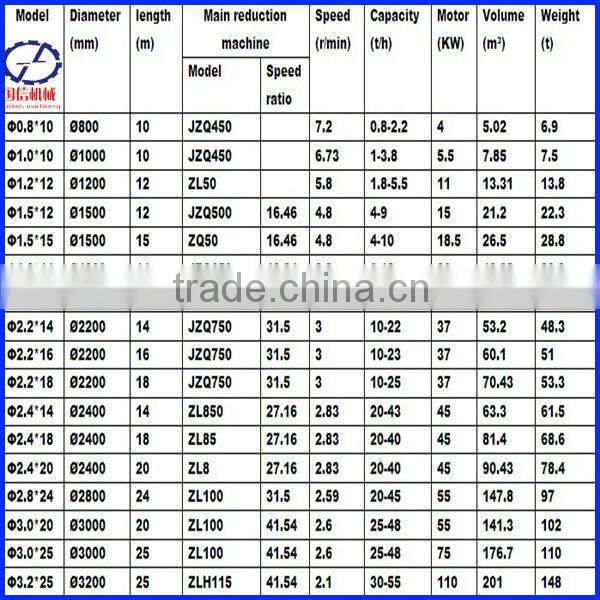

 Rotary sawdust dryer technical data:



 Full automatic best offer rotary sawdust dryer with CE



This is only reference, if you have fixed data, we can design sawdust drum dryer according to your need, please believe our professional ability.



Rotary sawdust dryer working priciple:



1.The wet materials enter into hopper by the belt conveyor through feed pipe into the rotary sawdust dryer  cylinder.



2.The wet materials flow smoothly into the rotary sawdust dryer cylinder because of the gradient and guiding plate.



3.Under the high temperature from the heating stove and the effect of the steering plate and the rotation of the cylinder, the materials can be dried well in the cylinder of the rotary sawdust dryer.



4.After the drying process, the dried materials come out from discharge port of the rotary sawdust dryer.



5.The cyclone catches a slight of oddments,and the induced draft fan makes the materials cool and discharges the hot air.

Full automatic best offer rotary sawdust dryer with CE





The working principle is just as the following flow chart shows:

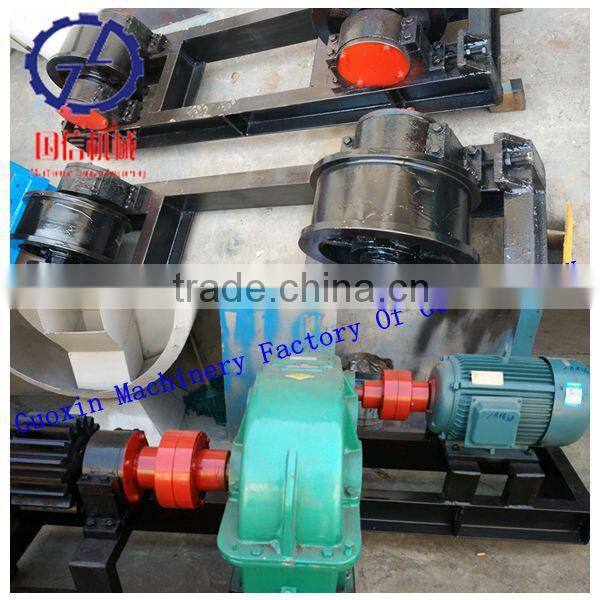

Rotary sawdust dryer structure as belows



Full automatic best offer rotary sawdust dryer with CE



Full automatic best offer rotary sawdust dryer with CE





 Frequently Asked Questions FAQ of Rotary Sawdust Dryer





1. What the rotary sawdust dryer can be used for ?

This sawdust dryer can dry many kinds of materials which contain moisture, such as coal, coal slurry, slag, industrial waste, and clay stone. They are widely used in building materials, metallurgy, and chemical industry.



2.What heating source can be adopted for rotary sawdust dryer ?

Coal, oil, gas(LPG, LNG), wood pellets etc. You can build a stove by yourself, or choose machines necessary to the corresponding fuel.



3.What’s the steel material of your KEY PARTS of rotary sawdust dryer ?

Motor from Xinxiang National Standard; Reducer from Zibo, Shandong; Bearings from ZWZ, Details of rotary dryer including the structure and material, we will send to you after the quotation.



4.How many workers of rotary sawdusr dryer?

Usually 2-3 workers, exact number depends on the specific condition.



5.What can do preparation for rotary sawdust dryer?

You need build the stove sometimes, fundation necessary. The fundation figure will be offered after order. Don’t worry, we will inform you in time after order.



6.How about the after-sales service of rotary sawdust dryer ?

Full automatic best offer rotary sawdust dryer with CE

a.Installation

Usually we offer the detailed Product Operating Instructions for customer, they can install and operate by themself. Also our factory could send the engineer to guide the installation of equipment and the commissioning of the machine.

b.Training

Training is FREE to every customer.

c.2 years warranty

we provide 2-years warranty to make sure your machine runs consistently, except the wearing parts.

d. Spare parts in stock, and only charge manufacture fees for old customer.

We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.



7. Do you have CE certificate?

Yes, we have, as the followingFull automatic best offer rotary sawdust dryer with CE

Full automatic best offer rotary sawdust dryer with CE

Full automatic best offer rotary sawdust dryer with CE



Because we are factory direct sale, we can offer quality assurance and best price, If you are interested in our rotary sawdust dryer please do not hestate to contact me,if you have free time, welcome to visit our factory, our technical personnel will test machine running for you. you can contact me at any time
