Specifications
palm fiber making machine:1.CE certificate;
2.Stable working;
3.Capacity 5% improved;
4.Lower energy consumption.
Guoxin Machinery Factory Specialized In Palm Fiber Production Line
palm fiber making machine:
1.CE certificate;
2.Stable working;
3.Capacity 5% improved;
4.Lower energy consumption.
Guoxin Machinery Factory has been engaged in the fiber extracting machinery for more than 30 years. Under cooperation with our European partner and the local mechanical University. We keep improving our technology and design for the fiber Machine.
So far under our best design of extracting rotor, our machine can produce 1000-1500kg palm fiber per hour. Besides the exiting output capacity, our machine can maximum keep the fiber length and quality!

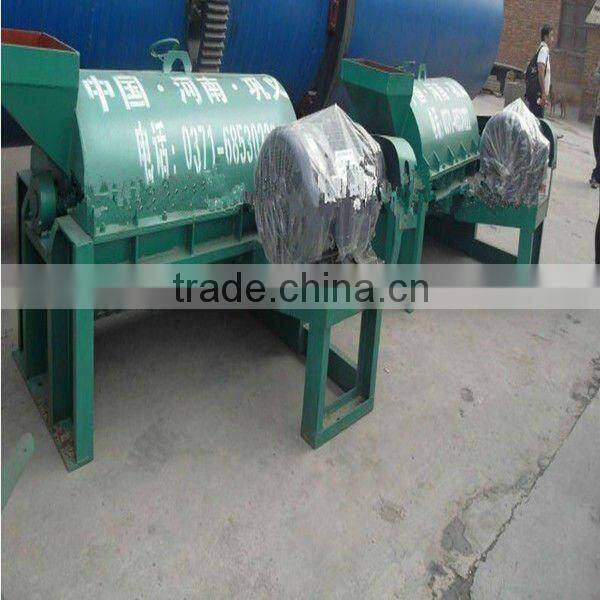

Main Machine :NCM 220 palm fiber making machine
Specification:
Item |
Specifications |
Item |
Specifications |
Size: |
L: 1800*W *850*H 1100 mm |
Rotor Size |
L: 1100mm |
Main Shaft |
L 2600* Dia:160 mm |
Blade Size |
L 42*W 10mm |
Inlet Size |
L 400*W 400 mm |
Outlet Size |
H: 450*W 300mm |
Power |
55KW |
Shaft Block |
Z2532V |
Driving Wheel |
Dia 300mm |
Driven WHeel |
Dia 300mm |
Motor |
55KW-4 |
Weight |
1600kg |
Motor Power: 380v/50Hz ( Customerised available)
Capacity: 1000-1500kg/hour
Electric Control Panel: Dust Proof.
Machine Structure: Mild Steel Panels and Heavy Duty H-Steel.
Working principles of palm fiber making machine:
Palm Fiber Making Machine is used to extract fiber from material like oil palm, palm and coconut shell which contains lots of fiber. The fiber is used to make mattress, shoe-pad, seat cushion etc.
There are mainly two types: sigle drum and double drum type. The single drum type fiber extracting machine is suitable for almost all the palm material, the double drum type is suitable for the mateial which requires high quality fiber or dry coconut shell.
Main Features of palm fiber making machine:
1. According to the machine’s structure, open silk machine commonly has monocular (single drum) and binocular (double drum). The first one is suitable for a large variety of palm materials, the latter one is suitable for the requirements of dry coconut or the demanding users.
2. Open silk machine mainly uses in the Southeast Asia countries, such as Philippines, Pakistan, Singapore etc. As for the machine, there are two types: one is on the electric and the other is on the diesel.

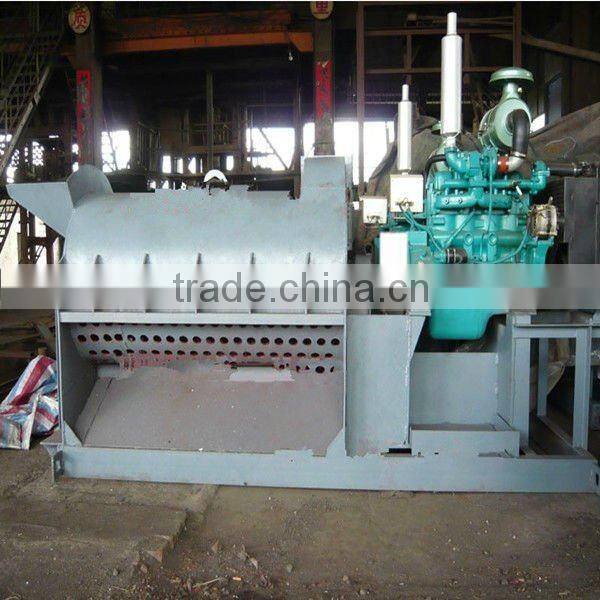

3. Generally speaking, if the machine is on the electric, the single drum only needs one 55KW motor while the double drum needs one 55KW with another 37KW motors. The diesel one only matches the single drum type where somewhere the electric power is inconvenient.
Standard service of Guoxin:
The pre-sale service
To provide you with the project and process design, make purchase plan for your, or design and manufacture the products according to your special needs.
The sale of services
To accompany you to complete the equipment inspection and acceptance, assists to draft the construction scheme and detailed process.
The after-sale service
The company sent technical personnel to the scene to guide the installation of equipment, commissioning machine and training of operator.
Application of palm fiber making machine:

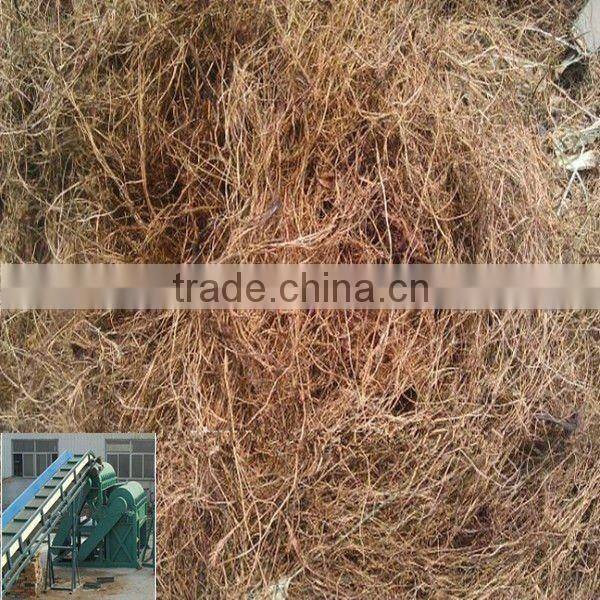

The product of the open silk machine is the filamentous, it mainly used in palm mattress, insoles, cushions and other aspects. Its current market is very abroad.
If you are interested to know any further information about open silk machine, please kindly leave me a message below, I will reply to you as soon as possible!
