Specifications
Biomass rotary dryer:1.Carbon steel material
2.Time delivery in 15 days
3.L/C,or T/T is ok
4.CE certificate
Hotsale Q345 steel 1.5m*15m CE approved new Guoxin biomass rotary dryer with 15-year experience:
1. Description of the biomass rotary dryer:
- The biomass rotary dryer is widely used for drying materials in industries like cement, mine, building materials, chemistry, food and fertilizer etc.
- Such as woodchips, sawdust, bagasse, rice husk, coffee husk, cotton stalks, palm fiber, coconut fiber, cassava, sand, limstone, clay, slag, coal slurry, lignite, chicken manure etc.

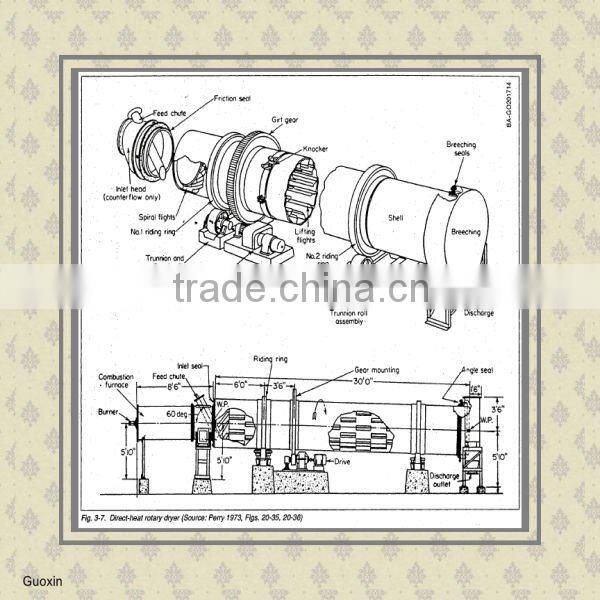

2. Structure of the biomass rotary dryer:
The biomass rotary dryer is mainly composed of cylinder, under frame, feeding and discharging device, transmission device,gear cover, etc.
3. Working principle of the biomass rotary dryer:
- The complete sets of equipment mainly is composed of the crushing drum dryer, burning furnace, feed spiral, output spiral, pipeline, dust collector, airlock, air induced fan, electric control cabinet and other components.
- Humidity materials are conveyed from the feed screw directly into the dryer drum, raised by the drum wall panels repeatedly, and scattered by the crushing blow dispersion devices.
- Materials and the negative high-temp media are combined sufficiently to complete heat and mass transfer process.
- As the result of the drum wind angle and the induced air, the feed materials move slowly, and discharged from the spiral after drying, the exhaust gas handled by the dust precipitator, venting to the atmosphere.
4. Advantages of the biomass rotary dryer:
- High output.
- Smooth rotation.
- Good sealing performance.
- Short time high thermal efficiency.
- Fully automatic operation.
- Advanced dedusting device.
5. Technical parameter of the biomass rotary dryer:
Specific-ations(m) |
Capacity(t/h) |
Main motor |
Main gear box |
Weight(t) |
||
Power(kw) |
Model |
Model |
Speed reduction ratio |
|||
Ø1.2*10 |
2.5 |
7.5 |
Y160M-R3 |
ZL50-16-I |
----- |
13.5 |
Ø1.5*12 |
3.3-4.9 |
10 |
Y160L-6-B3 |
JZQ500-III-2F |
----- |
18.9 |
Ø1.5*15 |
4-6 |
18.5 |
Y200L1-6 |
JZQ500-III-2F |
----- |
21 |
Ø1.8*12 |
4-6 |
18.5 |
Y160L-6 |
ZQ50-16II-2 |
16.46 |
22.83 |
Ø2.2*12 |
7-12 |
18.5 |
Y200L7-6 |
JZQ650-III |
31.5 |
37.6 |
Ø2.2*14 |
7-12 |
22 |
Y200L7-6 |
JZQ650-III |
31.5 |
40 |
Ø2.2*16 |
12 |
30 |
Y225M-6 |
JZQ750-III |
31.5 |
45 |
Ø2.4*14 |
12 |
30 |
Y250M-6 |
JZQ750-III |
31.5 |
51 |
Ø2.4*18 |
10-13 |
37 |
Y250M-6 |
ZL85-13-I |
27.16 |
54 |
Ø2.4*20 |
10-14 |
37 |
Y250N-6 |
ZL85-13-I |
27.16 |
54.14 |
Ø3*20 |
25 |
55 |
Y250M-4 |
ZL100-16-I |
41.52 |
78 |
Ø3*25 |
32-36 |
75 |
YR280M-4 |
ZL100-16-I |
41.52 |
104.9 |
6. Usage of the biomass raw material after drying:
- The palm fiber will be used to making mattress.
- The sawdust wil be used for making wood stick.
- The chicken manure can be used for making fertilizer and so on.
The following picture is production line flow chart as your reference.
7. Our rotary dryers have passed the CE certificate:

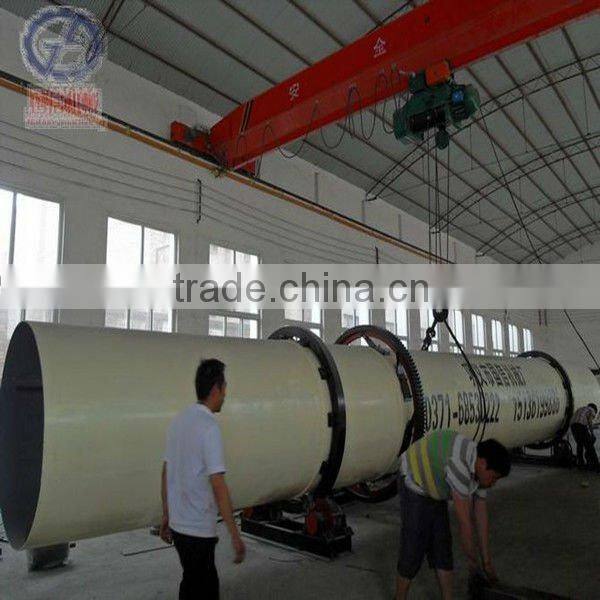

8. The clients in the workshop:
We can also design it according to your drawings and specifications, welcome to contact us!!!
