Low Noise 2.2m*18m Chicken Manure Rotary Drier for Compound Fertilizer

Low Noise 2.2m*18m Chicken Manure Rotary Drier for Compound Fertilizer thumbnail-1
Low Noise 2.2m*18m Chicken Manure Rotary Drier for Compound Fertilizer photo-1
US$ 5,000 - 90,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drying Equipment
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Gongyi Guoxin Machinery Factory (General Partnership)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Tianjin/Ningbo/Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drying Equipment
Place of Origin Henan, China
Brand Name Guoxin
Model Number 2.2m*18m
Voltage 380v
Power(W) 20kw
Weight 30t
Certification CE,ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Material:Q345 steel
2.Size: 2.2m*18m
3.Manufacturer chicken dryer
4.CE and ISO certification
5.Lower noise and labor

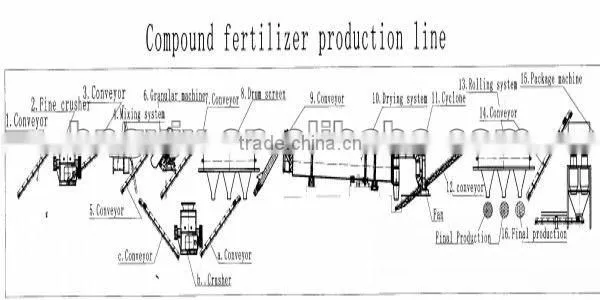

Hotsale 2.2m*18m new CE approved Guoxin chicken manure rotary drier for compound fertilizer production line:





      Low noise 2.2m*18m chicken manure rotary drier for compound fertilizer

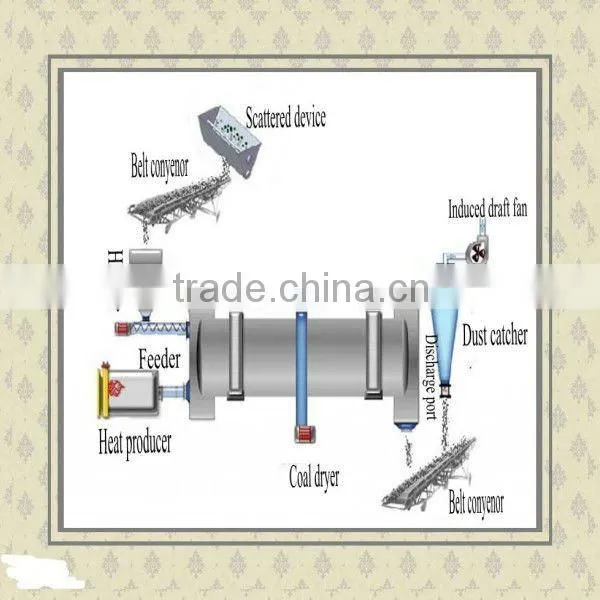

Structure of the chicken manure rotary drie:

1.hopper;

2.dosing machine;

3.incoming material feeder;

4.heating resources;

5.drying roller;

6.discharge feeder;

7.cyclone;

8.draft fan;

9.belt conveyor;

10.variable motor;









The working principle of the chicken manure rotary drier:

  1. Conveyed from the feed screw directly into the drying machine drum, raised by the drum wall panels repeatedly, and scattered by the crushing blow dispersion devices
  2. Materials and the negative hightemp media are combined sufficiently to complete heat and mass transfer process
  3. Result of the drum wind angle and induced air, feed materials move slowly, and discharged from the spiral after drying, exhaust gas handled by the dust precipitator, venting to the atmosphere.

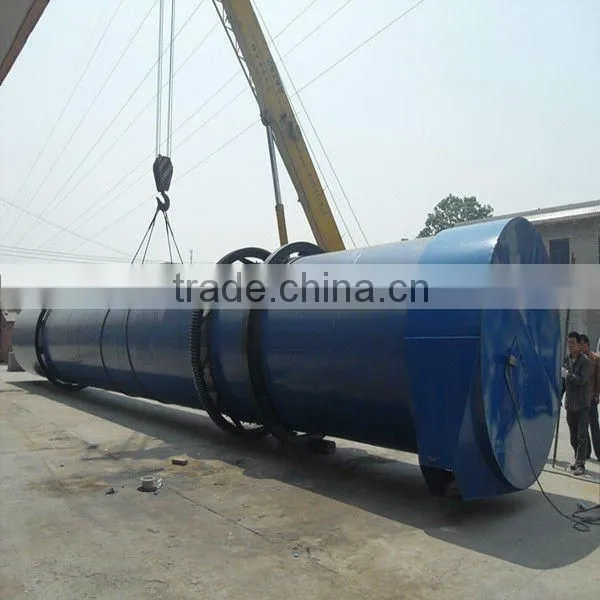

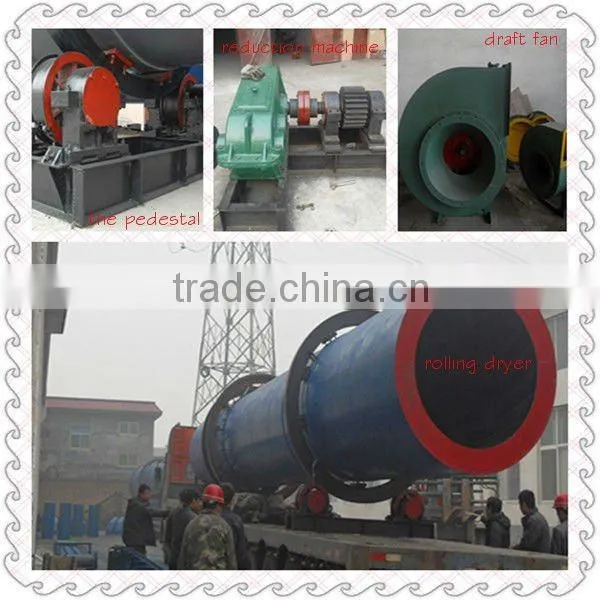

 Low noise 2.2m*18m chicken manure rotary drier for compound fertilizer





Low noise 2.2m*18m chicken manure rotary drier for compound fertilizer





Descriptions of the chicken manure rotary drier:



  1. Chicken manure rotary drier is a low-fuel- consumption and high efficiency of drying drying machine .
  2. Can be used to dry the material with a moisture content below 85% to a final moisture content below 13%.
  3. Applicable in animal farming, food brewing, sugar and pharmaceutical industries dealing with high humidity waste, as well as a variety of chemical raw materials, such as chicken manure, wine slot, furnace slag, fructose slag, slag vinegar sauce, sugar beet residue, animals slaughtered contents, coal slime, bentonite, and more.
  4. For resource development and good environmental protection drying machine.
  5. The drying machine uses downstream drying process, especially suitable for fast drying the humidity materials which need to preserve nutrition, for example, the drying of fresh chicken manure can achieve the purposes of drying, sterilization, deodorant and preservation of nutritional.
  6. Equipped with highspeed rotating drum of crushing devices, which increases the contact area between material and drying medium, the internal unique drying machine design, makes materials difficult to adhere to the drum wall panels and parade.
  7. The complete machine has the effects of heat preservation, good sealing performance, and the fact that the thermal efficiency considerably higher than the general drum drying machine.
  8. The drying machine structure is compact, easy to install and debug, and using small floor area.
  9. Drum and crushing device use stepless speed regulating devices, which can adapt to the different requirements of the drying materials.
  10. The drying machine can combine the use of different fuels (such as coal, heavy oil, natural gas, and more)

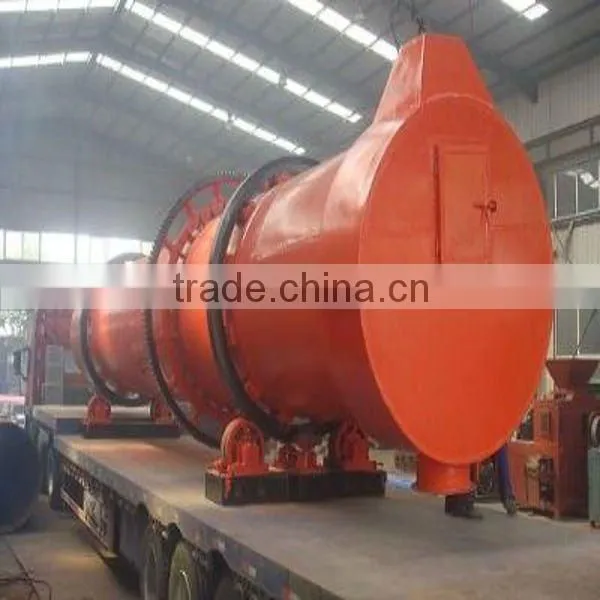

Low noise 2.2m*18m chicken manure rotary drier for compound fertilizer





Advantages of the chicken manure rotary drier:



  • High degree of mechanization, large production capacity, and continuous option
  • Simple and excellent structure,material running smoothly through the cylinder, operating convenience
  • Less mechanical failure, low maintain charge, and low power consumption
  • Uniformity of drying product is good
  • Drying production line using a special scattered installations to ensure the dryer machine 's drying effect
  • Use for innovative and unique sealing device, and sophisticated keep-warm system
  • Reduce the coal consumption of the system effectively
  • Whole system holds a good performance of sealing
  • With complete dust removal equipment
  • No dust spilling
  • Has a good operating environment
  • Whole drying system uses electric centralized control, autocontrol of temperature for hot air, high automation and convenient operation.

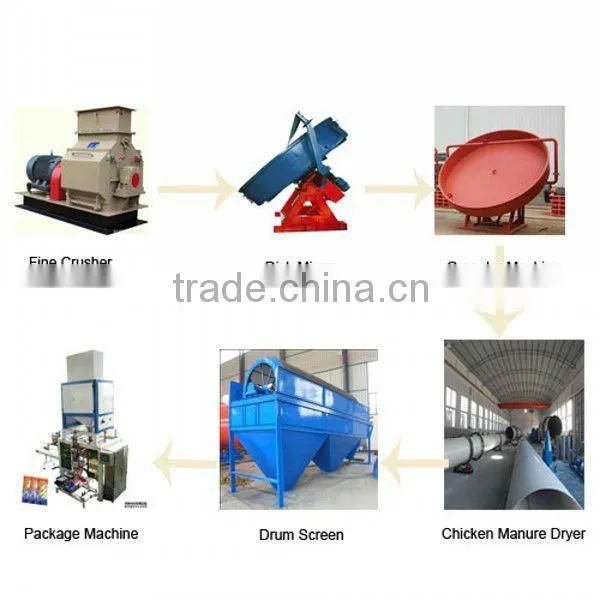

  • Can join in crushing, mixing, granulating, packing, and other followup steps after drying to produce the finished product of bean dregs particle feed.





Technical specification of the chicken manure rotary drier:







Model

diameter

(mm)

Drum length

(m)

Main reducer



Speed

(r/min)

Production capacity

(t/h)

Power

(kw)

Weigh(t)

Volume(m3)

 Model

Ratio









Φ1.0X10

Φ1000

10

JZQ450-16-11



6.73

1-3.8

5.5

7.5

7.85

Φ1.2X12

Φ1200

12

ZL50-16-1



5.8

1.8-5.5

11

13.8

13.31

Φ1.5X12

Φ1500

12

JZQ500-111-2F

16.46

4.8

4-9

15

22.3

21.2

Φ1.5X 15

Φ1500

15

ZQ50-1611-2

16.46

4.8

4-10

18.5

28.8

26.5

Φ1.8X14

Φ1800

14

JZQ650-111

18.84

3.2

6-12

30

39.8

48.22

Φ2.2X16

Φ2200

16

ZJQ750-111

31.5

3

10-23

37

51

60.1

Φ2.2X18

Φ2200

18

JZQ750-111

31.5

3

10-25

37

53.3

70.43

Φ2.4X20

Φ2400

20

ZL85-13-1

27.16

2.83

20-40

45

 78.4

90.43

Φ2.8X24

Φ2800

24

ZL100-16-1

31.5

2.59

20-45

55

 97

147.8

Φ3.0X20

Φ3000

20

ZL100-16-1

41.54

2.6

25-48

55

 102

141.3

Φ3.2X25

Φ3200

25

ZLH115

41.54

2.1

30-55

110

 148

201







 Our products have passed the CE certification:



Low noise 2.2m*18m chicken manure rotary drier for compound fertilizer



Our products have been exported to Canada, Italy, France,Vietnam and so on.







Low noise 2.2m*18m chicken manure rotary drier for compound fertilizer



Low noise 2.2m*18m chicken manure rotary drier for compound fertilizer





Low noise 2.2m*18m chicken manure rotary drier for compound fertilizer
