Descriptions of Fertilizer Production Equipment:
1. Raw Material for Fertilizer Production Equipment:
Chicken manure, cow manure, horse manure, and any other animal manure, as well as the municipal sludge and so on.

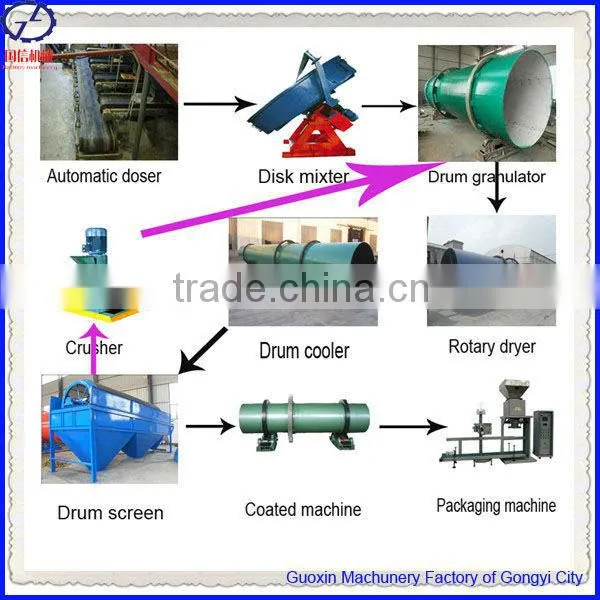

2. Fertilizer Production Equipment:
Vertical Crusher, Disc Mixer, Drum Granulator, Rotary Dryer, Drum Cooler, Coated Machine and Packing Machine etc,.

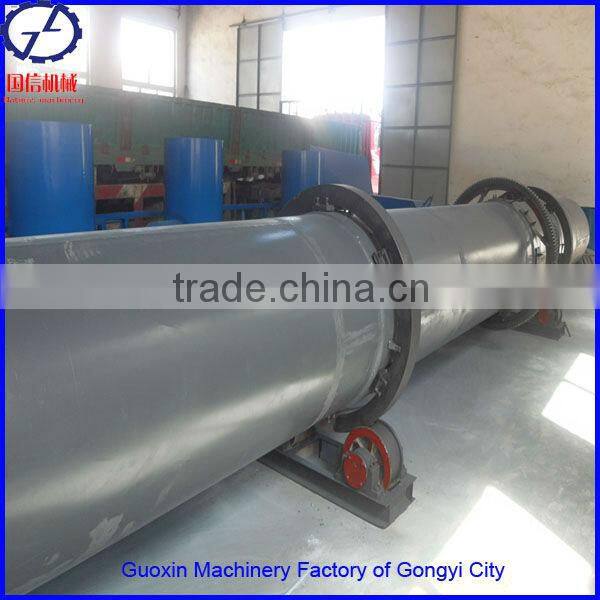

Pictures for Fertilizer Production Equipment:

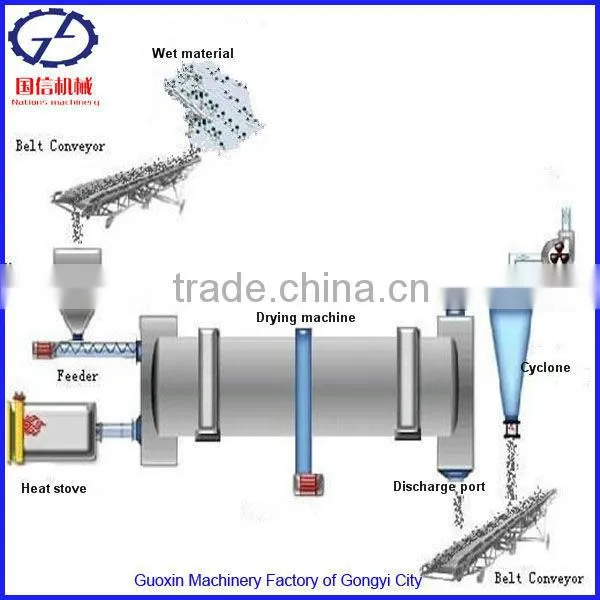

Work principles of Rotary Dryer in Fertilizer Production Equipment:
- Conveyed from the feed screw directly into the drying machine drum, raised by the drum wall panels repeatedly, and scattered by the crushing blow dispersion devices
- Materials and the negative high-temp media are combined sufficiently to complete heat and mass transfer process
- Result of the drum wind angle and induced air, feed materials move slowly, and discharged from the spiral after drying, exhaust gas handled by the dust precipitator, venting to the atmospher
Technicals of Rotary Dryer in Fertilizer Production Equipment:
|
Model |
diameter (mm) |
Drum length (m) |
Main reducer
|
Speed (r/min) |
Production capacity (t/h) |
Power (kw) |
Weigh(t) |
Volume(m3) |
|
Model |
Ratio
|
|
|
|
|||||
Φ1.0X10 |
Φ1000 |
10 |
JZQ450-16-11 |
|
6.73 |
1-3.8 |
5.5 |
7.5 |
7.85 |
Φ1.2X12 |
Φ1200 |
12 |
ZL50-16-1 |
|
5.8 |
1.8-5.5 |
11 |
13.8 |
13.31 |
Φ1.5X12 |
Φ1500 |
12 |
JZQ500-111-2F |
16.46 |
4.8 |
4-9 |
15 |
22.3 |
21.2 |
Φ1.5X 15 |
Φ1500 |
15 |
ZQ50-1611-2 |
16.46 |
4.8 |
4-10 |
18.5 |
28.8 |
26.5 |
Φ1.8X14 |
Φ1800 |
14 |
JZQ650-111 |
18.84 |
3.2 |
6-12 |
30 |
39.8 |
48.22 |
Φ2.2X16 |
Φ2200 |
16 |
ZJQ750-111 |
31.5 |
3 |
10-23 |
37 |
51 |
60.1 |
Φ2.2X18 |
Φ2200 |
18 |
JZQ750-111 |
31.5 |
3 |
10-25 |
37 |
53.3 |
70.43 |
Φ2.4X20 |
Φ2400 |
20 |
ZL85-13-1 |
27.16 |
2.83 |
20-40 |
45 |
78.4 |
90.43 |
Φ2.8X24 |
Φ2800 |
24 |
ZL100-16-1 |
31.5 |
2.59 |
20-45 |
55 |
97 |
147.8 |
Φ3.0X20 |
Φ3000 |
20 |
ZL100-16-1 |
41.54 |
2.6 |
25-48 |
55 |
102 |
141.3 |
Φ3.2X25 |
Φ3200 |
25 |
ZLH115 |
41.54 |
2.1 |
30-55 |
110 |
148 |
201 |
Features of Rotary Dryer in Fertilizer Production Equipment:
- Rotary dryer is a low-fuel-consumption and high efficiency of drying drying machine
- Can be used to dry the material with a moisture content below 85% to a final moisture content below 13%
- Applicable in animal farming, food brewing, sugar and pharmaceutical industries dealing with high humidity waste, as well as a variety of chemical raw materials, such as chicken manure, wine slot, furnace slag, fructose slag, slag vinegar sauce, sugar beet residue, animals slaughtered contents, coal slime, bentonite, and more
- For resource development and good environmental protection drying machine
- The drying machine uses downstream drying process, especially suitable for fast drying the humidity materials which need to preserve nutrition, for example, the drying of fresh chicken manure can achieve the purposes of drying, sterilization, deodorant and preservation of nutritional
- Equipped with highspeed rotating drum of crushing devices, which increases the contact area between material and drying medium, the internal unique drying machine design, makes materials difficult to adhere to the drum wall panels and parade
- The complete machine has the effects of heat preservation, good sealing performance, and the fact that the thermal efficiency considerably higher than the general drum drying machine
- The drying machine structure is compact, easy to install and debug, and using small floor area
- Drum and crushing device use stepless speed regulating devices, which can adapt to the different requirements of the drying materials
- The drying machine can combine the use of different fuels (such as coal, heavy oil, natural gas, and more)
