Best Selling Organic Fertilizer Popular in Korea
US$ 5,000 - 90,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drying Equipment
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Tianjin/Ningbo/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Selling Fertilizer Granulation EquipmentUS$ 4,000 - 68,000MOQ: 1 Set -
Popular and Professional Fertilizer Granulation Equipment for SaleUS$ 4,000 - 68,000MOQ: 1 Set
-
Fertilizer Granulation Equipment for Sale Made in GongyiUS$ 4,000 - 68,000MOQ: 1 Set
-
Fertilizer Granulation Equipment for Sale in High QualityUS$ 4,000 - 68,000MOQ: 1 Set
-
High Profitable Production Line for Npk Compound Fertilizer on Hot Selling Quality ChoiceUS$ 4,000 - 68,000MOQ: 1 Set
Condition
New
Type
Rotary Drying Equipment
Place of Origin
Henan, China
Brand Name
Guoxin
Model Number
various
Voltage
380v
Power(W)
5.5-75kw
Weight
7.5-110t
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

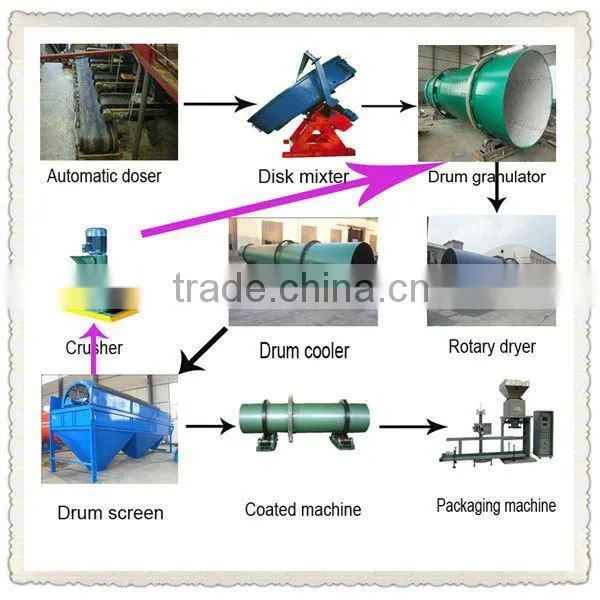

A. The machines in the process of making organic fertilizer:
- Automatic doser
- Disk mixter
- Drum granulator
- Rotary dryer
- Drum cooler

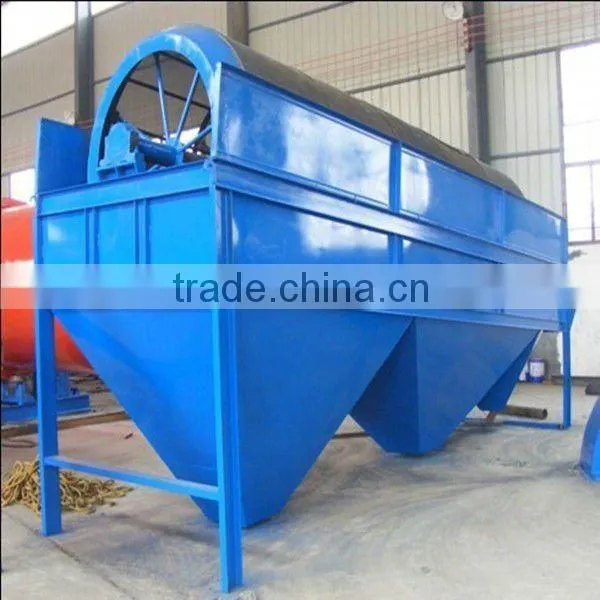

- Drum screen
- Coated machine
- Packaging machine
- Crusher

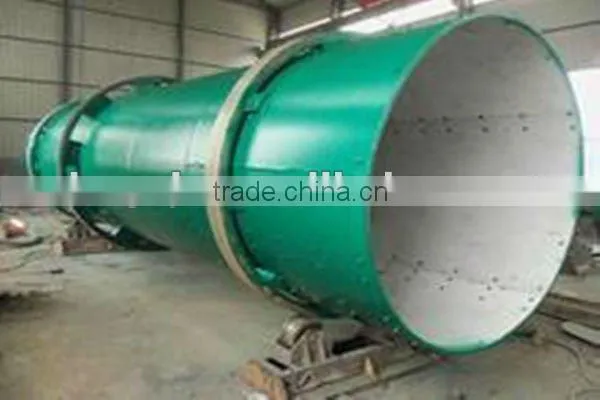

B. Descriptions of chicken manure rotary dryer:
- Can be used to dry the material with a moisture content below 85% to a final moisture content below 13%
- Applicable in animal farming, food brewing, sugar and pharmaceutical industries dealing with high humidity waste, as well as a variety of chemical raw materials, such as chicken manure, wine slot, furnace slag, fructose slag, slag vinegar sauce, sugar beet residue, animals slaughtered contents, coal slime, bentonite, and more
- For resource development and good environmental protection drying machine
- The drying machine uses downstream drying process, especially suitable for fast drying the humidity materials which need to preserve nutrition, for example, the drying of fresh chicken manure can achieve the purposes of drying, sterilization, deodorant and preservation of nutritional
- Equipped with highspeed rotating drum of crushing devices, which increases the contact area between material and drying medium, the internal unique drying machine design, makes materials difficult to adhere to the drum wall panels and parade
- The complete machine has the effects of heat preservation, good sealing performance, and the fact that the thermal efficiency considerably higher than the general drum drying machine
- The drying machine structure is compact, easy to install and debug, and using small floor area
- Drum and crushing device use stepless speed regulating devices, which can adapt to the different requirements of the drying materials
- The drying machine can combine the use of different fuels (such as coal, heavy oil, natural gas, and more)
C. Work principles of chicken manure rotary dryer:
- Conveyed from the feed screw directly into the drying machine drum, raised by the drum wall panels repeatedly, and scattered by the crushing blow dispersion devices
- Materials and the negative high-temp media are combined sufficiently to complete heat and mass transfer process
- Result of the drum wind angle and induced air, feed materials move slowly, and discharged from the spiral after drying, exhaust gas handled by the dust precipitator, venting to the atmosphere
D. Technical Specifications of chicken manure rotary dryer:
|
Model |
diameter (mm) |
Drum length (m) |
Main reducer
|
Speed (r/min) |
Production capacity (t/h) |
Power (kw) |
Weigh(t) |
Volume(m3) |
|
Model |
Ratio
|
|
|
|
|||||
Φ1.0X10 |
Φ1000 |
10 |
JZQ450-16-11 |
|
6.73 |
1-3.8 |
5.5 |
7.5 |
7.85 |
Φ1.2X12 |
Φ1200 |
12 |
ZL50-16-1 |
|
5.8 |
1.8-5.5 |
11 |
13.8 |
13.31 |
Φ1.5X12 |
Φ1500 |
12 |
JZQ500-111-2F |
16.46 |
4.8 |
4-9 |
15 |
22.3 |
21.2 |
Φ1.5X 15 |
Φ1500 |
15 |
ZQ50-1611-2 |
16.46 |
4.8 |
4-10 |
18.5 |
28.8 |
26.5 |
Φ1.8X14 |
Φ1800 |
14 |
JZQ650-111 |
18.84 |
3.2 |
6-12 |
30 |
39.8 |
48.22 |
Φ2.2X16 |
Φ2200 |
16 |
ZJQ750-111 |
31.5 |
3 |
10-23 |
37 |
51 |
60.1 |
Φ2.2X18 |
Φ2200 |
18 |
JZQ750-111 |
31.5 |
3 |
10-25 |
37 |
53.3 |
70.43 |
Φ2.4X20 |
Φ2400 |
20 |
ZL85-13-1 |
27.16 |
2.83 |
20-40 |
45 |
78.4 |
90.43 |
Φ2.8X24 |
Φ2800 |
24 |
ZL100-16-1 |
31.5 |
2.59 |
20-45 |
55 |
97 |
147.8 |
Φ3.0X20 |
Φ3000 |
20 |
ZL100-16-1 |
41.54 |
2.6 |
25-48 |
55 |
102 |
141.3 |
Φ3.2X25 |
Φ3200 |
25 |
ZLH115 |
41.54 |
2.1 |
30-55 |
110 |
148 |
201 |
E. The machines for compound fertilizer:
