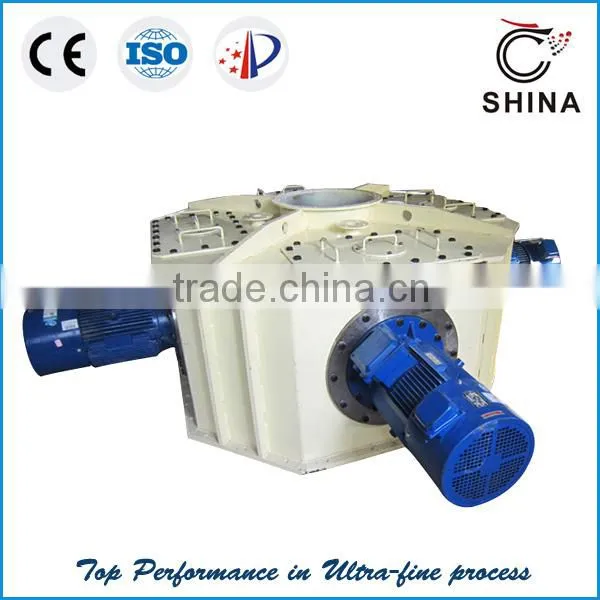

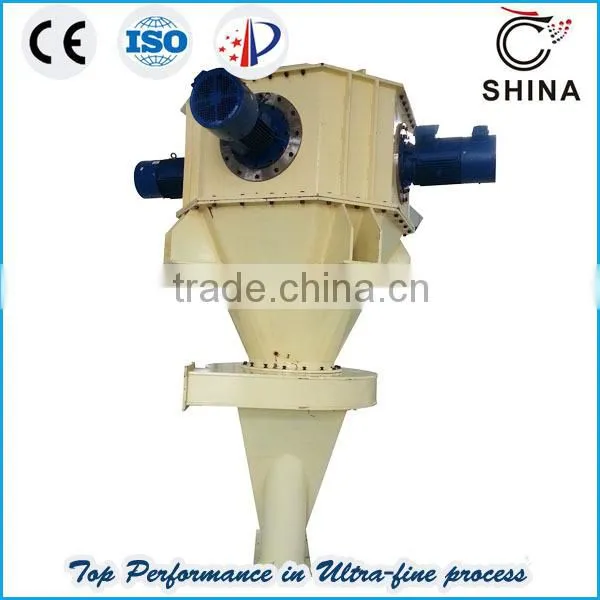

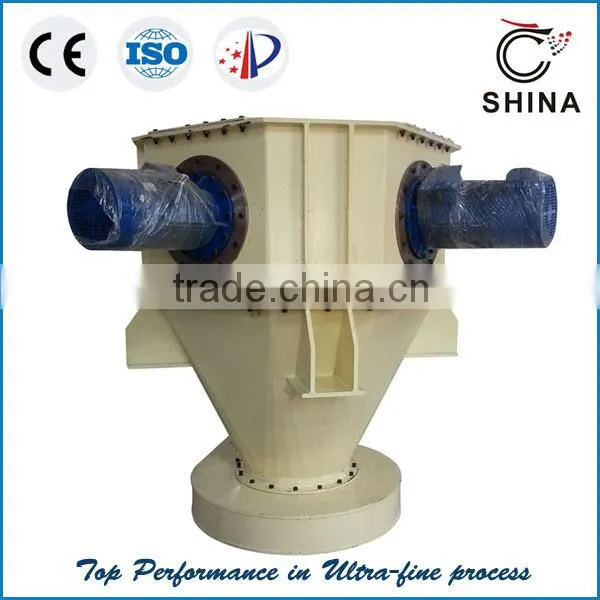

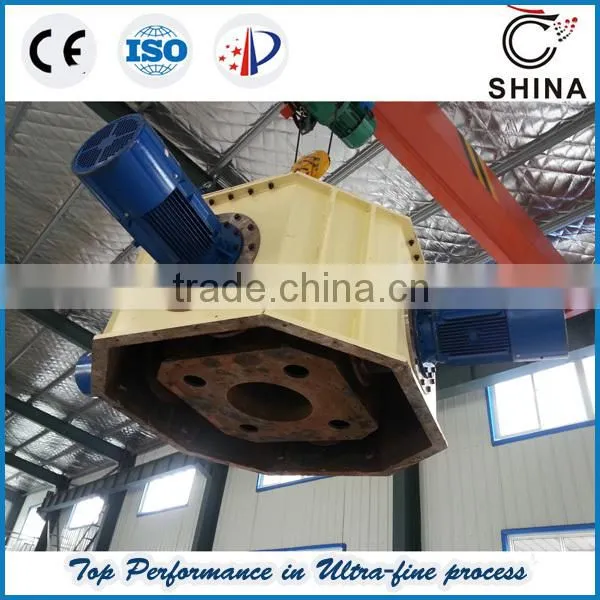

Help CenterIMC400/4 Multi-Motor Air Classifier
Related Products
-
High Capacity Air Classifier With CE CerficateUS$ 2,000 - 50,000MOQ: 1 Set -
Air Powder Classifier Air SeparatorUS$ 8,000 - 50,000MOQ: 1 Set
-
Fine Powder Air Classifier / Air SeparatorUS$ 8,000 - 50,000MOQ: 1 Set
-
Itc-600 Air SeparatorUS$ 2,000 - 80,000MOQ: 1 Set
-
ITC Series Air ClassifierUS$ 3,000 - 60,000MOQ: 1 Set
Process:
Air classifiers series IMC has been developed especially for ultra fine cut points. With the IMC series we extended our program of the ITC—series. The main point of its development was to achieve a high fineness of the end product. A good sharpness, high efficiency and low specific energy consumption with highest fines output were the guideline for this target. We could achieve these criteria by optimizing the dynamic of air flow, the material resistance and the multi-wheel concept. With this series we can offer an air classifier to meet even the most exciting product requirements. The classifying wheel of the series IMC is especially developed for highest strength during production. The wheel is placed in a horizontal position. The rotor and the drive are designed as a complete module. Also a wear protected wheel can be supplied.
Features:
- Direct driven rotors
- High speed drive system
- Adjustable of cut point by variable rotor speed via frequency converter
- Fine classification with high performance by special wheel design
- Feed from bottom with main air stream for high feed rates
- Best sharpness by most effective coarse classifying zone
- Construction material can be mild steel, stainless steel or wear protected
- The solid construction and the selected materials of construction give a long life time with low maintenance costs
Technical Data:
Technical Data for Air Classifier IMC Series with Multi Wheels/Rotors:
Note: 1. Capacity depends on material properties and final product fineness
2. Product Fineness is adjustable according to different technical data
1.Nonmetal ores:
Coarse whiting, light calcium, calcium oxide, kaolin, barite, mica, quartz, talc, wollastonite, bentonite, potassium feldspar, andalusite, brucite, montmorillonite,etc
2.Chemical materials:
alumina, aluminum hydroxide, magnesium oxide, magnesium hydroxide, zinc oxide, precipitated barium sulfate, flame retardants, fiber, etc
3.New materials:
functional ceramic material, high purity silicon materials, fluorescent powder, glass beads reflective material, electric light powder, etc...
4.Pharmaceutical and food:
traditional Chinese medicine (TCM) : angelica, green tea, and west shawl, salvia miltiorrhiza, ganoderma lucidum spore
5.Pesticides:
herbicides, fungicides, pesticides and wettability powder, mildew antibacterial agent, pyrazole insect flies, organism amidine, carbendazim, clotrimazole, probenazole, etc
6.Battery material:
cobalt acid lithium, manganese acid lithium, lithium iron phosphate, nickel and cobalt acid lithium cobalt, nickel manganese acid lithium
7.Super hard material:
silicon carbide (black, green), boron carbide, diamond, white corundum, zircon sand, zirconia, rare earth polishing materials, tungsten carbide,
8.Metal powder:
aluminum powder, copper powder, zinc powder, iron powder, tin powder, cobalt powder, nickel powder, tantalum, niobium powder,
9.Ceramic building materials:
Ultrafine cement, water, slag, fly ash, bituminous, gypsum, slag, quick lime, silica fume, glass powder, etc
10.Other materials:
fluorescent pigments, iron oxide red, chrome oxide green, phthalocyanine cobalt blue, zinc oxide, lithopone, benzidine orange, toluidine red, vermilion, mica titanium pearl pigment, dyes, fluorescent whitening agent, wax coal, clay, electronic waste, fir skin, moss, garbage, soap, wax, etc
Above information are for referrence, for more information, please do feel free to contact us at once!
Packaging Solutions：
1. Nude Packing 2. Wodden Box Packing 3. Wooden Pallet
Delivery Photos (Parts)：
Outside and Inside of Our Factory:
Our Kinds of High Precision Machining Equipments:
Name: Air Classifier IMC 200 Production Line
Name of feed material: Rare Earth Polishing Powder
Place: Taian city, Shandong Province, China
Installation Time: June. 2009
Name: Air Classifier IMC315/4
Name of feed material: CaCO3
Place: Anhui Province, China
Installation Time: Dec. 2010
Name: Air Classifier ATP315
Name of feed material: KaoLin
Place: Malaysia
Installation Time: Oct. 2014
Name: Air Classifier ITC450
Name of feed material: Silica
Place: Ukraine
Installation Time: Dec. 2015
Name: Air Classifier IMC260
Name of feed material: Chemical etc
Place: Guangxi , China
Installation Time: Jan.. 2013
Name: Air Classifier ATP400
Name of feed material: Silica
Place: Korea
Installation Time: March. 2015
