QT8-15 Block Machine With Block Production Line(CE&UL)

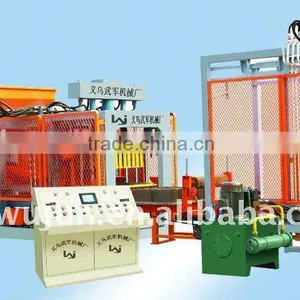

QT8-15 Block Machine With Block Production Line(CE&UL) thumbnail-1

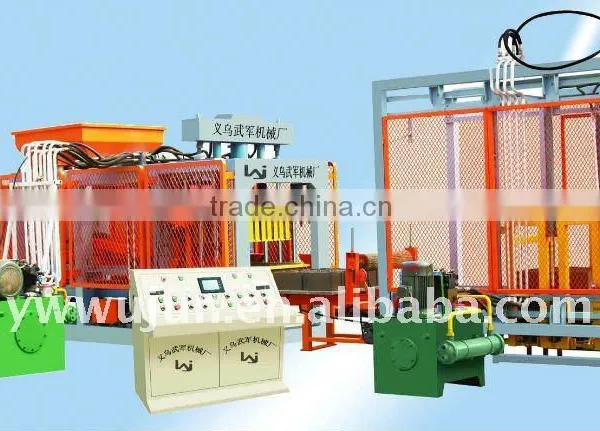

QT8-15 Block Machine With Block Production Line(CE&UL) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Hollow Block Making Machine
Brick Raw Material:
Concrete
Processing:
Brick Molding Machine
Contact Supplier Request Quote Chat Now
Yiwu Wujun Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Hollow Block Making Machine
Brick Raw Material Concrete
Processing Brick Molding Machine
Method Hydraulic Pressure
Automatic Yes
Capacity 8 block/mould, 15 s/mould
Place of Origin Zhejiang, China
Brand Name Wujun
Model Number QT8-15
Power 46.4KW

Specifications

qt8-15 block machine
1.CE and UL certificate
2.PLC system
3.Block production line

      QT8-15 Block Machine With Block Production Line(CE&UL)



Product Introduction:

QT8-15 Block  Machine is completely controlled by PLC system.By operating its computer interace.the random signal analysis,fault diagnosis and parameter setting-up of all kind of materials can be achieved easily.

For the electro-hydraulic proportional valve is used in its vibrating system.the material-feeding with low frequency and the shape-vibrating with high frequency have been achieved. At the same time installed the Board said devices on the vibration table. And its low 1-1.55mm than the vibration table. When the vibration box drop ,the Board said devices will stand the pallets so that will reduce the pressing of vibration box and increase the vibration force .To build a higher density of  block and also will contral the higher of the produces.within the error 1mm.

Its rake feeding system mounter with multirow of stirring forkscan quickly and evenly discharge the materials into the moulding box.

According to the produces,its will can changed the the moulds .all kinds of blocks.standard bricks,cellular bricks.grass planting titles ,decoration bricks . pavement bricks.ect.can be manufactured,with an annual production capacity of 70.000 cubic meters.



Basic Parameter:

PLC intelligent control. Man-machine interface, control  system equipped with complete logic control,production program, malfunctiondiagnosis
system and remote control function.  So it doesn’t need aprofessional person but only need a simple training to the operator.
Product scope:
It produces various bricks/blocks including color-face bricks(layered material feeding),through body tiles, dock linkage blocks, road curb bricks,
sod  bricks,hydraulic blocks hollow blocks,perforated bricks, and standard bricks etc.
Optional configuration:
1. Lift-slab Elevating Conveyor (block stacking machine):
According to the different type of bricks, the finished products will be moved from the discharge  transmitter and pilledup automatically 3  to 8
layers by the elevating conveyor, and carried to the maintaining place by the fork lifter truck.It could reduce labor and ground.
2. Colour face material feeder (layered material feeding)
Equipped with color face material feeding device, it could make various color face bricks ,through-body Environmental protection bricks, road curb
rocks, hydraulic blocks and sod bricks and so on.For QT6-15 Block Forming Machine, intelligence system of PLC is adopted to control,with
man-machine.interface and automatic diagnosis function. For the electro-hydraulic proportional valve is used in  its vibrating system, the material-
feeding with low frequency and the hape-vibrating with high frequency have been achieved. Its material distributing system mounted
with multirow of stirring forkscan quickly and evenly discharge the materials into the molding box. Only by changing its moulds and dies,all  kinds
of blocks, standard bricks, cellular bricks, grass planting titles, etc.can be manufactured, with an annual production capacity of 50,000 cubic meters
 of standard brick. So, it is one kind of ideal equipment for producing wall materials of new type.

Product quantity



240X115X53   39 P/M

240X115X90   18 P/M

390X190X190   8 P/M

Power

46.4KW

Cycle

15-18S

Overall Size

4900X2000X2580MM3

Vibration Force

100KN

Carriage Size

900X850X35mm

Vibrations frequency

45-75HZ

Rated Pressure

16MPA



Block styles:

QT8-15 Block Machine With Block Production Line(CE&UL)
