Full automatic Recycled Paper Cup with handle making machine
Contact person :Nina
whats app : 0086 15713831913
Skype number: thrive00162
QQ number: 2711263520

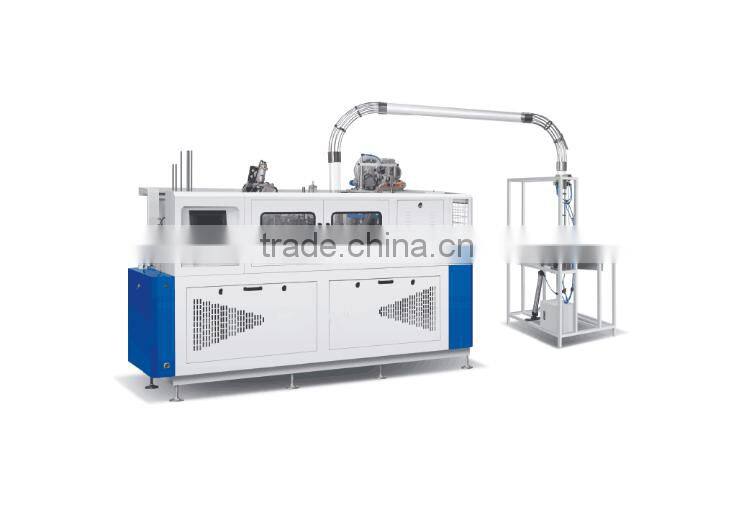

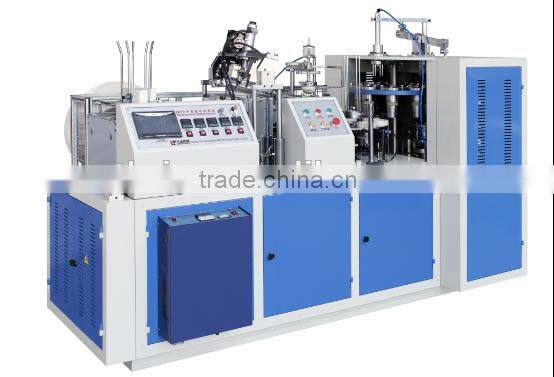

Brief introduction of paper cup with handle making machine
THZB-NB Paper Cup with handle machine is the automatic machine with multi-working station. It produces cups through the procedure of automatic paper cup wall feeding , paper handle feeding , handle stick , top cup lubrication , bottom punching , heating , knurling , curling and cup stack .

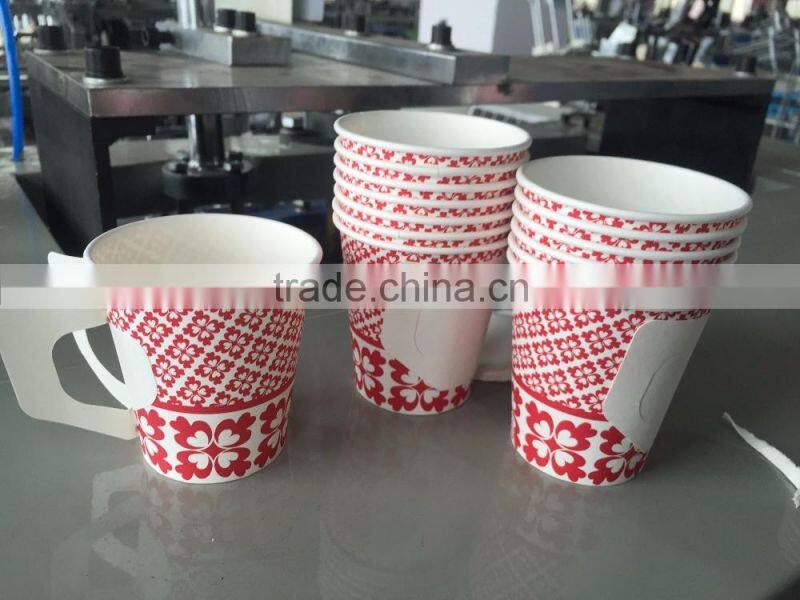

This machine not only can make the cups with handle , and also can make the cups without handle .This cup is for hot drinking , such as soft drinking , and coffee etc.
Technical parameters of paper cup with handle forming machine
| model | THZB -NB |
| power | 6 kw |
| paper request | 150-350g/m, (Single PE coated paper) |
| voltage | 220v/380v, 50hz, or customized |
| cup size | 6 oz, 8 oz, 9 oz, 10 oz , 11 oz , 12 oz |
| speed | 40-50 pcs/min |
| weight | 1800 kg |
| size | 3000*140081700 mm |
| air source request | 0.6MPA |
Some other types of paper cups making machine
Model |
THZB-12A |
Paper request |
150-350g/m2 (single PE paper) |
Voltage Supply |
220V50HZ/380V50HZ or customized |
Cup size |
1.5-12oz |
Speed |
45pcs/min |
Paper cup top diameter |
Min 38mm-max94mm |
Paper cup bottom diameter |
Min30mm-75mm |
Paper cup height |
Min30mm-111mm |
General power |
8kw |
Weight |
1500kg |
Measurement |
2800*1400*1700mm |
Model |
THZB-09A |
Paper request |
150-350g/m2 (single PE or double paper) |
Voltage Supply |
220V50HZ/380V50HZ or customized |
Cup size |
1.5-09oz |
Speed |
40-45pcs/min |
General power |
8kw |
Weight |
1300kg |
Measurement |
2300*1150*1600mm |
Model |
TH-H520 (AUTOMATIC high-SPEED PAPER CUP MACHINE) |
Paper request |
210-350g/m2 |
Voltage supply |
220V50HZ/380V50HZ or customized |
Cup size |
4-9oz |
Speed |
80-90pcs/min |
General power |
12.5kw |
Weight |
3200kg |
Measurement |
2600*1600*1700 |
Model |
TH-NZZ (AUTOMATIC MEDIUM-SPEED PAPER CUP NACHINE) |
Paper request |
150-350g/m2 (single or double PE paper) |
Voltage supply |
220V50HZ/380V50HZ or customized |
Cup size |
1.5-12oz |
Speed |
60-70pcs/min |
Paper cup top diameter |
Min 38mm-max94mm |
Paper cup bottom diameter |
Min30mm-75mm |
Paper cup height |
Min30mm-111mm |
General power |
9.5kw |
Weight |
2600kg |
Measurement |
3000*1500*1850mm |
Model |
THZB-16A |
Paper request |
150-350g/m2 (single or double PE paper) |
Voltage supply |
220V50HZ/380V50HZ or customized |
Cup size |
6-16oz |
Speed |
40pcs/min |
General power |
8.5kw |
Weight |
1800kg |
Measurement |
2800*1500*1850mm |
Introduction :
1,paper cup packing machine is designed for the following 12 ounce cup and the development
of a small machine.
2,Automatic paper cup packing machine is a multi station automatic machine.
3,ZB-12 type automatic paper cup packing machine can produce beverage cup, ice cream
cup or other food containers of paper cone type.
4,It has automatic paper feeding, in the sealed cylinder, the bottom of the cup lubrication, rushed
at the bottom paper, heating, the bottom roll flower, upper hemming, braids, unloading, stacking
finished products, such as continuous processes.

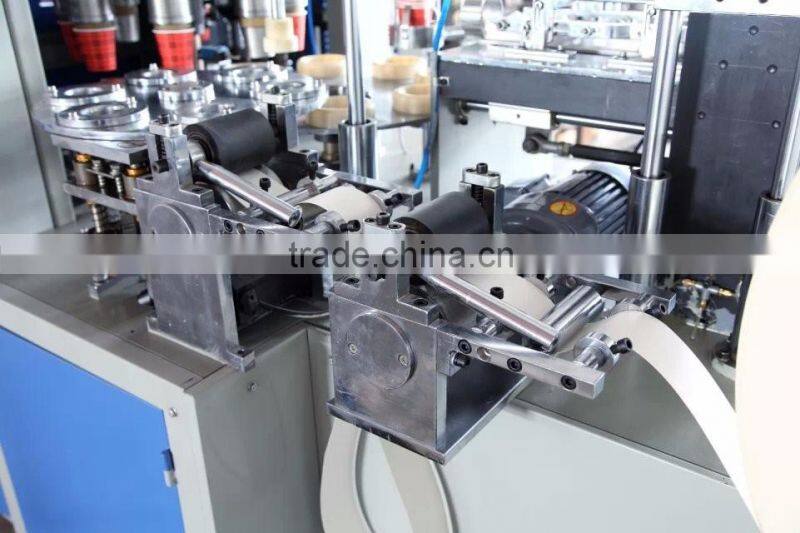

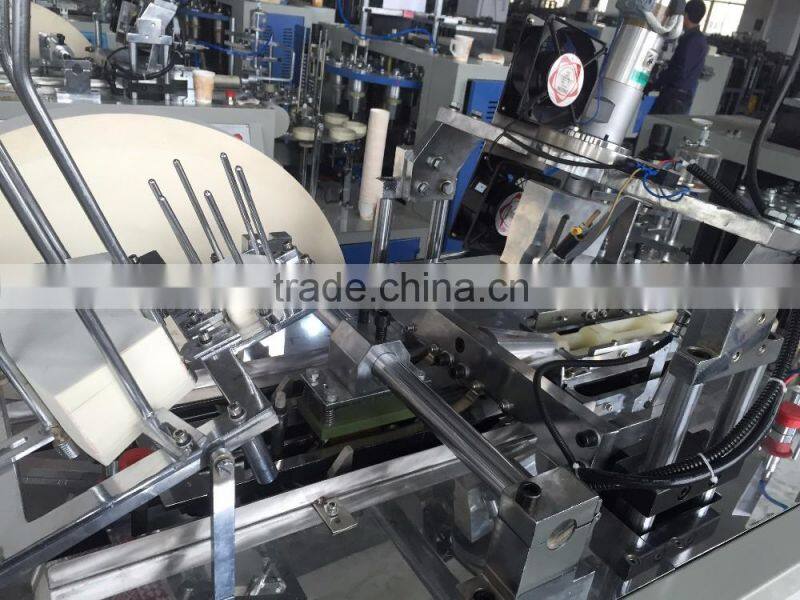

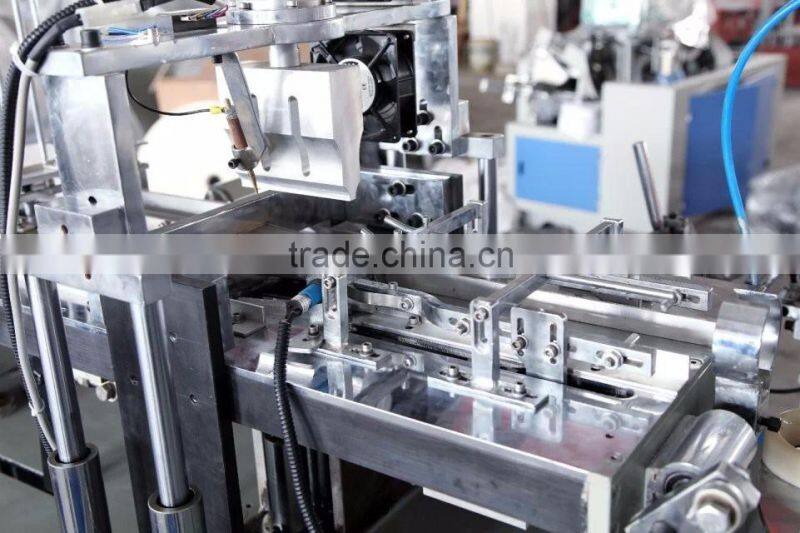

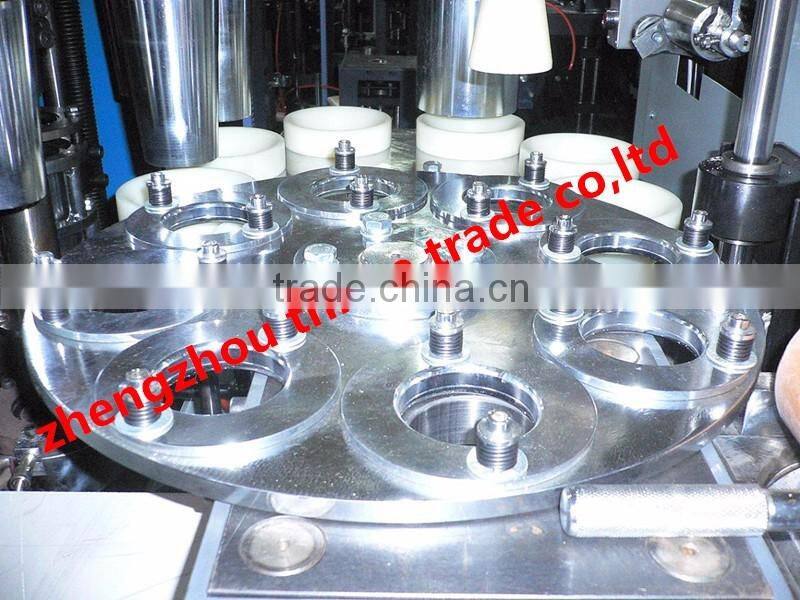

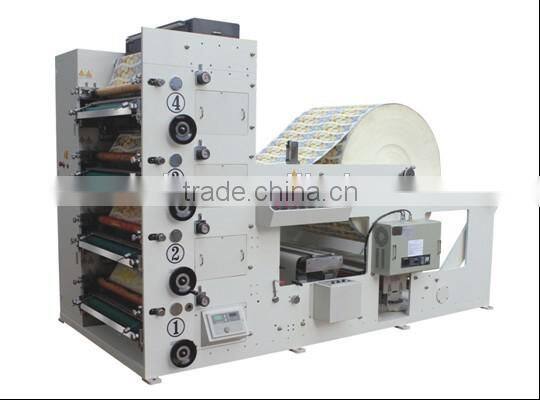

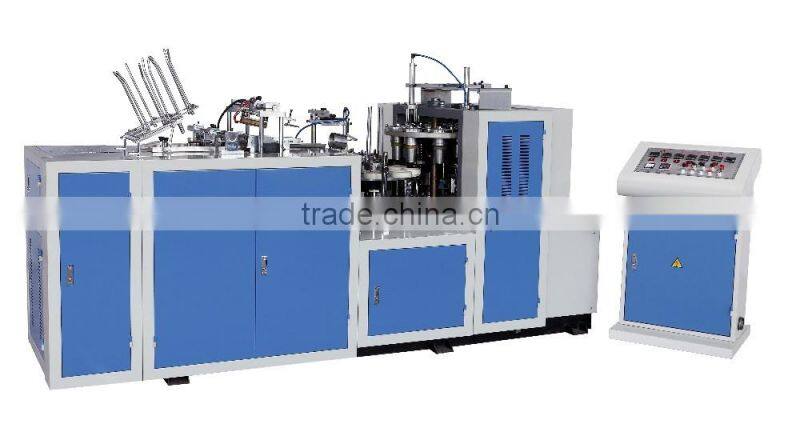

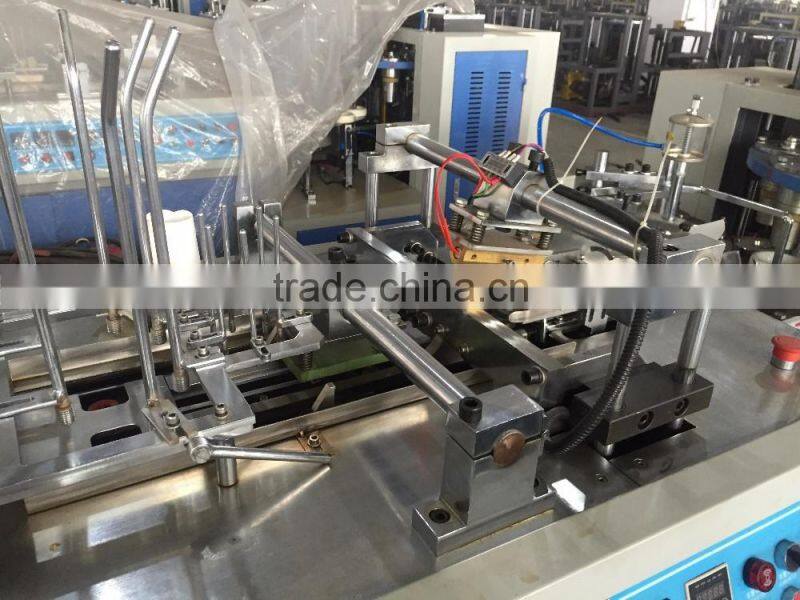

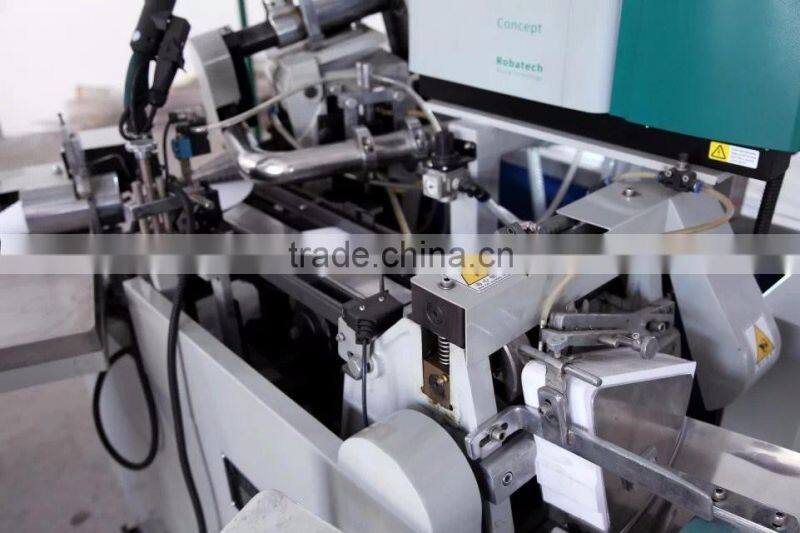

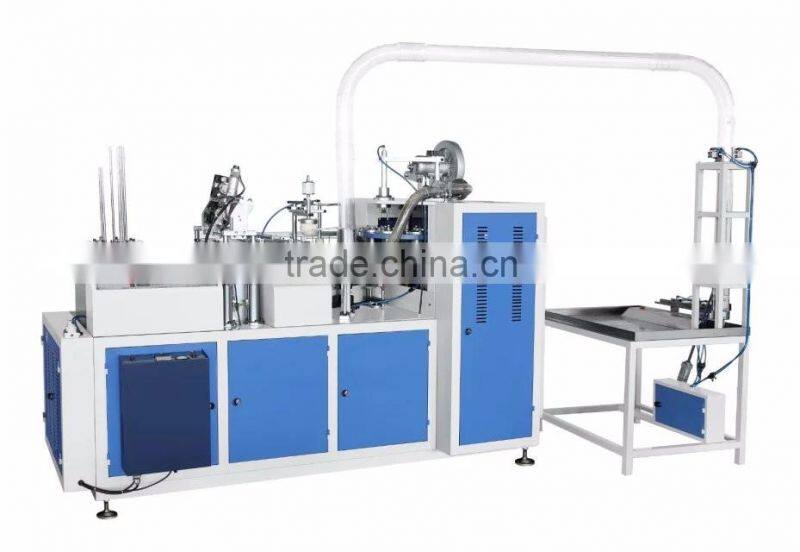

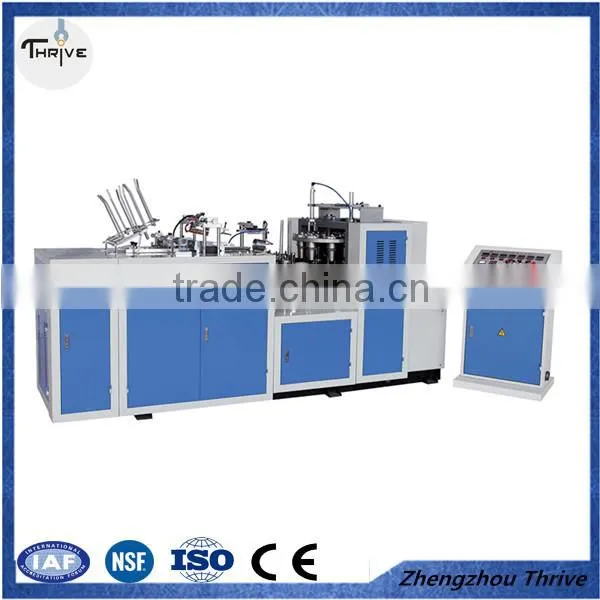

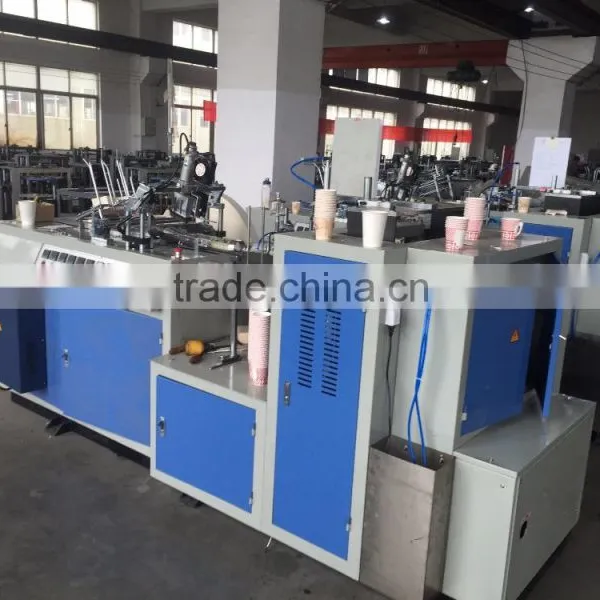

Pictures show of paper cup and plates making machine

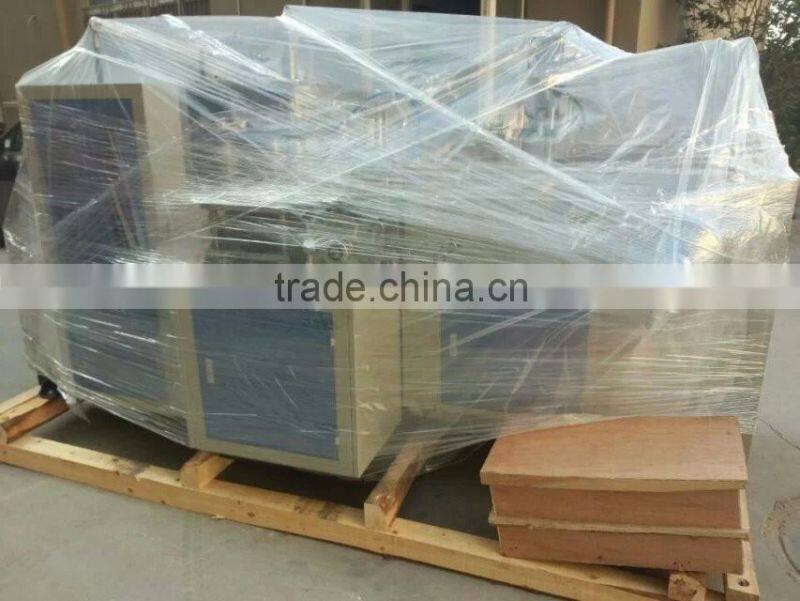

Package :
Our automatic drinking paper cup making machines are putted in strong wooden cases.
Delivery time :
We will send the automatic high efficiency paper cup machine within 3-15 working days after receiving the down payment.
Pre-sale service:
1,Recommend the most suitable machine for customers,especially according
customers demand
2,Strictly control easy production line and easy parts,to ensure machine quality.
3 every machine is tested before delivery,to ensure machine function well.
After-sale service:
1,one year warranty
2,lifelong free technical support and spare parts support
3,Help customers solve problem rapidly
Warranty:
1,Wearing parts can be free replacement within a year
2,The warranty does not include changing accessories
3,The company will not be responsible for the damage caused by the people.
