Instant paper noodle bowl making machine,
KFC fried chicken paper bucket forming machine
Basic data :
cup size: 2-12oz
Paper cup height: Min30mm-111mm
weight : 1500kg
raw material: One-side PE (polyethylene) film coated
Packing type: paper cup
general power: 5.5kw
measurement: 2800*1400*1700mm
product type : paper cup machine
processing type: paper cup machine
Speed: 45pcs/min
paper cup top diameter:Min 38mm-max94mm
Usage : packaging
paper cup bottom diameter: Min30mm-75mm
Model number: ZB-12(for single PE coated paper)
Brand name: Thrive
Voltage supply : 220V50HZ/380V50HZ or customized
product name : ZB-12 automatic paper cup making machine
Paper weight request : 150-350g/m2 (single pecoated paper)
Applicable objects: yogurt, fruit juice, beverage, milk tea,
fresh milk,carbonated drinks etc...
Introduction :
1,paper cup forming machine is designed for the following 12 ounce cup and the development of a small machine.
2,Automatic paper cup forming machine is a multi station automatic machine.
3,ZB-12 type automatic paper cup forming machine can produce beverage cup, ice cream cup or other food containers of paper cone type.
4,It has automatic paper feeding, in the sealed cylinder, the bottom of the cup lubrication, rushed at the bottom paper, heating, the bottom roll flower, upper hemming, braids, unloading, stacking finished products, such as continuous processes.

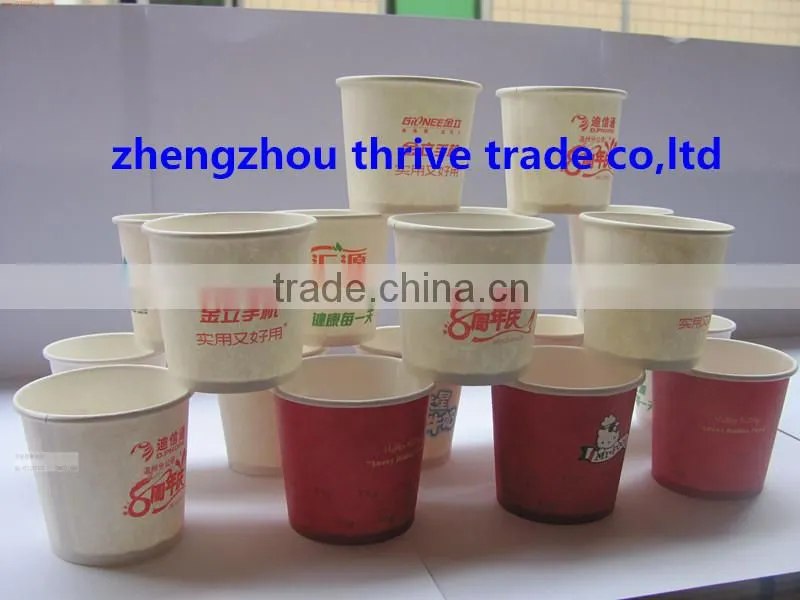

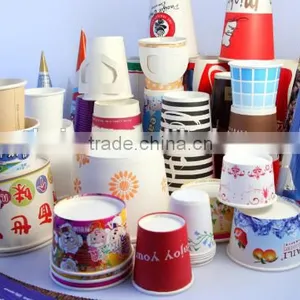

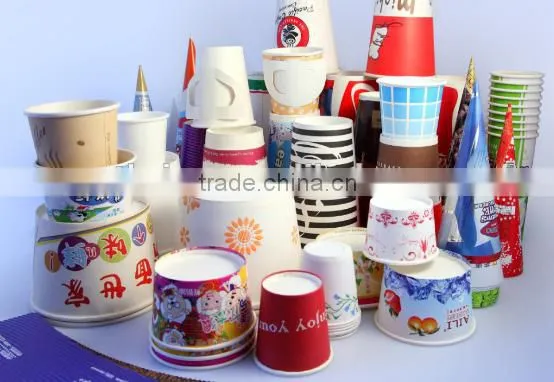

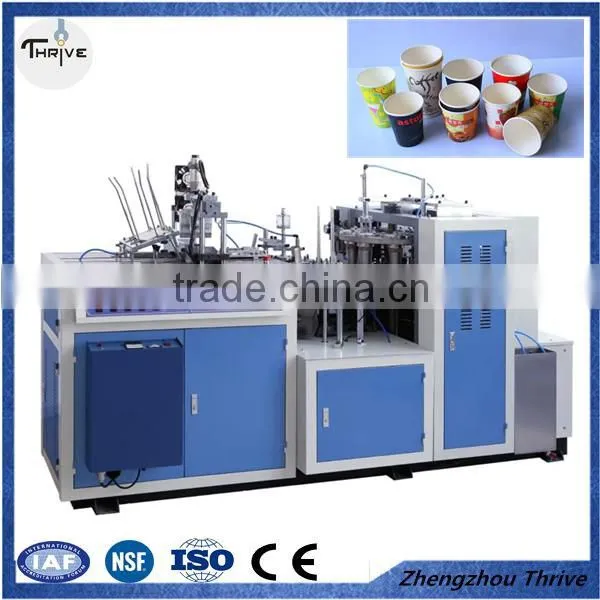

Pictures show of paper cup forming machine
Features of paper cup/bowl making machine
A):Parts of paper cup foming machine
Automatic paper cup forming machine with low price mainly by the connecting rod mechanism, chain drive, belt transmission mechanism, cam mechanism, an intermittent mechanism to complete the paper container production and processing work.
B):Advantages of paper cup forming machine
1,The automatic paper cup machine with low price is the production of paper cups to retain such as anti wet, preservation, temperature, visual, sterilization, antisepsis and so on paper product advantages.
2,The automatic making machine for producing paper cups is low cost, light weight, convenient transportation and convenient recycling.
3,Automatic high efficiency paper cup machine for production of paper material is very extensive, mass production can realize the cup container.
4,Automatic high efficiency forming machine for paper cups with low price can realize automatic operation, has a certain mechanical properties, composite processing, production of finished paper cups variety is a variety of diversity.
5,Based on the normal machine, through innovation and improvement, Overall stability and speed of production has been greatly improved
6,Using high-strength structural profiles, compact machine structure stable
Technical parameters :
ZB-12 Automatic paper cup machine(for single PE coated paper)
Paper weight request |
150-350g/m2(single pecoated paper) |
measurement |
2800*1400*1700mm |
Weight |
1500kg |
general power |
5.5kw |
paper cup height |
Min30mm-111mm |
paper cup bottom diameter |
Min30mm-75mm |
paper cup top diameter |
Min 38mm-max94mm |
Speed |
45pcs/min |
Voltage supply |
220V50HZ/380V50HZ or customized |
Cup size |
2-12oz |
model |
ZB-G16 full automatic high-speed paper cup machine |
General power |
12kw |
Cup size |
4-160z or customized |
Power supply |
220/380v 50 hz or customized |
speed |
70-80 pcs/min |
Weight |
2800kgs |
Air request |
0.8m2/min at 6kg/m2 |
Dimension |
2600*2000*1700 |
model |
ZB-12A (Double PE coated paper) |
General power |
5.5kw |
Paper request |
150-350g/m2 |
Power supply |
220/380v 50 hz or customized |
Cup size |
1.5-120z |
Speed |
50-60pcs/min |
Weight |
1300kgs |
Dimension |
2800*1400*1700mm |
If you are interested in the automatic paper cup making machine and want to get further information ,please feel free to contact me ,I will reply with you in time.
Contact person :Nina
Tel:0086-0371-56095598
Skype number: thrive003
QQ number: 514938354
Package :
Our automatic paper cup making machines are putted in strong wooden cases.
Delivery time :
We will send the automatic high efficiency paper cup making machine within 3-15 working days after receiving the down payment.
Pre-sale service:
1,Recommend the most suitable machine for customers,especially according
customers demand
2,Strictly control easy production line and easy parts,to ensure machine quality.
3 every machine is tested before delivery,to ensure machine function well.
After-sale service:
1,one year warranty
2,lifelong free technical support and spare parts support
3,Help customers solve problem rapidly
Warranty:
1,Wearing parts can be free replacement within a year
2,The warranty does not include changing accessories
3,The company will not be responsible for the damage caused by the people.
A) What is your advantages ?
1,Quality assurance both for our products and service for after-sales.
2,Favorable price
3,Great variety of products 4,Attractive design
5,Environment Friendly Technology
B) what’s your product range?
Tea cups, coffee cups ,ice cream cups ,popcorn cups, noodle bowl, KFC bowl etc.
C) What size can this machine make?
This machine can make paper cups from 2-12OZ.
D) What information should i let you know if i want to get a quotation?
--Quantity
--What’s the detailed size (top diameter,bottom diameter,and height)
--It is usage
E) Why choose you?
--Certificate: CE certificate
--Fast reply: Our team will reply you as soon as possible
--Customers all over the world
--After-sale service: We have a after sale department , service for your problems and dealing with spare parts
