Help Center300w Portable Wind Turbine Generator
Related Products
-
400w Wind Dynamo System 12v 24vUS$ 265 - 300MOQ: 1 Piece -
48v 96v Wind Mill System1000wUS$ 480 - 590MOQ: 1 Piece
-
300w Small Portable Wind TurbineUS$ 180 - 250MOQ: 1 Piece
-
Mini Portable Wind Turbine Generator 100wUS$ 160 - 200MOQ: 1 Piece
-
300w Horizontal Portable Wind MillUS$ 180 - 250MOQ: 1 Piece

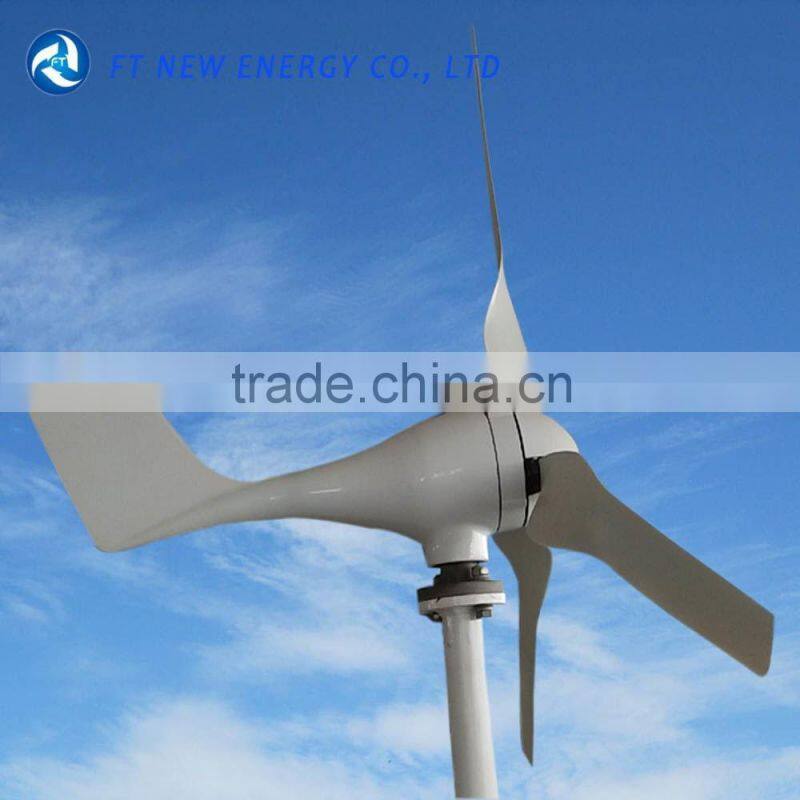

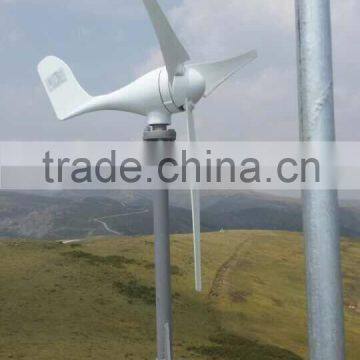

Real picture for 300w Portable wind turbine generator

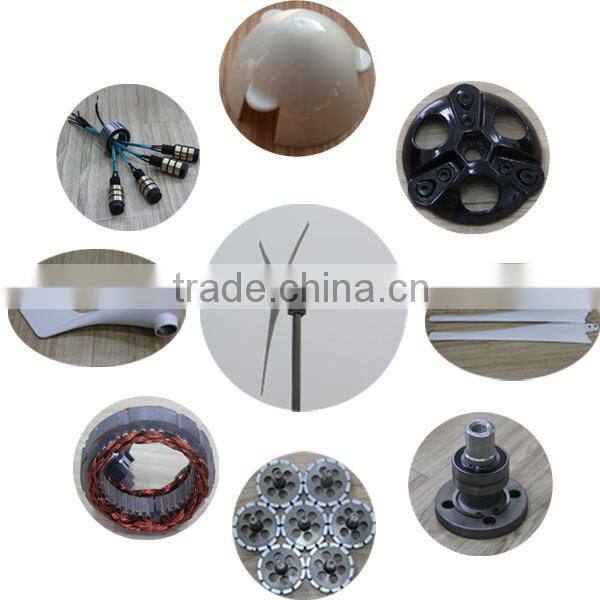

Detail components for 300w Portable wind turbine generator
Data for 300w Portable wind turbine generator
Model |
FT-300S |
Rated power |
300W |
Maximum power |
380W |
Rated voltage |
12/24V |
Start-up wind speed |
2.0m/s |
Rated wind speed |
11.5m/s |
Survival wind speed |
65m/s |
Top net weight |
9.0kg |
Wheel diameter |
1.35m |
Number of blades |
3/5 |
Blades material |
Nylon fiber |
Generator type |
Three phase permanent magnet AC synchronous generator |
Magnet material |
NdFeB |
Generator case |
Casting aluminum alloy |
Control system |
Electromagnet/wind wheel yaw |
Speed regulation |
Automatically adjust windward direction |
Working temperature |
-40°C - 80°C |
Design life |
20 y |
Certificates |
CE, ISO14001,ISO 9001, TUV |
300w Portable wind turbine generator features
1.Low start up speed, high wind energy utilization.
2.Easy installation, tube or flange connection optional.
3.Blades using new art of precision injection molding , matched with optimized
aerodynamic shape and structure,which enhance the wind energy utilization and
annual output.
4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger
wind and run more safely.
5.Patented permanent magnet ac generator with special stator,effectively reduce torque,
well match the wind wheel and generator, and ensure the performance of whole system.
6.Controller, inverter can be matched according to customers’ specific needs.

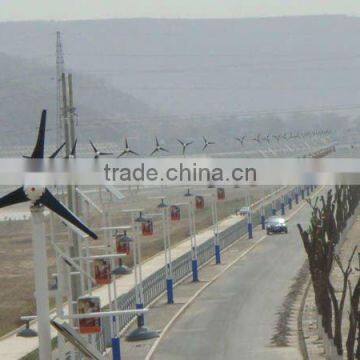

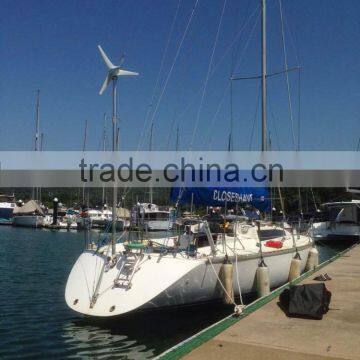

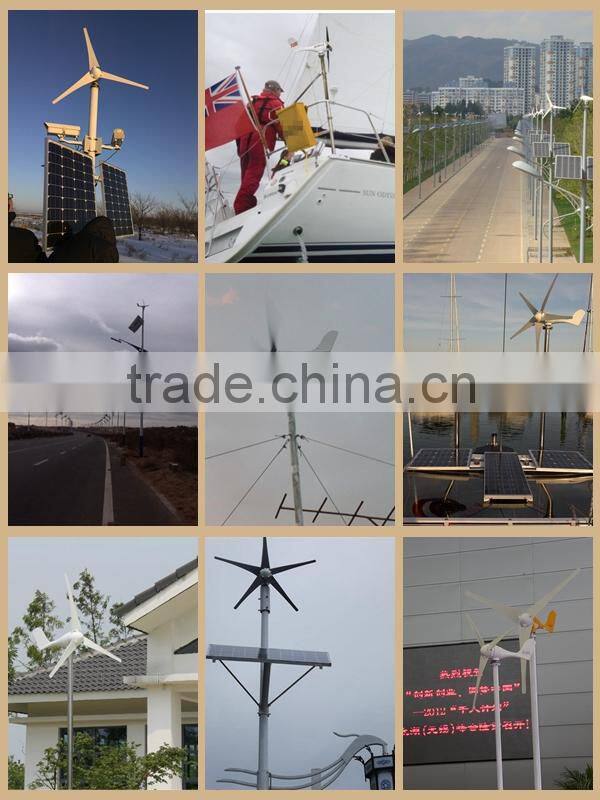

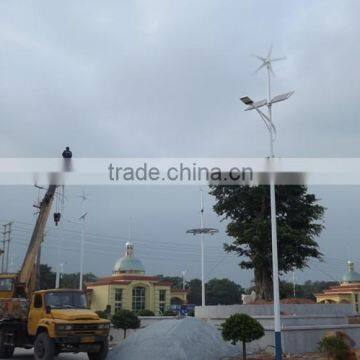

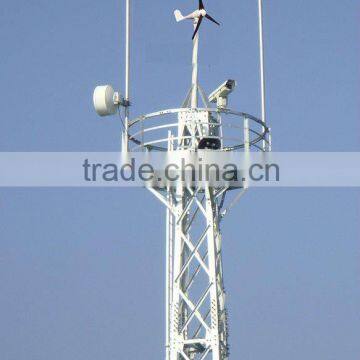

300w Portable wind turbine generator projects

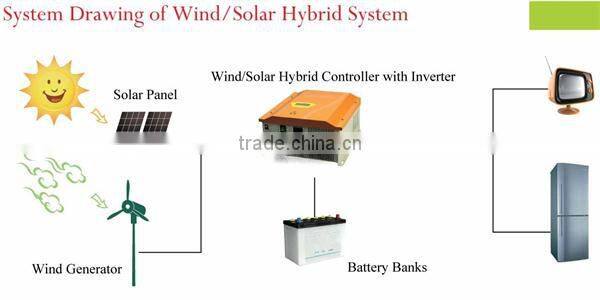

300w Portable wind turbine generator system connection diagram

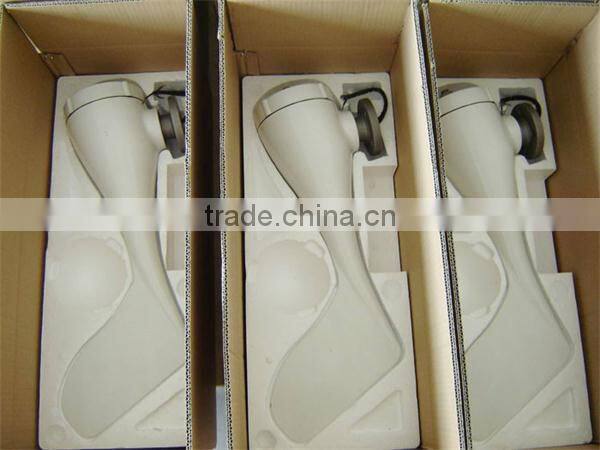

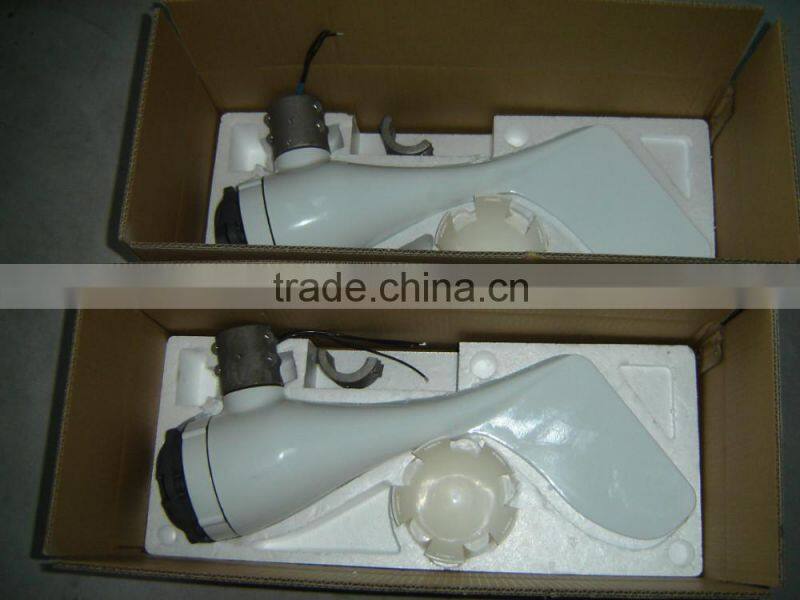

300w Portable wind turbine generator packaging
Factory show and certificates
FAQ
Some questions you may have for Portable wind turbine generator :
1. Q: Where is your factory?
A: Wuxi city, Jiangsu Province, about one hour drive from Shanghai.
2. Q: Is installation easy?
A: Yeah, it's very easy, every customer can do it by themselves. We supply you all the components and the installation manual.
3. Q: Is our wind enough for a wind generator?
A: Our wind generator can start running at low wind speed, 3m/s. So if your average annual wind speed is more than 5m/s, you can use it.
4. Q: Which model of wind generator should I choose?
A: If you are not sure to choose the model, please contact our sales with the following points:
1. What appliance do you want to run by the system? How many watts are they? How long do they work?
2. Your annual wind speed.
3. What kind of system do you want? On-grid or off grid?
5. Q: Can I only buy parts of the whole system?
A: Yes.
Any other questions for 300w Portable wind turbine generator ,please feel free to contact me.
