300w small portable wind turbine

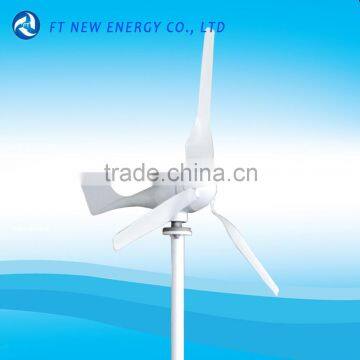

Picture for 300w small portable wind turbine:
Model |
FT-300S |
Rated power |
300W |
Maximum power |
380W |
Rated voltage |
12/24V |
Start-up wind speed |
2.0m/s |
Rated wind speed |
11.5m/s |
Survival wind speed |
65m/s |
Top net weight |
9.0kg |
Wheel diameter |
1.35m |
Number of blades |
3/5 |
Blades material |
Nylon fiber |
Generator type |
Three phase permanent magnet AC synchronous generator |
Magnet material |
NdFeB |
Generator case |
Casting aluminum alloy |
Control system |
Electromagnet/wind wheel yaw |
Speed regulation |
Automatically adjust windward direction |
Working temperature |
-40°C - 80°C |
Design life |
20 y |
Certificates |
CE, ISO14001,ISO 9001, TUV |
Features for 300w small portable wind turbine:
1.Low start up speed, 3 or 5 blades optional for different wind speed areas,high wind energy utilization
2.Easy installation, tube or flange connection optional
3.Blades using new art of precision injection molding , matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.
4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely
5.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.
6.Controller,inverter can be matched according to customers’ specific needs

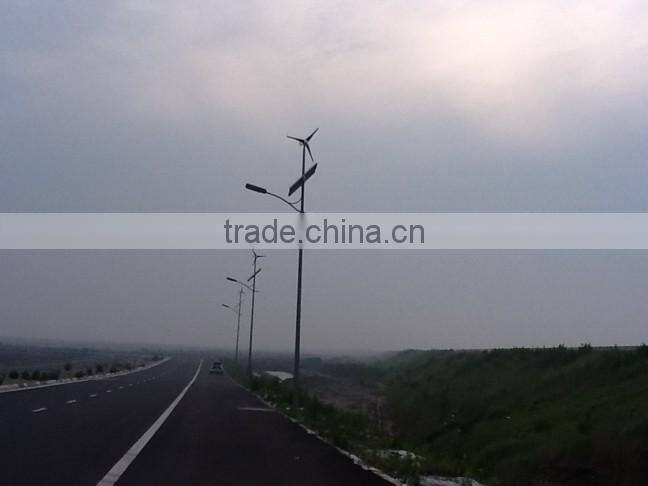

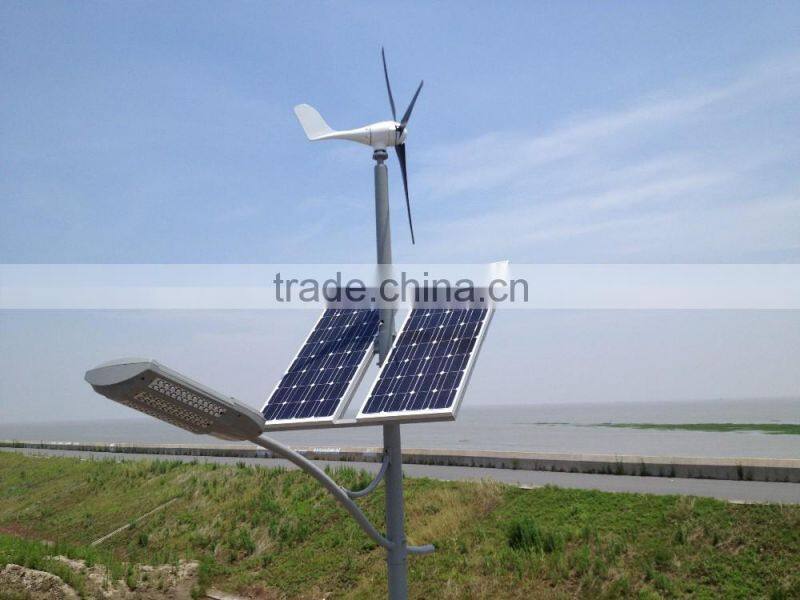

300w small portable wind turbine projects:
|
|

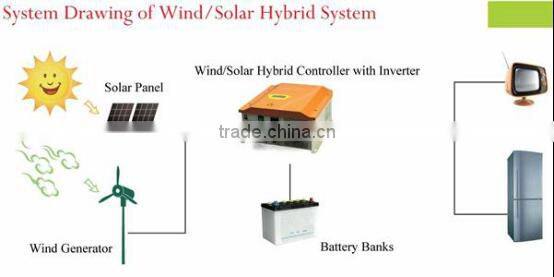

300w small portable wind turbine system:
We pack as per customers' requirements. Following is our regular packaging.

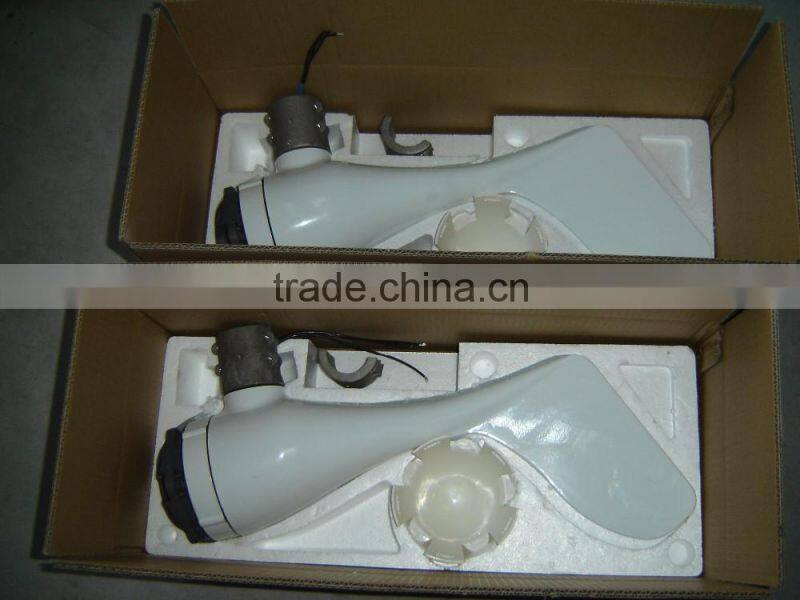

Packaging for 300w small portable wind turbine:
We can design different systems of wind turbine for customers according to their requirements.
All lifelong technical support and part cost supply.
24 hours on-line---Your enquiries will be replied within 24 hours.
We are manufacturer of wind turbine generator,we have our R&D team, advanced
manufacturing and testing facilities for small wind turbine generator,now our small wind turbine generators are hot sale.our products covers small wind turbine generator 50w-600w,wind turbine generator 1000w-10kw, vertical axis wind turbine and permanent magnet generator.
Cooperation around the world:

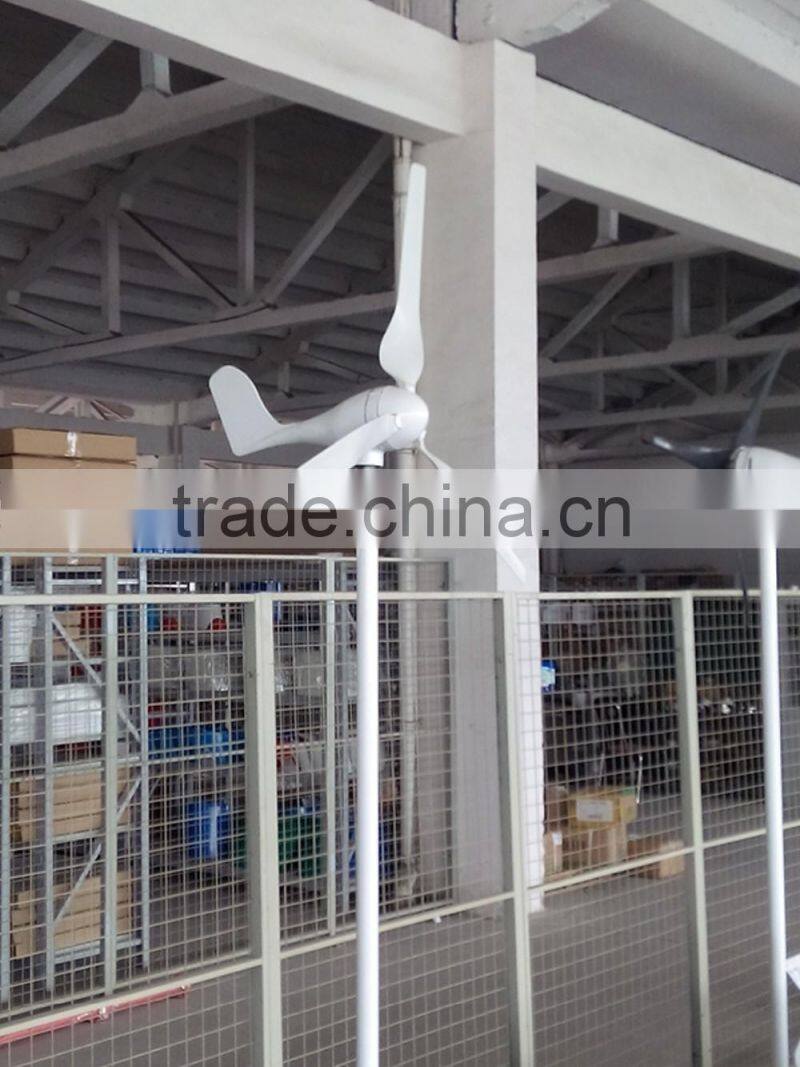

Factory view:
1. Q: Where is your factory?
A: Wuxi city, Jiangsu Province, about one hour drive from Shanghai.
2. Q: Is installation easy?
A: Yeah, very easy. Every customer can do it by thenselves. We supply you all the components and the isntallation manual.
3. Q: Is our wind enough for a wind generator?
A: Our wind generator can start running at low wind speed 3m/s, so if your verage annual wind speed is more than 5m/s, you can use it.
4. Q: Which model should I choose?
A: If you are not sure to choose the model, please contact our sales with the following points:
1. What appliance do you want to run by the system? How many watts are they? How long do they work?
2. Your annual wind speed.
3. What kind of system do you want? On-grid or off grid?
5. Q: Can I only buy parts of the whole system?
A: Yes.
Any other questions, please feel free to contact me.
