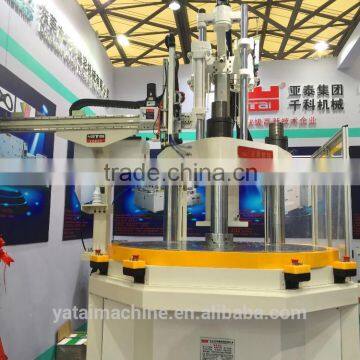

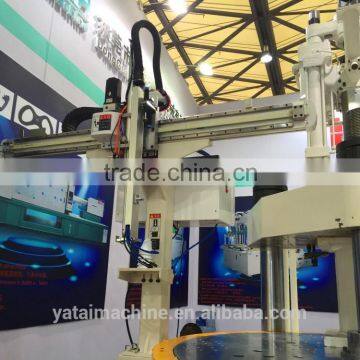

Help CenterVertical Injection Moulding Machine-rotary Table
Related Products
-
85Ton of Vertical Injection Molding MachineUS$ 1 - 11,000MOQ: 1 Set -
Led Bulbs Injection Moulding Machine of VerticalUS$ 1 - 64,100MOQ: 1 Set
-
2013 Automatic Wire Stripper Machine- Double Wire in a TimeUS$ 800 - 2,500MOQ: 1 Set
-
Automatically Terminal Crimping MachineUS$ 1 - 19,860MOQ: 1 Set
-
2013 Terminal Stripping & Crimping MachineUS$ 800 - 3,000MOQ: 1 Set

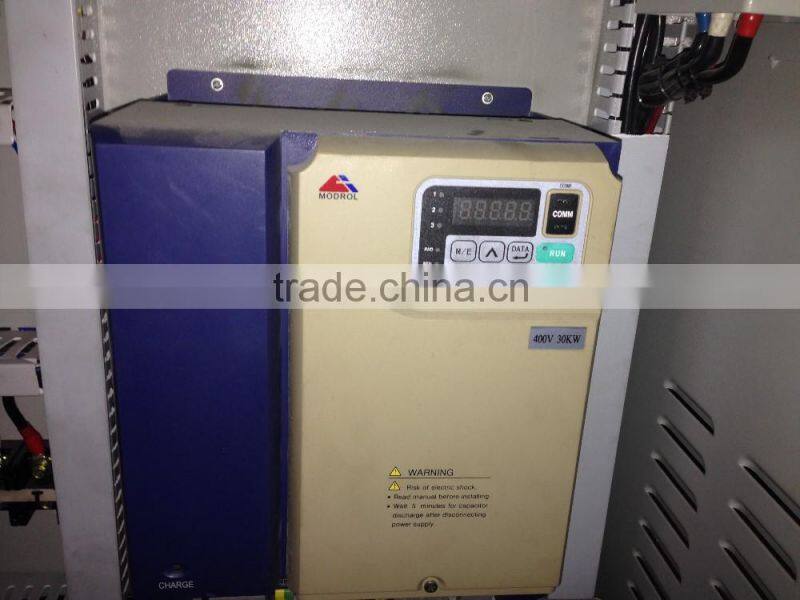

1. Servo motors drive

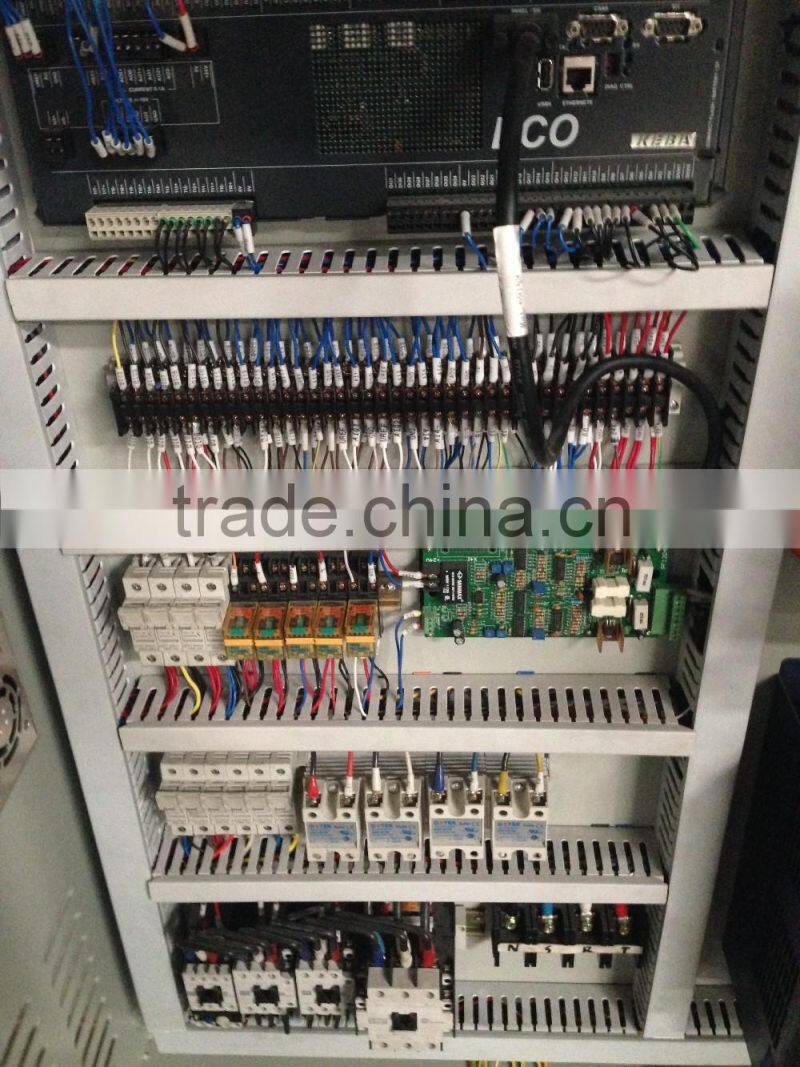

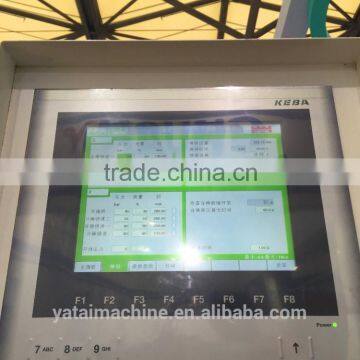

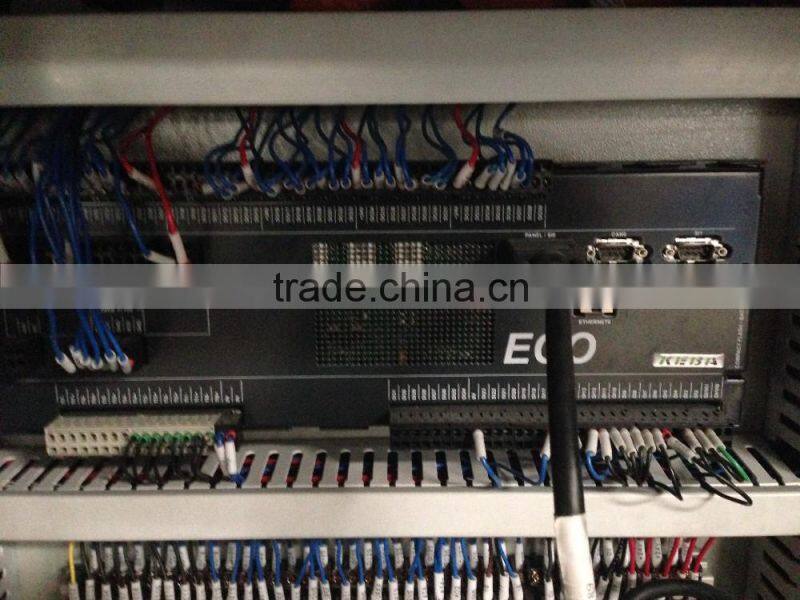

2. KEBA controller system imported from Italy

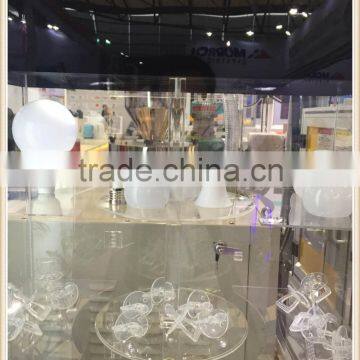

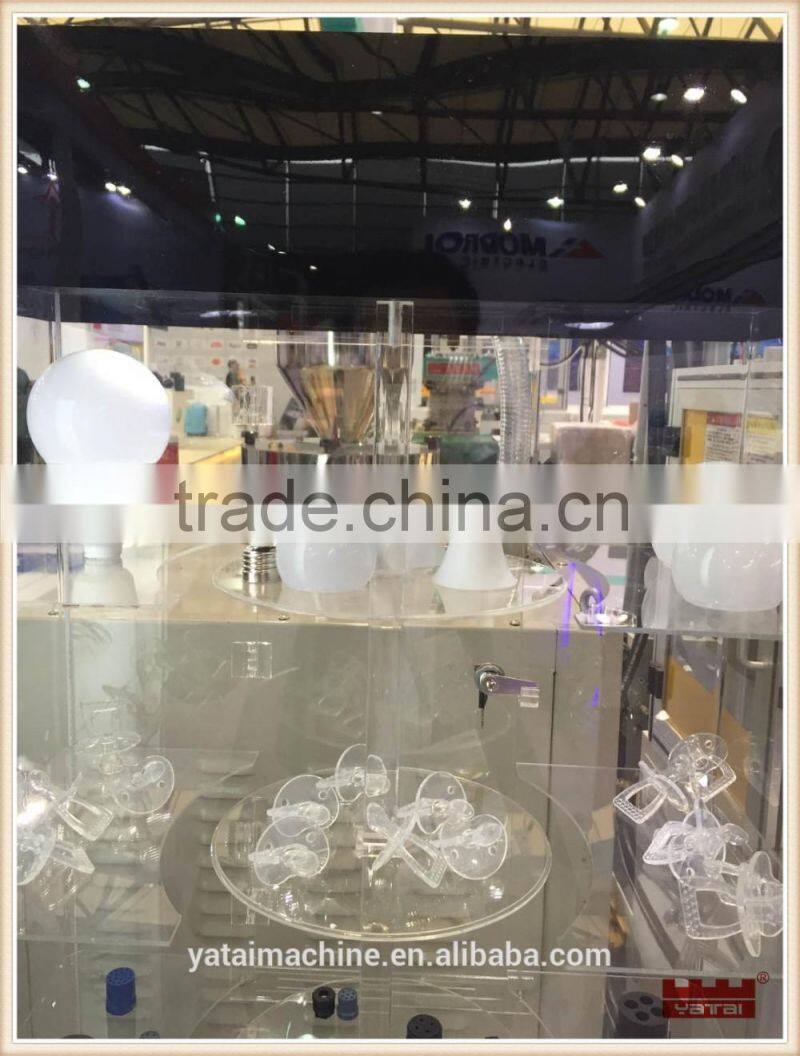

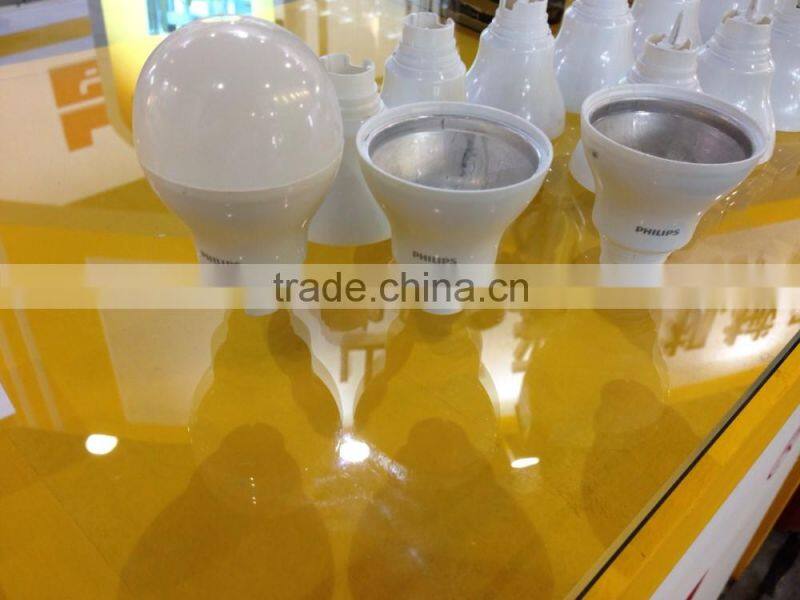

3.Production volume: 30000 LED cup per day

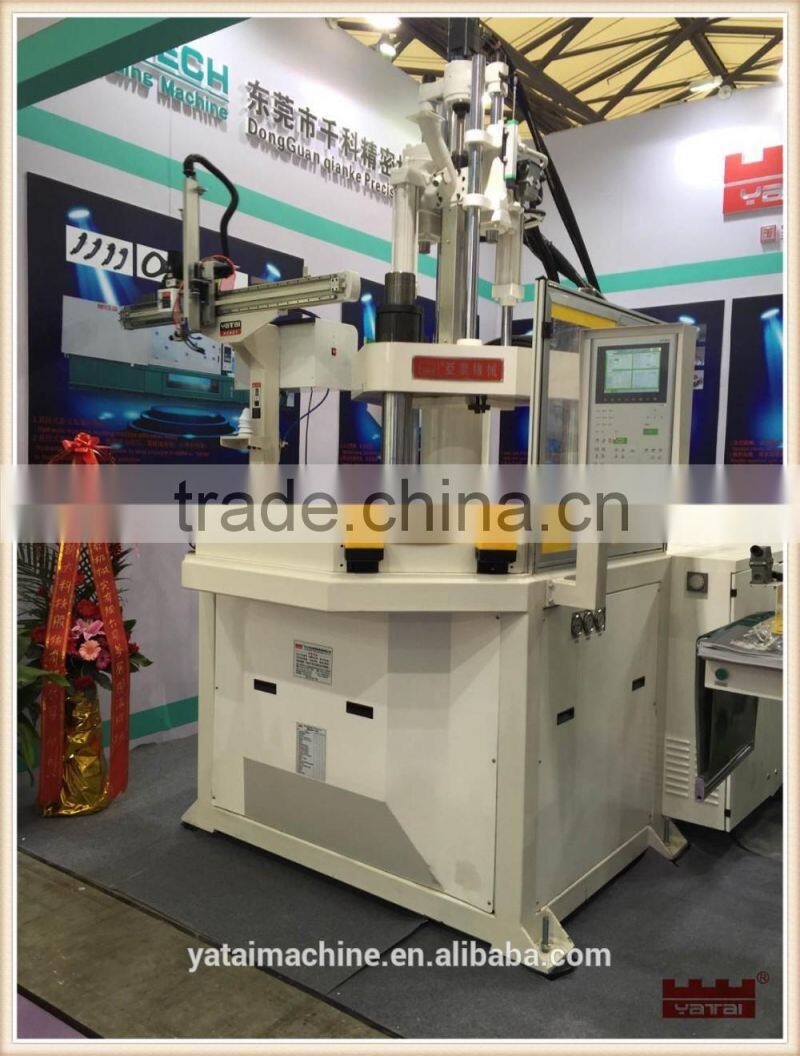

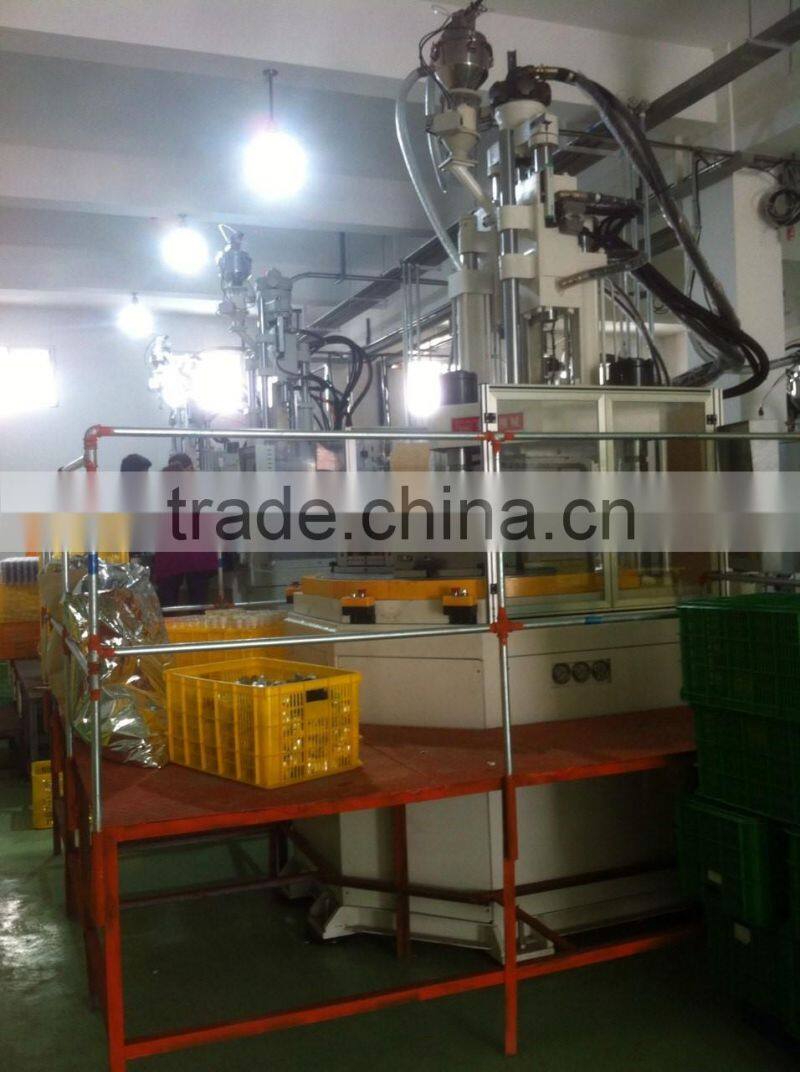

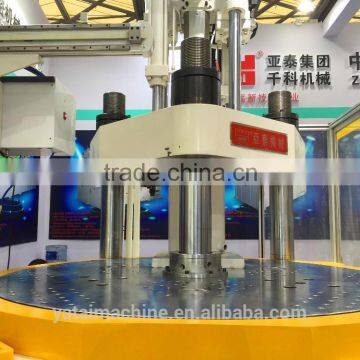

4. 160ton plastic injection molding machine have 4 kinds,no slider,1 slider,2 sliders and rotary table type,you can according to the needs to chooes different work table,We showed this time is rotaty table injection molding machine
| Model No. | V160R3 | |||||
|
Injection Unit |
Screw Diameter | mm | 45 | 50 | 55 | |
| Theoretical Injection Volume | cm3 | 318 | 393 | 475 | ||
| Injection Weight(PS) | g(oz) | 296(10.4) | 365(12.8) | 442(15.6) | ||
| Max.Injection Pressure | Mpa(kgf/cm2) | 218(2226) | 177(1803) | 146(1490) | ||
| Injection Rate | cm3/s | 178 | 220 | 266 | ||
| Injection Speed | mm/s | 112(121) | ||||
| Screw Speed Rotation | r.p.m | 0-300 | ||||
| Nozzle Out From Platens | mm | ≥45 | ||||
|
Clamping Unit |
Clamping Force | KN(tf) | 1568(160) | |||
| Clamping Stroke | mm | 300 | ||||
| Min.Mold Thickness | mm | 300(400) | ||||
| Max.Opening | mm | 600(700) | ||||
| Distance Between Tie Bars | mm | --- | ||||
| Max.Mould Size | mm | 420*420 | ||||
| Platen/Slide Size | mm | Φ 1360 | ||||
| Ejector Distance | mm | 110 | ||||
| Ejector Force | KN(tf) | 45(4.6) | ||||
| Others | System Pressure | Mpa(kgf/cm2) | 13.7(140) | |||
| Oil Tank Capacity | L | 630 | ||||
| Electric Power | KW(HP) | 22.5(30) | ||||
| Heater Power | KW | 13.8 | ||||
| Machine Dimensions | L*W | mm | 2670*2140 | |||
| H | mm | 2567(4467) | ||||
| Machine Weight | ton | 9.4 | ||||
1. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 30 days
2. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for you
1. Provide free guidance of before you start use our injection molding machine
2. 1 year warranty
3. Free remote guidance by video chat when you have problem during use the injection molding machine
Zhongshan Yatai Machinery Co., Ltd. is biggest wire processing factory in the area of the perl river delta region ,Specialized in R&D and producing plastic injection molding machines, full auto wire stripping crimping machines, cutting stripping machines, tube cutting machines and automatic robot hands.If you want to know more about our pruducts,please browse the website as follows
1) Can I order in 1unit ?
Of course you can
2) Can i be a agent in my market ?
We need talk details about agent agreement .
3)Did you have CE certificate ?
Yes, we have
4) How long year you do this machine
our factory start this equipment making since 1992.
5)what's your website ?
is official one .
6) How i can talk with you online ?
QQ&wechat Number :251926058
what's app Number:+86-18664939871
Skype ID: jeapear
7) I'm alone, I just want chat with some guy from China .
Errrrr. Fine , what's thing you want know about China ?
8) I saw you have lots of molding machine and wire harness machine.Are you a trade company ?
No. We are manufacturer. We have two important department .One is wire harness equipment in automatic design , the other one is injection molding machine .
