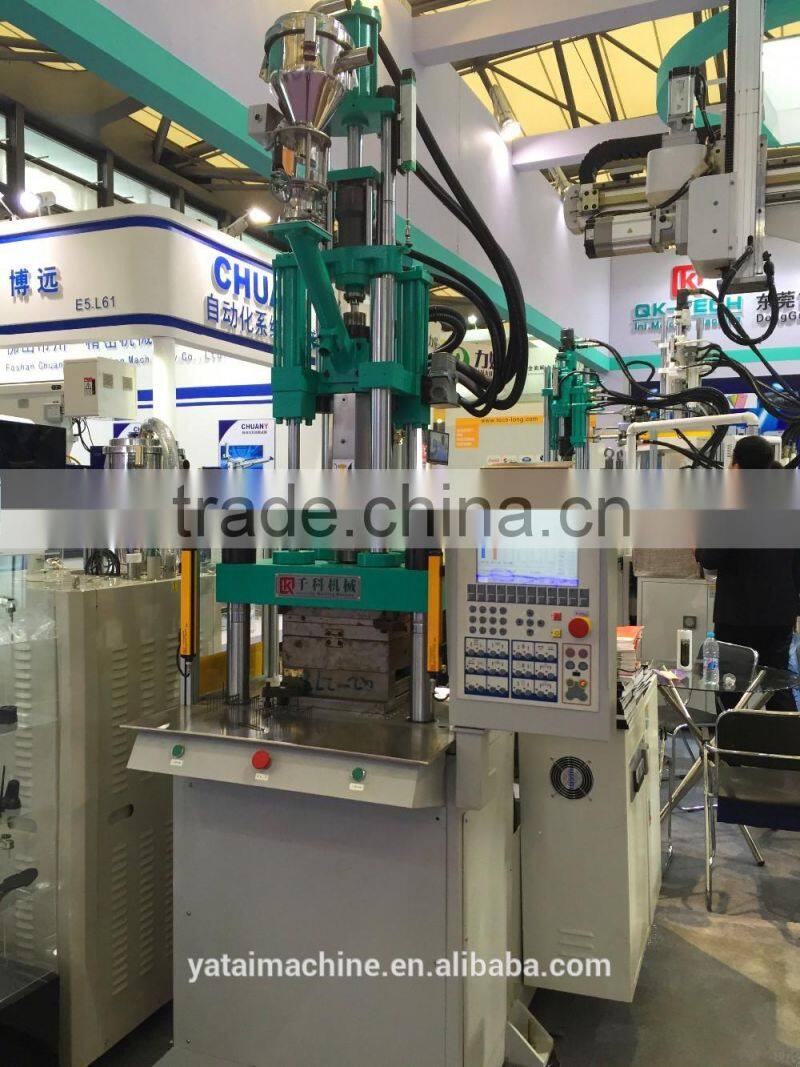

85Ton of Vertical Injection Molding Machine

Name: 85Ton of Vertical Injection Molding Machine
Brand: Yatai
SKU: 111082385
Availability: InStock

US$ 1 - 11,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Preform Injection

Style:

Vertical

Zhongshan Yatai Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan

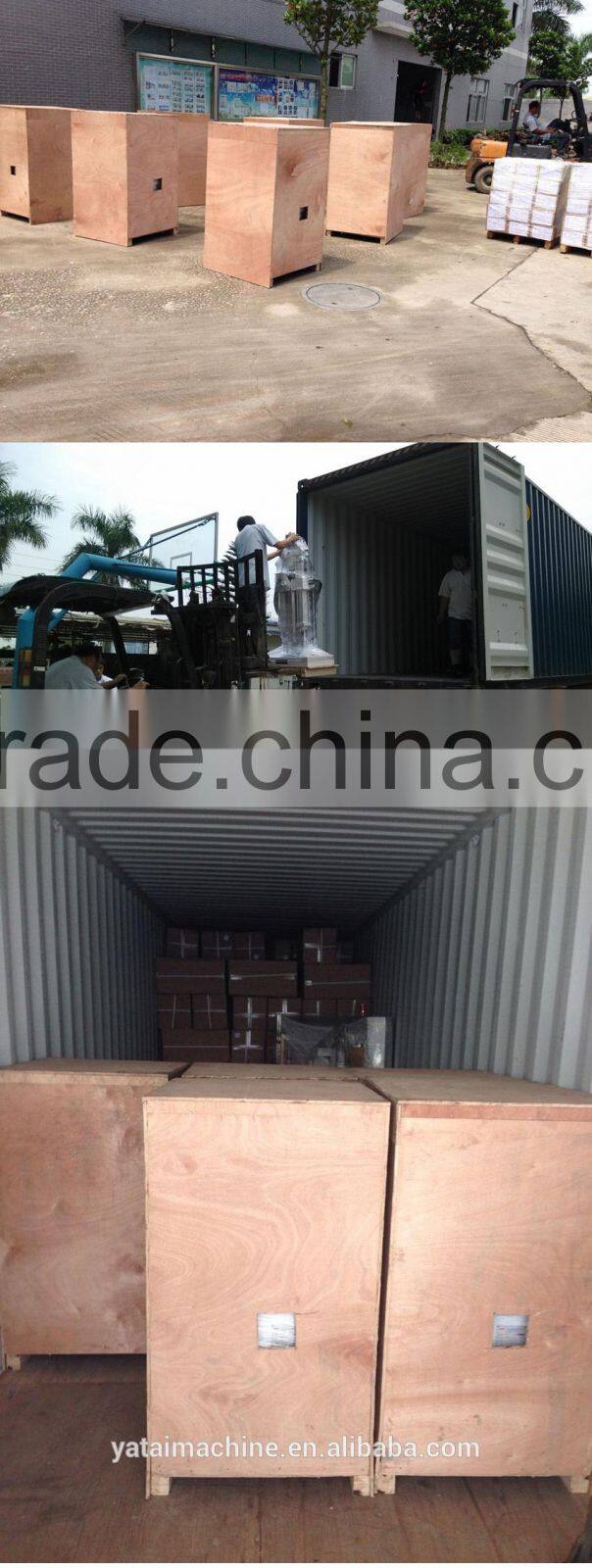

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Preform Injection

Style Vertical

Brand Name Yatai

Model Number V85-M

Place of Origin Guangdong, China

Plastic Type Thermoplastic

Automatic Yes

Injection Weight 0-190g

Injection Rate 103-250mm/s

Clamping Force 85ton

Opening Stroke 200mm

Power(W) 16KW

Certification ISO9001,CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

1.Vertical injection molding machine.

2.High quality in Hydraulic system.

3. Locking force:55ton.

4. Locking system is big hydraulic cylinder.

5.Dizhou computer from Taiwan.

6. More competitive price .

1. Machine Specifications

Model No.				V85-M
Injection Unit	Screw Diameter		mm	32	36	40
	Theoretical Injection Volume		cm3	113	142	176
	Injection Weight(PS)		g(oz)	105(3.7)	132(4.6)	164(5.8)
	Max.Injection Pressure		Mpa(kgf/cm2)	229(2331)	181(1842)	146(1492)
	Injection Rate		cm3/s	86	109	134
	Injection Speed		mm/s	107(138)
	Screw Speed Rotation		r.p.m	0-300
	Nozzle Out From Platens		mm	≥45
Clamping Machine	Clamping Force		KN(tf)	833(85)
	Clamping Stroke		mm	250
	Min.Mold Thickness		mm	230(330)
	Max.Opening		mm	480(580)
	Distance Between Tie Bars		mm	500*385
	Max.Mould Size		mm	550*480
	Platen/Slide Size		mm	680*570
	Ejector Distance		mm	50
	Ejector Force		KN(tf)	26.5(2.7)
Others	System Pressure		Mpa(kgf/cm2)	13.7(140)
	Oil Tank Capacity		L	280
	Electric Power		KW(HP)	15(20)
	Heater Power		KW	6.4
	Machine Dimensions	L*W	mm	1960*1410
		H	mm	2632(3352)
	Machine Weight		tf	3.0
