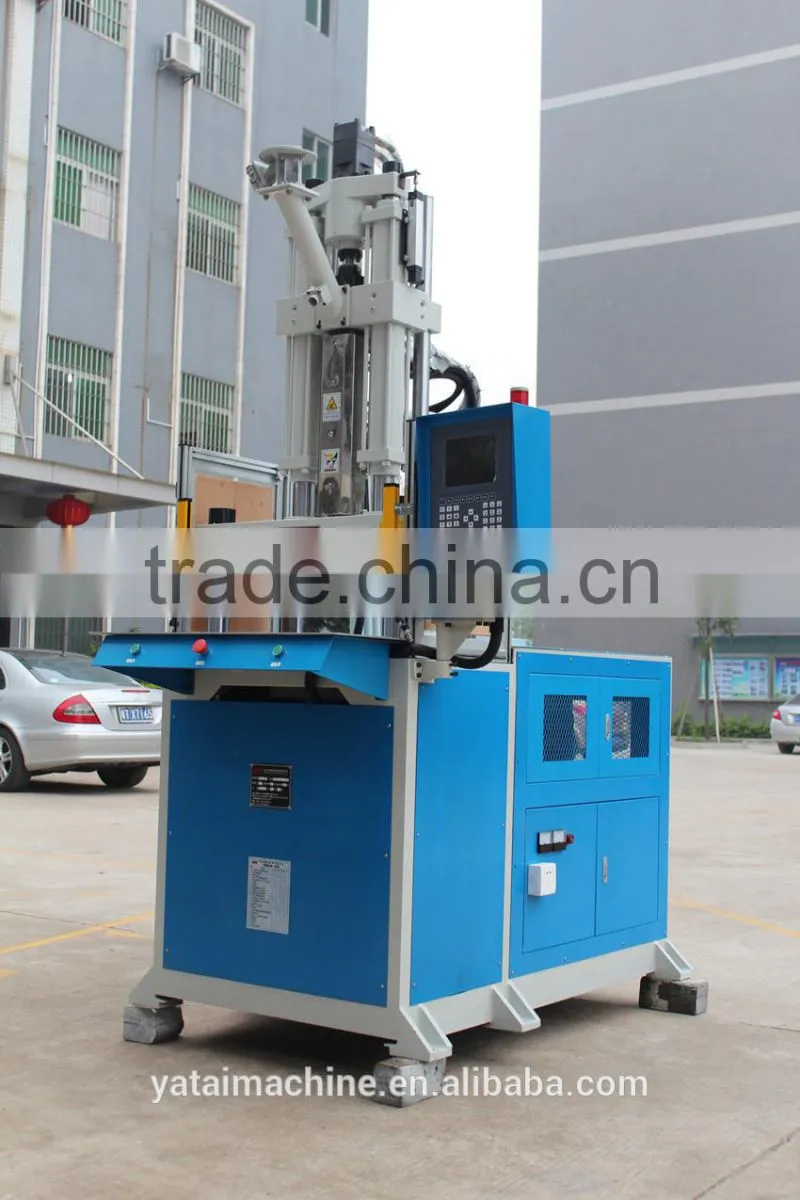

55ton Vertical Injection Molding Machine

Name: 55ton Vertical Injection Molding Machine
Brand: Yatai
SKU: 111082009

US$ 1 - 11,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Preform Injection

Style:

Vertical

Zhongshan Yatai Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Preform Injection

Style Vertical

Brand Name Yatai

Model Number V55-M

Place of Origin Guangdong, China

Plastic Type Thermoplastic

Automatic Yes

Injection Weight 132g

Injection Rate 103mm/s

Clamping Force 55ton

Opening Stroke 200mm

Power(W) 13KW

Certification ISO9001,CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

1.Vertical injection molding machine.

2.High quality in Hydraulic system.

3. Locking force:55ton.

4. Locking system is big hydraulic cylinder.

5.Dizhou computer from Taiwan.

6. More competitive price .

1. Machine Specifications

Model No.				V55
Injection Unit	Screw Diameter		mm	28	32	36
	Theoretical Injection Volume		cm3	86	112.5	142
	Injection Weight(PS)		g(oz)	80(2.8)	104(3.6)	132(4.6)
	Max.Injection Pressure		Mpa(kgf/cm2)	212(2170)	162(1661)	146(1492)
	Injection Rate		cm3/s	63	83	105
	Injection Speed		mm/s	103(149)
	Screw Speed Rotation		r.p.m	0-240
	Nozzle Out From Platens		mm	≥45
Clamping Unit	Clamping Force		KN(tf)	539(55)
	Clamping Stroke		mm	200
	Min.Mold Thickness		mm	180(260)
	Max.Opening		mm	380(460)
	Distance Between Tie Bars		mm	445*255
	Max.Mould Size		mm	380*376
	Platen/Slide Size		mm	500*396
	Ejector Distance		mm	100
	Ejector Force		KN(tf)	21.5(2.2)
Others	System Pressure		Mpa(kgf/cm2)	13.7(140)
	Oil Tank Capacity		L	140
	Electric Power		KW(HP)	7.5(10)
	Heater Power		KW	5.5
	Machine Dimensions	L*W	mm	2.16*1265
		H	mm	2465(3110)
	Machine Weight		ton	1.7
