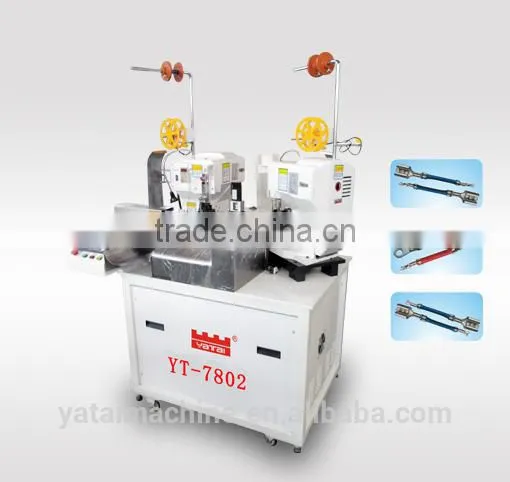

Hot Sale Full Automatic Terminal Crimping Machine 7802US$ 1,000 - 22,000MOQ: 1 Set
1.automatic crimping machine
2.J.A.M of automatic crimping machine
3.Terminals crimping machine
4.Connector crimping machine
5.Servo motor .
6.OTP applicator
7.THK sliding

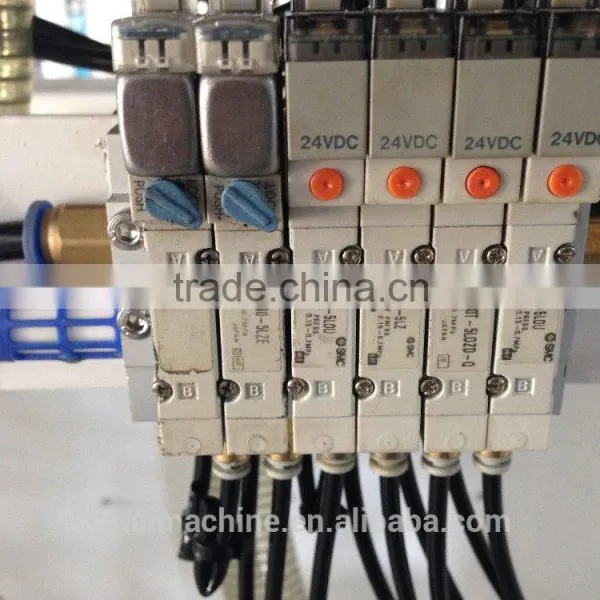

8.SMC air cylinder
9.cutting.stripping ,crimping in the same time
10. CFM unit is selection .
11. The best cost and highest efficiency.
| Model No. | YT-7802 |
| Gauge | AWG1007#14-#28 |
| Drive mode | 3800pcs/h(L≤100mm) at both ends |

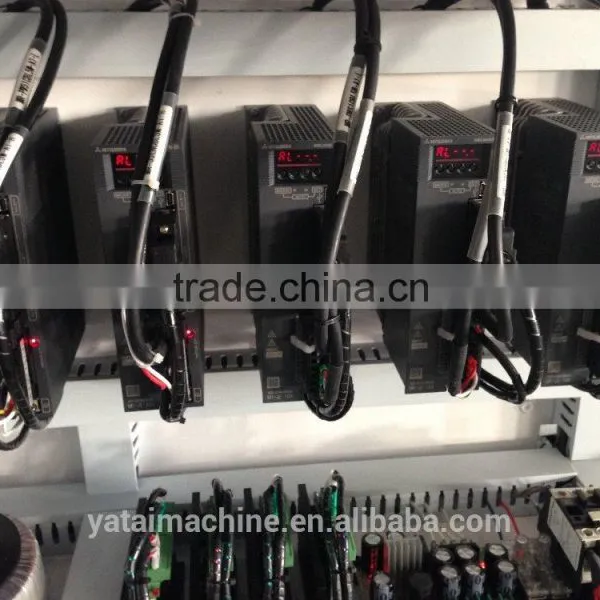

| Capacity | Mitsubishi Servo with four motor drives |
| Function | Cut,strip,crimp with both ends |
| Cutting length | 40mm-9999mm |
| Cutting tolerance | ±0.2mm+(L*0.002mm) |
| Stripping length | 0-15mm(both ends) |
| Applicator | NO.1OPT;NO.2 Side&Rear Feed |
| Crimping machine | 2T crimping machine with low noise |

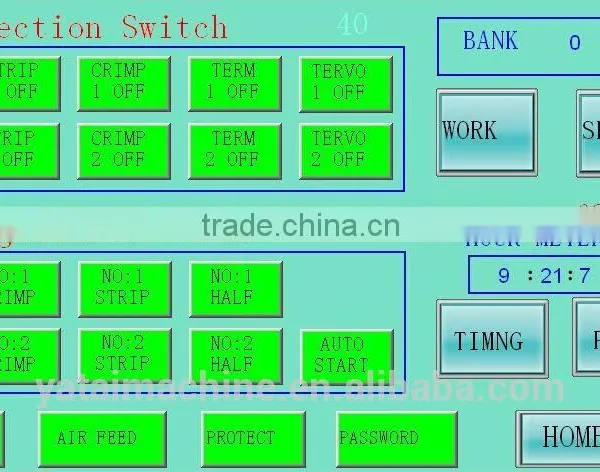

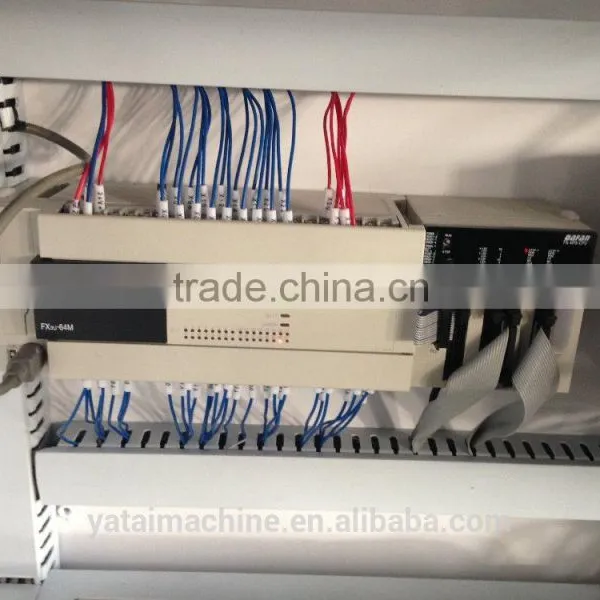

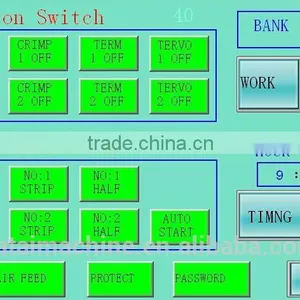

| Control | Professional Central Process Unit |
| Test ability | no wire;tie a knot;crimp with fault way;low pressure |
| Voltage | AC220V-50/60Hz single phase |
| Air pressure | 0.5Mpa(140NL/min) |
| Measurement | 1070*1020*1450 L*W*H mm |
| Weight | 450kg |
| Selected unit | Wire feed,Wire collect,CFM |

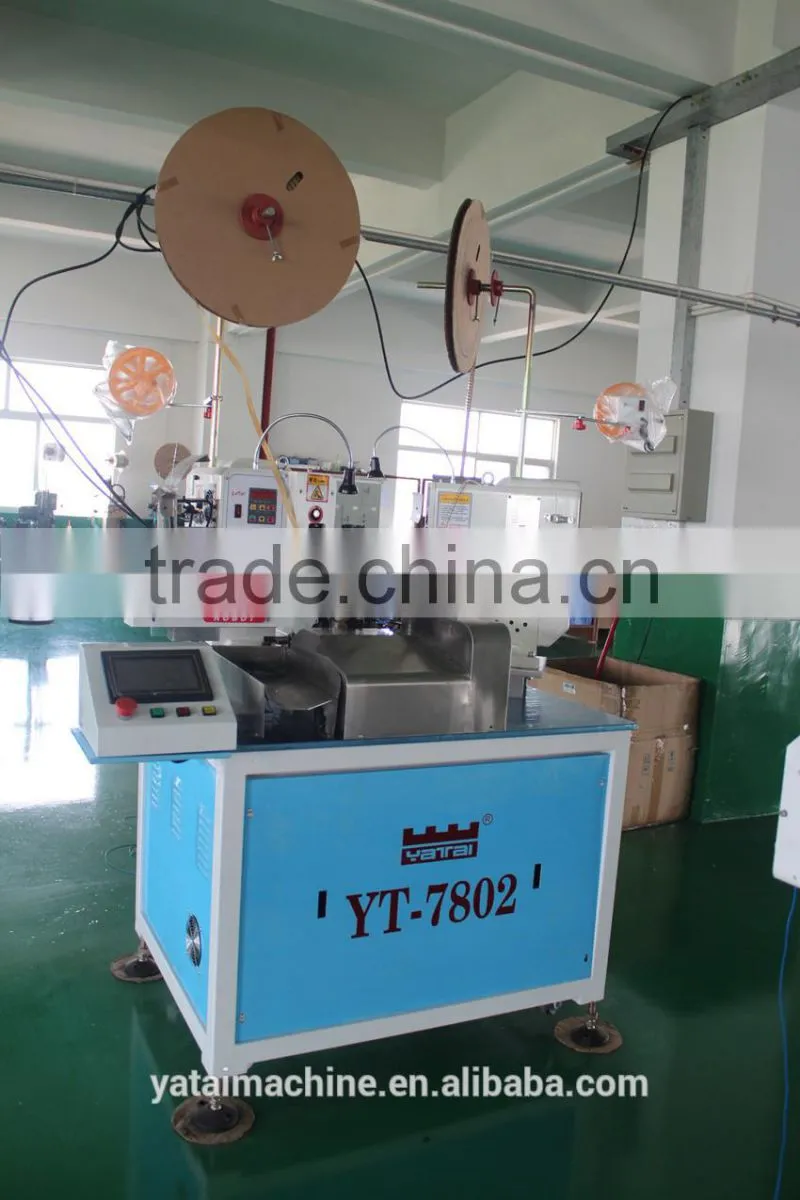

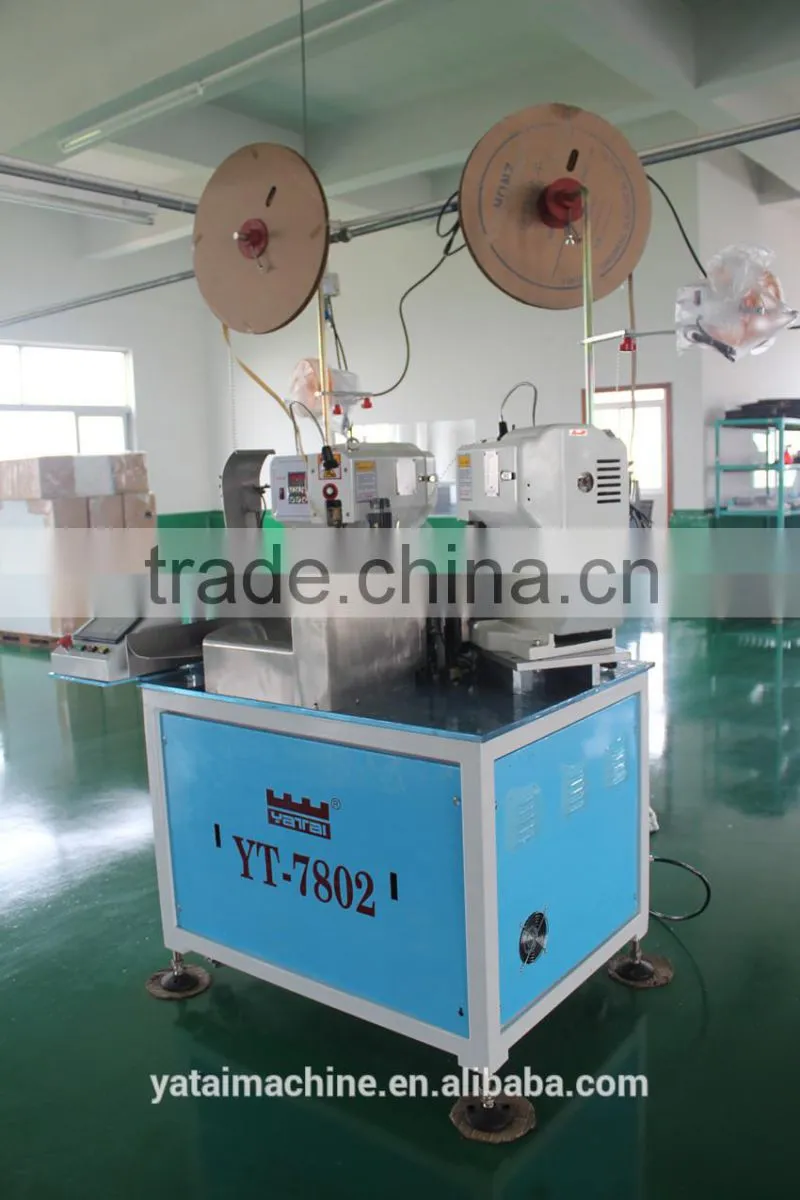

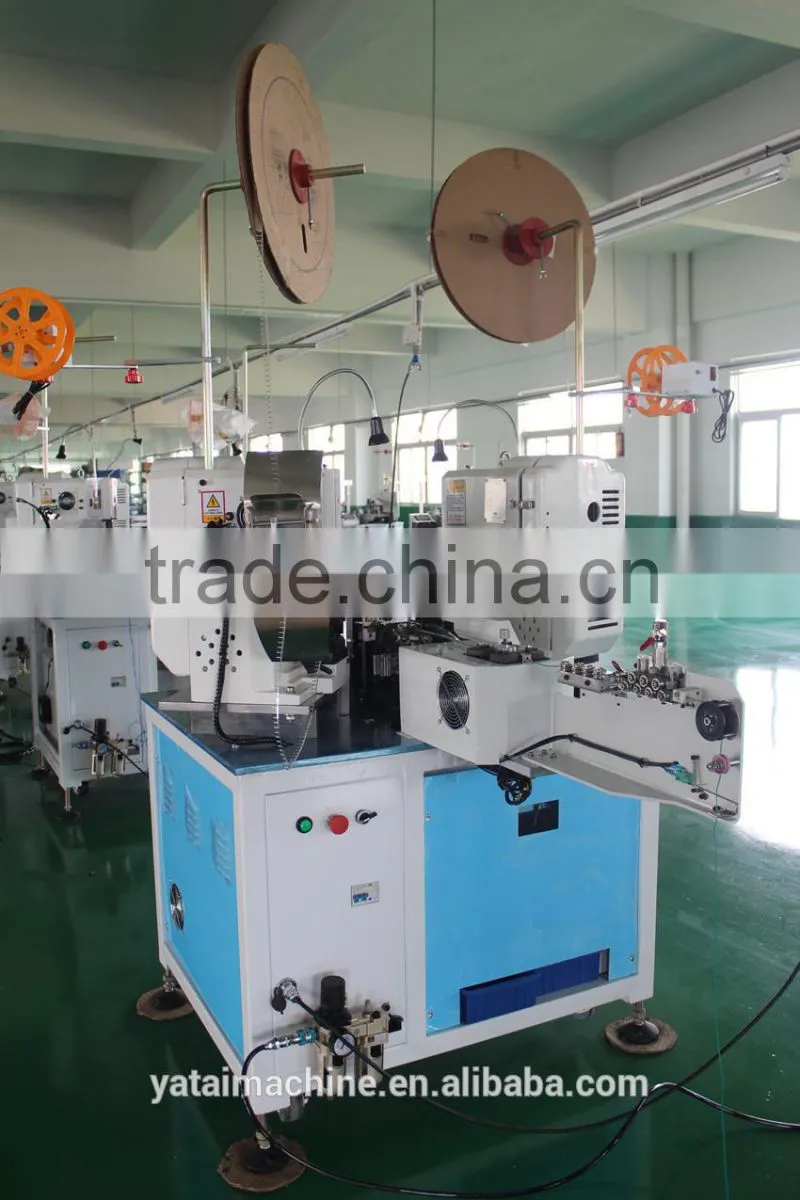

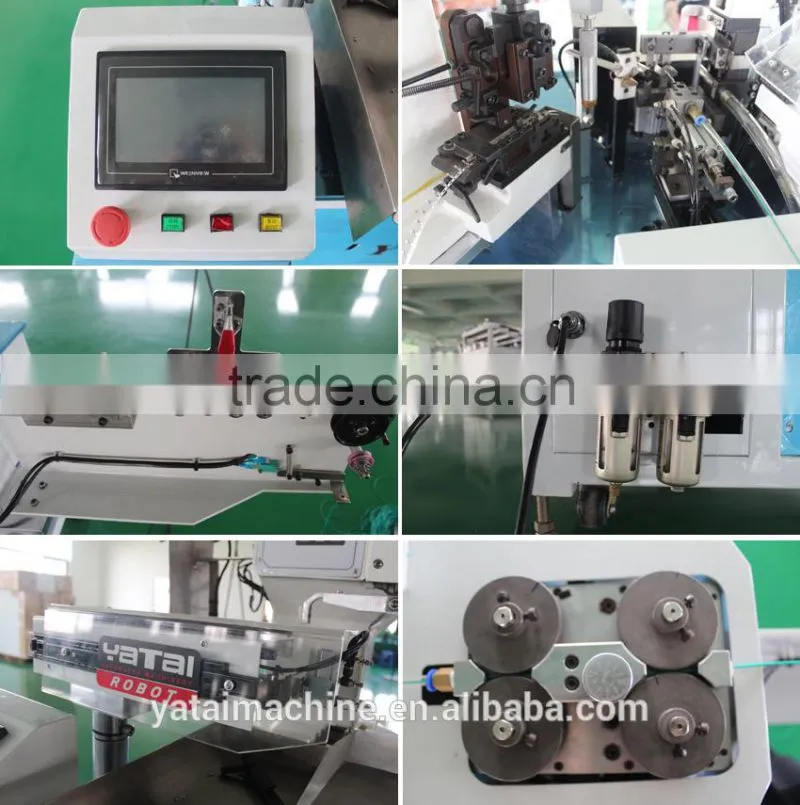

Machine Details

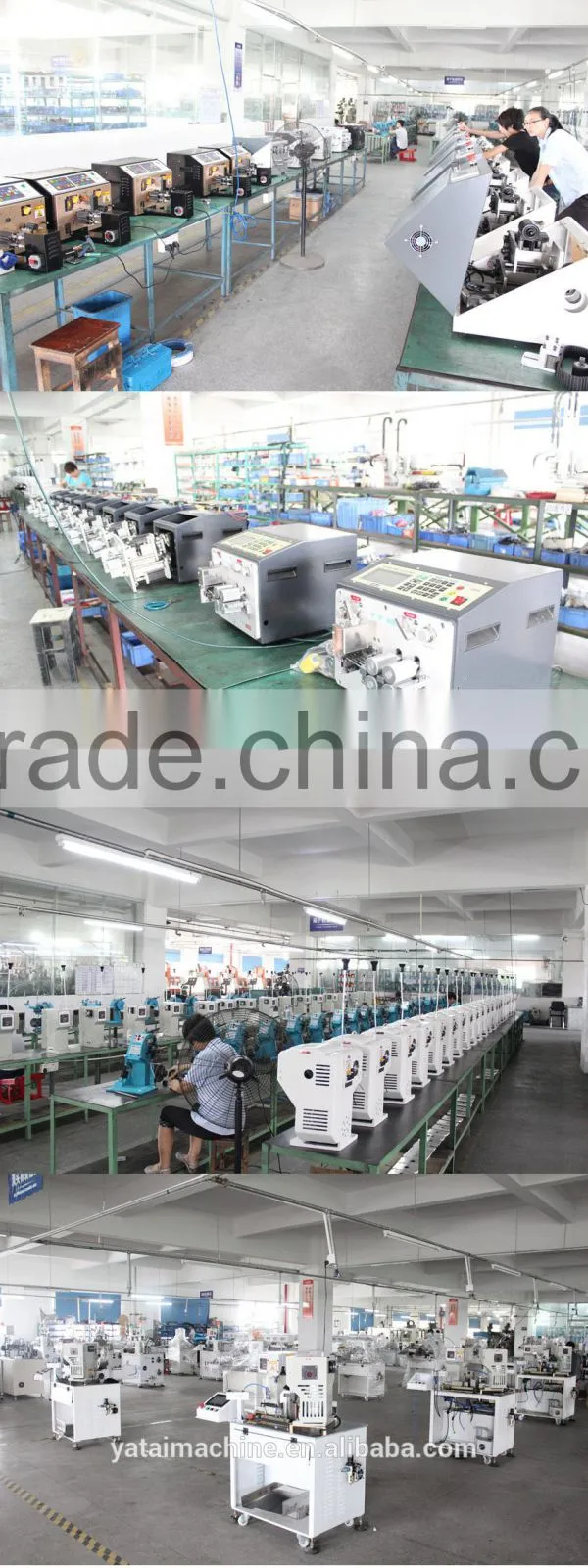

Processing Workshop
Assembling Workshop
Package and Shipping
Customer and Friend come from all over the world :
Video view please add me on what's app :+86-18664939871
Certificates
1. Full automatic crimp machine YT-7802,we have stock,we can delivery it at any working time after you payment,
2. Use film to cover it,then package it by wooden case
3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us
4. Check the machine's quality and test it before shipping
5. Provide free guidance before you start using our terminal crimping machine
6. 1 year warranty
7. Free remote guidance by video chat when you have problem during use the terminal crimping machine
8.Servo motor by Mitsubishi and THK guid sliding .
9.CFM unit can be assembled .
1) Can I order in 1unit ?
Of course you can
2) Can i be a agent in my market ?
We need talk details about agent agreement .
3)Did you have CE certificate ?
Yes, we have
4) How long year you do this machine
our factory start this equipment making since 1992.
5)what's your website ?
is offical one .
6) How i can talk with you online ?
QQ&wechat Number :251926058
what's app Number:+86-18664939871
Skype ID: jeapear
